0-27 — EXHAUST MANIFOLD (#6783) — 88 parça

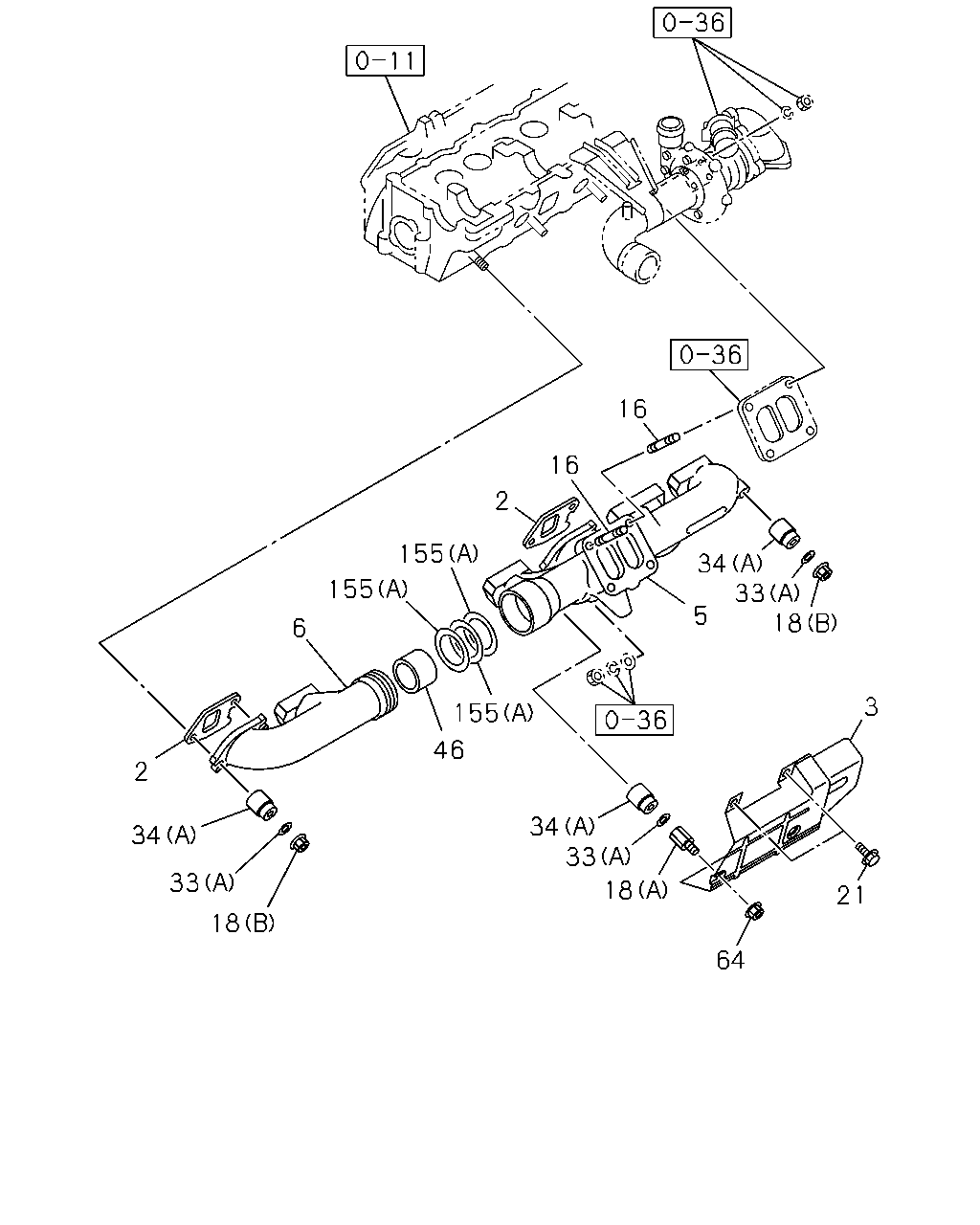

16 16 2 155 34 33 18 155 5 6 3 155 46 2 34 33 34 33 18 21 18 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9806-9911	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	9912-			●
3	PROTECTOR; HEAT,EXH MANIF	8-94394-385-1	01	1	9806-9901	●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-0	01	1	9902-9911	●
3	PROTECTOR; HEAT,EXH MANIF	8-94394-944-4	01	1	9912-0111			●
3	PROTECTOR; HEAT,EXH MANIF	8-97602-394-0	01	1	0112-			●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9806-9911	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9912-0104			●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-			●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9806-9911		●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9806-9911	●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9912-0104			●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-			●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9806-9911		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9806-9911	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9912-			●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9806-9911		●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9806-9911	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9912-0602			●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	10	1	0603-			●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	9806-9911	●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	9912-			●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	12	1	9806-9911		●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9806-9911	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9912-0512			●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
33	WASHER; EXH MANIF (A) DISH T=2.2	1-09556-015-0	12	1	9806-9911	●	●
33	WASHER; EXH MANIF (A) DISH T=2.2	1-09556-015-0	12	1	9912-			●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	02	1	9806-9911		●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9806-9911	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9912-0209			●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-97250-073-1	12	1	0210-			●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	10	1	9806-9911		●
34	COLLAR; DIST,EXH MANIF (C) L=43	8-94396-406-0	02	1	9806-9911		●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	9806-9911	●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	9912-0104			●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9806-9911	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9912-0602			●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-			●
64	NUT; HEAT PROTECTOR M10	9-09110-510-0	02	1	9806-9911		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	9806-9911	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	9912-0501			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	9806-9911		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9806-9911		●

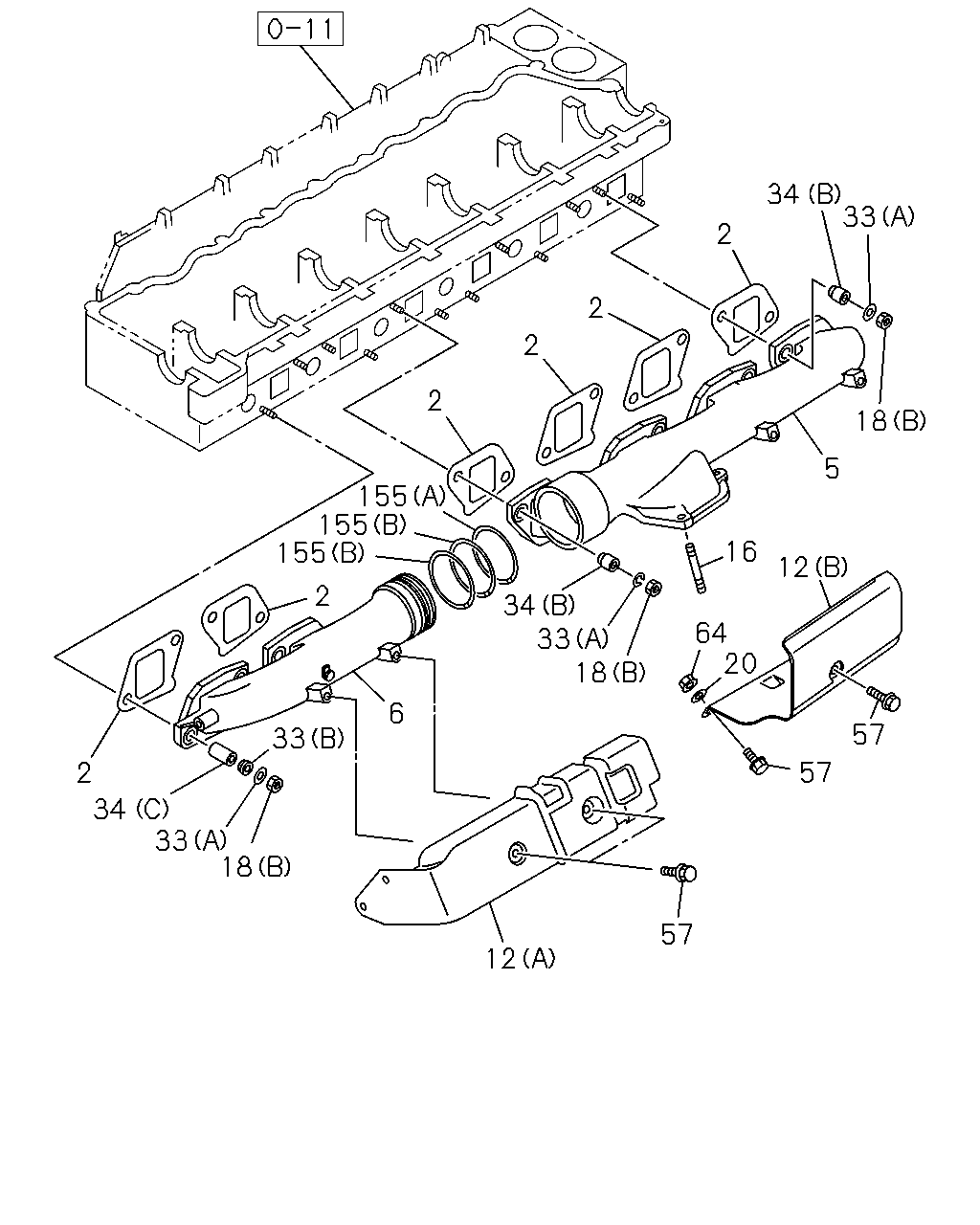

34 33 2 2 2 2 18 5 155 155 155 16 12 2 34 33 18 64 20 6 57 33 57 2 34 33 18 57 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9806-9911	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	9912-			●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9806-9911	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9912-0104			●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-			●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9806-9911		●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9806-9911	●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9912-0104			●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-			●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9806-9911		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94391-040-0	01	1	9806-9809		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94392-947-0	01	1	9810-9911		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94396-811-0	01	1	9806-9911		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9806-9911	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9912-			●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9806-9911		●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9806-9911	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9912-0602			●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	10	1	0603-			●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	9806-9911	●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	9912-			●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	12	1	9806-9911		●
20	WASHER; PL,HEAT PROTECTOR ID=10.5 OD=22	9-09160-610-0	02	1	9806-9911		●
33	WASHER; EXH MANIF (A) DISH T=2.2	1-09556-015-0	12	1	9806-9911	●	●
33	WASHER; EXH MANIF (A) DISH T=2.2	1-09556-015-0	12	1	9912-			●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	02	1	9806-9911		●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9806-9911	●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	12	1	9912-0209			●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-97250-073-1	12	1	0210-			●
34	COLLAR; DIST,EXH MANIF (B) L=28	8-94395-679-0	10	1	9806-9911		●
34	COLLAR; DIST,EXH MANIF (C) L=43	8-94396-406-0	02	1	9806-9911		●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	07	1	9806-9911		●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9806-9911	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9912-0602			●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-			●
64	NUT; HEAT PROTECTOR M10	9-09110-510-0	02	1	9806-9911		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	9806-9911	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	9912-0501			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	9806-9911		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9806-9911		●
