0-25 — INLET MANIFOLD (#6782) — 155 parça

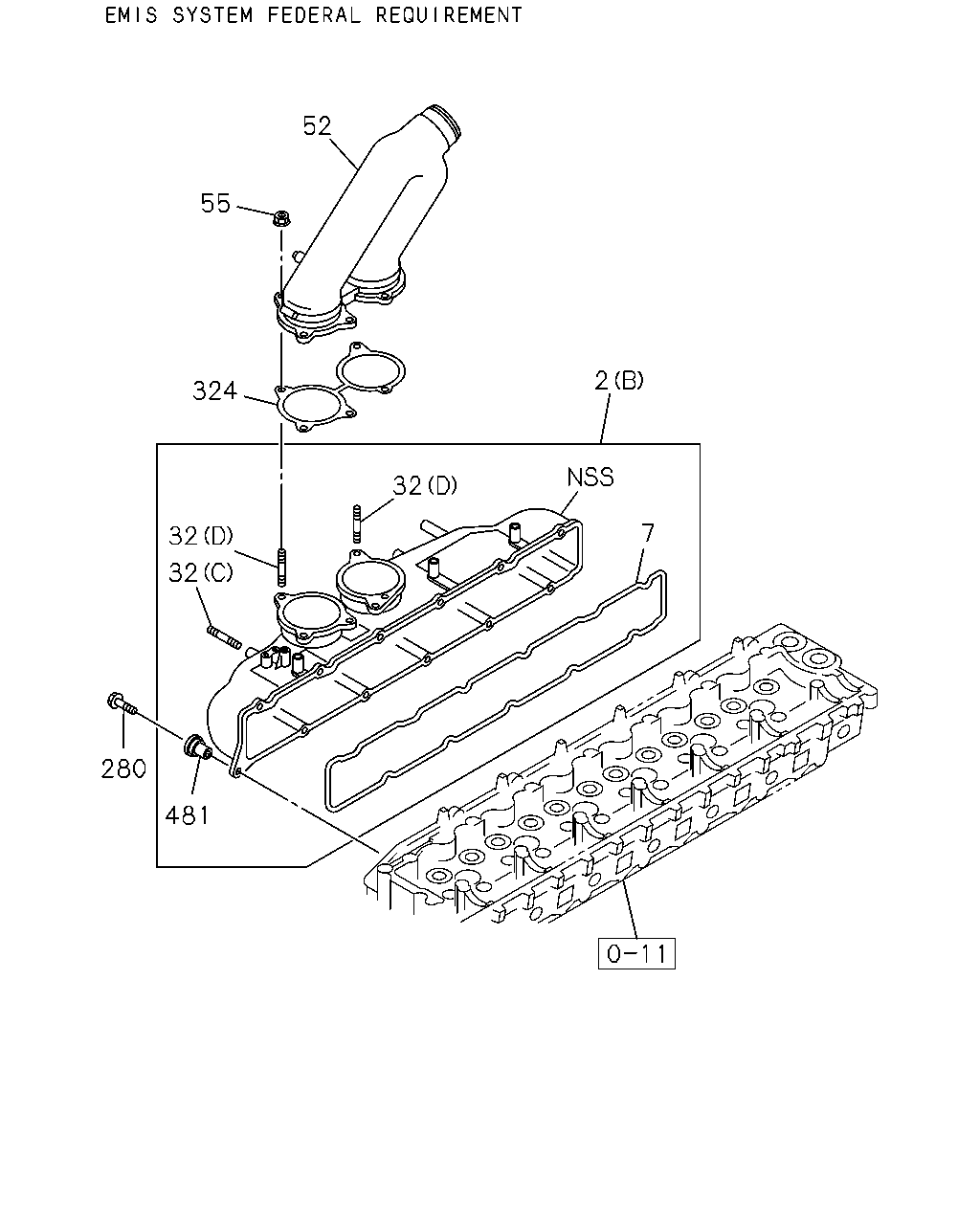

52 55 2 324 32 7 32 32 280 481

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL (A)	8-94392-020-0	01	1	9806-9911	●
2	COVER; INL (D)	8-94395-825-1	01	1	9912-		●
2	COVER; INL (B)	8-94395-899-0	01	1	9806-9806			●
2	COVER; INL EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94395-899-1	01	1	9807-9911			●
2	COVER; INL EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (C)	8-94395-960-0	01	1	9807-9911			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9806-9911	●		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	9912-		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	9806-9911	●
32	STUD; INL PIPE (E) M8X25 L=37	9-04110-825-0	05	1	9912-0604		●
32	STUD; INL PIPE (E) M8X25 L=37	0-41010-825-0	05	1	0605-		●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9806-9911	●
32	STUD; INL PIPE (C) M6X25 L=34	9-04110-625-0	04	1	9806-9806			●
32	STUD; INL PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (C) M6X25 L=34	9-04110-625-0	04	1	9807-9911			●
32	STUD; INL PIPE (D) M8X20 L=32	9-04110-820-0	05	1	9806-9806			●
32	STUD; INL PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (D) M8X20 L=32	9-04110-820-0	05	1	9807-9911			●
52	PIPE; INL	8-94395-143-1	01	1	9806-9806			●
52	PIPE; INL EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94395-143-1	01	1	9807-9911			●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	04	1	9806-9911	●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	05	1	9912-0602		●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	05	1	0603-		●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	05	1	9806-9806			●
55	NUT; INL PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> M8 FLANGE	0-91150-108-0	05	1	9807-9911			●
280	BOLT; INL COVER M8X28 FLANGE	0-28080-828-0	12	1	9806-9911			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	9806-9911	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	9912-		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	9806-9806			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94394-141-0	01	1	9807-9911			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94399-417-0	01	1	9807-9911			●
481	TUBE; DIST,INL COVER OD=22	8-94395-684-0	12	1	9806-9911			●

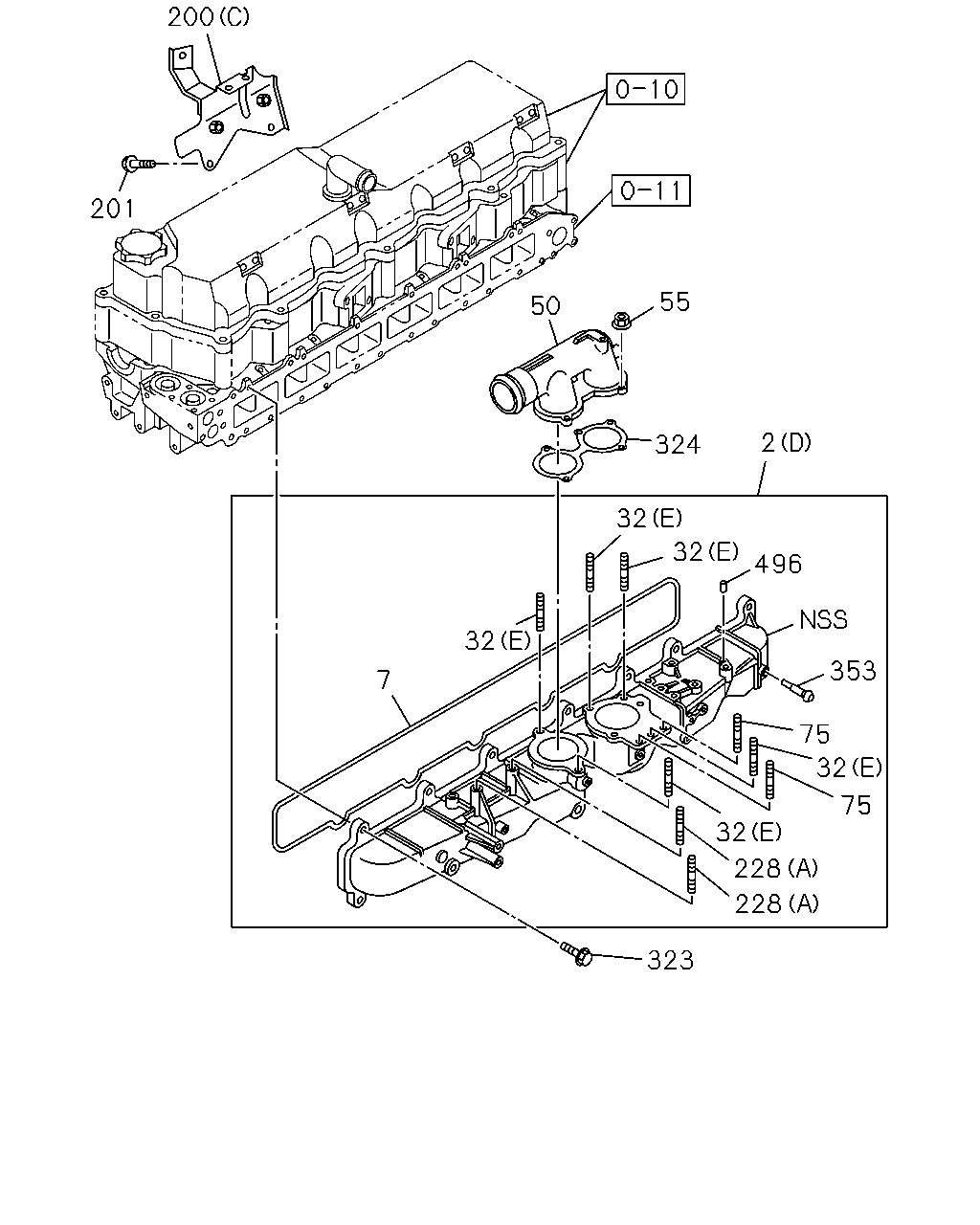

200 201 55 50 2 324 32 32 496 32 353 7 75 32 75 32 228 228 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL (A)	8-94392-020-0	01	1	9806-9911	●
2	COVER; INL (D)	8-94395-825-1	01	1	9912-		●
2	COVER; INL (B)	8-94395-899-0	01	1	9806-9806			●
2	COVER; INL EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94395-899-1	01	1	9807-9911			●
2	COVER; INL EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (C)	8-94395-960-0	01	1	9807-9911			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9806-9911	●		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	9912-		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	9806-9911	●
32	STUD; INL PIPE (E) M8X25 L=37	9-04110-825-0	05	1	9912-0604		●
32	STUD; INL PIPE (E) M8X25 L=37	0-41010-825-0	05	1	0605-		●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9806-9911	●
32	STUD; INL PIPE (C) M6X25 L=34	9-04110-625-0	04	1	9806-9806			●
32	STUD; INL PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (C) M6X25 L=34	9-04110-625-0	04	1	9807-9911			●
32	STUD; INL PIPE (D) M8X20 L=32	9-04110-820-0	05	1	9806-9806			●
32	STUD; INL PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (D) M8X20 L=32	9-04110-820-0	05	1	9807-9911			●
50	PIPE; INL	8-94395-787-1	01	1	9806-9911	●
50	PIPE; INL	8-94390-319-2	01	1	9912-		●
50	PIPE; INL EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-214-0	01	1	9807-9911			●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	04	1	9806-9911	●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	05	1	9912-0602		●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	05	1	0603-		●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	05	1	9806-9806			●
55	NUT; INL PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> M8 FLANGE	0-91150-108-0	05	1	9807-9911			●
75	STUD; BRKT,AIR PIPE M10X25 L=40	9-04411-025-0	02	1	9806-9911	●
75	STUD; BRKT,AIR PIPE M10X25 L=40	9-04411-025-0	02	1	9912-0604		●
75	STUD; BRKT,AIR PIPE M10X25 L=40	0-44011-025-0	02	1	0605-		●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	9806-9911	●
200	BRACKET; AIR DUCT (C)	8-97600-187-0	01	1	9912-0106		●
200	BRACKET; AIR DUCT (C)	8-97601-726-0	01	1	0107-		●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	9806-9911	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	9806-9911	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	9912-0512		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28050-816-0	05	1	0601-		●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	06	1	9806-9911	●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	02	1	9912-0604		●
228	STUD; INL COVER (A) M8X16 L=28	0-41010-816-0	02	1	0605-		●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	01	1	9806-9911	●
228	STUD; INL COVER (C) M8X40 L=52	9-04110-840-0	01	1	9806-9911	●
323	BOLT; DUCT M8X25 FLANGE	0-28680-825-0	14	1	9912-0512		●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	14	1	0601-		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	9806-9911	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	9912-		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	9806-9806			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94394-141-0	01	1	9807-9911			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94399-417-0	01	1	9807-9911			●
353	PIPE; AIR,BOOST PT1/4 ELBOW	8-94221-562-0	01	1	9806-9911	●
353	PIPE; AIR,BOOST	8-97010-495-0	01	1	9912-		●
496	PIN; INL MANIF	9-08160-512-0	01	1	9912-		●

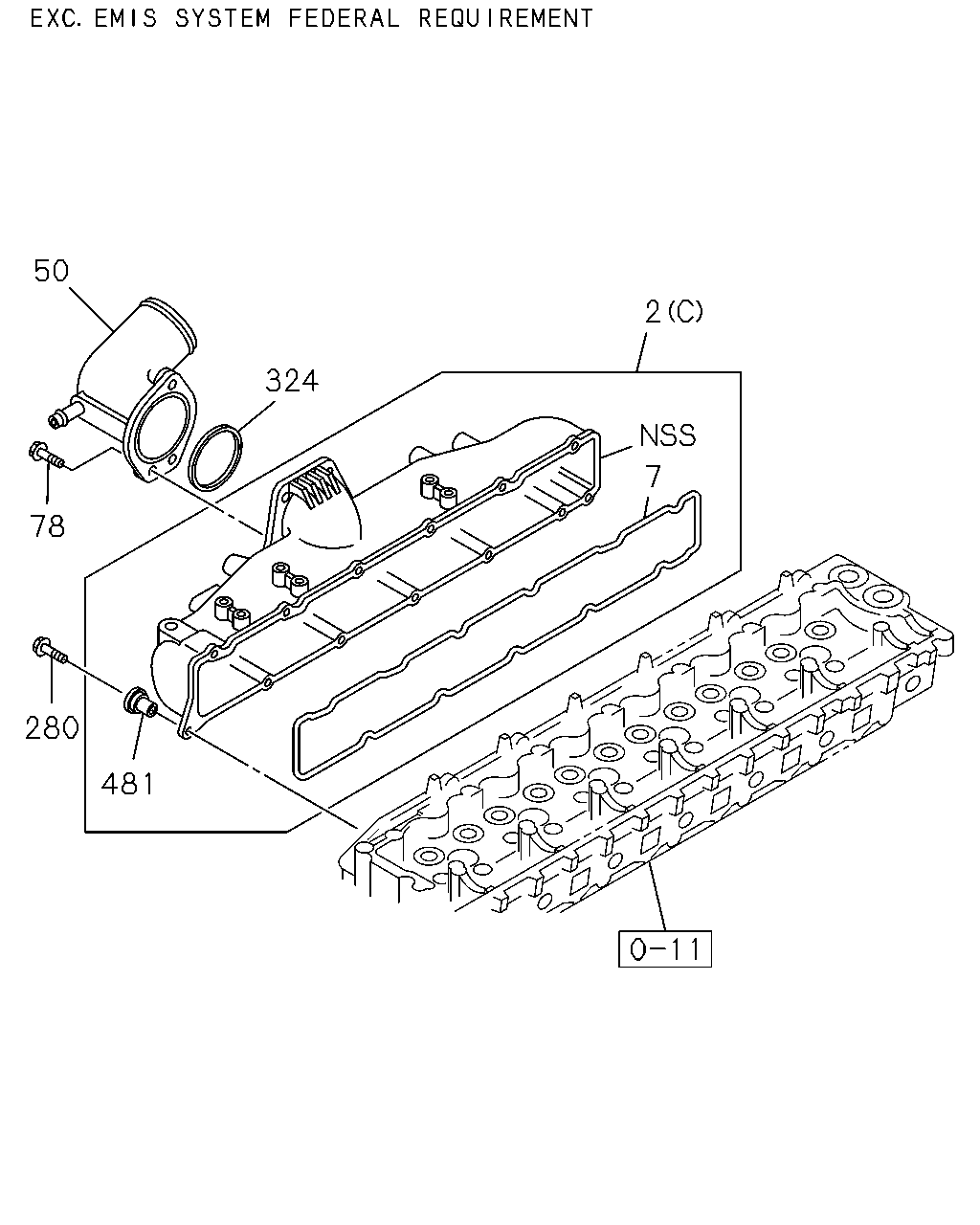

50 2 324 7 78 280 481

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL (A)	8-94392-020-0	01	1	9806-9911	●
2	COVER; INL (D)	8-94395-825-1	01	1	9912-		●
2	COVER; INL (B)	8-94395-899-0	01	1	9806-9806			●
2	COVER; INL EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94395-899-1	01	1	9807-9911			●
2	COVER; INL EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (C)	8-94395-960-0	01	1	9807-9911			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9806-9911	●		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	9912-		●
50	PIPE; INL	8-94395-787-1	01	1	9806-9911	●
50	PIPE; INL	8-94390-319-2	01	1	9912-		●
50	PIPE; INL EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-214-0	01	1	9807-9911			●
78	BOLT; INL PIPE TO INL MANIF EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> M10X35 FLANGE	0-28181-035-0	03	1	9807-9911			●
280	BOLT; INL COVER M8X28 FLANGE	0-28080-828-0	12	1	9806-9911			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	9806-9911	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	9912-		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	9806-9806			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94394-141-0	01	1	9807-9911			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94399-417-0	01	1	9807-9911			●
481	TUBE; DIST,INL COVER OD=22	8-94395-684-0	12	1	9806-9911			●

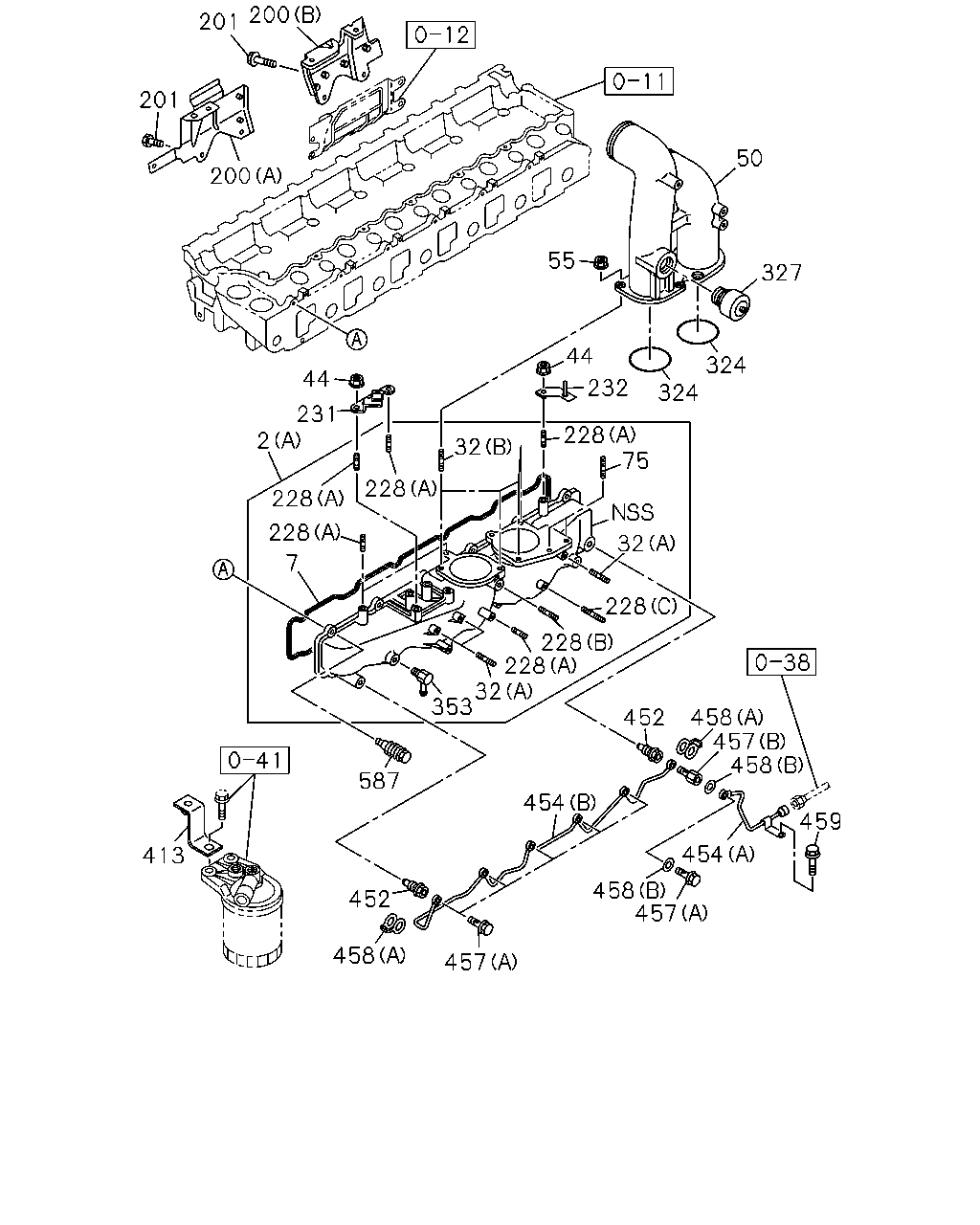

200 201 201 200 50 55 327 44 324 324 44 232 231 228 75 2 32 228 228 228 32 7 228 228 228 32 353 458 457 458 452 587 454 459 413 454 458 457 452 458 457

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL (A)	8-94392-020-0	01	1	9806-9911	●
2	COVER; INL (D)	8-94395-825-1	01	1	9912-		●
2	COVER; INL (B)	8-94395-899-0	01	1	9806-9806			●
2	COVER; INL EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94395-899-1	01	1	9807-9911			●
2	COVER; INL EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (C)	8-94395-960-0	01	1	9807-9911			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9806-9911	●		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	9912-		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	9806-9911	●
32	STUD; INL PIPE (E) M8X25 L=37	9-04110-825-0	05	1	9912-0604		●
32	STUD; INL PIPE (E) M8X25 L=37	0-41010-825-0	05	1	0605-		●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9806-9911	●
32	STUD; INL PIPE (C) M6X25 L=34	9-04110-625-0	04	1	9806-9806			●
32	STUD; INL PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (C) M6X25 L=34	9-04110-625-0	04	1	9807-9911			●
32	STUD; INL PIPE (D) M8X20 L=32	9-04110-820-0	05	1	9806-9806			●
32	STUD; INL PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (D) M8X20 L=32	9-04110-820-0	05	1	9807-9911			●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	03	1	9806-9911	●
50	PIPE; INL	8-94395-787-1	01	1	9806-9911	●
50	PIPE; INL	8-94390-319-2	01	1	9912-		●
50	PIPE; INL EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-214-0	01	1	9807-9911			●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	04	1	9806-9911	●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	05	1	9912-0602		●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	05	1	0603-		●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	05	1	9806-9806			●
55	NUT; INL PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> M8 FLANGE	0-91150-108-0	05	1	9807-9911			●
75	STUD; BRKT,AIR PIPE M10X25 L=40	9-04411-025-0	02	1	9806-9911	●
75	STUD; BRKT,AIR PIPE M10X25 L=40	9-04411-025-0	02	1	9912-0604		●
75	STUD; BRKT,AIR PIPE M10X25 L=40	0-44011-025-0	02	1	0605-		●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	9806-9911	●
200	BRACKET; AIR DUCT (C)	8-97600-187-0	01	1	9912-0106		●
200	BRACKET; AIR DUCT (C)	8-97601-726-0	01	1	0107-		●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	9806-9911	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	9806-9911	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	9912-0512		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28050-816-0	05	1	0601-		●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	06	1	9806-9911	●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	02	1	9912-0604		●
228	STUD; INL COVER (A) M8X16 L=28	0-41010-816-0	02	1	0605-		●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	01	1	9806-9911	●
228	STUD; INL COVER (C) M8X40 L=52	9-04110-840-0	01	1	9806-9911	●
231	STAY; FUEL PIPE	8-94391-134-0	01	1	9806-9911	●
232	BRACKET; INJ PIPE	8-94391-452-0	01	1	9806-9911	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	9806-9911	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	9912-		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	9806-9806			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94394-141-0	01	1	9807-9911			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94399-417-0	01	1	9807-9911			●
327	VALVE; SAFETY,TURBOCHARGER	8-94393-227-0	01	1	9806-9911	●
353	PIPE; AIR,BOOST PT1/4 ELBOW	8-94221-562-0	01	1	9806-9911	●
353	PIPE; AIR,BOOST	8-97010-495-0	01	1	9912-		●
413	BRACKET; HARNESS CLIP	1-47475-868-0	01	1	9806-9911	●
452	CYLINDER ASM; AIR	1-14370-007-0	06	1	9806-9911	●
454	PIPE; AIR,IVES (B) 6-JOINT	8-94394-415-1	01	1	9806-9911	●
454	PIPE; AIR,IVES (A) JOINT & NUT W/BRKT	8-94395-743-0	01	1	9806-9911	●
457	BOLT; EYE,AIR PIPE,IVES (A) M8X18 EYE BOLT	1-09675-037-1	06	1	9806-9911	●
457	BOLT; EYE,AIR PIPE,IVES (B) M8X19	1-09675-220-0	01	1	9806-9911	●
458	GASKET; AIR PIPE,VSS (B) ID=8.2 OD=13.2	1-09630-082-0	02	1	9806-9911	●
458	GASKET; AIR PIPE,VSS (A) ID=8.6	8-94395-214-0	06	1	9806-9910	●
458	GASKET; AIR PIPE,VSS (A) ID=8.3	8-97600-925-0	06	1	9911-9911	●
459	BOLT; CLIP FIX M8X12 FLANGE	0-28080-812-0	01	1	9806-9911	●
587	MOUNTING; INTAKE DUCT	8-94395-966-0	13	1	9806-9911	●
