0-22 — ENGINE MOUNTING (#6781) — 138 parça

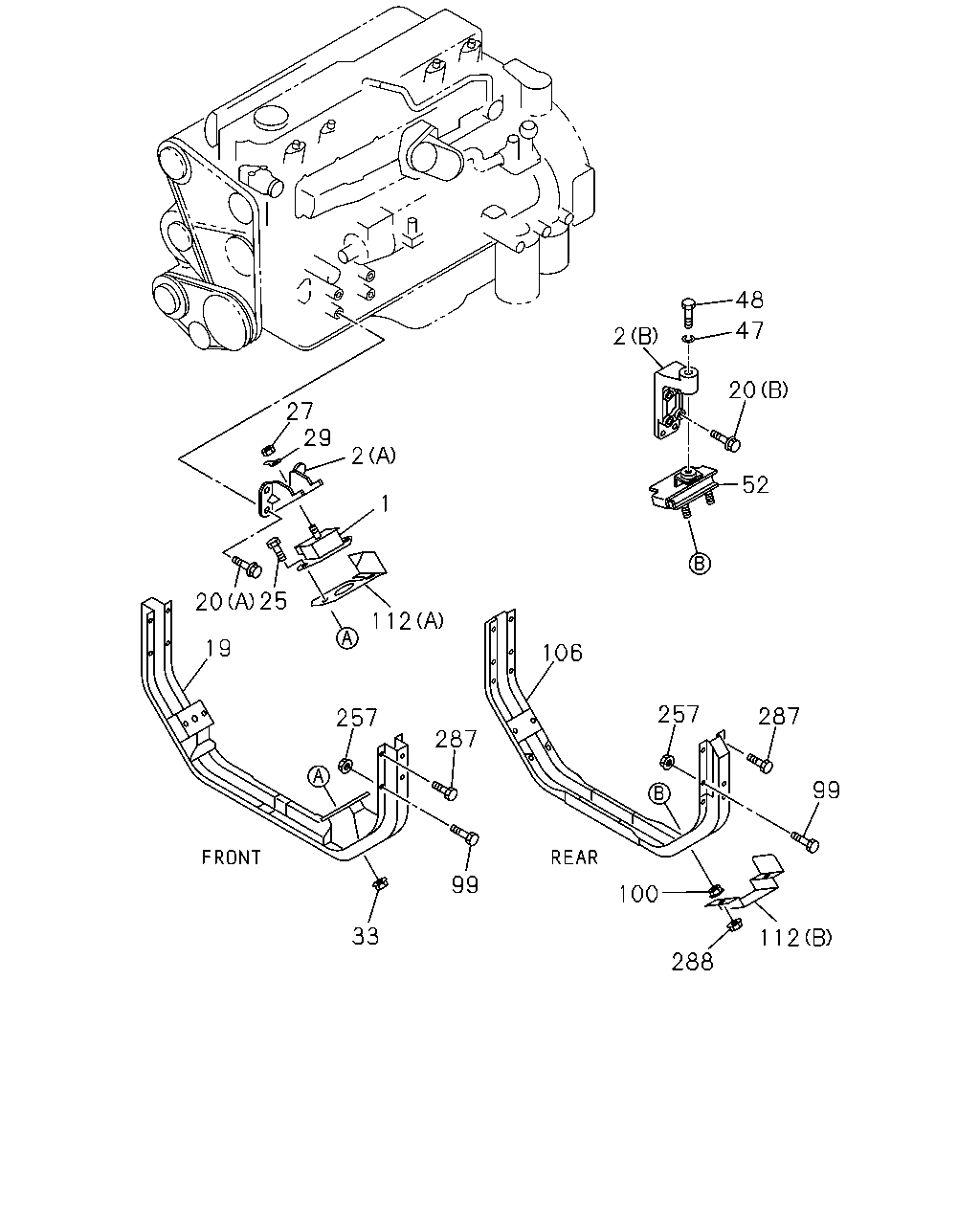

48 47 2 20 27 29 2 52 1 20 112 19 106 257 287 257 287 99 99 100 33 112 288 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	9806-9911	●	●
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	9912-			●
2	FOOT; ENG (A) FRONT	8-94393-491-0	02	1	9806-9911	●	●
2	FOOT; ENG (A) FRONT	8-94393-491-1	02	1	9912-			●
2	FOOT; ENG (B) REAR	8-94395-570-0	02	1	9806-9911	●	●
2	FOOT; ENG (B) REAR	8-94390-563-1	01	1	9912-			●
2	FOOT; ENG (B) REAR	8-94390-564-1	01	1	9912-			●
19	MEMBER; ENG MTG CROSS FRONT	1-53211-225-1	01	1	9806-9911	●	●
19	MEMBER; ENG MTG CROSS FRONT	8-97530-873-1	01	1	9912-			●
20	BOLT; ENG FOOT (A) FRONT M10X20 FLANGE	8-94395-721-0	08	1	9806-9911	●	●
20	BOLT; ENG FOOT (A) FRONT M10X20 FLANGE	8-94395-721-0	08	1	9912-			●
20	BOLT; ENG FOOT (B) REAR M12X55	8-94399-884-1	08	1	9806-9911	●	●
20	BOLT; ENG FOOT (B) REAR M12X55	8-94399-884-1	08	1	9912-			●
25	BOLT; CUSHION RUBBER TO BRKT FRONT M12X35 FLANGE	0-28681-235-0	04	1	9806-9911	●	●
25	BOLT; CUSHION RUBBER TO BRKT FRONT M12X35 FLANGE	0-28681-235-0	04	1	9912-0512			●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-			●
27	NUT; CUSHION RUBBER TO ENG FOOT FRONT M12 FLANGE	0-91150-212-0	02	1	9806-9911	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT FRONT M12 FLANGE	0-91150-212-0	02	1	9912-0602			●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0603-			●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9806-9911	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9912-			●
33	NUT; CUSHION RUBBER TO BRKT FRONT M12 FLANGE	0-91150-212-0	04	1	9806-9911	●	●
33	NUT; CUSHION RUBBER TO BRKT FRONT M12 FLANGE	0-91150-212-0	04	1	9912-0602			●
33	NUT; CUSHION RUBBER TO BRKT M12 FLANGE	0-91180-212-0	04	1	0603-			●
47	WASHER; LK,CUSHION RUBBER REAR ID=16.2	9-09150-616-0	02	1	9806-9911	●	●
47	WASHER; LK,CUSHION RUBBER REAR ID=16.2	9-09150-616-0	02	1	9912-0603			●
47	WASHER; LK,CUSHION RUBBER ID=16.2	0-91510-616-0	02	1	0604-			●
48	BOLT; CUSHION RUBBER TO ENG REAR M16X60	9-91066-660-0	02	1	9806-9911	●	●
48	BOLT; CUSHION RUBBER TO ENG REAR M16X60	9-91066-660-0	02	1	9912-0512			●
48	BOLT; CUSHION RUBBER TO ENG M16X60	0-10956-660-0	02	1	0601-			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-280-4	01	1	9806-9911	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-280-4	01	1	9912-			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-279-4	01	1	9806-9911	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-279-4	01	1	9912-			●
99	BOLT; LWR BRKT RR FRONT MEMBER FIX M10X25 FLANGE	0-28691-025-0	08	1	9806-9911	●	●
99	BOLT; LWR BRKT RR FRONT MEMBER FIX M12X35 FLANGE	0-28681-235-0	08	1	9912-0512			●
99	BOLT; LWR BRKT RR M12X35 FLANGE	0-28651-235-0	08	1	0601-			●
100	NUT; CUSHION RUBBER REAR M12 FLANGE	0-91150-212-0	04	1	9806-9911	●	●
100	NUT; CUSHION RUBBER REAR M12 FLANGE	0-91150-212-0	04	1	9912-0602			●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0603-			●
106	MEMBER; MTG,RR	1-53221-189-0	01	1	9806-9911	●	●
106	MEMBER; MTG,RR A/T<X9D>	8-97530-826-0	01	1	9912-			●
106	MEMBER; MTG,RR ISUZU M/T<X9A>	8-97530-117-0	01	1	9912-			●
112	PROTECTOR; HEAT (A) FRONT	1-53219-629-4	01	1	9806-9911	●	●
112	PROTECTOR; HEAT (A) FRONT	1-53219-629-4	01	1	9912-			●
112	PROTECTOR; HEAT (B) REAR	1-53219-638-0	01	1	9806-9911		●
112	PROTECTOR; HEAT (B) REAR	1-53219-976-0	01	1	9912-			●
257	NUT; MEMBER M10 FLANGE	0-91150-210-0	08	1	9806-9911	●	●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	08	1	9806-9911	●	●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	16	1	9912-0602			●
257	NUT; MEMBER M12 FLANGE	0-91180-212-0	16	1	0603-			●
287	BOLT; MEMBER M12X40 FLANGE	0-28681-240-0	08	1	9806-9911	●	●
287	BOLT; MEMBER M12X40 FLANGE	0-28681-240-0	08	1	9912-0512			●
287	BOLT; MEMBER M12X40 FLANGE	0-28651-240-0	08	1	0601-			●
288	NUT; HEAT PROTECTOR REAR M12 FLANGE	0-91150-212-0	02	1	9806-9902	●	●
288	NUT; HEAT PROTECTOR REAR M12 FLANGE	0-91150-212-0	02	1	9903-9911		●

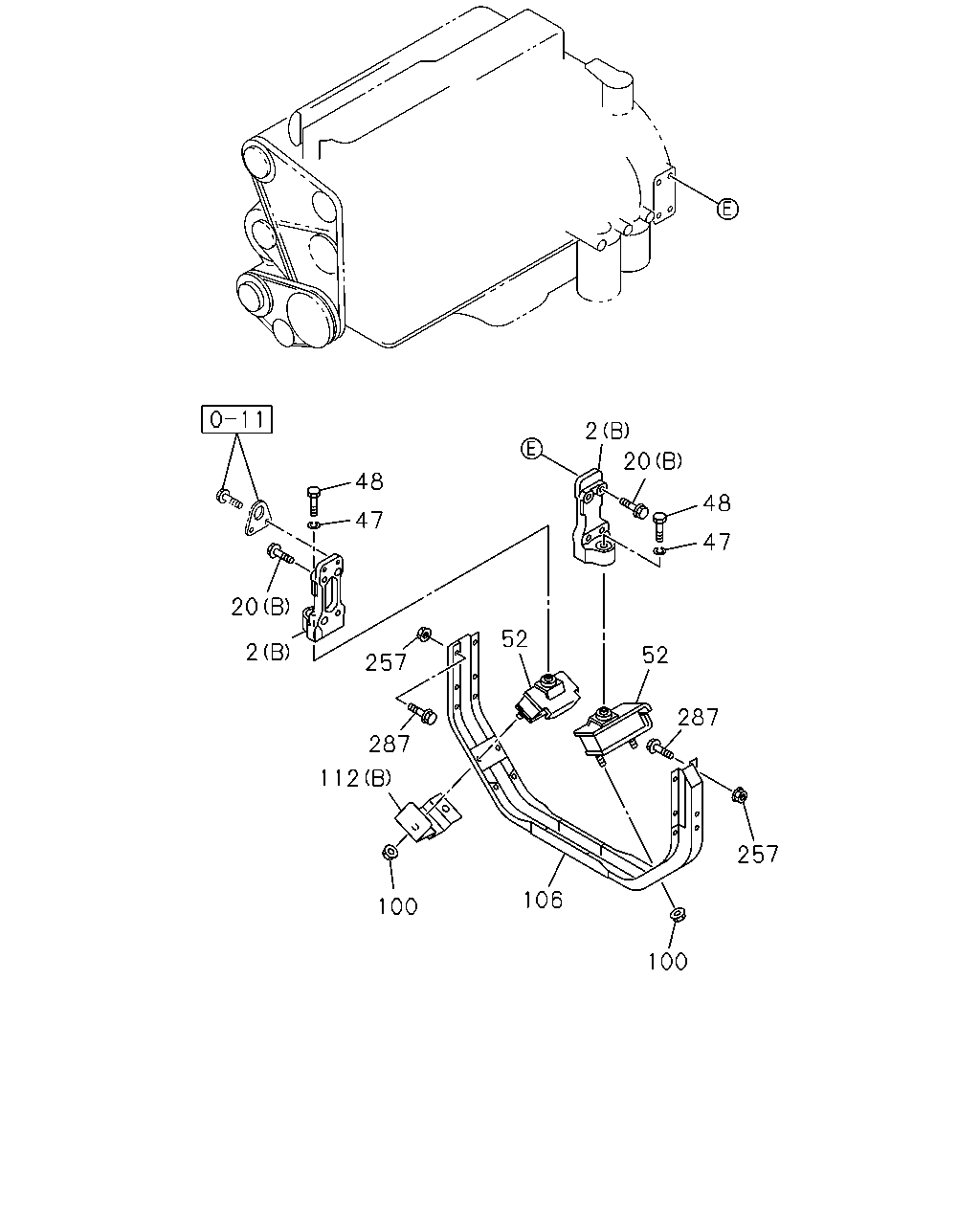

2 20 48 48 47 47 20 52 2 52 257 287 287 112 257 106 100 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	FOOT; ENG (A) FRONT	8-94393-491-0	02	1	9806-9911	●	●
2	FOOT; ENG (A) FRONT	8-94393-491-1	02	1	9912-			●
2	FOOT; ENG (B) REAR	8-94395-570-0	02	1	9806-9911	●	●
2	FOOT; ENG (B) REAR	8-94390-563-1	01	1	9912-			●
2	FOOT; ENG (B) REAR	8-94390-564-1	01	1	9912-			●
20	BOLT; ENG FOOT (A) FRONT M10X20 FLANGE	8-94395-721-0	08	1	9806-9911	●	●
20	BOLT; ENG FOOT (A) FRONT M10X20 FLANGE	8-94395-721-0	08	1	9912-			●
20	BOLT; ENG FOOT (B) REAR M12X55	8-94399-884-1	08	1	9806-9911	●	●
20	BOLT; ENG FOOT (B) REAR M12X55	8-94399-884-1	08	1	9912-			●
47	WASHER; LK,CUSHION RUBBER REAR ID=16.2	9-09150-616-0	02	1	9806-9911	●	●
47	WASHER; LK,CUSHION RUBBER REAR ID=16.2	9-09150-616-0	02	1	9912-0603			●
47	WASHER; LK,CUSHION RUBBER ID=16.2	0-91510-616-0	02	1	0604-			●
48	BOLT; CUSHION RUBBER TO ENG REAR M16X60	9-91066-660-0	02	1	9806-9911	●	●
48	BOLT; CUSHION RUBBER TO ENG REAR M16X60	9-91066-660-0	02	1	9912-0512			●
48	BOLT; CUSHION RUBBER TO ENG M16X60	0-10956-660-0	02	1	0601-			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-280-4	01	1	9806-9911	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-280-4	01	1	9912-			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-279-4	01	1	9806-9911	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-279-4	01	1	9912-			●
100	NUT; CUSHION RUBBER REAR M12 FLANGE	0-91150-212-0	04	1	9806-9911	●	●
100	NUT; CUSHION RUBBER REAR M12 FLANGE	0-91150-212-0	04	1	9912-0602			●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0603-			●
106	MEMBER; MTG,RR	1-53221-189-0	01	1	9806-9911	●	●
106	MEMBER; MTG,RR A/T<X9D>	8-97530-826-0	01	1	9912-			●
106	MEMBER; MTG,RR ISUZU M/T<X9A>	8-97530-117-0	01	1	9912-			●
112	PROTECTOR; HEAT (A) FRONT	1-53219-629-4	01	1	9806-9911	●	●
112	PROTECTOR; HEAT (A) FRONT	1-53219-629-4	01	1	9912-			●
112	PROTECTOR; HEAT (B) REAR	1-53219-638-0	01	1	9806-9911		●
112	PROTECTOR; HEAT (B) REAR	1-53219-976-0	01	1	9912-			●
257	NUT; MEMBER M10 FLANGE	0-91150-210-0	08	1	9806-9911	●	●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	08	1	9806-9911	●	●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	16	1	9912-0602			●
257	NUT; MEMBER M12 FLANGE	0-91180-212-0	16	1	0603-			●
287	BOLT; MEMBER M12X40 FLANGE	0-28681-240-0	08	1	9806-9911	●	●
287	BOLT; MEMBER M12X40 FLANGE	0-28681-240-0	08	1	9912-0512			●
287	BOLT; MEMBER M12X40 FLANGE	0-28651-240-0	08	1	0601-			●

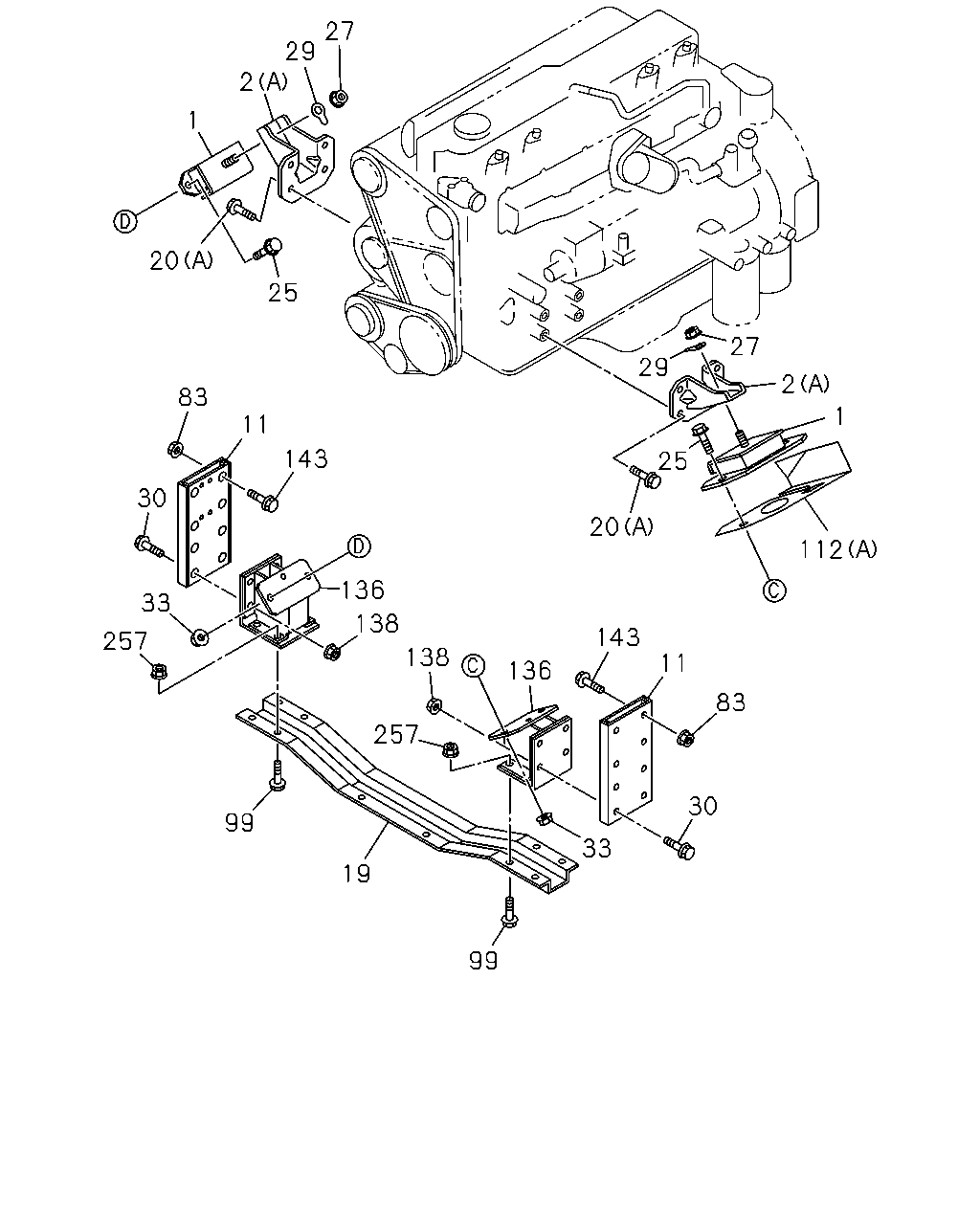

27 29 2 1 20 25 27 29 2 83 1 11 143 25 30 20 112 136 33 138 143 257 138 11 136 83 257 30 99 33 19 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	9806-9911	●	●
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	9912-			●
2	FOOT; ENG (A) FRONT	8-94393-491-0	02	1	9806-9911	●	●
2	FOOT; ENG (A) FRONT	8-94393-491-1	02	1	9912-			●
2	FOOT; ENG (B) REAR	8-94395-570-0	02	1	9806-9911	●	●
2	FOOT; ENG (B) REAR	8-94390-563-1	01	1	9912-			●
2	FOOT; ENG (B) REAR	8-94390-564-1	01	1	9912-			●
11	BRACKET; CUSHION RUBBER,FRT	8-97530-870-2	01	1	9912-			●
11	BRACKET; CUSHION RUBBER,FRT	8-97530-869-2	01	1	9912-			●
19	MEMBER; ENG MTG CROSS FRONT	1-53211-225-1	01	1	9806-9911	●	●
19	MEMBER; ENG MTG CROSS FRONT	8-97530-873-1	01	1	9912-			●
20	BOLT; ENG FOOT (A) FRONT M10X20 FLANGE	8-94395-721-0	08	1	9806-9911	●	●
20	BOLT; ENG FOOT (A) FRONT M10X20 FLANGE	8-94395-721-0	08	1	9912-			●
20	BOLT; ENG FOOT (B) REAR M12X55	8-94399-884-1	08	1	9806-9911	●	●
20	BOLT; ENG FOOT (B) REAR M12X55	8-94399-884-1	08	1	9912-			●
25	BOLT; CUSHION RUBBER TO BRKT FRONT M12X35 FLANGE	0-28681-235-0	04	1	9806-9911	●	●
25	BOLT; CUSHION RUBBER TO BRKT FRONT M12X35 FLANGE	0-28681-235-0	04	1	9912-0512			●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-			●
27	NUT; CUSHION RUBBER TO ENG FOOT FRONT M12 FLANGE	0-91150-212-0	02	1	9806-9911	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT FRONT M12 FLANGE	0-91150-212-0	02	1	9912-0602			●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0603-			●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9806-9911	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9912-			●
30	BOLT; BRKT TO FRAME FRONT M12X30 FLANGE	0-28681-230-0	08	1	9912-0512			●
30	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28651-230-0	08	1	0601-			●
33	NUT; CUSHION RUBBER TO BRKT FRONT M12 FLANGE	0-91150-212-0	04	1	9806-9911	●	●
33	NUT; CUSHION RUBBER TO BRKT FRONT M12 FLANGE	0-91150-212-0	04	1	9912-0602			●
33	NUT; CUSHION RUBBER TO BRKT M12 FLANGE	0-91180-212-0	04	1	0603-			●
83	NUT; UPR BRKT RR FRONT M12 FLANGE	0-91150-212-0	08	1	9912-0602			●
83	NUT; UPR BRKT RR M12 FLANGE	0-91180-212-0	08	1	0603-			●
99	BOLT; LWR BRKT RR FRONT MEMBER FIX M10X25 FLANGE	0-28691-025-0	08	1	9806-9911	●	●
99	BOLT; LWR BRKT RR FRONT MEMBER FIX M12X35 FLANGE	0-28681-235-0	08	1	9912-0512			●
99	BOLT; LWR BRKT RR M12X35 FLANGE	0-28651-235-0	08	1	0601-			●
112	PROTECTOR; HEAT (A) FRONT	1-53219-629-4	01	1	9806-9911	●	●
112	PROTECTOR; HEAT (A) FRONT	1-53219-629-4	01	1	9912-			●
112	PROTECTOR; HEAT (B) REAR	1-53219-638-0	01	1	9806-9911		●
112	PROTECTOR; HEAT (B) REAR	1-53219-976-0	01	1	9912-			●
136	BRACKET; CUSHION RUBBER,FRT	8-97530-871-0	02	1	9912-			●
138	NUT; BRKT TO FRAME FRONT M12 FLANGE	0-91150-212-0	08	1	9912-0602			●
138	NUT; BRKT TO FRAME M12 FLANGE	0-91180-212-0	08	1	0603-			●
143	BOLT; BRKT TO BRKT FRONT M12X35 FLANGE	0-28681-235-0	08	1	9912-0512			●
143	BOLT; BRKT TO BRKT M12X35 FLANGE	0-28651-235-0	08	1	0601-			●
257	NUT; MEMBER M10 FLANGE	0-91150-210-0	08	1	9806-9911	●	●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	08	1	9806-9911	●	●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	16	1	9912-0602			●
257	NUT; MEMBER M12 FLANGE	0-91180-212-0	16	1	0603-			●
