Isuzu WW
▶
TRUCKS
▶
FSS
▶
11146 - FSS(LHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

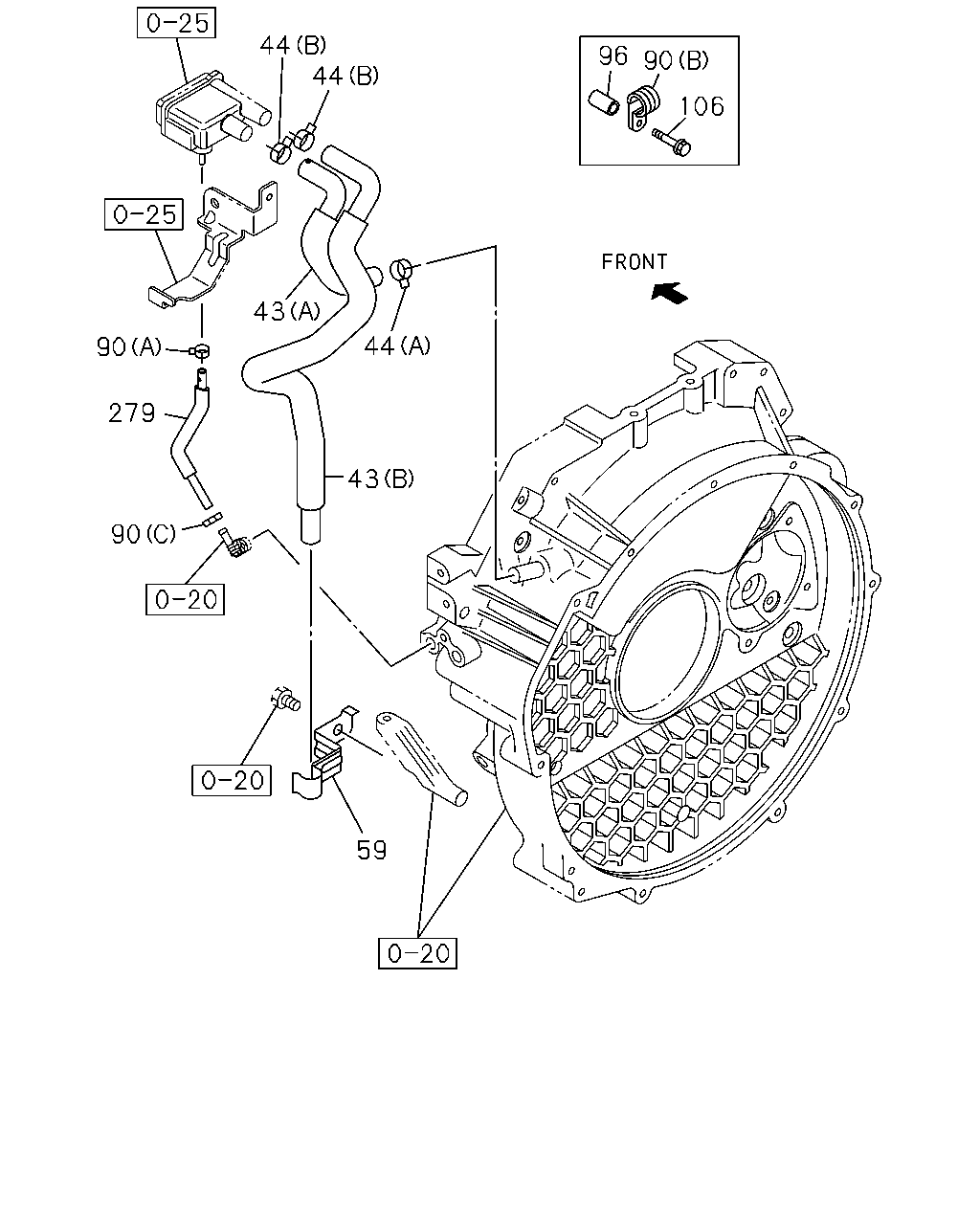

0-28 — VENTILATION SYSTEM
(#67807) — 13 parça
44
44
96
90
106
43
44
90
279
43
90
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
43
HOSE; PCV
(A)
8-97149-012-3
01
1
0812-
43
HOSE; PCV
(B)
8-98012-831-0
01
1
0812-1308
43
HOSE; PCV
(B)
8-98249-509-0
01
1
1309-
44
CLIP; HOSE,PCV
(A) ID=21
8-94242-034-0
01
1
0812-
44
CLIP; HOSE,PCV
(B) ID=22.7
8-94466-382-0
02
1
0812-
59
CLIP; HOSE
8-97369-959-0
01
1
0812-
90
CLIP; RUBBER HOSE
(A) ID=11
8-94238-570-0
01
1
0812-
90
CLIP; RUBBER HOSE
(C) ID=11
8-94238-925-0
01
1
0812-1007
90
CLIP; RUBBER HOSE
(C) ID=11.5
8-97138-011-0
01
1
1008-
90
CLIP; RUBBER HOSE
(B) ID=31 L=35
1-09700-329-1
01
1
0812-1004
96
COLLAR; DIST,CLIP
8-98056-147-0
01
1
0812-1004
106
BOLT; DRAIN PIPE
M8X50 FLANGE
0-28050-850-0
01
1
0812-1004
279
HOSE; RUBBER,OIL DRAIN
8-98075-714-0
01
1
0812-
