0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#6780) — 451 parça

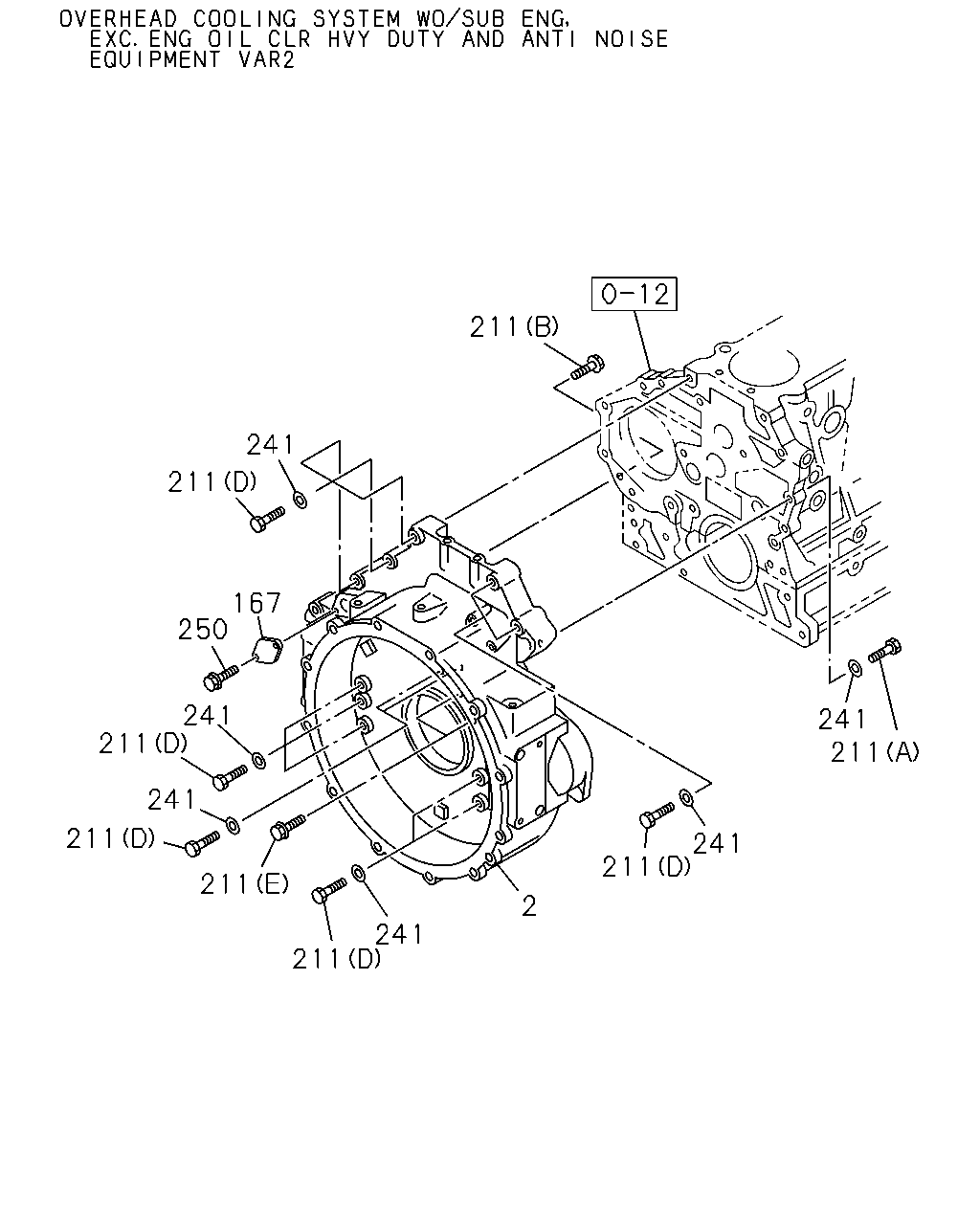

211 241 211 167 250 241 211 241 211 241 211 241 211 211 2 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9806-9902	●
2	HOUSING; FLYWHEEL	8-97600-260-1	01	1	9903-9911	●
2	HOUSING; FLYWHEEL	8-97600-229-6	01	1	9912-		●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9806-9806			●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-1	01	1	9806-9806			●
2	HOUSING; FLYWHEEL ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
2	HOUSING; FLYWHEEL ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
167	COVER; OIL	1-11219-163-0	01	1	9806-9911	●		●
167	COVER; OIL	1-11219-163-0	01	1	9912-		●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9806-9911	●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (C) M14X27 FLANGE	8-94393-995-0	01	1	9806-9911			●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9912-		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9806-9911	●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	11	1	9806-9911			●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9912-0512		●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9806-9911	●		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9912-0512		●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9806-9911	●		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9912-0512		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-		●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9806-9806			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9807-9911			●
211	BOLT; HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9807-9911			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9806-9806			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9807-9911			●
211	BOLT; HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9807-9911			●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9806-9806			●
211	BOLT; HSG ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9807-9911			●
211	BOLT; HSG ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9807-9911			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9806-9911	●
241	WASHER; PL,HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	12	1	9806-9911			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9912-		●
241	WASHER; PL,HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9806-9806			●
241	WASHER; PL,HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9807-9911			●
241	WASHER; PL,HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9807-9911			●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9806-9911	●		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9912-		●

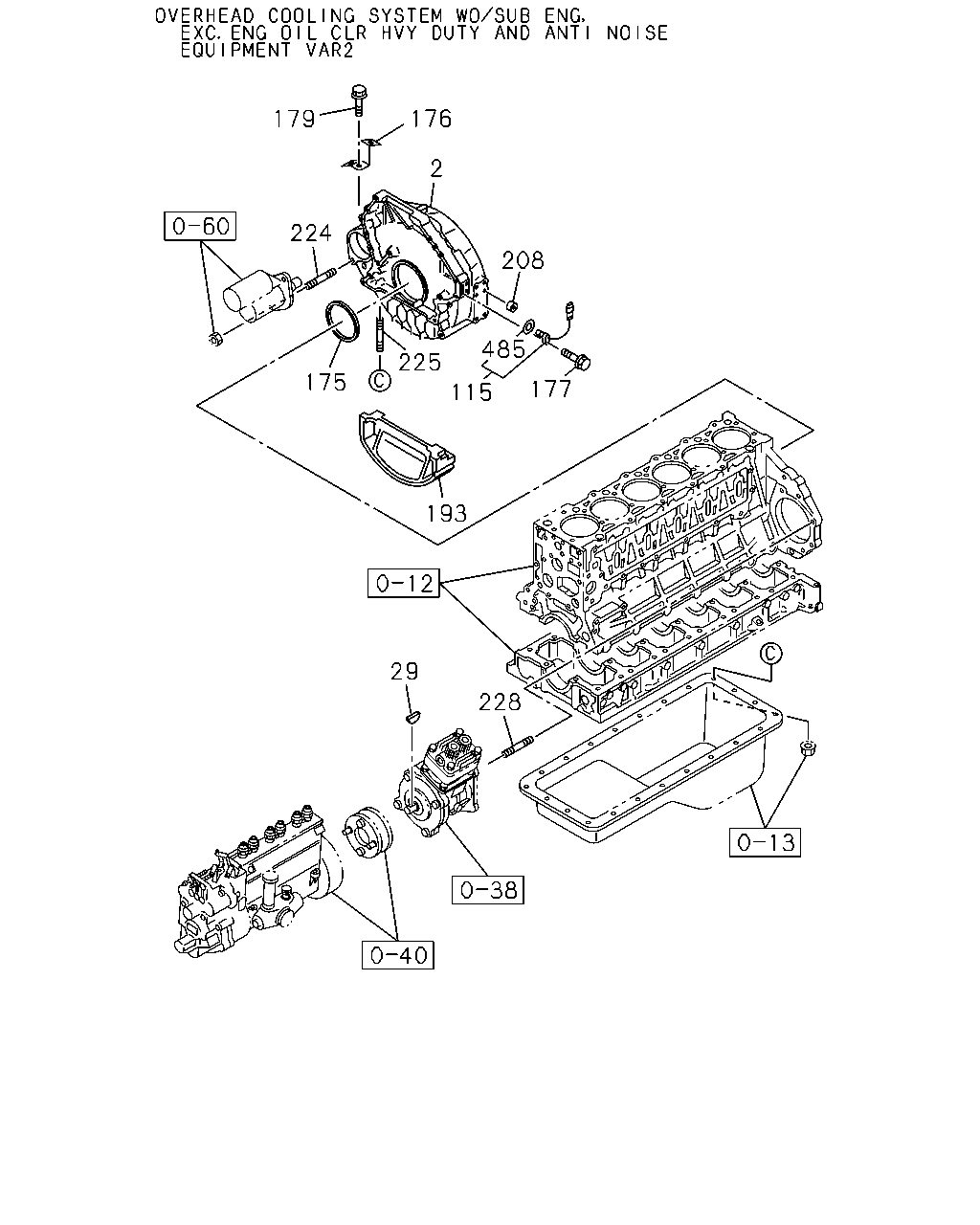

176 179 2 224 208 485 225 175 177 115 193 29 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9806-9902	●
2	HOUSING; FLYWHEEL	8-97600-260-1	01	1	9903-9911	●
2	HOUSING; FLYWHEEL	8-97600-229-6	01	1	9912-		●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9806-9806			●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-1	01	1	9806-9806			●
2	HOUSING; FLYWHEEL ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
2	HOUSING; FLYWHEEL ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
29	KEY; COUPLING	9-08055-516-0	01	1	9806-9911	●
29	KEY; COUPLING	9-08055-516-0	01	1	9912-		●
29	KEY; COUPLING	9-08055-416-0	01	1	9806-9911			●
115	SENSOR; REVOLUTION,ENG SPD	1-80240-010-1	01	1	9806-9911	●
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	9912-		●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	9806-9911			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9806-9911	●		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9912-0112		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-		●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9806-9911	●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9912-		●
176	BRACKET; HARNESS	1-82699-412-1	01	1	9806-9911			●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	9806-9911	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	02	1	9912-0512		●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	02	1	0601-		●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9806-9911			●
179	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9806-9911	●		●
179	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9912-0512		●
179	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
193	SPACER; STAY TO OIL,PAN	8-94395-674-0	01	1	9806-9911			●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9806-9911	●		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9912-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9806-9911	●		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9912-0604		●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9806-9911	●		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9912-		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0104-0604		●
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0605-		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9806-9911	●
228	STUD; AIR CMPR EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M12X35 L=53	9-94411-235-0	01	1	9806-9911			●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9806-9911			●
485	GASKET; SENSOR	9-09565-212-0	01	1	9806-9911			●

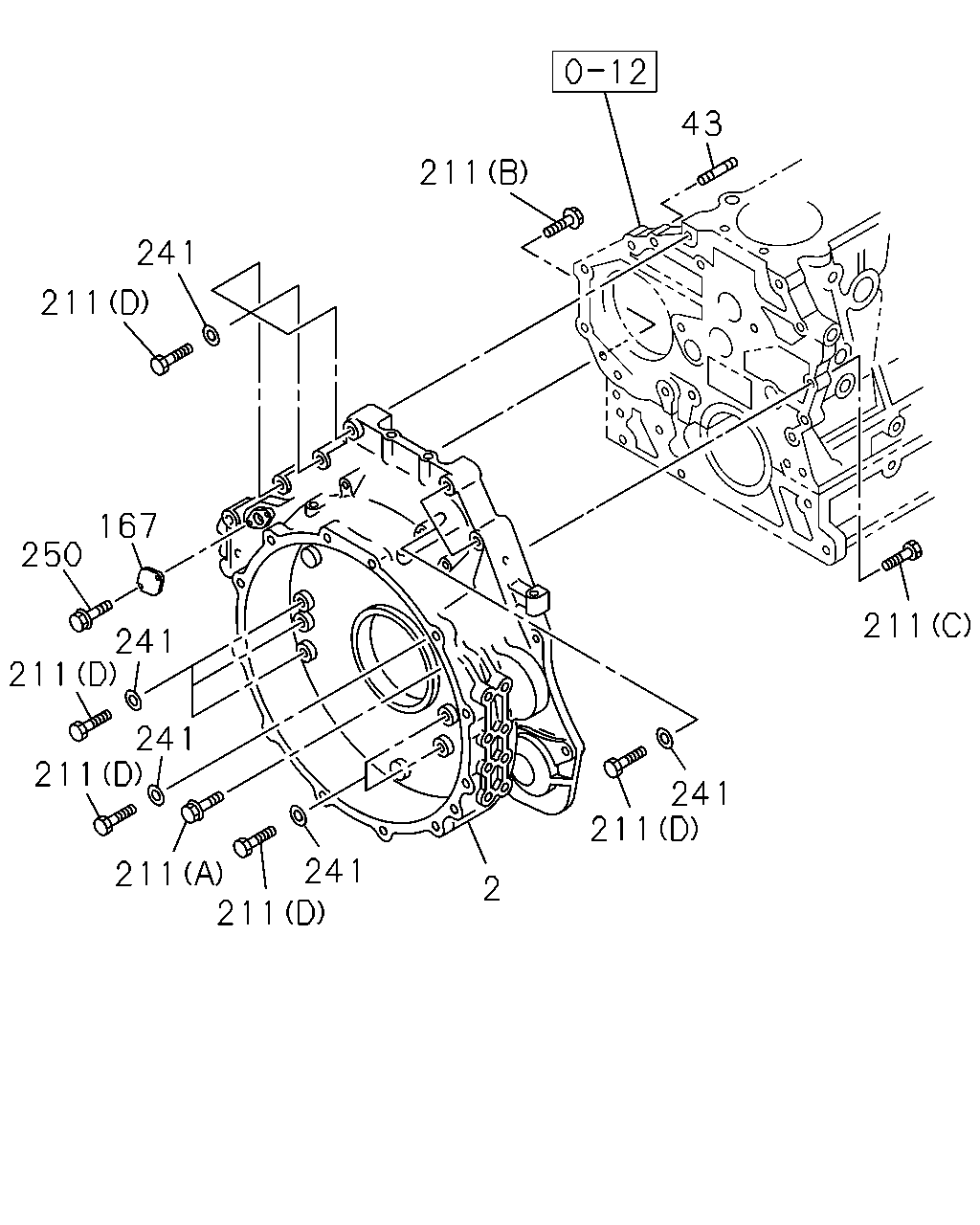

43 211 241 211 167 250 211 241 211 241 211 241 211 241 211 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9806-9902	●
2	HOUSING; FLYWHEEL	8-97600-260-1	01	1	9903-9911	●
2	HOUSING; FLYWHEEL	8-97600-229-6	01	1	9912-		●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9806-9806			●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-1	01	1	9806-9806			●
2	HOUSING; FLYWHEEL ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
2	HOUSING; FLYWHEEL ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
43	STUD; BRG COVER M12X67 L=82	1-09302-112-0	01	1	9806-9911	●
43	STUD; BRG COVER M12X77 L=95	9-09831-161-0	01	1	9912-		●
167	COVER; OIL	1-11219-163-0	01	1	9806-9911	●		●
167	COVER; OIL	1-11219-163-0	01	1	9912-		●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9806-9911	●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (C) M14X27 FLANGE	8-94393-995-0	01	1	9806-9911			●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9912-		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9806-9911	●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	11	1	9806-9911			●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9912-0512		●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9806-9911	●		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9912-0512		●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9806-9911	●		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9912-0512		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-		●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9806-9806			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9807-9911			●
211	BOLT; HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9807-9911			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9806-9806			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9807-9911			●
211	BOLT; HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9807-9911			●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9806-9806			●
211	BOLT; HSG ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9807-9911			●
211	BOLT; HSG ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9807-9911			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9806-9911	●
241	WASHER; PL,HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	12	1	9806-9911			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9912-		●
241	WASHER; PL,HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9806-9806			●
241	WASHER; PL,HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9807-9911			●
241	WASHER; PL,HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9807-9911			●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9806-9911	●		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9912-		●

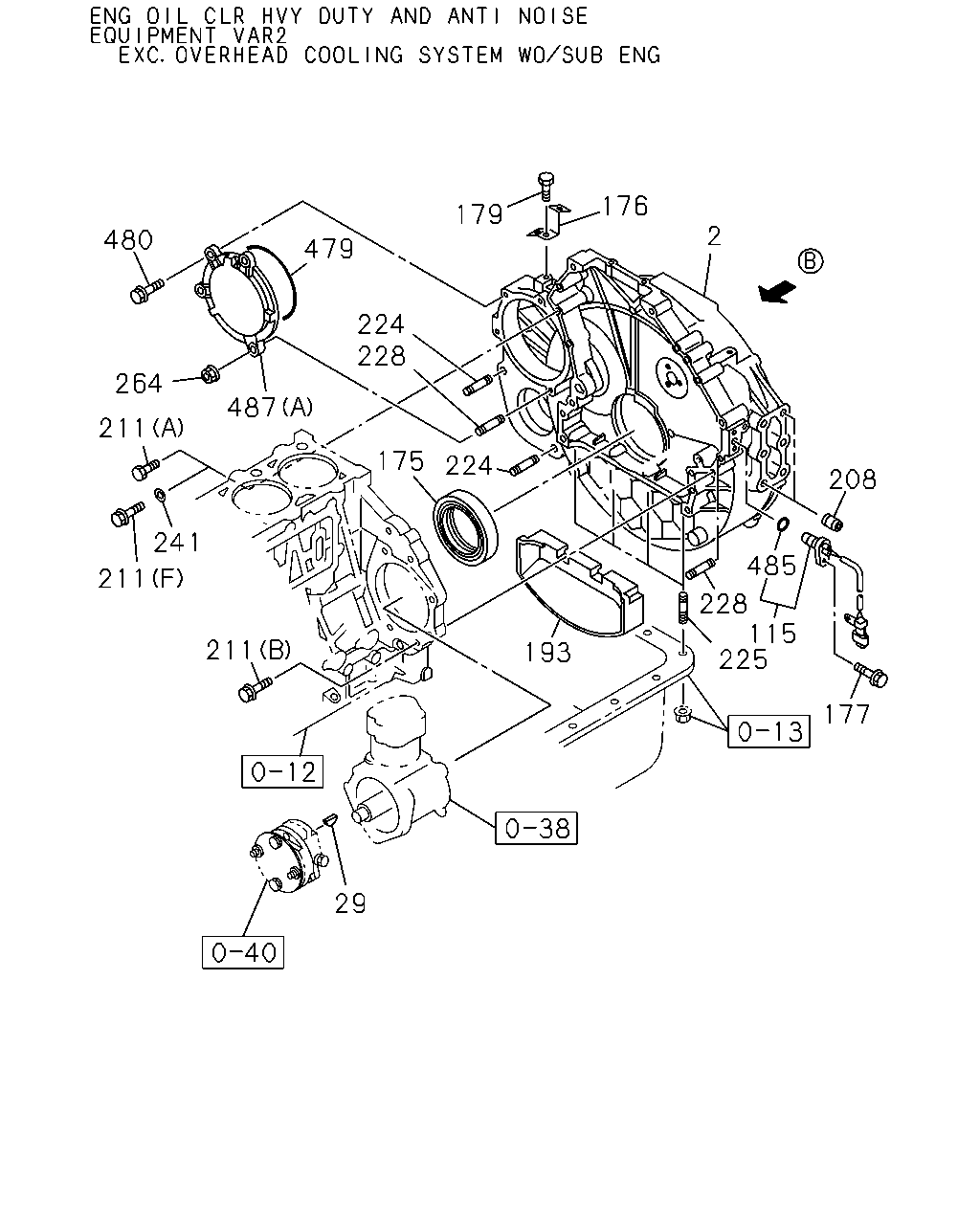

176 179 2 480 479 224 228 264 487 211 175 224 208 241 485 211 228 115 225 211 193 177 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9806-9902	●
2	HOUSING; FLYWHEEL	8-97600-260-1	01	1	9903-9911	●
2	HOUSING; FLYWHEEL	8-97600-229-6	01	1	9912-		●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9806-9806			●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-1	01	1	9806-9806			●
2	HOUSING; FLYWHEEL ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
2	HOUSING; FLYWHEEL ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
29	KEY; COUPLING	9-08055-516-0	01	1	9806-9911	●
29	KEY; COUPLING	9-08055-516-0	01	1	9912-		●
29	KEY; COUPLING	9-08055-416-0	01	1	9806-9911			●
115	SENSOR; REVOLUTION,ENG SPD	1-80240-010-1	01	1	9806-9911	●
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	9912-		●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	9806-9911			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9806-9911	●		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9912-0112		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-		●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9806-9911	●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9912-		●
176	BRACKET; HARNESS	1-82699-412-1	01	1	9806-9911			●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	9806-9911	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	02	1	9912-0512		●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	02	1	0601-		●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9806-9911			●
179	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9806-9911	●		●
179	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9912-0512		●
179	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
193	SPACER; STAY TO OIL,PAN	8-94395-674-0	01	1	9806-9911			●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9806-9911	●		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9912-		●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9806-9911	●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (C) M14X27 FLANGE	8-94393-995-0	01	1	9806-9911			●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9912-		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9806-9911	●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	11	1	9806-9911			●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9912-0512		●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9806-9911	●		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9912-0512		●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9806-9911	●		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9912-0512		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-		●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9806-9806			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9807-9911			●
211	BOLT; HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9807-9911			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9806-9806			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9807-9911			●
211	BOLT; HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9807-9911			●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9806-9806			●
211	BOLT; HSG ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9807-9911			●
211	BOLT; HSG ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9807-9911			●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9806-9911	●		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9912-0604		●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9806-9911	●		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9912-		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0104-0604		●
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0605-		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9806-9911	●
228	STUD; AIR CMPR EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M12X35 L=53	9-94411-235-0	01	1	9806-9911			●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9806-9911			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9806-9911	●
241	WASHER; PL,HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	12	1	9806-9911			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9912-		●
241	WASHER; PL,HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9806-9806			●
241	WASHER; PL,HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9807-9911			●
241	WASHER; PL,HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9807-9911			●
264	NUT; COVER EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M12 FLANGE	0-91150-212-0	01	1	9806-9806			●
264	NUT; COVER ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M12 FLANGE	0-91150-212-0	01	1	9807-9911			●
264	NUT; COVER ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M12 FLANGE	0-91150-212-0	01	1	9807-9911			●
479	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=162.6	1-09623-570-0	01	1	9806-9806			●
479	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=162.6	1-09623-570-0	01	1	9807-9911			●
479	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=162.6	1-09623-570-0	01	1	9807-9911			●
480	BOLT; COVER EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M12X70 FLANGE	0-28181-270-0	03	1	9806-9806			●
480	BOLT; COVER ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M12X70 FLANGE	0-28181-270-0	03	1	9807-9911			●
480	BOLT; COVER ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M12X70 FLANGE	0-28181-270-0	03	1	9807-9911			●
485	GASKET; SENSOR	9-09565-212-0	01	1	9806-9911			●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9806-9911	●
487	COVER; HOLE EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B)	8-94394-513-1	01	1	9806-9911			●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9912-		●
487	COVER; HOLE EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	8-94394-381-1	01	1	9806-9806			●
487	COVER; HOLE ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	8-94394-381-1	01	1	9807-9911			●
487	COVER; HOLE ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	8-94394-381-1	01	1	9807-9911			●

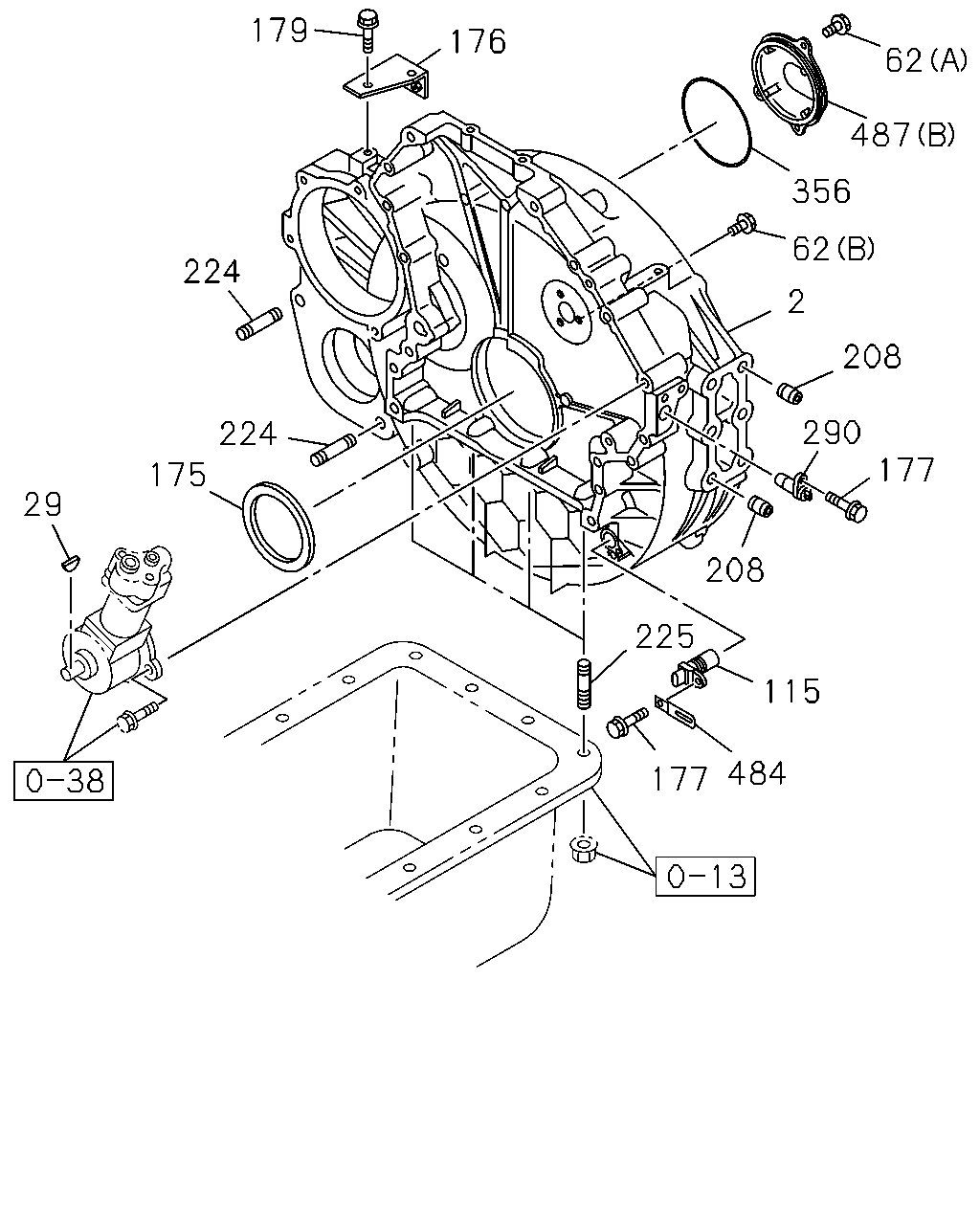

179 176 62 487 356 62 224 2 208 290 224 177 175 29 208 225 115 484 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9806-9902	●
2	HOUSING; FLYWHEEL	8-97600-260-1	01	1	9903-9911	●
2	HOUSING; FLYWHEEL	8-97600-229-6	01	1	9912-		●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9806-9806			●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-1	01	1	9806-9806			●
2	HOUSING; FLYWHEEL ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
2	HOUSING; FLYWHEEL ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
29	KEY; COUPLING	9-08055-516-0	01	1	9806-9911	●
29	KEY; COUPLING	9-08055-516-0	01	1	9912-		●
29	KEY; COUPLING	9-08055-416-0	01	1	9806-9911			●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9806-9911	●
62	BOLT; COVER EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) M8X14 FLANGE	0-28080-814-0	03	1	9806-9911			●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9912-		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	9806-9911	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	9912-0512		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-		●
115	SENSOR; REVOLUTION,ENG SPD	1-80240-010-1	01	1	9806-9911	●
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	9912-		●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	9806-9911			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9806-9911	●		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9912-0112		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-		●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9806-9911	●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9912-		●
176	BRACKET; HARNESS	1-82699-412-1	01	1	9806-9911			●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	9806-9911	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	02	1	9912-0512		●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	02	1	0601-		●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9806-9911			●
179	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9806-9911	●		●
179	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9912-0512		●
179	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9806-9911	●		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9912-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9806-9911	●		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9912-0604		●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9806-9911	●		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9912-		●
290	PLUG; SENSOR HOLE	1-11349-157-0	01	1	9912-0205		●
290	PLUG; SENSOR HOLE	8-97101-974-0	01	1	0206-		●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94394-186-0	01	1	9806-9911	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=110	8-94394-186-0	01	1	9806-9911			●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	9912-		●
484	CLIP; BAND L=80	5-09700-307-1	01	1	9912-		●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9806-9911	●
487	COVER; HOLE EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B)	8-94394-513-1	01	1	9806-9911			●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9912-		●
487	COVER; HOLE EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	8-94394-381-1	01	1	9806-9806			●
487	COVER; HOLE ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	8-94394-381-1	01	1	9807-9911			●
487	COVER; HOLE ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	8-94394-381-1	01	1	9807-9911			●

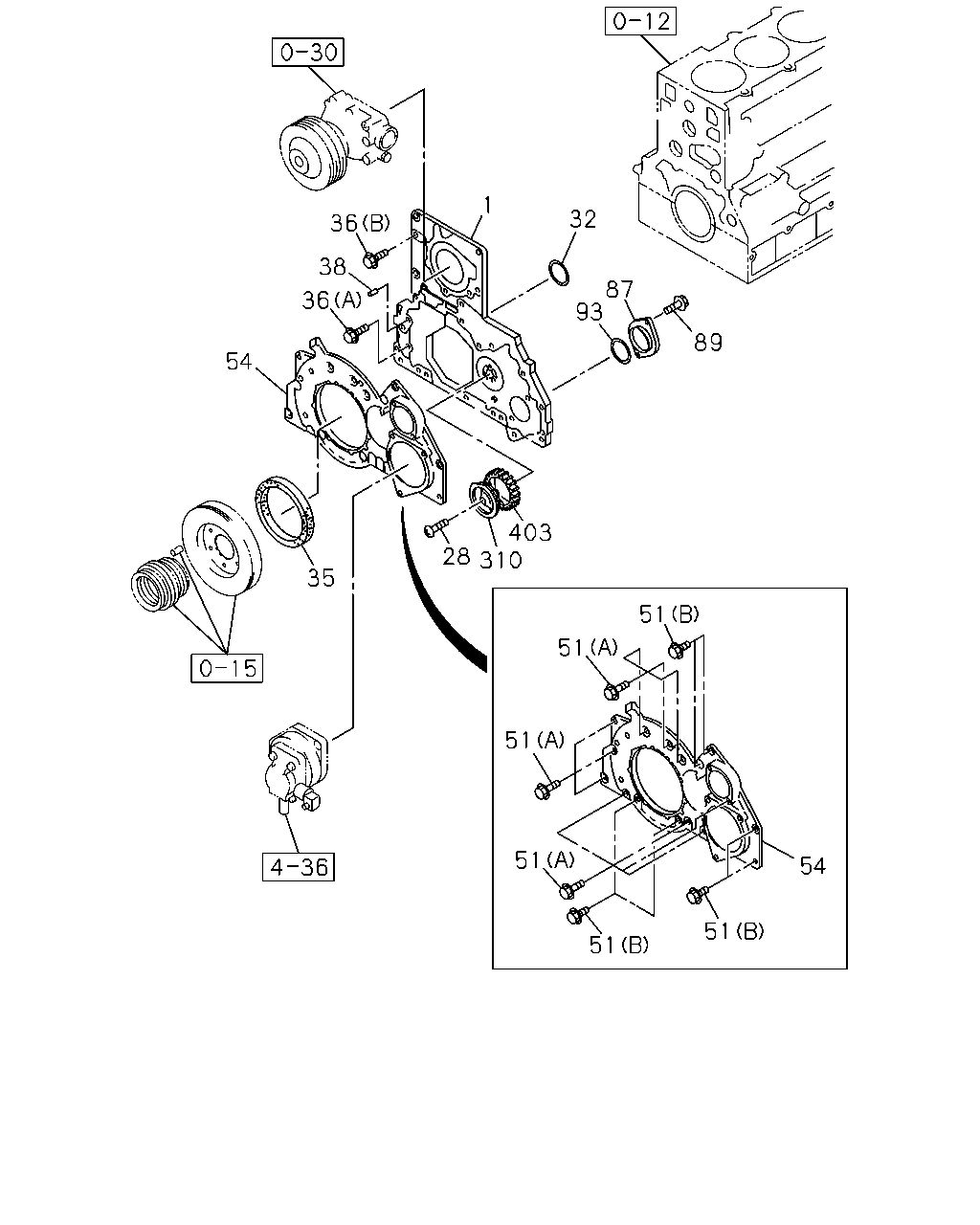

1 32 36 38 87 93 36 89 54 403 28 310 35 51 51 51 51 54 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR	8-94396-434-5	01	1	9806-9911	●		●
1	CASE; TIMING GEAR	8-94396-434-6	01	1	9912-		●
28	BOLT; DRIVE GEAR SCREW M8X28	8-94399-256-0	03	1	9806-9911	●		●
28	BOLT; DRIVE GEAR SCREW M8X28	8-94399-256-0	03	1	9912-		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	9806-9911	●		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	8-94397-364-0	01	1	9912-		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). T=13 ID=104 OD=137	8-94396-199-1	01	1	9806-9911	●		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). T=13 ID=104 OD=137	8-94396-199-1	01	1	9912-0112		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0201-		●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9806-9911	●		●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9912-		●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9806-9911	●		●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9912-		●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9806-9911	●		●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9912-		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	09	1	9806-9911	●		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	9912-0512		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	11	1	0601-		●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9806-9911	●		●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9912-0512		●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-		●
54	COVER; GEAR CASE	8-94395-146-1	01	1	9806-9911	●		●
54	COVER; GEAR CASE	8-94393-304-1	01	1	9912-		●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9806-9911	●		●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9912-		●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9806-9911	●		●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9912-		●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9806-9911	●		●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9912-		●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9806-9911	●		●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9912-		●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9806-9911	●		●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9912-		●

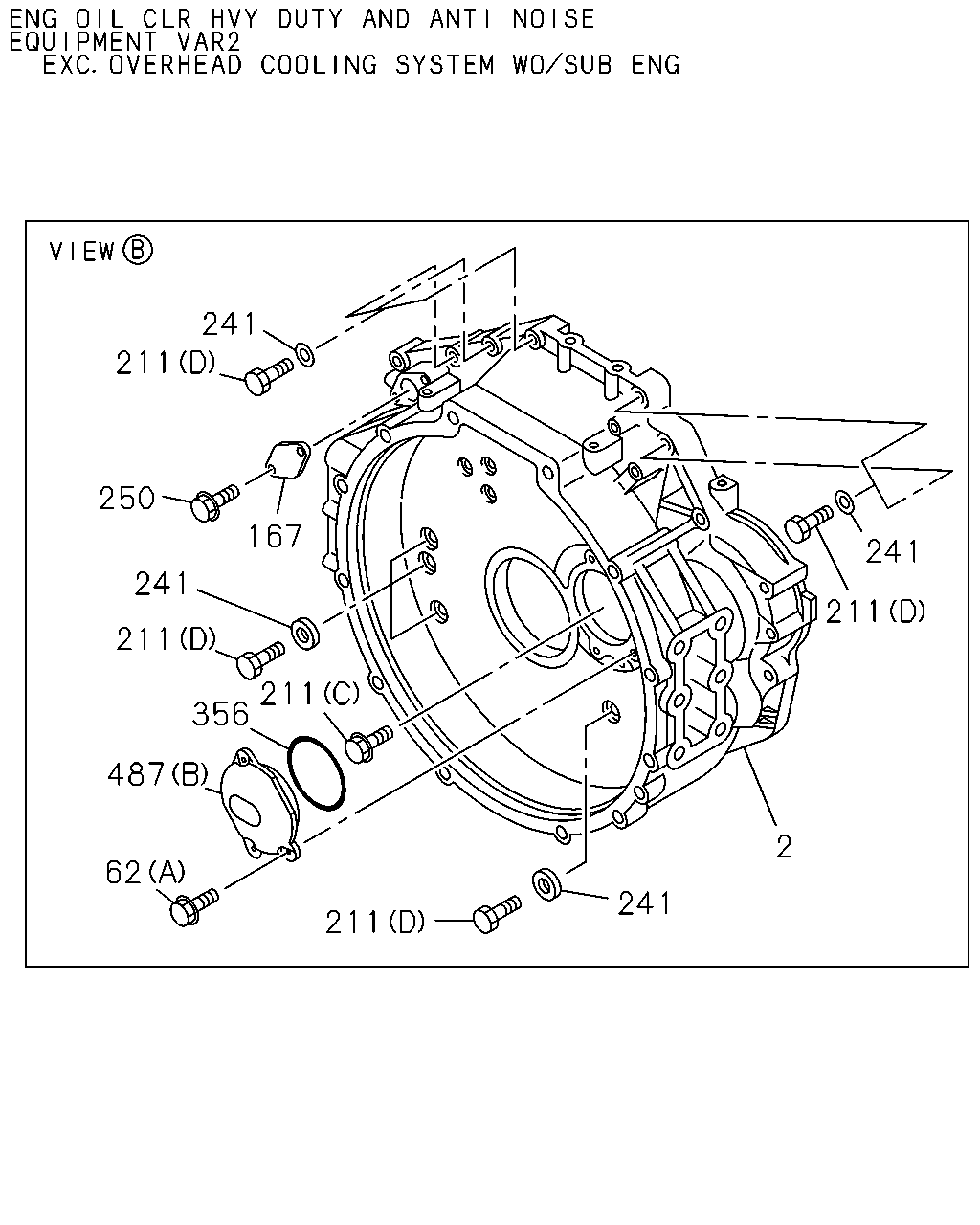

241 211 250 167 241 241 211 211 211 356 487 2 62 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9806-9902	●
2	HOUSING; FLYWHEEL	8-97600-260-1	01	1	9903-9911	●
2	HOUSING; FLYWHEEL	8-97600-229-6	01	1	9912-		●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9806-9806			●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-1	01	1	9806-9806			●
2	HOUSING; FLYWHEEL ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
2	HOUSING; FLYWHEEL ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9806-9911	●
62	BOLT; COVER EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) M8X14 FLANGE	0-28080-814-0	03	1	9806-9911			●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9912-		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	9806-9911	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	9912-0512		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-		●
167	COVER; OIL	1-11219-163-0	01	1	9806-9911	●		●
167	COVER; OIL	1-11219-163-0	01	1	9912-		●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9806-9911	●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (C) M14X27 FLANGE	8-94393-995-0	01	1	9806-9911			●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9912-		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9806-9911	●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	11	1	9806-9911			●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9912-0512		●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9806-9911	●		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9912-0512		●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9806-9911	●		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9912-0512		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-		●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9806-9806			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9807-9911			●
211	BOLT; HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9807-9911			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9806-9806			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9807-9911			●
211	BOLT; HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9807-9911			●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9806-9806			●
211	BOLT; HSG ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9807-9911			●
211	BOLT; HSG ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9807-9911			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9806-9911	●
241	WASHER; PL,HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	12	1	9806-9911			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9912-		●
241	WASHER; PL,HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9806-9806			●
241	WASHER; PL,HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9807-9911			●
241	WASHER; PL,HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9807-9911			●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9806-9911	●		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9912-		●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94394-186-0	01	1	9806-9911	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=110	8-94394-186-0	01	1	9806-9911			●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	9912-		●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9806-9911	●
487	COVER; HOLE EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B)	8-94394-513-1	01	1	9806-9911			●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9912-		●
487	COVER; HOLE EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	8-94394-381-1	01	1	9806-9806			●
487	COVER; HOLE ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	8-94394-381-1	01	1	9807-9911			●
487	COVER; HOLE ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	8-94394-381-1	01	1	9807-9911			●

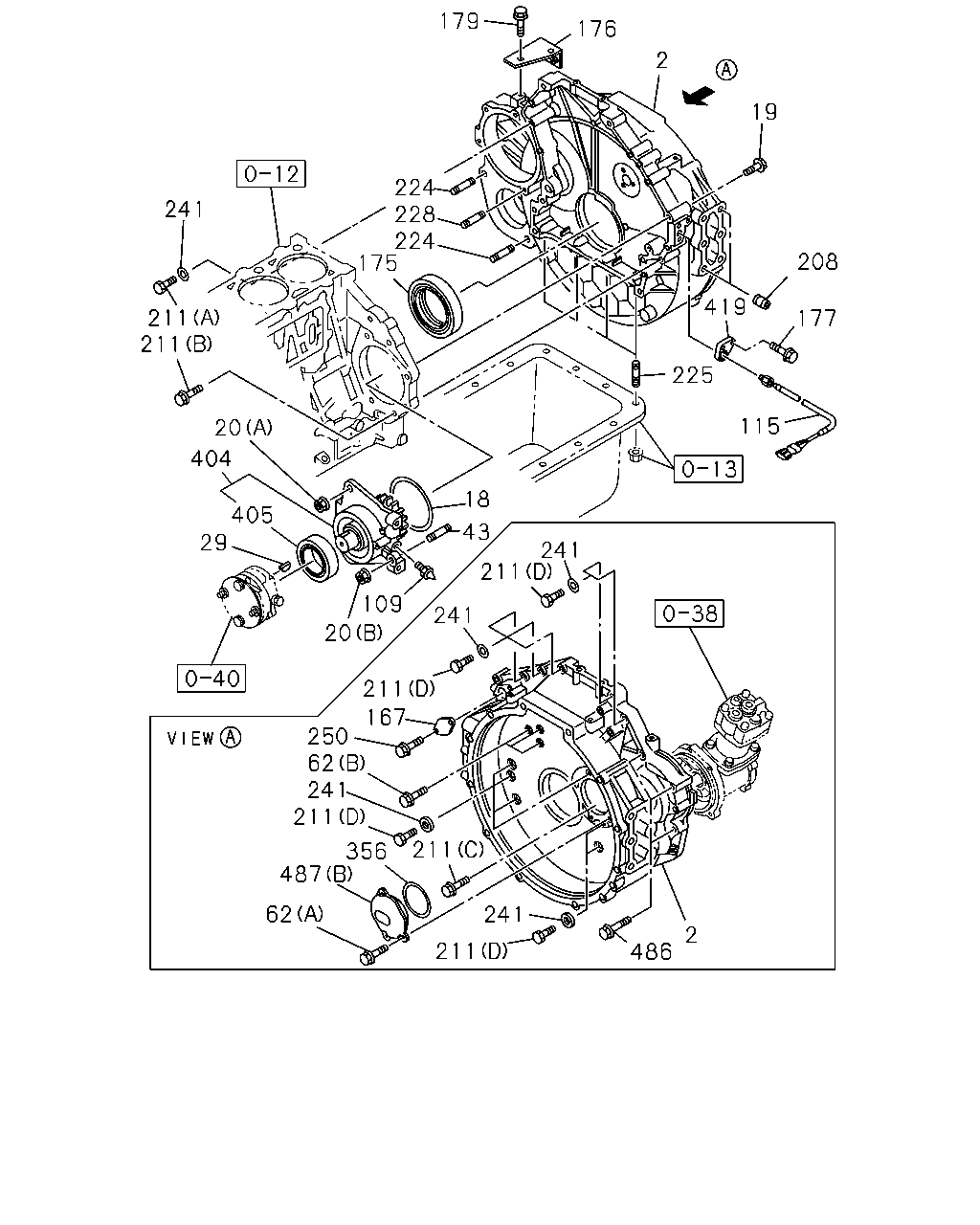

179 176 2 19 224 228 224 175 241 208 419 211 211 177 225 115 20 404 18 405 29 43 241 211 109 241 20 211 167 250 62 241 211 211 356 487 241 62 2 211 486

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9806-9902	●
2	HOUSING; FLYWHEEL	8-97600-260-1	01	1	9903-9911	●
2	HOUSING; FLYWHEEL	8-97600-229-6	01	1	9912-		●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9806-9806			●
2	HOUSING; FLYWHEEL OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-838-2	01	1	9807-9911			●
2	HOUSING; FLYWHEEL EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-1	01	1	9806-9806			●
2	HOUSING; FLYWHEEL ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
2	HOUSING; FLYWHEEL ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9>	8-94395-972-4	01	1	9807-9911			●
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9806-9911	●
19	BOLT; BRG CASE M12X100 FLANGE	0-28181-200-0	01	1	9806-9911	●
20	NUT; BRG CASE (A) M10 FLANGE	0-91150-110-0	02	1	9806-9911	●
20	NUT; BRG CASE (B) M12 FLANGE	0-91150-212-0	01	1	9806-9911	●
29	KEY; COUPLING	9-08055-516-0	01	1	9806-9911	●
29	KEY; COUPLING	9-08055-516-0	01	1	9912-		●
29	KEY; COUPLING	9-08055-416-0	01	1	9806-9911			●
43	STUD; BRG COVER M12X67 L=82	1-09302-112-0	01	1	9806-9911	●
43	STUD; BRG COVER M12X77 L=95	9-09831-161-0	01	1	9912-		●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9806-9911	●
62	BOLT; COVER EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) M8X14 FLANGE	0-28080-814-0	03	1	9806-9911			●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9912-		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	9806-9911	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	9912-0512		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-		●
109	POINTER; TIMING L=21	9-11327-602-0	01	1	9806-9911	●
115	SENSOR; REVOLUTION,ENG SPD	1-80240-010-1	01	1	9806-9911	●
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	9912-		●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	9806-9911			●
167	COVER; OIL	1-11219-163-0	01	1	9806-9911	●		●
167	COVER; OIL	1-11219-163-0	01	1	9912-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9806-9911	●		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9912-0112		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-		●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9806-9911	●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9912-		●
176	BRACKET; HARNESS	1-82699-412-1	01	1	9806-9911			●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	9806-9911	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	02	1	9912-0512		●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	02	1	0601-		●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9806-9911			●
179	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9806-9911	●		●
179	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9912-0512		●
179	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9806-9911	●		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9912-		●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9806-9911	●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (C) M14X27 FLANGE	8-94393-995-0	01	1	9806-9911			●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9912-		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9806-9911	●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	11	1	9806-9911			●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9912-0512		●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9806-9911	●		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9912-0512		●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9806-9911	●		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9912-0512		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-		●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9806-9806			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9807-9911			●
211	BOLT; HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9807-9911			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9806-9806			●
211	BOLT; HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9807-9911			●
211	BOLT; HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (D) M12X70	9-01666-270-0	12	1	9807-9911			●
211	BOLT; HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9806-9806			●
211	BOLT; HSG ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9807-9911			●
211	BOLT; HSG ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (F) M14X40 FLANGE	0-28791-440-0	01	1	9807-9911			●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9806-9911	●		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9912-0604		●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9806-9911	●		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9912-		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0104-0604		●
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0605-		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9806-9911	●
228	STUD; AIR CMPR EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M12X35 L=53	9-94411-235-0	01	1	9806-9911			●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9806-9911			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9806-9911	●
241	WASHER; PL,HSG EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	12	1	9806-9911			●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9912-		●
241	WASHER; PL,HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9806-9806			●
241	WASHER; PL,HSG OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9807-9911			●
241	WASHER; PL,HSG EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=12.5 OD=22	8-94393-140-1	13	1	9807-9911			●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9806-9911	●		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9912-		●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94394-186-0	01	1	9806-9911	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> ID=110	8-94394-186-0	01	1	9806-9911			●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	9912-		●
404	CASE ASM; BRG,INJ PUMP	8-94391-643-0	01	1	9806-9911	●
405	SEAL; OIL,BRG CASE	1-09625-576-0	01	1	9806-9911	●
419	BRACKET; SENSOR	8-94394-773-1	01	1	9806-9911	●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28181-270-0	03	1	9806-9911	●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9806-9911	●
487	COVER; HOLE EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B)	8-94394-513-1	01	1	9806-9911			●
487	COVER; HOLE (B)	8-94394-513-1	01	1	9912-		●
487	COVER; HOLE EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	8-94394-381-1	01	1	9806-9806			●
487	COVER; HOLE ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	8-94394-381-1	01	1	9807-9911			●
487	COVER; HOLE ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	8-94394-381-1	01	1	9807-9911			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
