0-10 — CYLINDER HEAD COVER (#678) — 24 parça

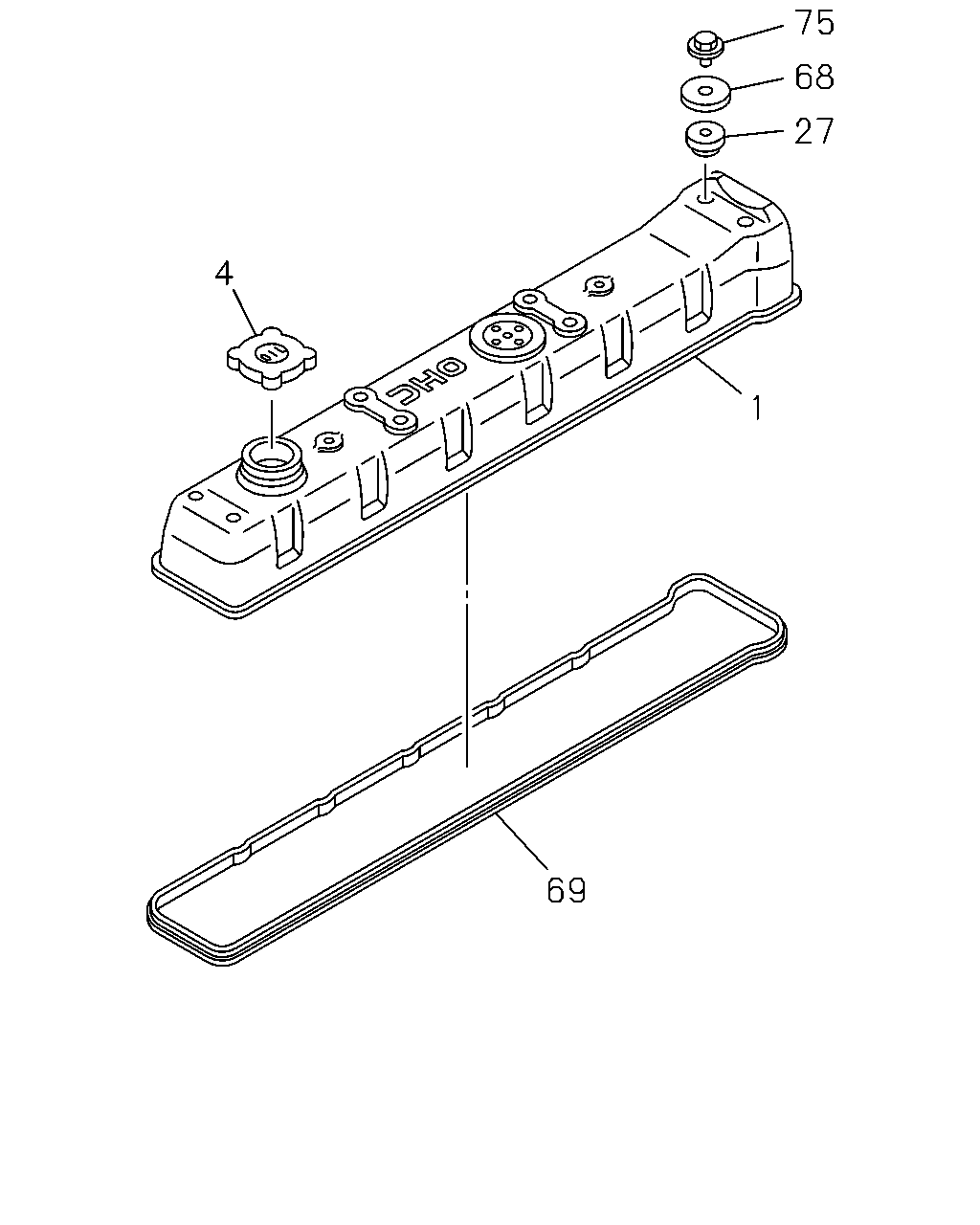

75 68 27 4 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COVER; CYL HD	1-11171-391-0	01	1	9204-	●
1	COVER; CYL HD	1-11171-392-0	01	1	9204-		●
1	COVER; CYL HD	8-94393-712-4	01	1	9505-			●
4	CAP; OIL FILLER	1-11750-020-0	01	1	9204-	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9505-			●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-032-0	08	1	9204-	●	●
68	WASHER; CAP NUT,HD COVER	9-11179-105-0	08	1	9204-	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-078-0	01	1	9204-	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-383-0	01	1	9505-			●
75	NUT; CAP,HD COVER M8 CAP NUT OD=22	8-94340-192-0	08	1	9204-	●	●

28 28 1 71 71 4 5 81 72 76 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COVER; CYL HD	1-11171-391-0	01	1	9204-	●
1	COVER; CYL HD	1-11171-392-0	01	1	9204-		●
1	COVER; CYL HD	8-94393-712-4	01	1	9505-			●
4	CAP; OIL FILLER	1-11750-020-0	01	1	9204-	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9505-			●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58	8-94399-689-0	01	1	9505-			●
28	BOLT; HD COVER M8X35 FLANGE	0-28280-835-0	19	1	9505-			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-078-0	01	1	9204-	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-383-0	01	1	9505-			●
71	COLLAR; HD COVER (A) OD=12.3	8-94396-971-1	18	1	9505-			●
71	COLLAR; HD COVER (B) OD=11	8-94396-972-1	01	1	9505-			●
72	PLATE; INNER HD COVER	8-94393-247-2	01	1	9505-			●
76	SCREW; INNER PLATE M4X12 TAPPING	0-71180-412-0	07	1	9505-			●
81	CLIP; HARNESS ID=18 L=44	8-94225-185-0	01	1	9505-			●
