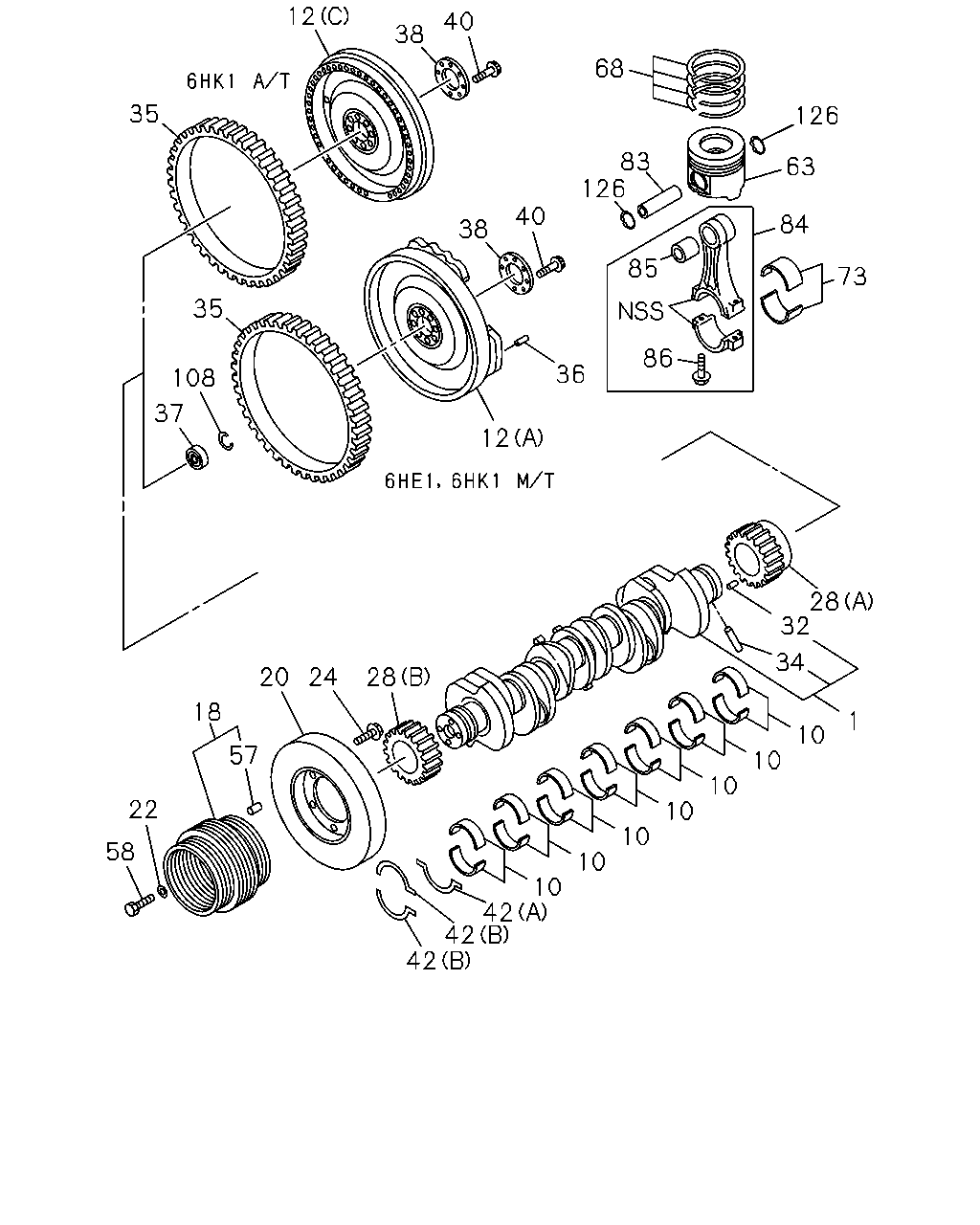

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#6779) — 172 parça

12 40 38 68 35 126 83 126 63 40 84 38 85 73 35 86 36 108 37 12 28 32 34 20 24 28 18 1 10 57 10 10 22 10 10 58 10 10 42 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-94396-737-3	01	1	9806-9911	●
1	CRANKSHAFT	8-94396-737-4	01	1	9912-0305		●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-		●
1	CRANKSHAFT	8-94393-291-3	01	1	9806-9911			●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0306-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0306-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0306-		●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9806-9911	●		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9806-9911	●		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9806-9911	●		●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9912-0305		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9912-0305		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9912-0305		●
12	FLYWHEEL (A)	8-94395-450-1	01	1	9806-9911	●
12	FLYWHEEL ISUZU M/T<X9A> (A)	8-94390-943-1	01	1	9912-		●
12	FLYWHEEL (B)	8-94395-519-0	01	1	9806-9911			●
12	FLYWHEEL A/T<X9D> (C)	8-97600-227-0	01	1	9912-		●
18	PULLEY; CR/SHF 7-GROOVE	8-94395-505-2	01	1	9806-9911	●		●
18	PULLEY; CR/SHF 7-GROOVE	8-94395-505-2	01	1	9912-		●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	9806-9911	●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	9912-		●
20	DAMPER; CR/SHF	8-94396-846-1	01	1	9806-9911			●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9806-9911	●		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9912-		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9806-9911	●		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9912-0512		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9806-9911	●		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9912-		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9806-9911	●		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9912-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9806-9911	●		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9912-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9806-9911	●		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9912-		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9806-9911	●		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	9912-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9806-9911	●		●
36	PIN; FLYWHEEL ISUZU M/T<X9A> OD=10 L=22	9-08151-022-0	02	1	9912-		●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9806-9901	●		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-9911	●		●
37	BEARING; PILOT,TOP GEAR SHAFT ISUZU M/T<X9A>	8-94392-288-0	01	1	9912-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9806-9911	●		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9912-		●
40	BOLT; FLYWHEEL 12-POINT HEAD M16X62	8-94393-070-2	08	1	9806-9911	●		●
40	BOLT; FLYWHEEL 12-POINT HEAD M16X62	8-94393-070-2	08	1	9912-		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9806-9911	●		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9912-		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9806-9911	●		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9912-		●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9806-9911	●		●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9912-		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9806-9911	●		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9912-0512		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-0	06	1	9806-9911	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	9912-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-0	06	1	9806-9911			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-5	06	1	9806-9911	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	9912-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-0	06	1	9806-9911			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	12	1	9806-9911	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	12	1	9912-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	12	1	9806-9911	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	12	1	9912-		●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	12	1	9806-9911			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9806-9911	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9912-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	9806-9911			●
84	ROD ASM; CONN	8-94399-661-1	06	1	9806-9911	●
84	ROD ASM; CONN	8-94399-661-1	06	1	9912-0108		●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0305		●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-		●
84	ROD ASM; CONN	8-94396-394-2	06	1	9806-9911			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9806-9911	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9912-0108		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0305		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9806-9911			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9806-9911	●		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9912-		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9806-9911	●		●
108	RING; SNAP,BRG SET ISUZU M/T<X9A> OD=59.2	9-09180-155-0	01	1	9912-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9806-9911	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9912-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	9806-9911			●

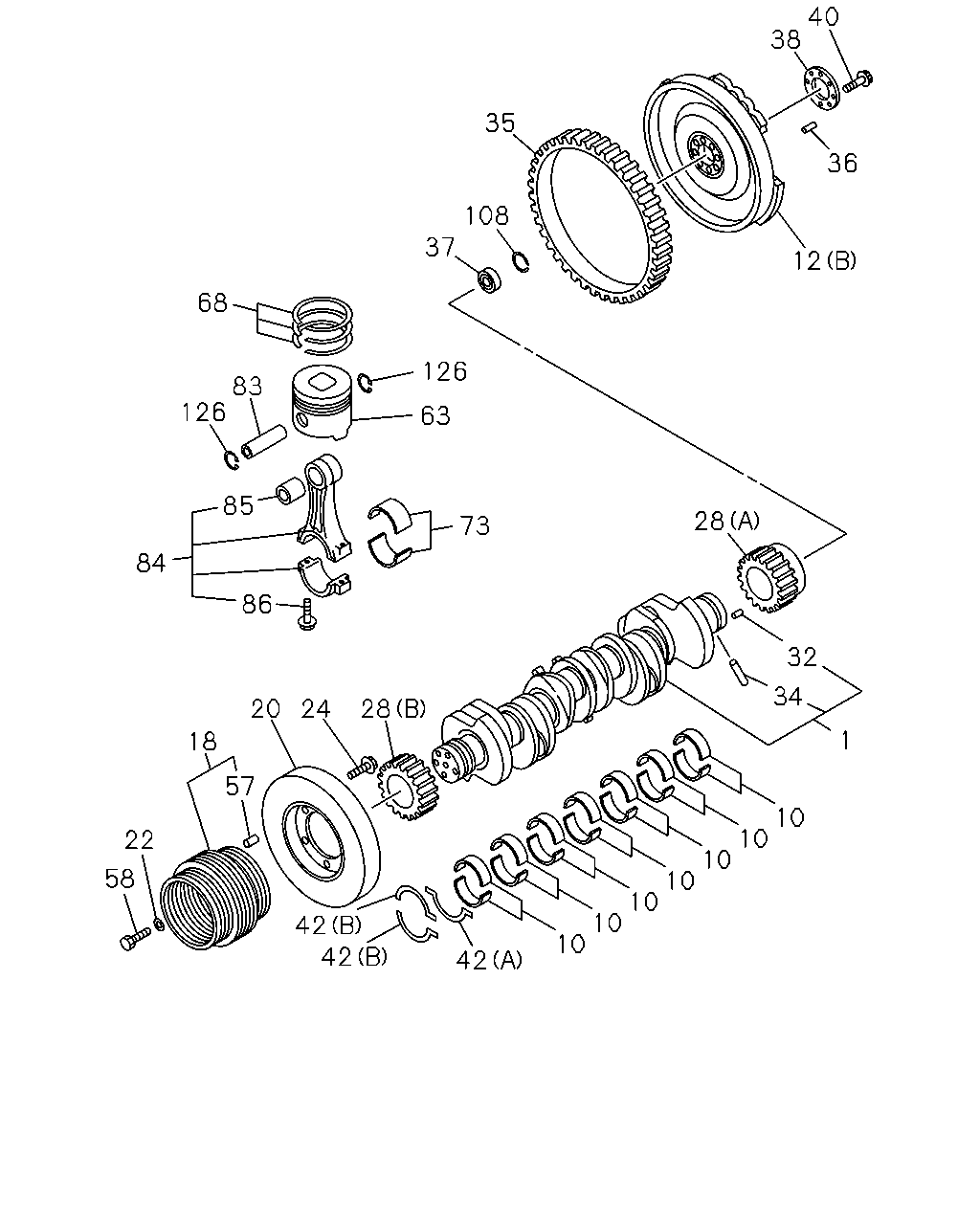

40 38 35 36 108 37 12 68 126 83 126 63 85 28 73 84 86 32 34 20 24 28 1 18 57 10 10 10 10 10 10 10 22 58 42 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-94396-737-3	01	1	9806-9911	●
1	CRANKSHAFT	8-94396-737-4	01	1	9912-0305		●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-		●
1	CRANKSHAFT	8-94393-291-3	01	1	9806-9911			●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0306-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0306-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0306-		●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9806-9911	●		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9806-9911	●		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9806-9911	●		●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9912-0305		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9912-0305		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9912-0305		●
12	FLYWHEEL (A)	8-94395-450-1	01	1	9806-9911	●
12	FLYWHEEL ISUZU M/T<X9A> (A)	8-94390-943-1	01	1	9912-		●
12	FLYWHEEL (B)	8-94395-519-0	01	1	9806-9911			●
12	FLYWHEEL A/T<X9D> (C)	8-97600-227-0	01	1	9912-		●
18	PULLEY; CR/SHF 7-GROOVE	8-94395-505-2	01	1	9806-9911	●		●
18	PULLEY; CR/SHF 7-GROOVE	8-94395-505-2	01	1	9912-		●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	9806-9911	●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	9912-		●
20	DAMPER; CR/SHF	8-94396-846-1	01	1	9806-9911			●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9806-9911	●		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9912-		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9806-9911	●		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9912-0512		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9806-9911	●		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9912-		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9806-9911	●		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9912-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9806-9911	●		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9912-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9806-9911	●		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9912-		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9806-9911	●		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	9912-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9806-9911	●		●
36	PIN; FLYWHEEL ISUZU M/T<X9A> OD=10 L=22	9-08151-022-0	02	1	9912-		●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9806-9901	●		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-9911	●		●
37	BEARING; PILOT,TOP GEAR SHAFT ISUZU M/T<X9A>	8-94392-288-0	01	1	9912-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9806-9911	●		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9912-		●
40	BOLT; FLYWHEEL 12-POINT HEAD M16X62	8-94393-070-2	08	1	9806-9911	●		●
40	BOLT; FLYWHEEL 12-POINT HEAD M16X62	8-94393-070-2	08	1	9912-		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9806-9911	●		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9912-		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9806-9911	●		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9912-		●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9806-9911	●		●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9912-		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9806-9911	●		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9912-0512		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-0	06	1	9806-9911	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	9912-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-0	06	1	9806-9911			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-5	06	1	9806-9911	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	9912-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-0	06	1	9806-9911			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	12	1	9806-9911	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	12	1	9912-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	12	1	9806-9911	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	12	1	9912-		●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	12	1	9806-9911			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9806-9911	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9912-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	9806-9911			●
84	ROD ASM; CONN	8-94399-661-1	06	1	9806-9911	●
84	ROD ASM; CONN	8-94399-661-1	06	1	9912-0108		●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0305		●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-		●
84	ROD ASM; CONN	8-94396-394-2	06	1	9806-9911			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9806-9911	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9912-0108		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0305		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9806-9911			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9806-9911	●		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9912-		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9806-9911	●		●
108	RING; SNAP,BRG SET ISUZU M/T<X9A> OD=59.2	9-09180-155-0	01	1	9912-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9806-9911	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9912-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	9806-9911			●
