◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11142 - FVR-RHD(EUROPE)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#67780) — 78 parça

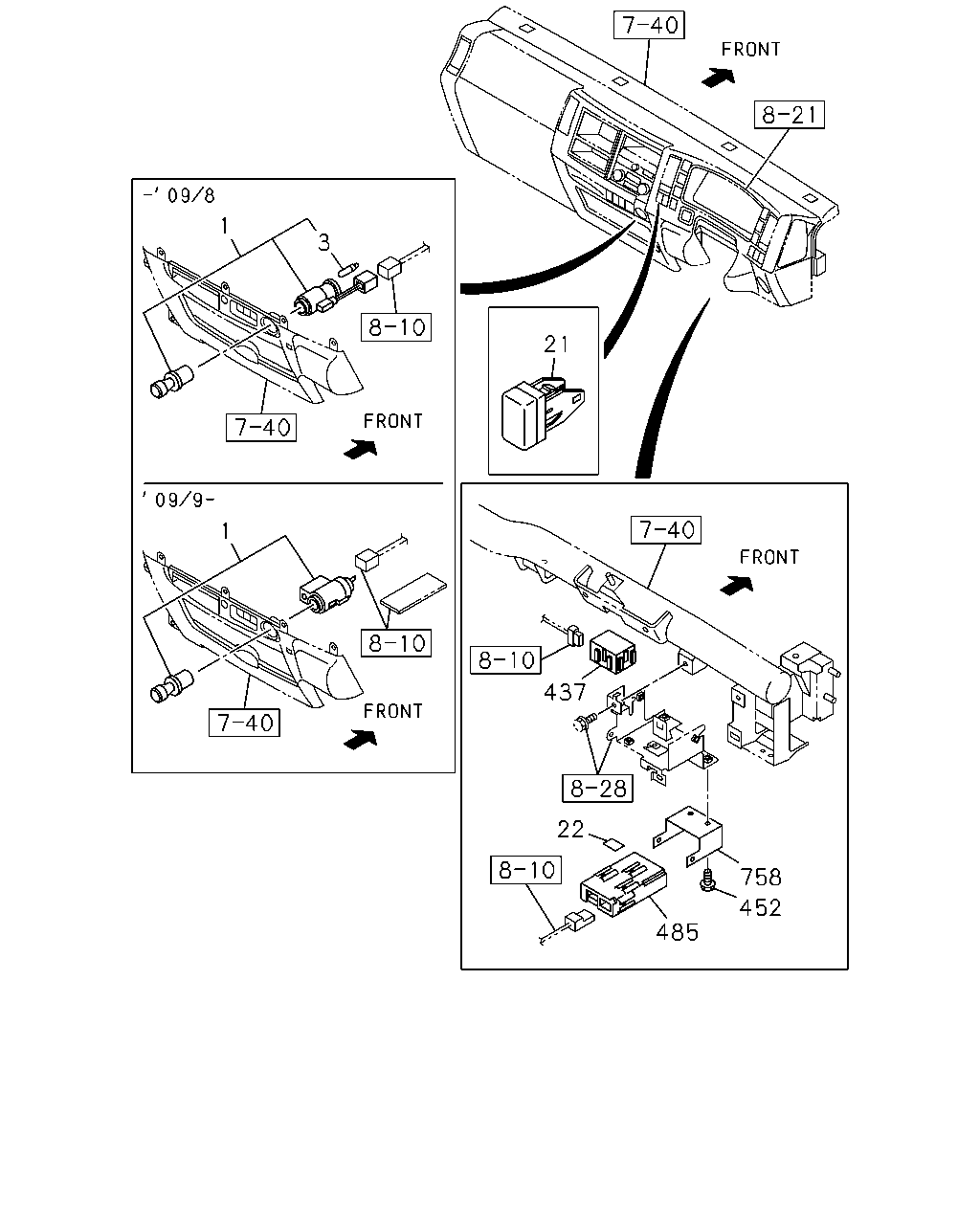

çizim 138470
1 3 21 1 437 22 758 452 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0809-0908 ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0809-0908 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0809- ● ●
22 SEAL; TAPE 1-80199-006-0 01 1 0809-0811 ● ●
22 SEAL; TAPE 1-80199-006-0 02 1 0812-1212 ● ●
22 SEAL; TAPE 8-98166-639-0 02 1 1301- ● ●
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 0809- ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 0809- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-061-0 01 1 0809- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0809- ● ●
çizim 140851
726 497 726 497 507
BalonParca AdiParca NoAdetTipApplied Date A B
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0809- ● ●
507 CONNECTOR 1-82690-666-0 01 1 1011-1102 ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0809- ● ●

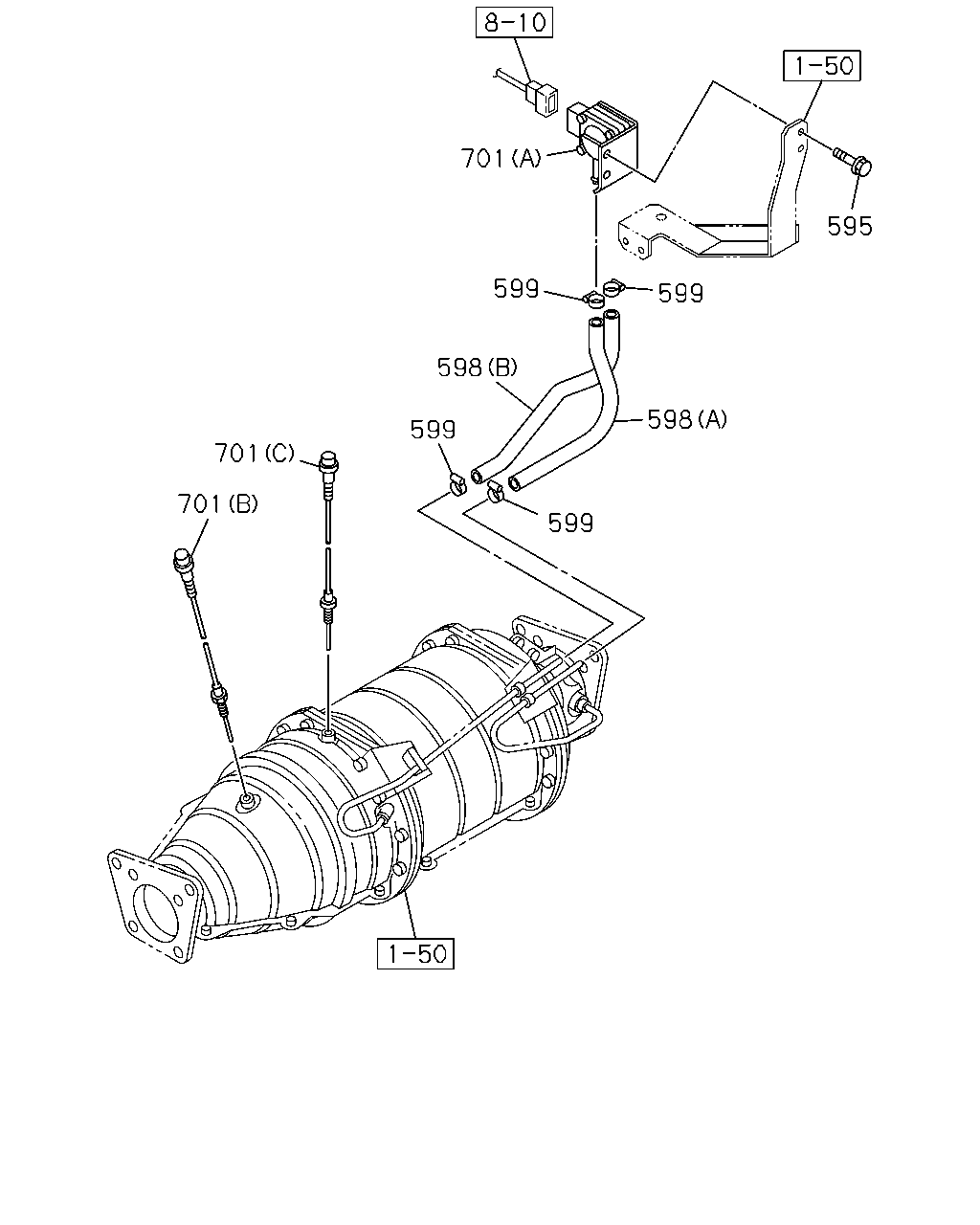

çizim 143955
701 595 599 599 598 598 599 701 701 599
BalonParca AdiParca NoAdetTipApplied Date A B
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0809- ● ●
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) (B) 		8-98088-940-0 01 1 0809- ● ●
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) (A) 		8-98088-941-0 01 1 0809- ● ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L) (A) 		8-98075-388-0 01 1 0809- ● ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L) (B) 		8-98075-389-0 01 1 0809- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0809- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0809- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0809- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0809- ● ●
çizim 187336
744 448 491 373 373 766
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
(B) 		8-98105-661-0 01 1 0809-0809 ● ●
373 HARNESS; CLU SWITCH
FULLER FSO5206B OD M/T(Y4V) (A) 		8-98059-419-2 01 1 0809- ● ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98059-419-2 01 1 0809- ● ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98053-829-3 01 1 0809- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0809- ● ●
491 PLUG; HOLE,CONT UNIT 8-98054-651-0 01 1 0809- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0809- ● ●
766 BAND; CLIP
L=140 		5-09707-031-1 01 1 0809- ● ●

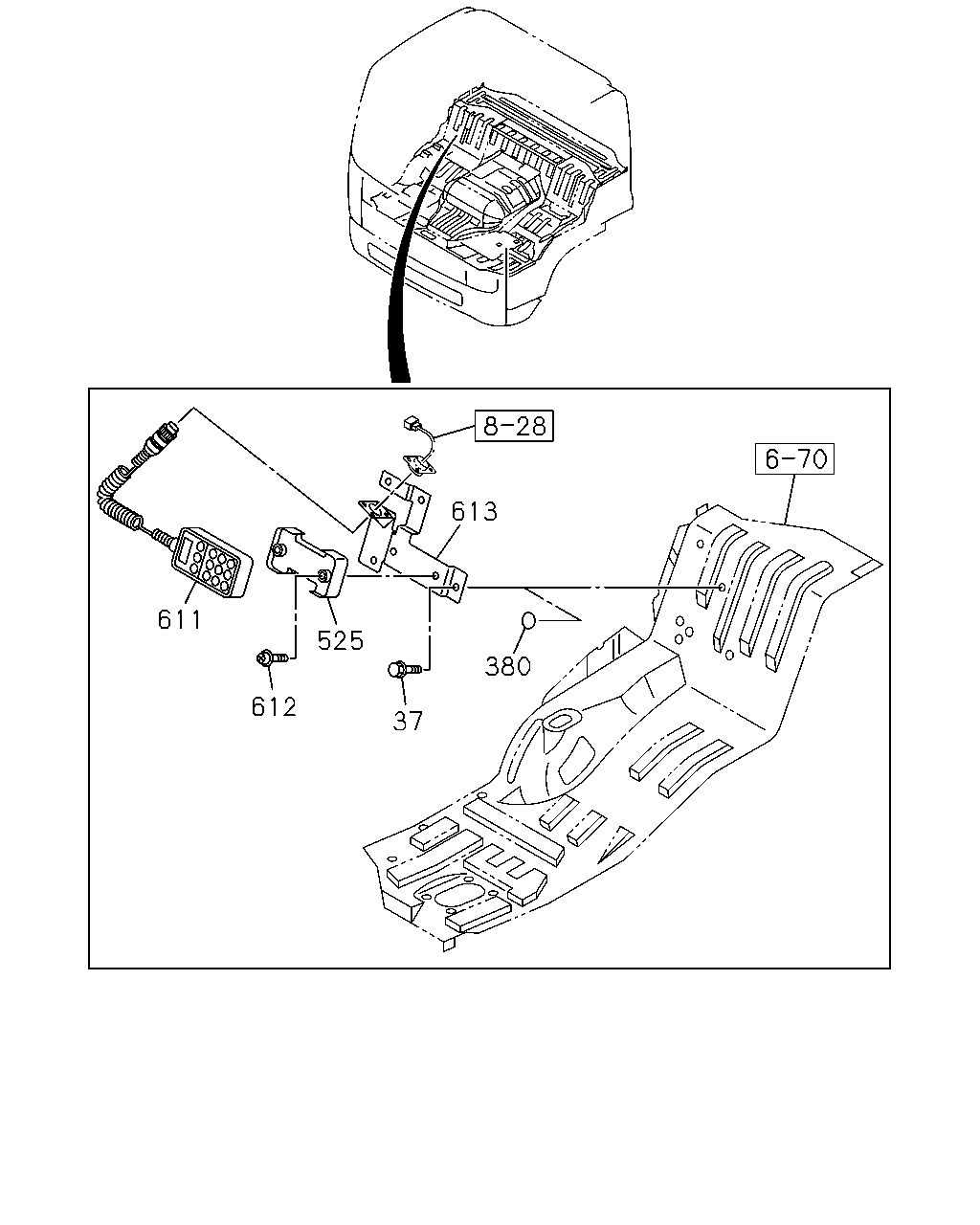

çizim 187340
613 611 525 380 612 37
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; BRKT FIX
M6X25 FLANGE 		0-28650-625-0 02 1 0809- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0809- ● ●
525 HOLDER; SW 1-82389-018-0 01 1 0809- ●
611 SWITCH ASM; AIR SUS 1-82380-162-0 01 1 0809- ●
612 SCREW; HOLDER
M6X14 W/PL WASHER 		0-36210-614-0 02 1 0809- ●
613 BRACKET; HOLDER,SW 8-97618-931-2 01 1 0809- ●

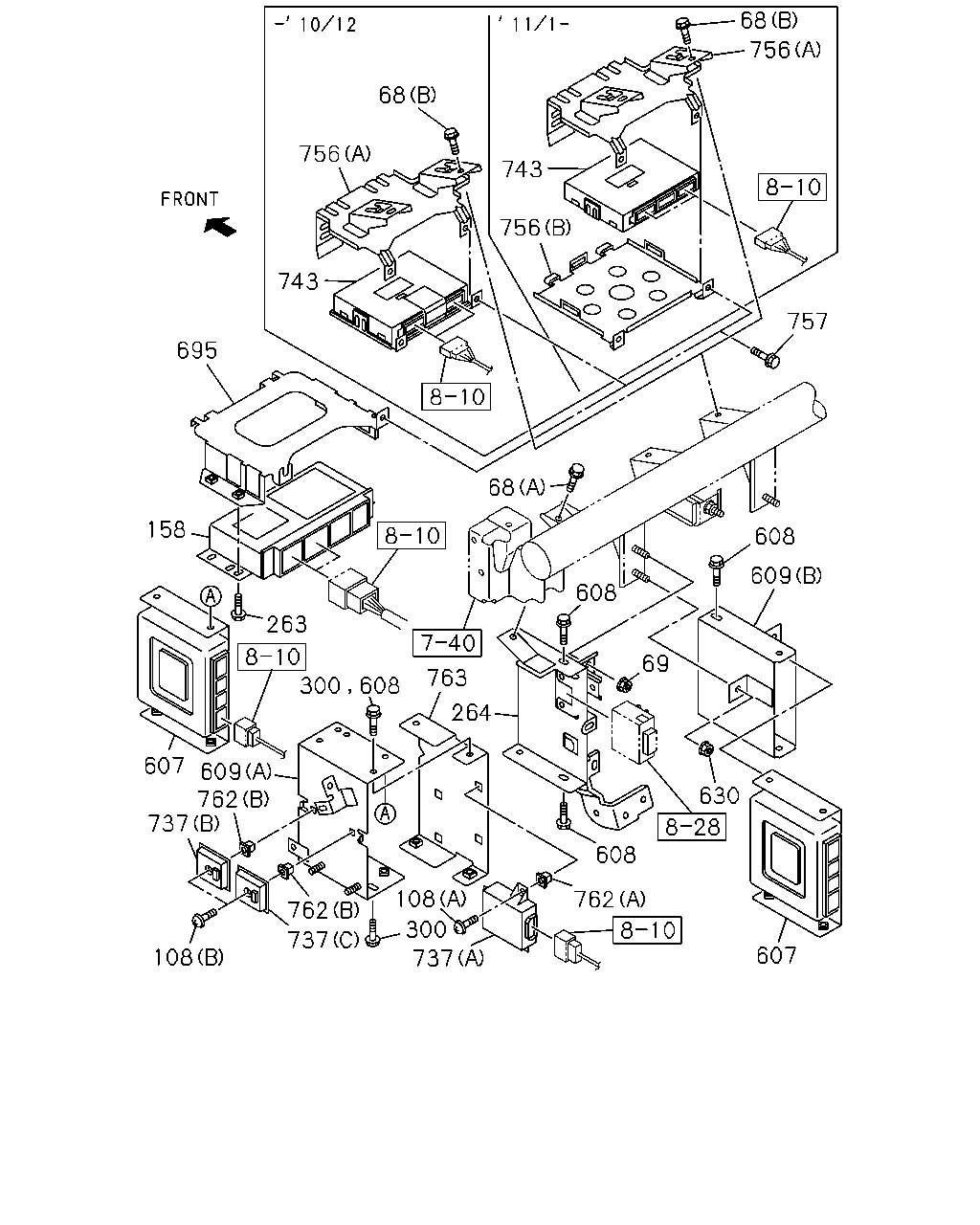

çizim 187345
68 756 68 756 743 756 743 757 695 68 158 608 609 608 263 69 763 264 607 609 762 737 630 608 108 762 762 300 737 607 108 737 300 608
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0809- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0809- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0809- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M5X16 TAPPING 		0-72180-516-0 03 1 0809- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) M4X25 TAPPING 		0-74160-425-0 02 1 0809- ● ●
158 CONTROLLER; ABS
TIRE 275/70R22.5-148/145M RIB EEC(5L4) 		8-98170-647-0 01 1 1006-1007 ● ●
158 CONTROLLER; ABS
TIRE 275/70R22.5-148/145M RIB EEC(5L4) 		1-80119-229-2 01 1 1008-1201 ● ●
158 CONTROLLER; ABS
TIRE 275/70R22.5-148/145M RIB EEC(5L4) 		8-98170-647-0 01 1 1202- ● ●
158 CONTROLLER; ABS
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) 		1-80119-261-0 01 1 0809-0810 ● ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 0811-1005 ● ●
158 CONTROLLER; ABS
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) 		8-98170-648-0 01 1 1006-1007 ● ●
158 CONTROLLER; ABS
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) 		1-80119-261-0 01 1 1008-1201 ● ●
158 CONTROLLER; ABS
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) 		8-98170-648-0 01 1 1202- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 0809- ● ●
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 0809- ● ●
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 04 1 0809- ● ●
607 CONTROL UNIT; AIR SUSPENSION 8-98101-097-1 01 1 0809- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 0809- ● ●
608 BOLT; CONT UNIT,AIR SUS
FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 0809- ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 04 1 0809- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98095-337-0 01 1 0809-1308 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98095-337-0 01 1 0809-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98169-737-1 01 1 1309- ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98169-737-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98084-468-0 01 1 0809- ●
630 NUT; CONT UNIT,AIR SUSP
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6 FLANGE 		0-91180-106-0 02 1 0809- ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 0809- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 0809- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 0809- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 0809- ● ●
743 CONTROL UNIT; BCM 8-98102-484-0 01 1 0809-0901 ● ●
743 CONTROL UNIT; BCM 8-98125-904-0 01 1 0902-1005 ● ●
743 CONTROL UNIT; BCM 8-98155-169-1 01 1 1006-1007 ● ●
743 CONTROL UNIT; BCM 8-98176-213-0 01 1 1008-1012 ● ●
743 CONTROL UNIT; BCM 8-98182-026-2 01 1 1101- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 0809- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 0809- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0809- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0809- ● ●
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-587-0 01 1 0809- ● ●
