0-14 — CAMSHAFT AND VALVE (#6778) — 337 parça

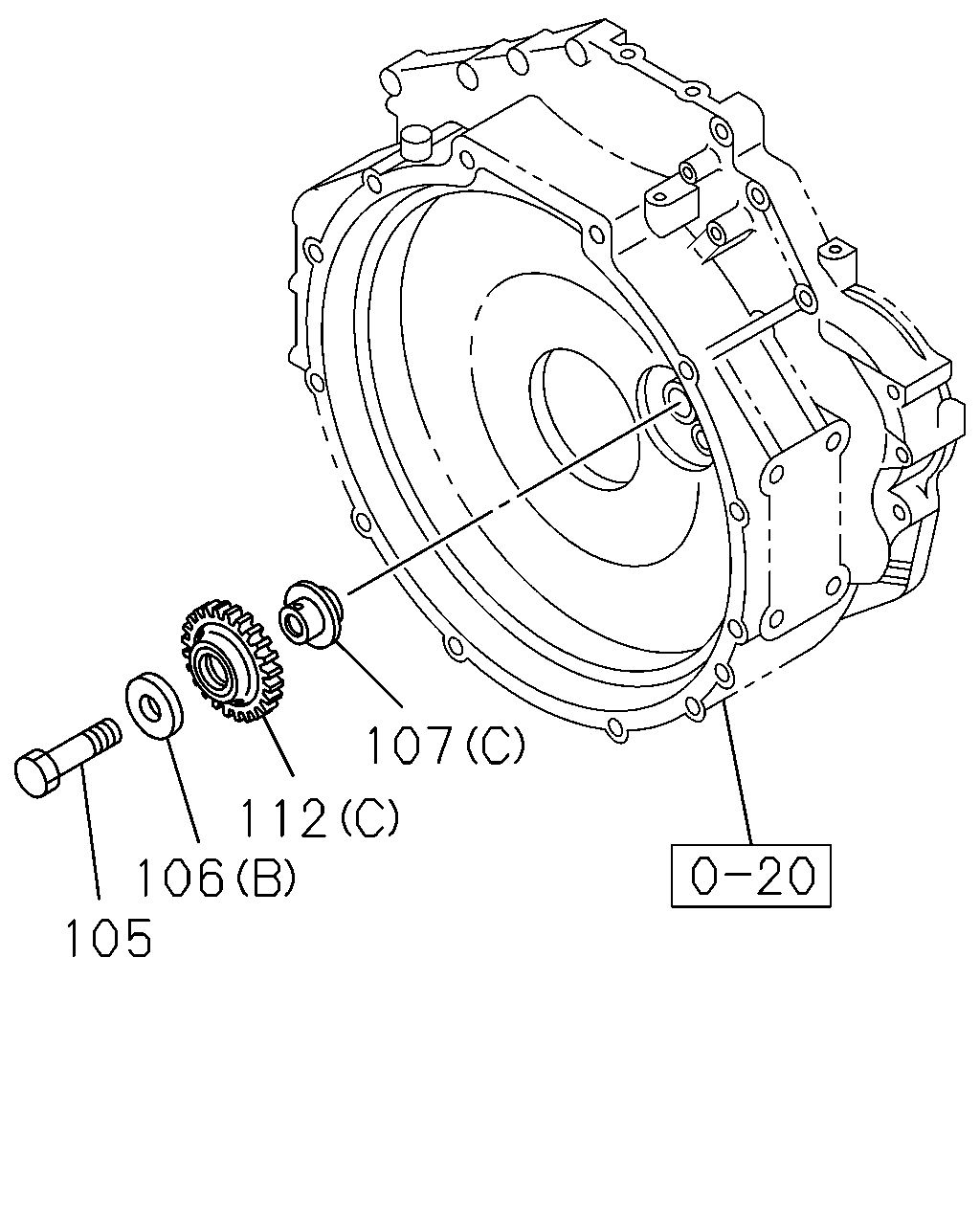

çizim 26567
107 112 106 105
BalonParca AdiParca NoAdetTipApplied Date A B C
105 BOLT; IDLE GEAR SHAFT
M14X65 		8-97066-798-0 01 1 9806-9911 ●
105 BOLT; IDLE GEAR SHAFT
M14X65 		8-97066-798-0 01 1 9912- ●
106 WASHER; IDLE GEAR SHAFT
(A) ID=14.2 OD=23 		1-09503-031-0 01 1 9806-9911 ●
106 WASHER; IDLE GEAR SHAFT
(A) ID=14.2 OD=23 		1-09503-031-0 01 1 9912- ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-94370-688-0 01 1 9912-0306 ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
107 SHAFT; IDLE GEAR
(B) 		8-94395-073-2 01 1 9806-9911 ●
107 SHAFT; IDLE GEAR
(B) 		8-94395-073-2 01 1 9912-0205 ●
107 SHAFT; IDLE GEAR
(B) 		8-97602-588-0 01 1 0206- ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-096-0 01 1 9806-9911 ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-096-0 01 1 9912-0304 ●
107 SHAFT; IDLE GEAR
(C) 		8-94334-682-0 01 1 0305- ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9806-9806 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9807-9911 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 9912-0204 ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205- ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9806-9806 ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9806-9911 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 9806-9911 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-4 01 1 9912- ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9806-9911 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9912- ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-2 01 1 9806-9911 ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-3 01 1 9912- ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9806-9911 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9806-9911 ●

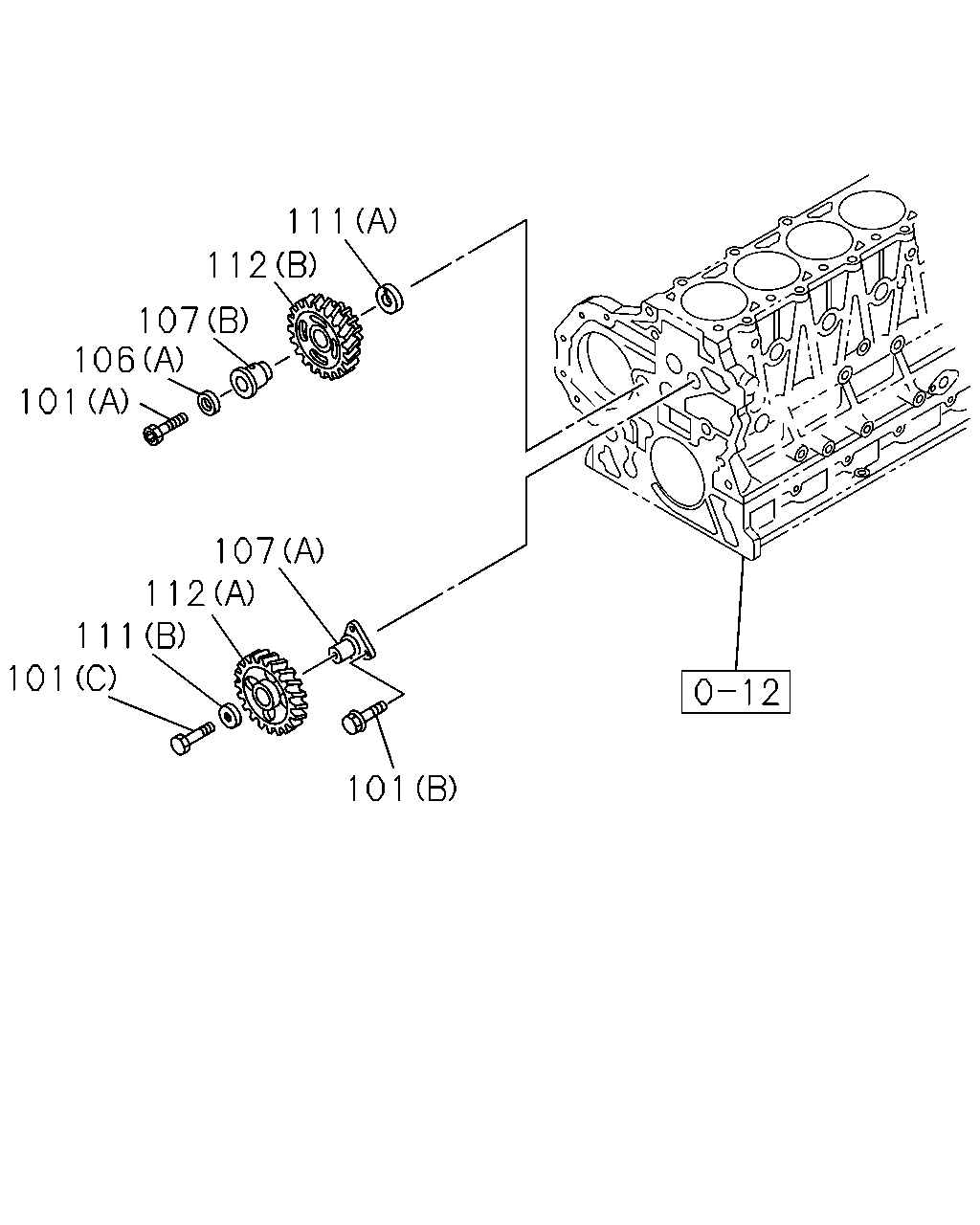

çizim 26610
111 112 107 106 101 107 112 111 101 101
BalonParca AdiParca NoAdetTipApplied Date A B C
101 BOLT; THRUST COLLAR
(A) SOCKET BOLT M14X67 HEX SOCKET 		8-94394-779-2 01 1 9806-9911 ●
101 BOLT; THRUST COLLAR
(A) SOCKET BOLT M14X67 HEX SOCKET 		8-94394-779-2 01 1 9912- ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9806-9911 ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9912-0512 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601- ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9806-9911 ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9912-0512 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601- ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 9806-9911 ●
106 WASHER; IDLE GEAR SHAFT
(A) ID=14.2 OD=23 		1-09503-031-0 01 1 9806-9911 ●
106 WASHER; IDLE GEAR SHAFT
(A) ID=14.2 OD=23 		1-09503-031-0 01 1 9912- ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-94370-688-0 01 1 9912-0306 ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
107 SHAFT; IDLE GEAR
(B) 		8-94395-073-2 01 1 9806-9911 ●
107 SHAFT; IDLE GEAR
(B) 		8-94395-073-2 01 1 9912-0205 ●
107 SHAFT; IDLE GEAR
(B) 		8-97602-588-0 01 1 0206- ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-096-0 01 1 9806-9911 ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-096-0 01 1 9912-0304 ●
107 SHAFT; IDLE GEAR
(C) 		8-94334-682-0 01 1 0305- ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9806-9806 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9807-9911 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 9912-0204 ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205- ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9806-9806 ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9806-9911 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=24 OD=70 		8-94394-097-1 01 1 9806-9911 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=24 OD=70 		8-94394-097-1 01 1 9912- ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-94370-688-0 02 1 9806-9911 ● ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-94370-688-0 01 1 9912-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 9806-9911 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-4 01 1 9912- ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9806-9911 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9912- ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-2 01 1 9806-9911 ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-3 01 1 9912- ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9806-9911 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9806-9911 ●

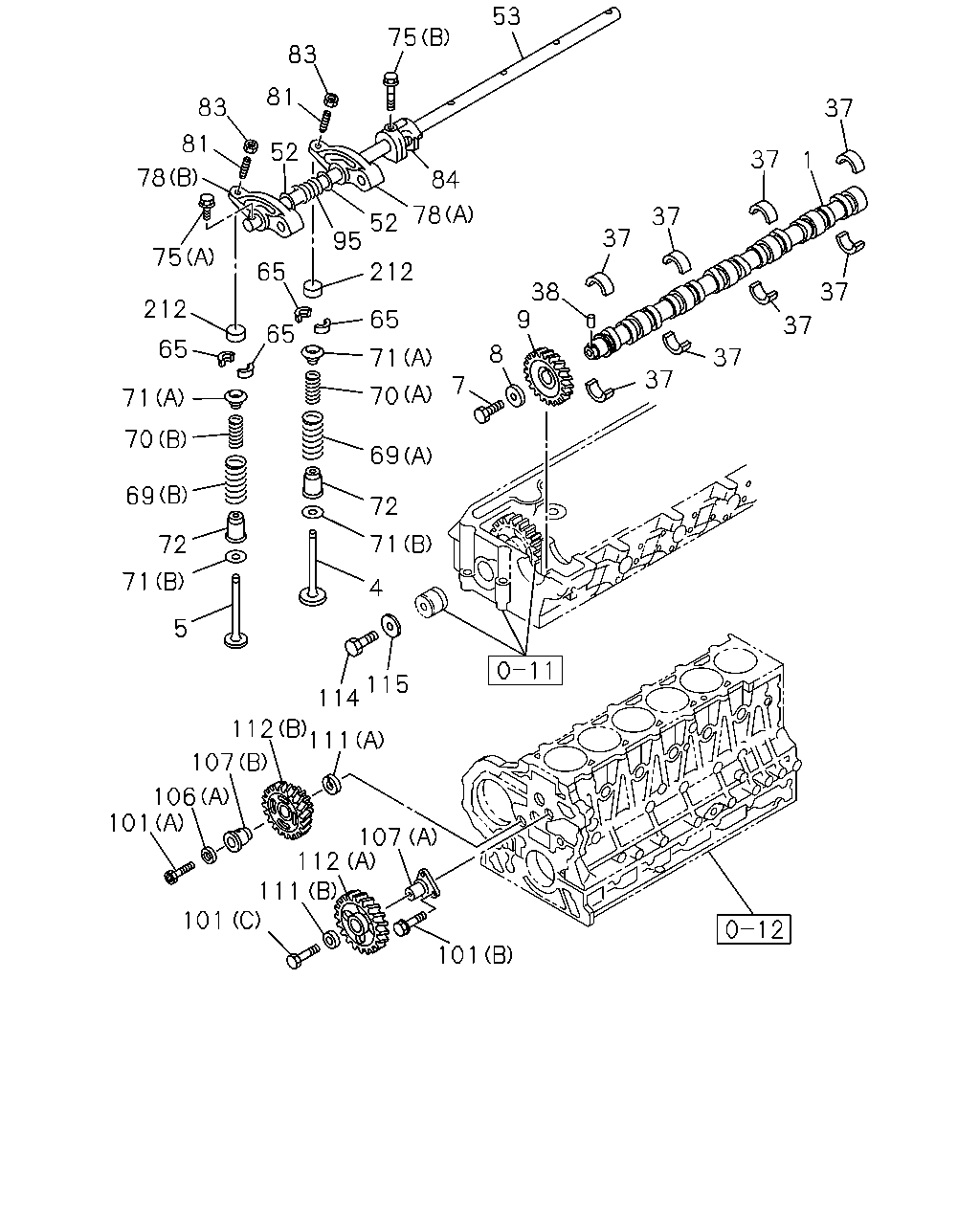

çizim 99467
53 75 83 81 83 37 81 52 37 1 78 84 78 37 52 95 37 75 212 65 37 38 9 212 65 37 65 65 8 37 71 37 7 71 72 71 72 71 4 5 115 114 112 111 107 106 101 107 112 111 101 101 70 69 70 69
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CAMSHAFT 8-94395-758-2 01 1 9806-9911 ●
1 CAMSHAFT 8-94390-469-1 01 1 9912- ●
1 CAMSHAFT 8-94395-576-2 01 1 9806-9911 ●
4 VALVE; INL 8-94395-113-1 06 1 9806-9911 ●
4 VALVE; INL 8-94395-882-2 12 1 9912- ●
4 VALVE; INL 8-94394-160-1 06 1 9806-9911 ●
5 VALVE; EXH 8-94395-462-0 06 1 9806-9911 ● ●
5 VALVE; EXH 8-94395-883-2 12 1 9912-0402 ●
5 VALVE; EXH 8-97209-876-3 12 1 0403- ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9806-9911 ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9912- ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9806-9911 ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9912- ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9806-9911 ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9912- ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0307- ●
37 METAL; CM/SHF 8-94363-100-0 08 1 9806-9911 ● ●
37 METAL; CM/SHF 8-94390-311-1 08 1 9912-0206 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 08 1 0207-0306 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0307- ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 9806-9911 ● ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 9912- ●
52 WASHER; ROCKER ARM SHAFT
ID=22.5 OD=31 		8-94362-105-0 12 1 9806-9911 ● ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 9912-0610 ●
53 SHAFT; ROCKER ARM 8-97389-918-0 01 1 0611- ●
53 SHAFT; ROCKER ARM 8-94393-984-3 01 1 9806-9911 ● ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9806-9911 ● ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 9912- ●
69 SPRING; VLV,OUTER
(B) EXHAUST 		8-94393-310-0 06 1 9806-9911 ● ●
69 SPRING; VLV,OUTER
(A) INLET 		8-94394-996-0 06 1 9806-9911 ● ●
70 SPRING; VLV,INNER
(A) INLET 		8-94395-266-0 06 1 9806-9911 ● ●
70 SPRING; VLV,INNER
(B) EXHAUST 		8-94397-500-0 06 1 9806-9911 ● ●
71 SEAT; SPR
(A) UPPER OD=38 		8-94385-029-1 12 1 9806-9911 ● ●
71 SEAT; SPR
(A) UPPER OD=32.8 T=12.75 		8-94390-783-2 24 1 9912- ●
71 SEAT; SPR
(B) LOWER ID=14.3 T=0.5 		8-94396-014-0 12 1 9806-9911 ● ●
71 SEAT; SPR
(B) LOWER ID=14.3 T=1.0 		8-94391-468-0 24 1 9912- ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9806-9911 ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 9912- ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 04 1 9912-0006 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0007-0512 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9912- ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9806-9911 ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9806-9911 ● ●
78 ARM; ROCKER
(A) INLET 		8-94392-992-0 06 1 9912-0211 ●
78 ARM; ROCKER
(B) EXHAUST EXHAUST 		8-97306-424-3 06 1 0212- ●
78 ARM; ROCKER
(B) EXHAUST 		8-94392-993-0 06 1 9912-0211 ●
78 ARM; ROCKER
(A) INLET INLET 		8-97306-421-3 06 1 0212- ●
78 ARM; ROCKER
(B) EXHAUST 		8-97014-258-1 06 1 9806-9911 ● ●
78 ARM; ROCKER
(A) INLET 		8-97074-614-0 06 1 9806-9911 ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9912- ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9806-9911 ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 24 1 9912-0006 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0007-0512 ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601- ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9806-9911 ● ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 9912- ●
84 BRACKET; ROCKER SHAFT,INTER 8-94388-109-3 05 1 9806-9911 ● ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 9912- ●
95 SPRING; ROCKER SHAFT 8-94397-263-0 06 1 9806-9911 ● ●
101 BOLT; THRUST COLLAR
(A) SOCKET BOLT M14X67 HEX SOCKET 		8-94394-779-2 01 1 9806-9911 ●
101 BOLT; THRUST COLLAR
(A) SOCKET BOLT M14X67 HEX SOCKET 		8-94394-779-2 01 1 9912- ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9806-9911 ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9912-0512 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601- ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9806-9911 ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9912-0512 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601- ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 9806-9911 ●
106 WASHER; IDLE GEAR SHAFT
(A) ID=14.2 OD=23 		1-09503-031-0 01 1 9806-9911 ●
106 WASHER; IDLE GEAR SHAFT
(A) ID=14.2 OD=23 		1-09503-031-0 01 1 9912- ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-94370-688-0 01 1 9912-0306 ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
107 SHAFT; IDLE GEAR
(B) 		8-94395-073-2 01 1 9806-9911 ●
107 SHAFT; IDLE GEAR
(B) 		8-94395-073-2 01 1 9912-0205 ●
107 SHAFT; IDLE GEAR
(B) 		8-97602-588-0 01 1 0206- ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-096-0 01 1 9806-9911 ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-096-0 01 1 9912-0304 ●
107 SHAFT; IDLE GEAR
(C) 		8-94334-682-0 01 1 0305- ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9806-9806 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9807-9911 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 9912-0204 ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205- ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9806-9806 ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9806-9911 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=24 OD=70 		8-94394-097-1 01 1 9806-9911 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=24 OD=70 		8-94394-097-1 01 1 9912- ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-94370-688-0 02 1 9806-9911 ● ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-94370-688-0 01 1 9912-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 9806-9911 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-4 01 1 9912- ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9806-9911 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9912- ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-2 01 1 9806-9911 ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-3 01 1 9912- ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9806-9911 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9806-9911 ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9806-9911 ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9912- ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9806-9911 ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9912-0306 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9806-9911 ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9912- ●

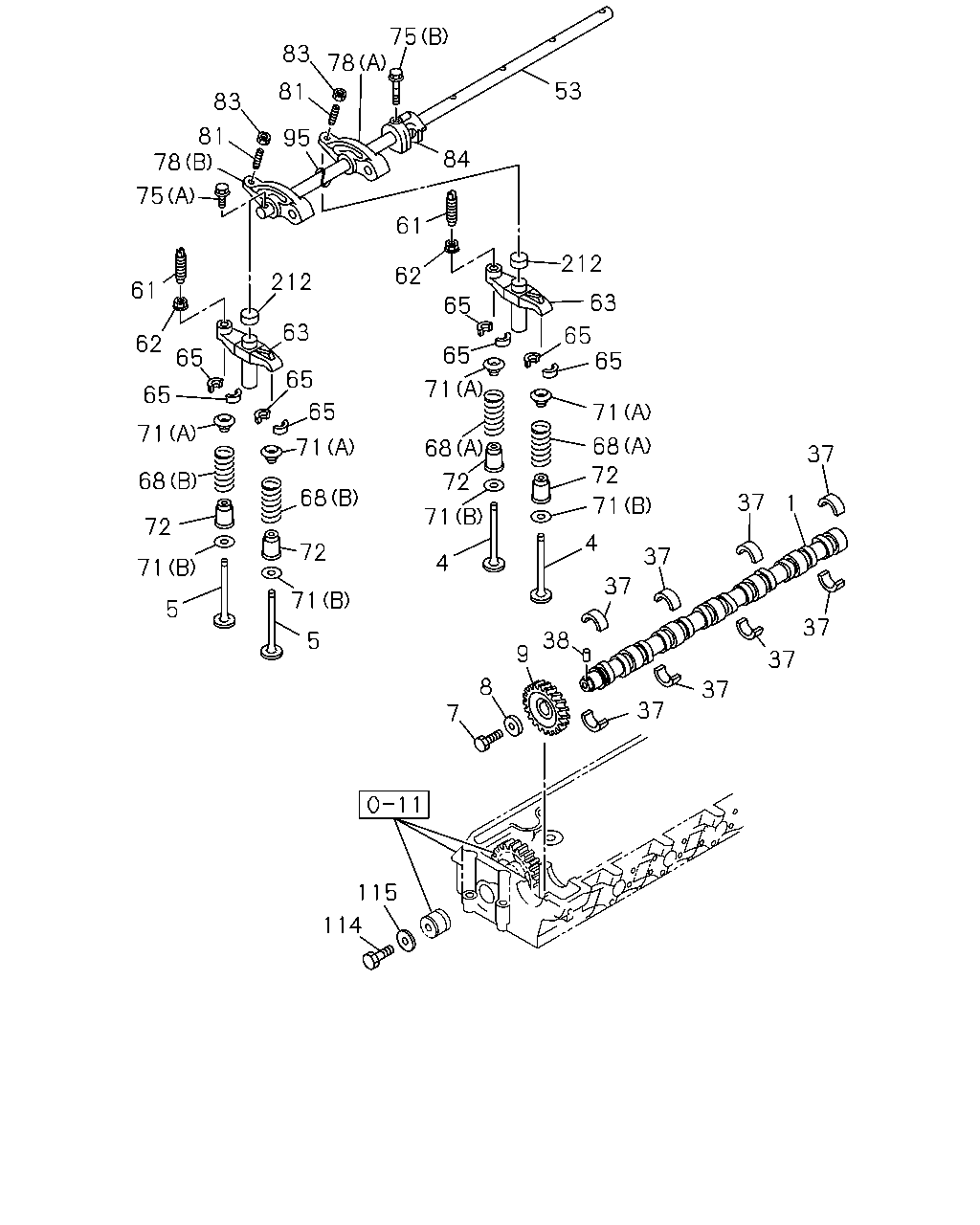

çizim 99468
75 83 78 53 81 83 81 78 95 84 75 61 212 62 212 61 63 65 63 65 65 62 65 65 65 71 65 65 71 71 68 71 68 37 72 68 72 68 37 1 71 71 72 4 72 37 4 71 37 71 5 37 38 5 9 37 8 37 37 7 115 114
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CAMSHAFT 8-94395-758-2 01 1 9806-9911 ●
1 CAMSHAFT 8-94390-469-1 01 1 9912- ●
1 CAMSHAFT 8-94395-576-2 01 1 9806-9911 ●
4 VALVE; INL 8-94395-113-1 06 1 9806-9911 ●
4 VALVE; INL 8-94395-882-2 12 1 9912- ●
4 VALVE; INL 8-94394-160-1 06 1 9806-9911 ●
5 VALVE; EXH 8-94395-462-0 06 1 9806-9911 ● ●
5 VALVE; EXH 8-94395-883-2 12 1 9912-0402 ●
5 VALVE; EXH 8-97209-876-3 12 1 0403- ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9806-9911 ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9912- ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9806-9911 ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9912- ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9806-9911 ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9912- ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0307- ●
37 METAL; CM/SHF 8-94363-100-0 08 1 9806-9911 ● ●
37 METAL; CM/SHF 8-94390-311-1 08 1 9912-0206 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 08 1 0207-0306 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0307- ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 9806-9911 ● ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 9912- ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 9912-0610 ●
53 SHAFT; ROCKER ARM 8-97389-918-0 01 1 0611- ●
53 SHAFT; ROCKER ARM 8-94393-984-3 01 1 9806-9911 ● ●
61 SCREW; ADJ,BRIDGE
M8X21 		8-94394-803-0 12 1 9912- ●
62 NUT; ADJ SCREW LK BRIDGE
M8 FLANGE 		9-09844-574-0 12 1 9912- ●
63 BRIDGE 8-94392-002-3 12 1 9912- ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9806-9911 ● ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 9912- ●
68 SPRING; VLV
(A) INLET MARK BLUE 		8-94395-884-0 12 1 9912- ●
68 SPRING; VLV
(B) EXHAUST MARK WHITE 		8-94395-885-1 12 1 9912- ●
71 SEAT; SPR
(A) UPPER OD=38 		8-94385-029-1 12 1 9806-9911 ● ●
71 SEAT; SPR
(A) UPPER OD=32.8 T=12.75 		8-94390-783-2 24 1 9912- ●
71 SEAT; SPR
(B) LOWER ID=14.3 T=0.5 		8-94396-014-0 12 1 9806-9911 ● ●
71 SEAT; SPR
(B) LOWER ID=14.3 T=1.0 		8-94391-468-0 24 1 9912- ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9806-9911 ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 9912- ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 04 1 9912-0006 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0007-0512 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9912- ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9806-9911 ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9806-9911 ● ●
78 ARM; ROCKER
(A) INLET 		8-94392-992-0 06 1 9912-0211 ●
78 ARM; ROCKER
(B) EXHAUST EXHAUST 		8-97306-424-3 06 1 0212- ●
78 ARM; ROCKER
(B) EXHAUST 		8-94392-993-0 06 1 9912-0211 ●
78 ARM; ROCKER
(A) INLET INLET 		8-97306-421-3 06 1 0212- ●
78 ARM; ROCKER
(B) EXHAUST 		8-97014-258-1 06 1 9806-9911 ● ●
78 ARM; ROCKER
(A) INLET 		8-97074-614-0 06 1 9806-9911 ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9912- ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9806-9911 ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 24 1 9912-0006 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0007-0512 ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601- ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9806-9911 ● ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 9912- ●
84 BRACKET; ROCKER SHAFT,INTER 8-94388-109-3 05 1 9806-9911 ● ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 9912- ●
95 SPRING; ROCKER SHAFT 8-94397-263-0 06 1 9806-9911 ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9806-9911 ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9912- ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9806-9911 ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9912-0306 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9806-9911 ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9912- ●

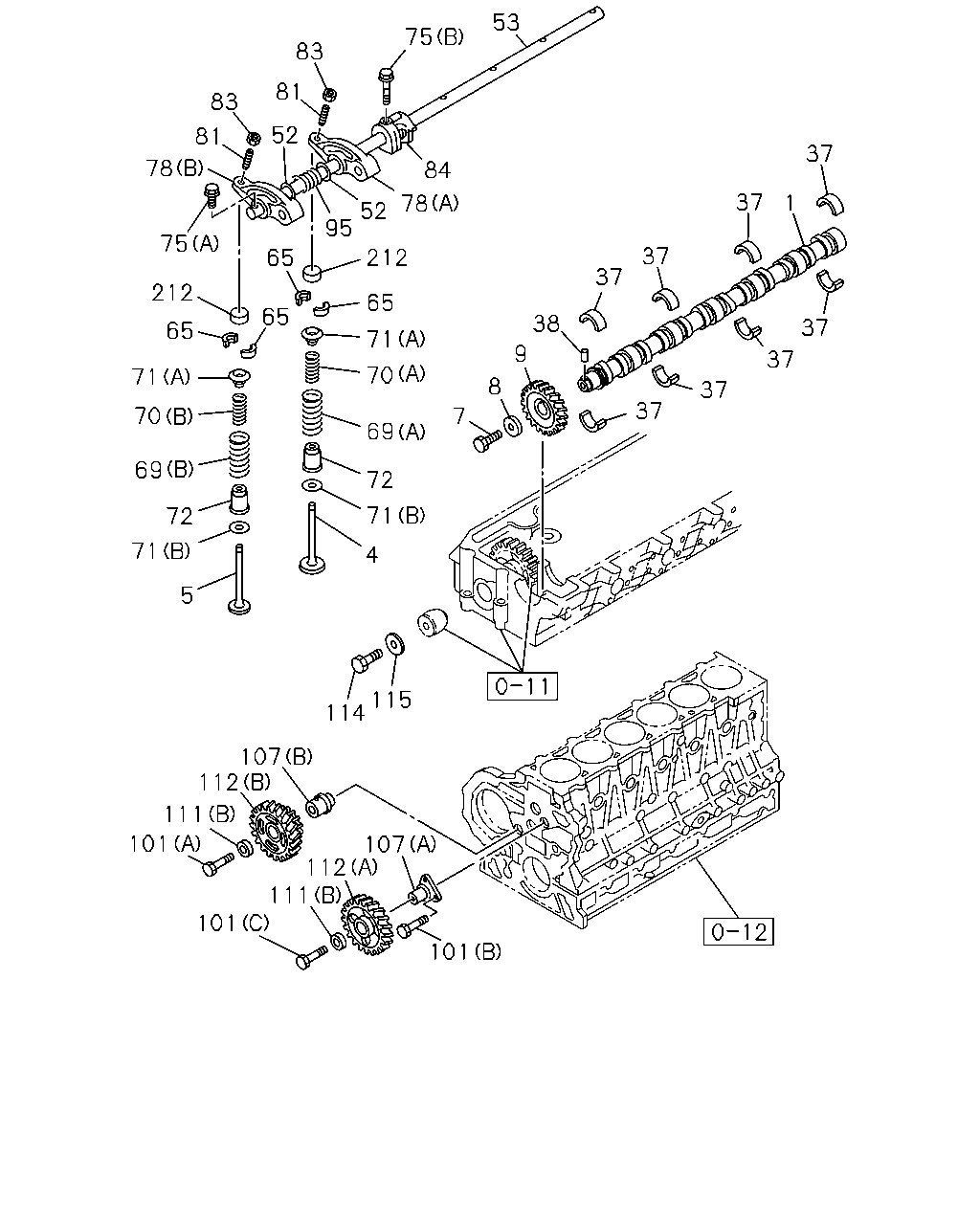

çizim 99470
53 75 83 81 83 52 81 37 78 84 37 1 78 52 95 75 37 212 65 37 212 65 65 38 37 65 71 9 37 71 8 37 37 7 72 71 72 71 4 5 115 114 107 112 111 101 107 112 111 101 101 70 69 70 69
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CAMSHAFT 8-94395-758-2 01 1 9806-9911 ●
1 CAMSHAFT 8-94390-469-1 01 1 9912- ●
1 CAMSHAFT 8-94395-576-2 01 1 9806-9911 ●
4 VALVE; INL 8-94395-113-1 06 1 9806-9911 ●
4 VALVE; INL 8-94395-882-2 12 1 9912- ●
4 VALVE; INL 8-94394-160-1 06 1 9806-9911 ●
5 VALVE; EXH 8-94395-462-0 06 1 9806-9911 ● ●
5 VALVE; EXH 8-94395-883-2 12 1 9912-0402 ●
5 VALVE; EXH 8-97209-876-3 12 1 0403- ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9806-9911 ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9912- ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9806-9911 ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9912- ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9806-9911 ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9912- ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0307- ●
37 METAL; CM/SHF 8-94363-100-0 08 1 9806-9911 ● ●
37 METAL; CM/SHF 8-94390-311-1 08 1 9912-0206 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 08 1 0207-0306 ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0307- ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 9806-9911 ● ●
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 9912- ●
52 WASHER; ROCKER ARM SHAFT
ID=22.5 OD=31 		8-94362-105-0 12 1 9806-9911 ● ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 9912-0610 ●
53 SHAFT; ROCKER ARM 8-97389-918-0 01 1 0611- ●
53 SHAFT; ROCKER ARM 8-94393-984-3 01 1 9806-9911 ● ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9806-9911 ● ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 9912- ●
69 SPRING; VLV,OUTER
(B) EXHAUST 		8-94393-310-0 06 1 9806-9911 ● ●
69 SPRING; VLV,OUTER
(A) INLET 		8-94394-996-0 06 1 9806-9911 ● ●
70 SPRING; VLV,INNER
(A) INLET 		8-94395-266-0 06 1 9806-9911 ● ●
70 SPRING; VLV,INNER
(B) EXHAUST 		8-94397-500-0 06 1 9806-9911 ● ●
71 SEAT; SPR
(A) UPPER OD=38 		8-94385-029-1 12 1 9806-9911 ● ●
71 SEAT; SPR
(A) UPPER OD=32.8 T=12.75 		8-94390-783-2 24 1 9912- ●
71 SEAT; SPR
(B) LOWER ID=14.3 T=0.5 		8-94396-014-0 12 1 9806-9911 ● ●
71 SEAT; SPR
(B) LOWER ID=14.3 T=1.0 		8-94391-468-0 24 1 9912- ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9806-9911 ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 9912- ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 04 1 9912-0006 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0007-0512 ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9912- ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9806-9911 ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9806-9911 ● ●
78 ARM; ROCKER
(A) INLET 		8-94392-992-0 06 1 9912-0211 ●
78 ARM; ROCKER
(B) EXHAUST EXHAUST 		8-97306-424-3 06 1 0212- ●
78 ARM; ROCKER
(B) EXHAUST 		8-94392-993-0 06 1 9912-0211 ●
78 ARM; ROCKER
(A) INLET INLET 		8-97306-421-3 06 1 0212- ●
78 ARM; ROCKER
(B) EXHAUST 		8-97014-258-1 06 1 9806-9911 ● ●
78 ARM; ROCKER
(A) INLET 		8-97074-614-0 06 1 9806-9911 ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9912- ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9806-9911 ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 24 1 9912-0006 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0007-0512 ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601- ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9806-9911 ● ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 9912- ●
84 BRACKET; ROCKER SHAFT,INTER 8-94388-109-3 05 1 9806-9911 ● ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 9912- ●
95 SPRING; ROCKER SHAFT 8-94397-263-0 06 1 9806-9911 ● ●
101 BOLT; THRUST COLLAR
(A) SOCKET BOLT M14X67 HEX SOCKET 		8-94394-779-2 01 1 9806-9911 ●
101 BOLT; THRUST COLLAR
(A) SOCKET BOLT M14X67 HEX SOCKET 		8-94394-779-2 01 1 9912- ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9806-9911 ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9912-0512 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601- ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9806-9911 ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9912-0512 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601- ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 9806-9911 ●
107 SHAFT; IDLE GEAR
(B) 		8-94395-073-2 01 1 9806-9911 ●
107 SHAFT; IDLE GEAR
(B) 		8-94395-073-2 01 1 9912-0205 ●
107 SHAFT; IDLE GEAR
(B) 		8-97602-588-0 01 1 0206- ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-096-0 01 1 9806-9911 ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-096-0 01 1 9912-0304 ●
107 SHAFT; IDLE GEAR
(C) 		8-94334-682-0 01 1 0305- ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9806-9806 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9807-9911 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 9912-0204 ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205- ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9806-9806 ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9806-9911 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=24 OD=70 		8-94394-097-1 01 1 9806-9911 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=24 OD=70 		8-94394-097-1 01 1 9912- ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-94370-688-0 02 1 9806-9911 ● ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-94370-688-0 01 1 9912-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-3 01 1 9806-9911 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-4 01 1 9912- ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9806-9911 ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9912- ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-2 01 1 9806-9911 ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-3 01 1 9912- ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9806-9911 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9806-9911 ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9806-9911 ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9912- ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9806-9911 ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9912-0306 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9806-9911 ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9912- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
