◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11142 - FVR-RHD(EUROPE)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#67779) — 63 parça
çizim 137814
606 317 610 99 735 12 606 164
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0809- ● ●
99 RELAY; FOG LAMP
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0809-0908 ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0909- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0809- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0809- ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0809- ● ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0809- ● ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0809- ● ●
610 RELAY; KEY ON
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0809- ● ●
735 RELAY; HEAD LAMP WASHER
HEAD LAMP WASHER<CE4> 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0809- ●

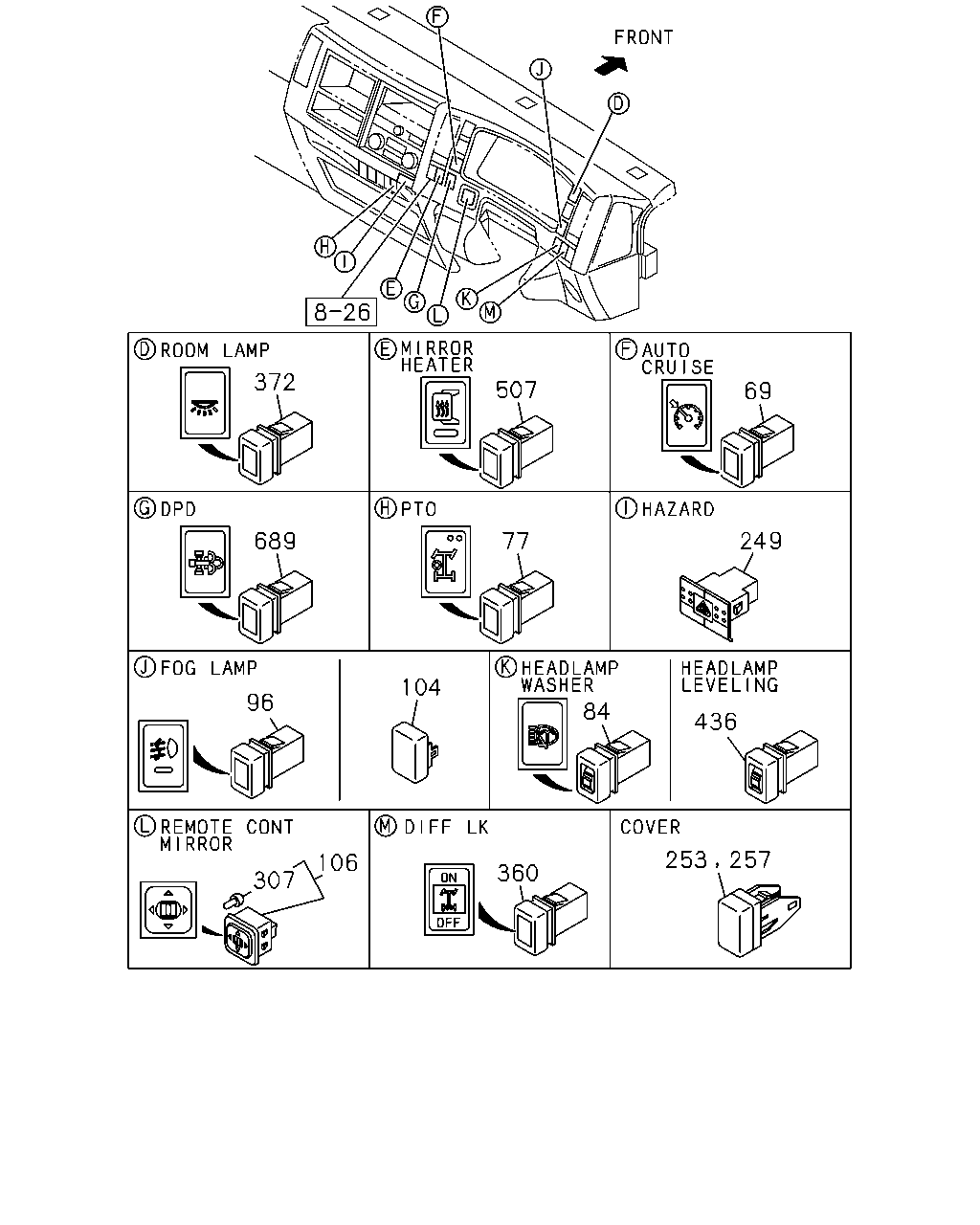

çizim 138141
372 507 69 249 689 77 84 104 96 436 106 360 307 253 257
BalonParca AdiParca NoAdetTipApplied Date A B
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 0809- ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM) 		8-97615-488-2 01 1 0809- ● ●
84 SWITCH; WASHER,HEADLAMP
HEAD LAMP WASHER<CE4> 		8-97614-052-1 01 1 0809- ●
96 SWITCH; FOG LAMP 8-97387-031-3 01 1 0809-0908 ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0909- ● ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 0909- ● ●
106 SWITCH; REMOTE CONT MIRROR 8-97173-294-1 01 1 0809- ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 0809- ● ●
253 COVER; SW HOLE 8-98025-954-1 02 1 0809- ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 0809- ● ●
253 COVER; SW HOLE
EXC. DIFF LOCK<C3N> 		8-98025-954-1 01 1 0809- ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> 		8-98025-954-1 01 1 0809- ● ●
257 COVER; HOLE,SW 8-98025-954-1 01 1 0809- ● ●
257 COVER; HOLE,SW 8-98025-954-1 01 1 0809- ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) 		8-98025-954-1 01 1 0809- ● ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4> 		8-98025-954-1 01 1 0809- ●
257 COVER; HOLE,SW 8-98025-954-1 03 1 0809- ● ●
307 BULB ASM; SW
24V 		8-98226-896-0 01 1 0809- ● ●
360 SWITCH ASM; DIFF LK
DIFF LOCK<C3N> 		8-97613-963-2 01 1 0809- ● ●
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 0809- ● ●
436 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 0809- ●
507 SWITCH; MIRROR HEATER 8-97386-924-3 01 1 0809- ● ●
689 SWITCH; DPD 8-97386-921-2 01 1 0809- ● ●

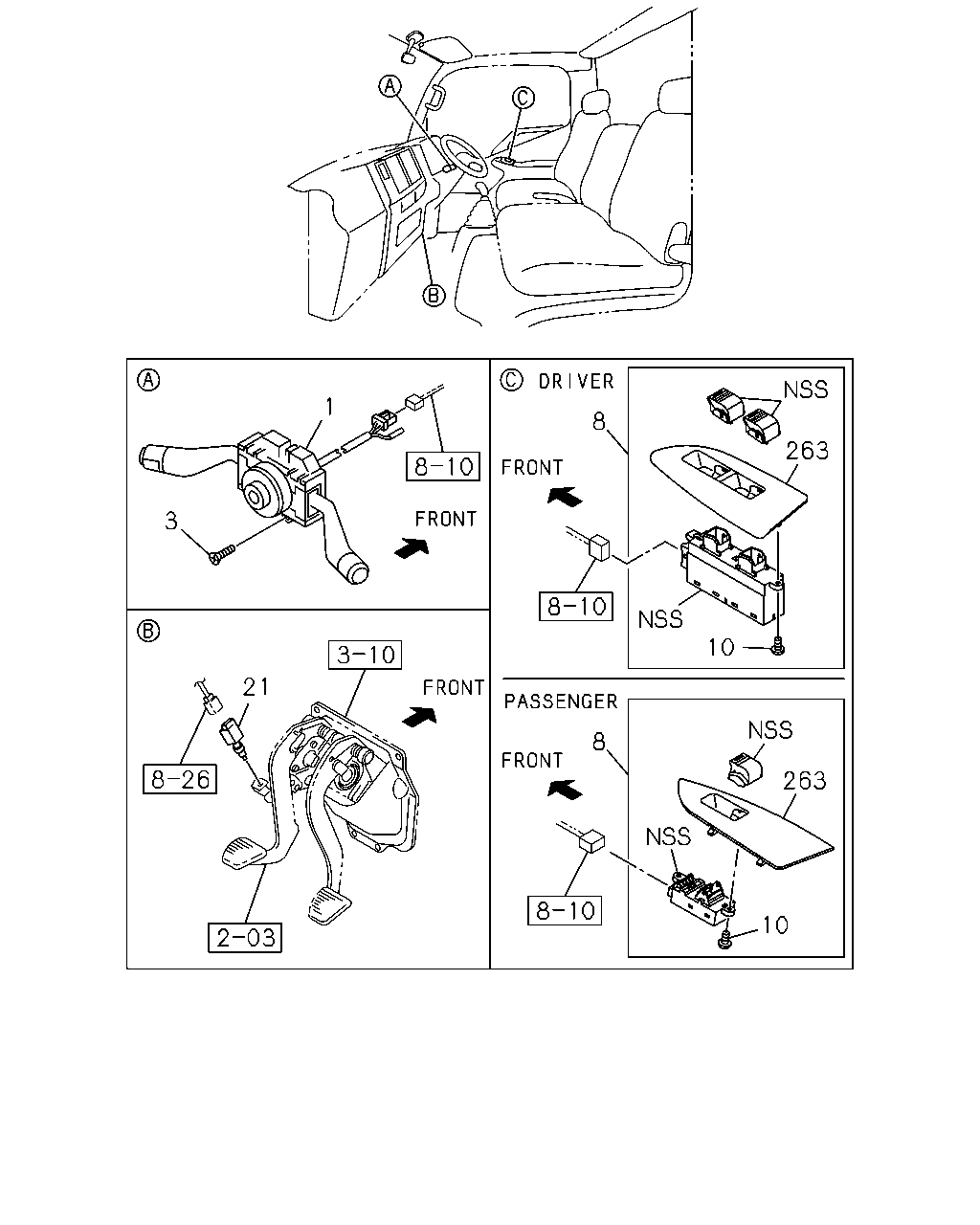

çizim 138252
1 8 263 3 10 21 8 263 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98042-673-1 01 1 0809-0905 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98146-625-0 01 1 0906-1210 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98217-829-0 01 1 1211-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98243-711-0 01 1 1311- ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98064-765-1 01 1 0809-0905 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98146-623-0 01 1 0906-1210 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98217-827-0 01 1 1211-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98243-710-0 01 1 1311- ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30> 		8-98064-766-1 01 1 0809-1310 ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30> 		8-98243-717-0 01 1 1311- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0809- ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-97387-034-2 01 1 0809- ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98003-785-1 01 1 0809-0809 ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98129-844-0 01 1 0810-1001 ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-543-0 01 1 1002- ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 0809- ● ●
21 SWITCH; CLU
PTO ZF TRANS RR(BDM) 		8-94337-761-0 01 1 0809- ● ●
21 SWITCH; CLU
EXC. PTO ZF TRANS RR(BDM) 		8-97358-248-0 01 1 0809- ● ●
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 0809- ● ●
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 0809- ● ●

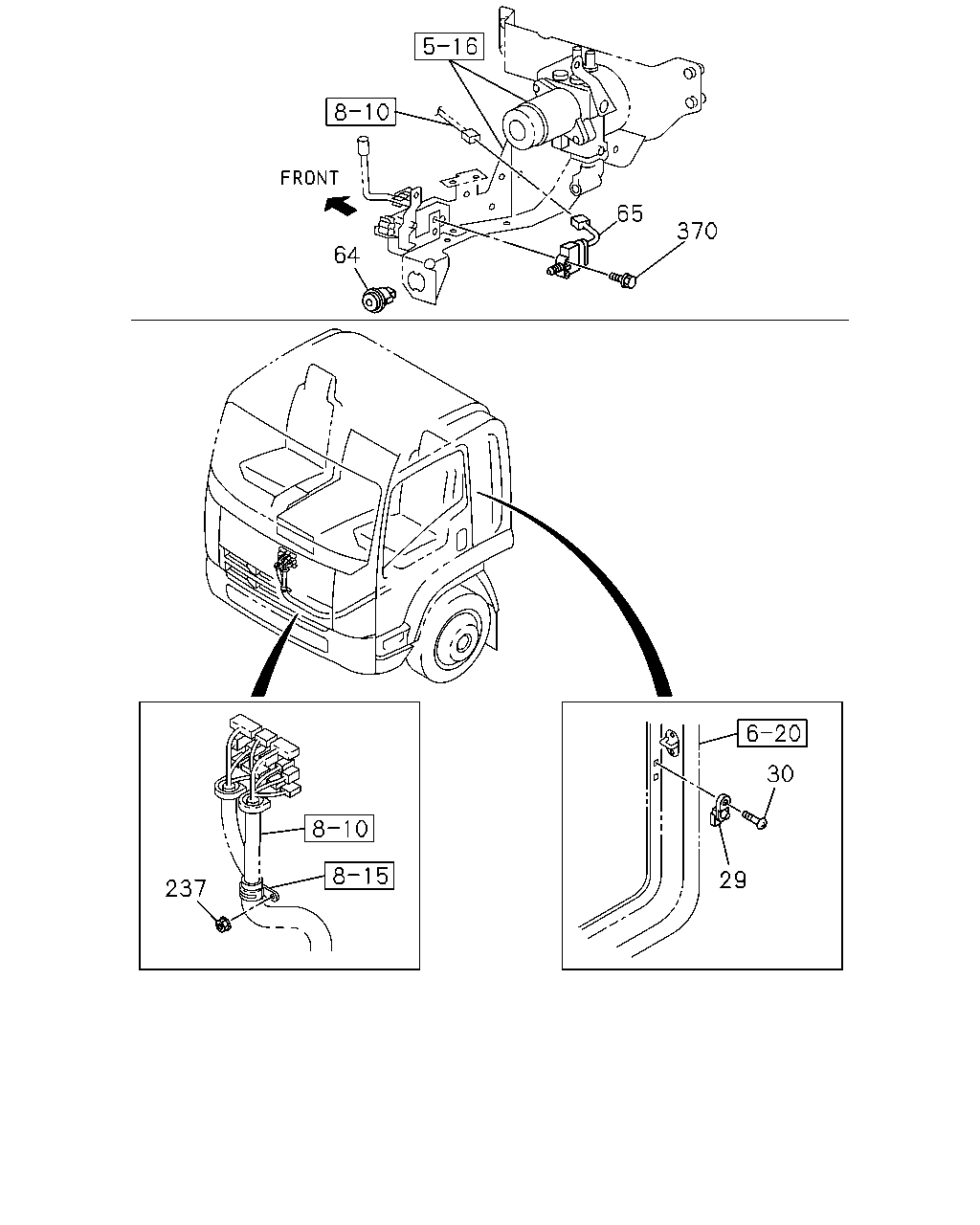

çizim 138328
65 370 64 30 29 237
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0809- ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0809- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0809- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0809- ● ●
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 0809- ● ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 0809- ● ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 0809- ● ●
çizim 187334
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0809- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0809- ● ●
