8-21 — METER ASM (#67778) — 22 parça

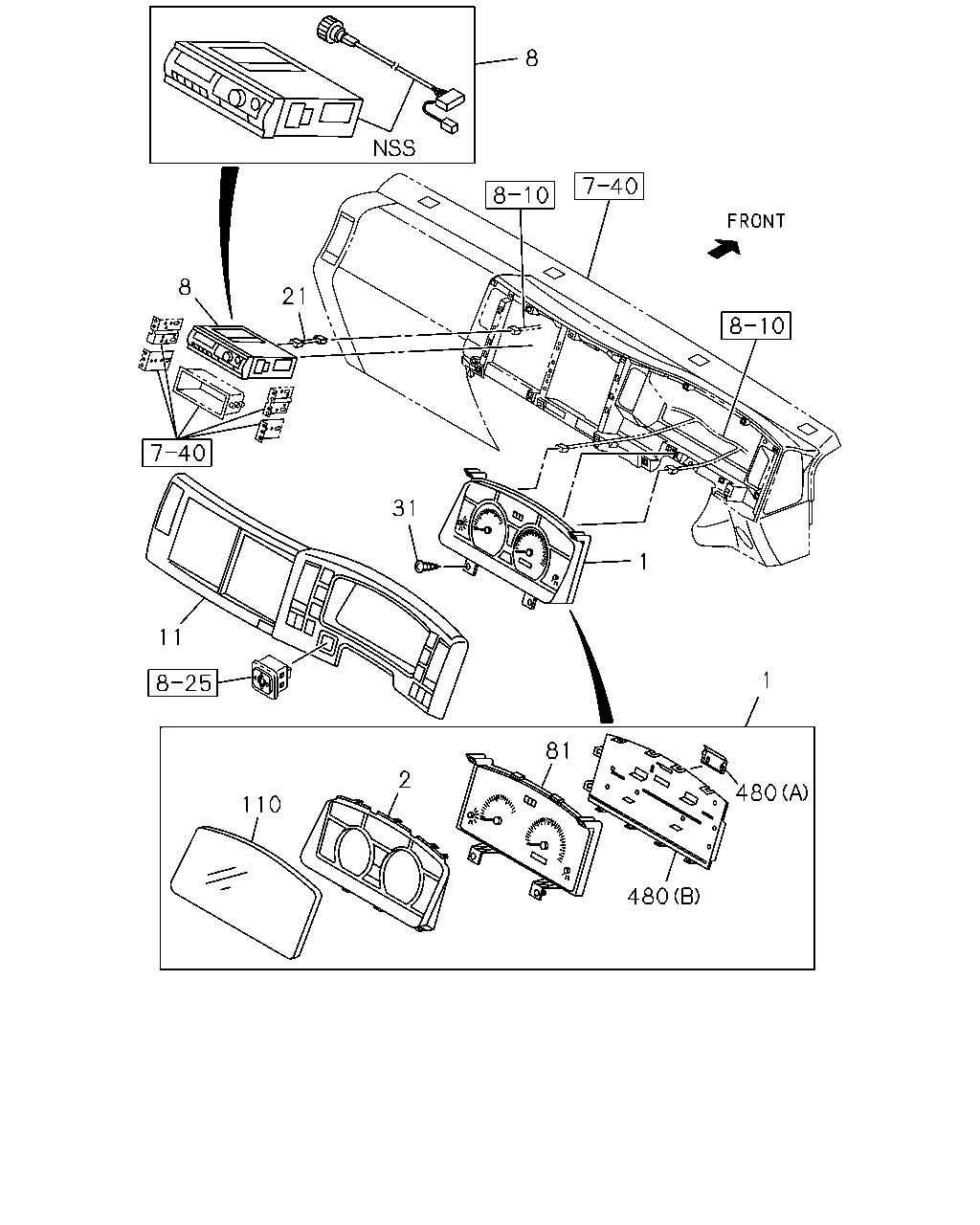

8 8 21 31 1 11 1 81 2 480 110 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER MILE SPEEDOMETER<UC1>	8-98064-924-8	01	1	0809-	●	●
1	METER COMPL; CLUSTER KILOMETER SPEEDOMETER<U18>	8-98064-916-7	01	1	0809-	●	●
2	PANEL; CLUSTER	8-98054-432-0	01	1	0809-	●	●
8	TACHOGRAPH; CLUSTER METER	8-98113-386-0	01	1	0809-1008	●	●
8	TACHOGRAPH; CLUSTER METER	8-98178-335-0	01	1	1009-1107	●	●
8	TACHOGRAPH; CLUSTER METER	8-98197-456-0	01	1	1108-	●	●
11	CLUSTER ASM; METER DARK GRAY	8-97414-681-3	01	1	0809-	●	●
21	HARNESS; TACHOGRAPH	8-98099-111-0	01	1	0809-	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING	0-72180-516-0	04	1	0809-	●	●
81	METER SUB ASM MILE SPEEDOMETER<UC1>	8-98079-703-0	01	1	0809-	●	●
81	METER SUB ASM KILOMETER SPEEDOMETER<U18>	8-98079-688-0	01	1	0809-	●	●
110	GLASS; CLUSTER METER	8-98054-642-0	01	1	0809-	●	●
480	COVER; METER (B) BLACK	8-98054-433-0	01	1	0809-	●	●
480	COVER; METER (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0809-	●	●

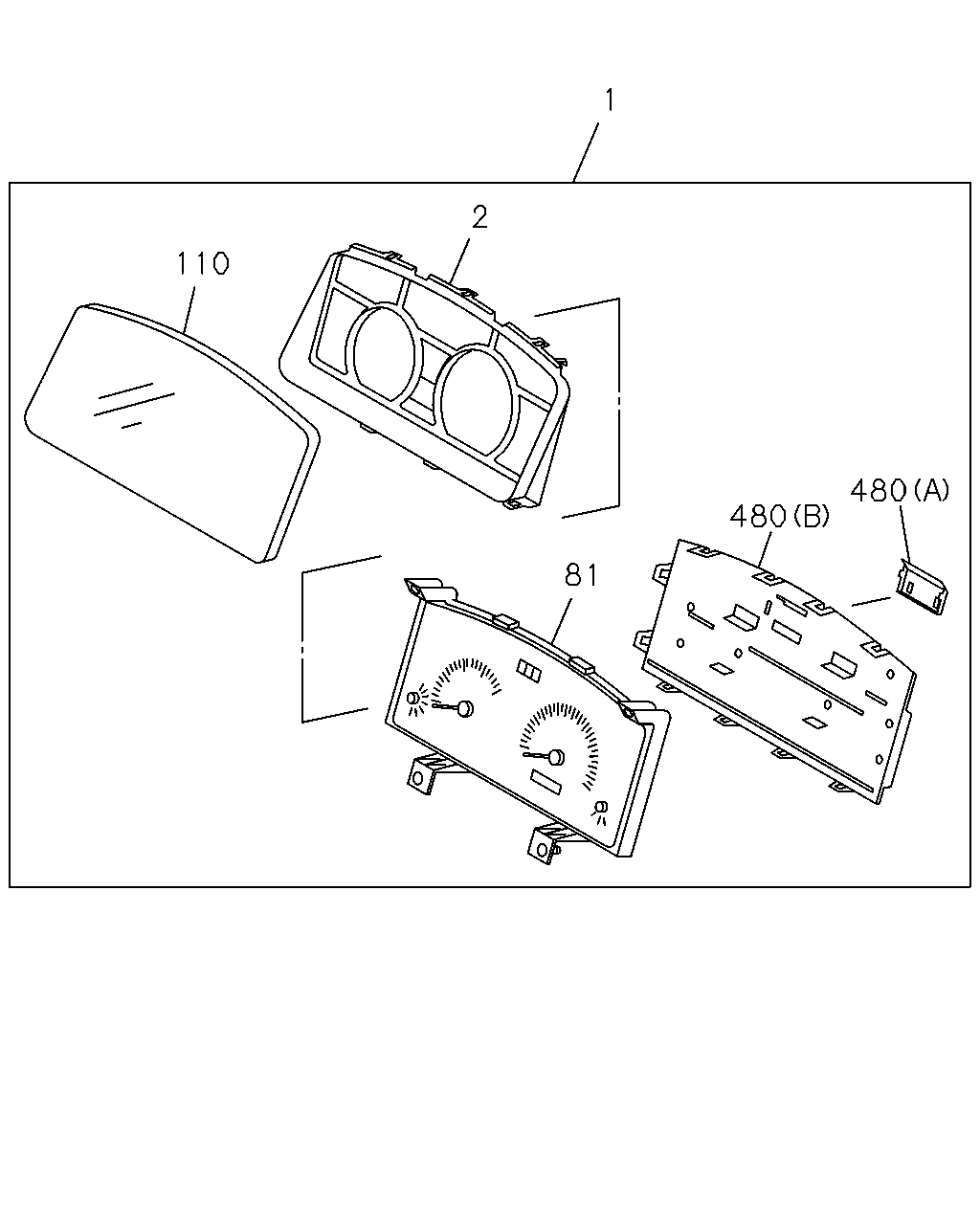

1 2 110 480 480 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER MILE SPEEDOMETER<UC1>	8-98064-924-8	01	1	0809-	●	●
1	METER COMPL; CLUSTER KILOMETER SPEEDOMETER<U18>	8-98064-916-7	01	1	0809-	●	●
2	PANEL; CLUSTER	8-98054-432-0	01	1	0809-	●	●
81	METER SUB ASM MILE SPEEDOMETER<UC1>	8-98079-703-0	01	1	0809-	●	●
81	METER SUB ASM KILOMETER SPEEDOMETER<U18>	8-98079-688-0	01	1	0809-	●	●
110	GLASS; CLUSTER METER	8-98054-642-0	01	1	0809-	●	●
480	COVER; METER (B) BLACK	8-98054-433-0	01	1	0809-	●	●
480	COVER; METER (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0809-	●	●
