◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11142 - FVR-RHD(EUROPE)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#67776) — 560 parça

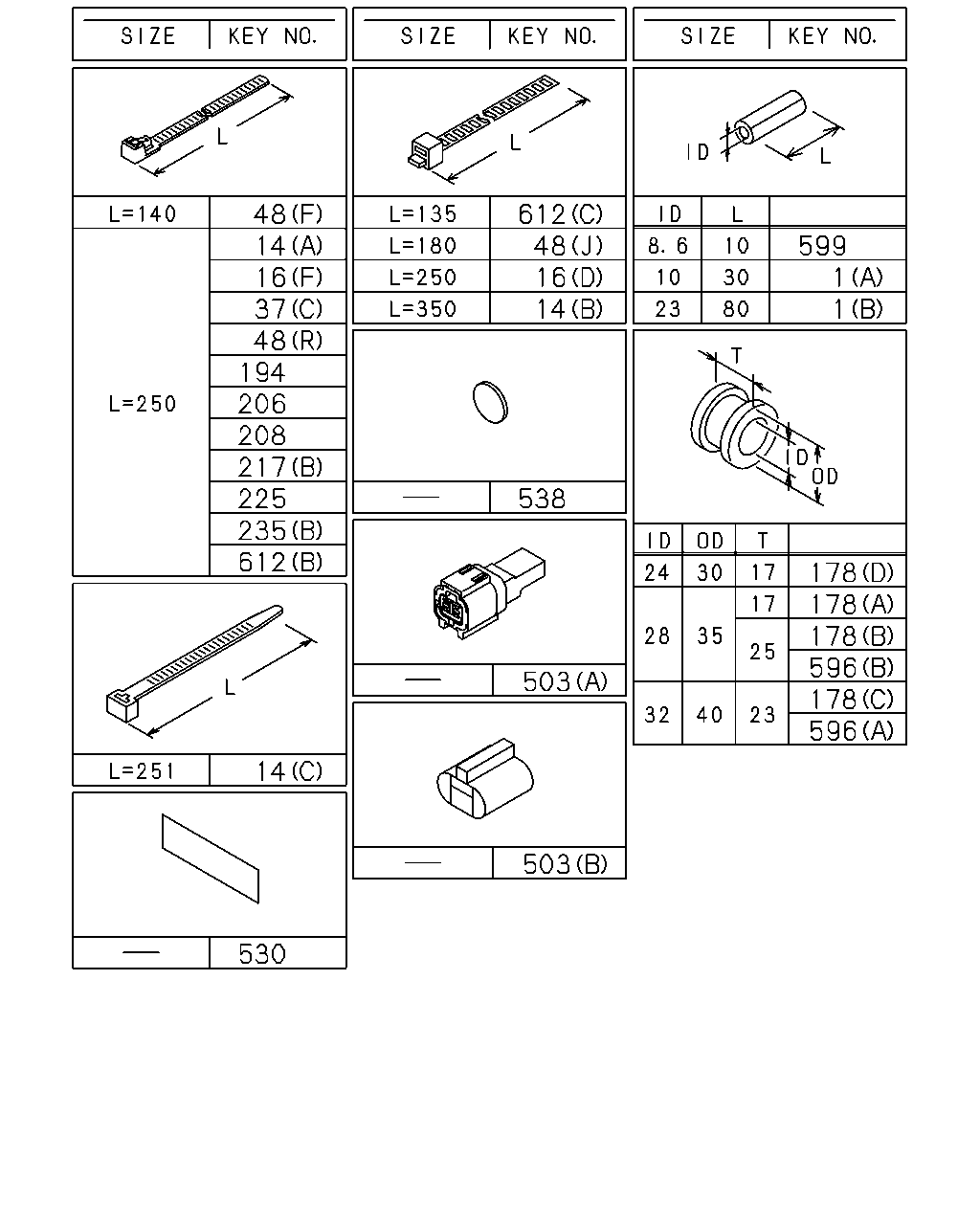

çizim 136610
48 14 16 37 48 194 206 208 217 225 235 612 612 48 16 14 599 1 1 538 178 178 178 596 178 596 503 14 503 530
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0809- ● ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0809- ● ●
14 CLIP; BAND,HARNESS
WHEEL BASE 5500MM(55W) (A) L=250 		5-09707-030-1 01 1 1201- ●
14 CLIP; BAND,HARNESS
(C) L=251 		8-97619-917-0 01 1 0910- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 14 1 0809-0909 ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 13 1 0910-1205 ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 13 1 1206- ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 0809- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 15 1 0809-0812 ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 30 1 0901- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 1103- ●
16 CLIP; HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0809- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0809-0811 ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 06 1 0809- ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 02 1 0809- ● ●
16 CLIP; HARNESS
(N) ID=11 L=61 		1-09700-484-0 01 1 0809-0810 ● ●
16 CLIP; HARNESS
(H) ID=14 H=50 L=20 		1-09700-843-0 02 1 0809- ● ●
16 CLIP; HARNESS
(K) ID=22X11 L=20 		1-09700-871-0 02 1 0809- ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0809- ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0809- ● ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 01 1 0809- ● ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 02 1 0809- ● ●
16 CLIP; HARNESS
(L) ID=13-18 L=14.5 		1-09709-290-0 02 1 0809- ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 05 1 0809-0810 ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0809- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0809- ● ●
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 0809- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0809- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=50 		0-95325-085-0 01 1 0809- ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 05 1 0809- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=45 L=25 		1-09700-866-0 01 1 0809- ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809- ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0809-0809 ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0810-0811 ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0810-0811 ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0812- ● ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0809- ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (O) ID=15 L=65 		1-09700-466-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
(R) L=250 		5-09707-030-1 02 1 0811- ● ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 06 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 11 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 15 1 0810-0811 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 04 1 0812- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0809-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 27 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 08 1 0809-0811 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 07 1 0812-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (O) ID=15 L=65 		1-09700-466-0 02 1 1008- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 04 1 0809-0811 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 03 1 0812-1102 ●
48 CLIP; FRAME HARNESS
DIFF LOCK<C3N> (D) ID=11 L=61 		1-09700-484-0 03 1 1103- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 12 1 0809-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 05 1 0810-1007 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0810- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (H) OD=9 H=13.5 		1-09709-180-0 01 1 0810- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (P) OD=9 H=17.5 		1-09709-181-0 01 1 0810- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0810-1102 ●
48 CLIP; FRAME HARNESS
DIFF LOCK<C3N> (D) ID=11 L=61 		1-09700-484-0 01 1 1103- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 1103- ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (A) ID=16 L=40 		0-95235-576-0 03 1 0809- ● ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (J) L=180 		1-09707-162-1 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (I) ID=16X2 L=50 		0-95325-586-0 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (C) ID=14.5 L=40 		1-09701-014-0 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 20 1 0809-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 21 1 0810- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0809-0811 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0812- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0812- ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 06 1 0810- ●
48 CLIP; FRAME HARNESS
(G) ID=25 L=75 		1-09701-275-0 02 1 0809- ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 24 1 0809- ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0809-0809 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0809-0811 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 08 1 0812-1102 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 07 1 1103- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L) (B) ID=11 L=41 		1-09700-403-0 01 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0811 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 09 1 0812-1102 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 08 1 1103- ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0809- ● ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0809- ● ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
(Q) ID=13-18 L=22 		1-09709-292-0 01 1 0810- ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0812- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 11 1 0809-0810 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 15 1 0809-0810 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0810- ● ●
178 GROMMET; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0810- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0809- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0809- ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0809- ● ●
178 GROMMET; HARNESS
(C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0809-0809 ● ●
178 GROMMET; HARNESS
WHEEL BASE 6000MM(60W) (D) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0810- ●
178 GROMMET; HARNESS
(D) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0810- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0809-0809 ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0810- ● ●
194 CLIP; BAND
L=250 		5-09707-030-1 03 1 0810- ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0809- ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0809- ● ●
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 0809-0811 ●
217 CLIP; RR BODY HARNESS
(A) L=170.3 		1-09987-182-0 02 1 0809-0811 ● ●
217 CLIP; RR BODY HARNESS
EXC. REVERSING WARNING BUZZER<YM9> (B) L=250 		5-09707-030-1 01 1 0812- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 01 1 0812- ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0809-0811 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0812-1012 ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 1101- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 1101- ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 01 1 0809- ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 0809-0809 ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 06 1 0810- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0809- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0809- ● ●
503 CONNECTOR
HEATER & DEFROSTER(C41) (B) 		1-82690-668-0 01 1 0809- ● ●
503 CONNECTOR
(A) 		1-82691-191-0 01 1 0809-0810 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0809-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0809-1305 ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0809- ● ●
596 GROMMET
(A) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0809-0809 ● ●
596 GROMMET
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0810- ● ●
599 TUBE; DISTANCE
ID=8.5 L=10 		5-13642-077-0 04 1 0809- ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0810- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0810- ● ●
612 CLIP; HARNESS DPD
(C) L=135 		1-09987-143-1 02 1 0809- ● ●

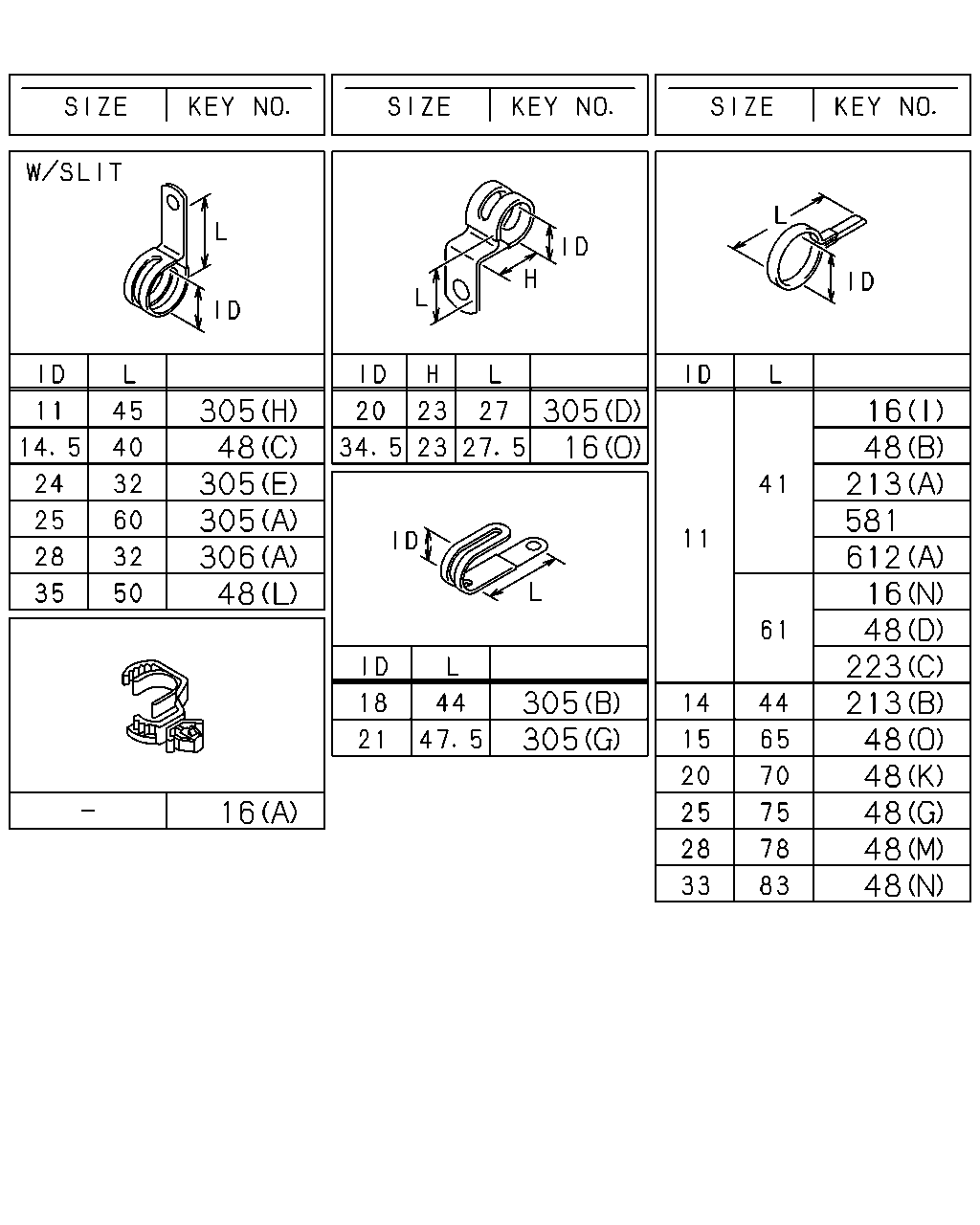

çizim 136881
305 48 305 305 306 48 305 16 16 48 213 581 612 16 48 223 213 48 48 48 48 48 305 305 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 1103- ●
16 CLIP; HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0809- ● ●

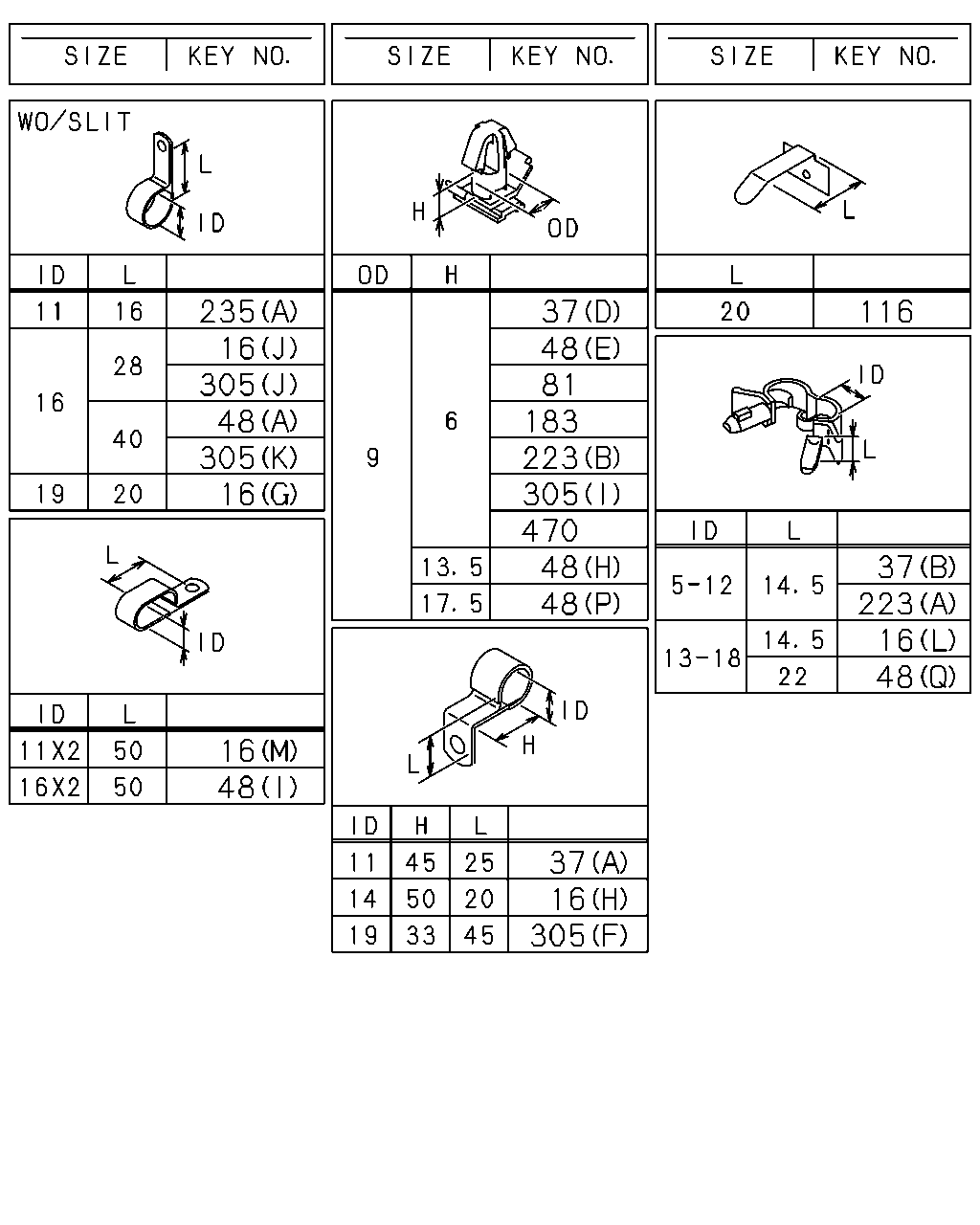

16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0809-0811 ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 06 1 0809- ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 02 1 0809- ● ●
16 CLIP; HARNESS
(N) ID=11 L=61 		1-09700-484-0 01 1 0809-0810 ● ●
16 CLIP; HARNESS
(H) ID=14 H=50 L=20 		1-09700-843-0 02 1 0809- ● ●
16 CLIP; HARNESS
(K) ID=22X11 L=20 		1-09700-871-0 02 1 0809- ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0809- ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0809- ● ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 01 1 0809- ● ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 02 1 0809- ● ●
16 CLIP; HARNESS
(L) ID=13-18 L=14.5 		1-09709-290-0 02 1 0809- ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 05 1 0809-0810 ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0809- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0809- ● ●
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 0809- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0809- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=50 		0-95325-085-0 01 1 0809- ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 05 1 0809- ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (O) ID=15 L=65 		1-09700-466-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
(R) L=250 		5-09707-030-1 02 1 0811- ● ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 06 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 11 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 15 1 0810-0811 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 04 1 0812- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0809-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 27 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 08 1 0809-0811 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 07 1 0812-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (O) ID=15 L=65 		1-09700-466-0 02 1 1008- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 04 1 0809-0811 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 03 1 0812-1102 ●
48 CLIP; FRAME HARNESS
DIFF LOCK<C3N> (D) ID=11 L=61 		1-09700-484-0 03 1 1103- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 12 1 0809-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 05 1 0810-1007 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0810- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (H) OD=9 H=13.5 		1-09709-180-0 01 1 0810- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (P) OD=9 H=17.5 		1-09709-181-0 01 1 0810- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0810-1102 ●
48 CLIP; FRAME HARNESS
DIFF LOCK<C3N> (D) ID=11 L=61 		1-09700-484-0 01 1 1103- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 1103- ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (A) ID=16 L=40 		0-95235-576-0 03 1 0809- ● ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (J) L=180 		1-09707-162-1 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (I) ID=16X2 L=50 		0-95325-586-0 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (C) ID=14.5 L=40 		1-09701-014-0 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 20 1 0809-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 21 1 0810- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0809-0811 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0812- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0812- ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 06 1 0810- ●
48 CLIP; FRAME HARNESS
(G) ID=25 L=75 		1-09701-275-0 02 1 0809- ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 24 1 0809- ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0809-0809 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0809-0811 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 08 1 0812-1102 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 07 1 1103- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L) (B) ID=11 L=41 		1-09700-403-0 01 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0811 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 09 1 0812-1102 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 08 1 1103- ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0809- ● ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0809- ● ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
(Q) ID=13-18 L=22 		1-09709-292-0 01 1 0810- ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0812- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 11 1 0809-0810 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 15 1 0809-0810 ●
213 CLIP; END CROSS HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0809- ● ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 03 1 0809-0811 ● ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 07 1 0812- ● ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 06 1 0809-0811 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0809- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0809- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0809- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0809- ● ●
581 CLIP; HARNESS,REAR SUSP
DIFF LOCK<C3N> ID=11 L=41 		1-09700-403-0 02 1 1103- ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 04 1 0809-0809 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 12 1 0809-0811 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 11 1 0812-1102 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 07 1 1103- ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 01 1 0809-0809 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 06 1 0809-0811 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 0812-1102 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 01 1 1103- ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0810- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0810- ● ●
612 CLIP; HARNESS DPD
(C) L=135 		1-09987-143-1 02 1 0809- ● ●
çizim 136892
16 16 305 16 217 306 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 1103- ●
16 CLIP; HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0809- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0809-0811 ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 06 1 0809- ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 02 1 0809- ● ●
16 CLIP; HARNESS
(N) ID=11 L=61 		1-09700-484-0 01 1 0809-0810 ● ●
16 CLIP; HARNESS
(H) ID=14 H=50 L=20 		1-09700-843-0 02 1 0809- ● ●
16 CLIP; HARNESS
(K) ID=22X11 L=20 		1-09700-871-0 02 1 0809- ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0809- ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0809- ● ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 01 1 0809- ● ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 02 1 0809- ● ●
16 CLIP; HARNESS
(L) ID=13-18 L=14.5 		1-09709-290-0 02 1 0809- ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 05 1 0809-0810 ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0809- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0809- ● ●
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 0809- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0809- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=50 		0-95325-085-0 01 1 0809- ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 05 1 0809- ●
217 CLIP; RR BODY HARNESS
(A) L=170.3 		1-09987-182-0 02 1 0809-0811 ● ●
217 CLIP; RR BODY HARNESS
EXC. REVERSING WARNING BUZZER<YM9> (B) L=250 		5-09707-030-1 01 1 0812- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 01 1 0812- ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0809-0811 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0812-1012 ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 1101- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 1101- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0809- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0809- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0809- ● ●
çizim 137060
235 16 305 48 305 16 37 48 81 183 223 305 470 48 48 116 37 223 16 48 16 48 37 16 305
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 1103- ●
16 CLIP; HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0809- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 0809-0811 ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 06 1 0809- ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 02 1 0809- ● ●
16 CLIP; HARNESS
(N) ID=11 L=61 		1-09700-484-0 01 1 0809-0810 ● ●
16 CLIP; HARNESS
(H) ID=14 H=50 L=20 		1-09700-843-0 02 1 0809- ● ●
16 CLIP; HARNESS
(K) ID=22X11 L=20 		1-09700-871-0 02 1 0809- ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0809- ● ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0809- ● ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 01 1 0809- ● ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 02 1 0809- ● ●
16 CLIP; HARNESS
(L) ID=13-18 L=14.5 		1-09709-290-0 02 1 0809- ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 05 1 0809-0810 ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0809- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0809- ● ●
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 0809- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0809- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=50 		0-95325-085-0 01 1 0809- ●
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 05 1 0809- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=45 L=25 		1-09700-866-0 01 1 0809- ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809- ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0809-0809 ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0810-0811 ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0810-0811 ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0812- ● ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0809- ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (O) ID=15 L=65 		1-09700-466-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
(R) L=250 		5-09707-030-1 02 1 0811- ● ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 06 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 11 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 15 1 0810-0811 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 04 1 0812- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 25 1 0809-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 27 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 08 1 0809-0811 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 07 1 0812-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (O) ID=15 L=65 		1-09700-466-0 02 1 1008- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 04 1 0809-0811 ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 03 1 0812-1102 ●
48 CLIP; FRAME HARNESS
DIFF LOCK<C3N> (D) ID=11 L=61 		1-09700-484-0 03 1 1103- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 12 1 0809-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 05 1 0810-1007 ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0810- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (H) OD=9 H=13.5 		1-09709-180-0 01 1 0810- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (P) OD=9 H=17.5 		1-09709-181-0 01 1 0810- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0810-1102 ●
48 CLIP; FRAME HARNESS
DIFF LOCK<C3N> (D) ID=11 L=61 		1-09700-484-0 01 1 1103- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 1103- ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (A) ID=16 L=40 		0-95235-576-0 03 1 0809- ● ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (J) L=180 		1-09707-162-1 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (I) ID=16X2 L=50 		0-95325-586-0 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (C) ID=14.5 L=40 		1-09701-014-0 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 20 1 0809-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 21 1 0810- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0809-0811 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0812- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0812- ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 04 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 06 1 0810- ●
48 CLIP; FRAME HARNESS
(G) ID=25 L=75 		1-09701-275-0 02 1 0809- ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 24 1 0809- ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0809-0809 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 01 1 0809-0811 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 08 1 0812-1102 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=11 L=61 		1-09700-484-0 07 1 1103- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
6HK1-TCC ENG(81L) (B) ID=11 L=41 		1-09700-403-0 01 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0811 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 09 1 0812-1102 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=11 L=61 		1-09700-484-0 08 1 1103- ●
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0809- ● ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0809- ● ●
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0809- ● ●
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
(Q) ID=13-18 L=22 		1-09709-292-0 01 1 0810- ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0809-0811 ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0812- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 11 1 0809-0810 ●
48 CLIP; FRAME HARNESS
(O) ID=15 L=65 		1-09700-466-0 01 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 15 1 0809-0810 ●
81 CLIP; HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1011-1102 ● ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 0809- ● ●
183 CLIP; CONNECTOR
OD=9 H=6 		1-09709-178-0 01 1 0809-0810 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0809- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0809- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0809- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0809-0811 ● ●

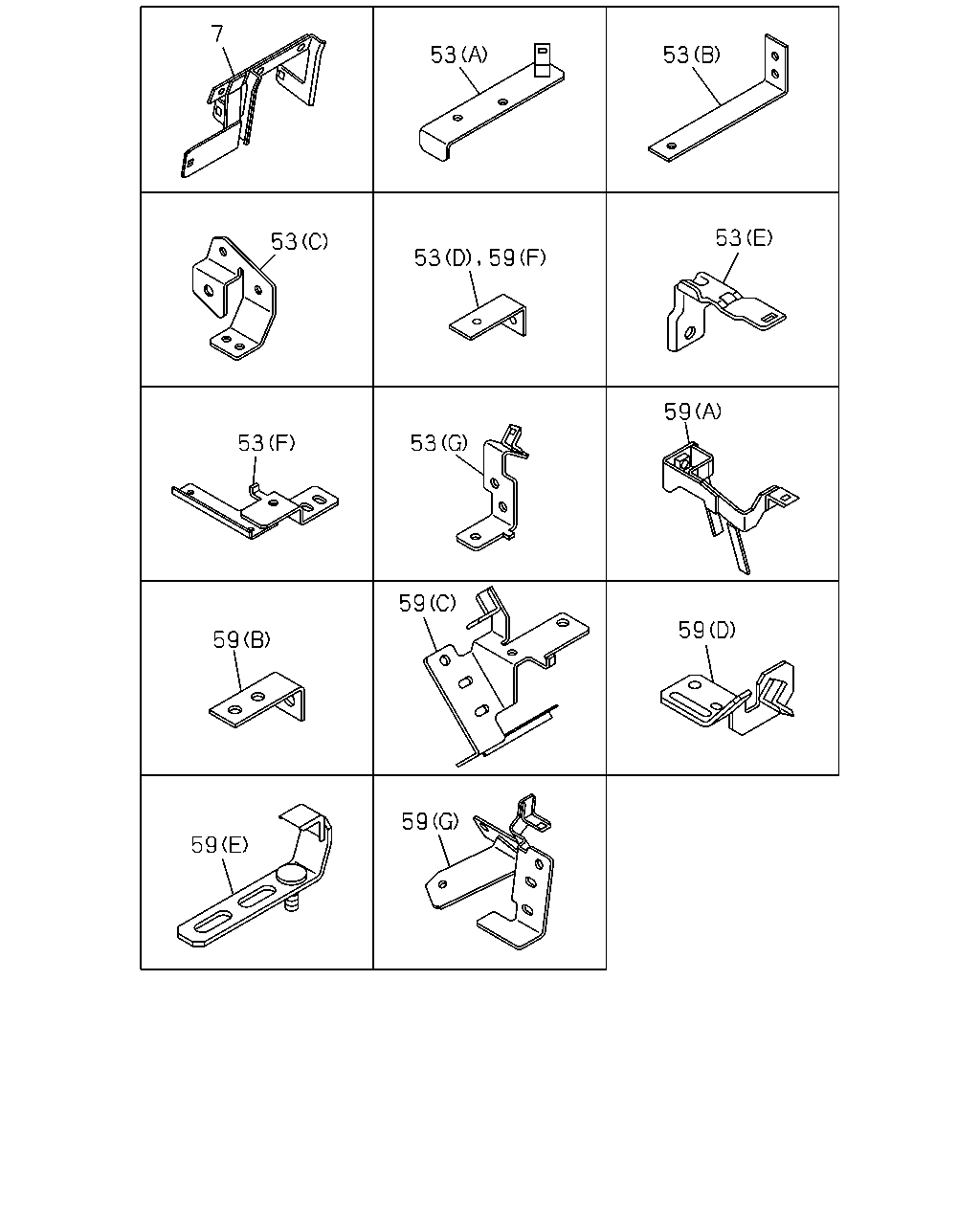

çizim 137928
7 53 53 53 53 59 53 53 59 59 59 59 59 53 59
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0809- ● ●
53 BRACKET; HARNESS
FULLER FSO5206B OD M/T(Y4V) (G) 		8-98129-543-0 01 1 0809-0809 ● ●
53 BRACKET; HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (G) 		8-98129-543-0 01 1 0809-0809 ● ●
53 BRACKET; HARNESS
(D) L=95 		1-82699-085-0 04 1 0809- ●
53 BRACKET; HARNESS
(B) 		1-47479-674-0 01 1 0809- ● ●
53 BRACKET; HARNESS
(A) 		8-97616-959-0 01 1 0809- ● ●
53 BRACKET; HARNESS
(F) 		8-97620-485-0 01 1 0809- ● ●
53 BRACKET; HARNESS
(E) 		8-98052-458-0 01 1 0809- ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98084-590-0 01 1 0809- ● ●
59 BRACKET; FRAME HARNESS
(F) L=75 		1-47478-323-0 01 1 0809-0903 ●
59 BRACKET; FRAME HARNESS
(F) L=75 		1-47478-323-0 01 1 0904- ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 0809- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0809- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97620-482-1 01 1 0809-0905 ● ●
59 BRACKET; FRAME HARNESS
(G) 		8-98107-611-0 01 1 0906- ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 0809- ● ●
59 BRACKET; FRAME HARNESS
(B) 		1-21464-170-2 01 1 0809- ●

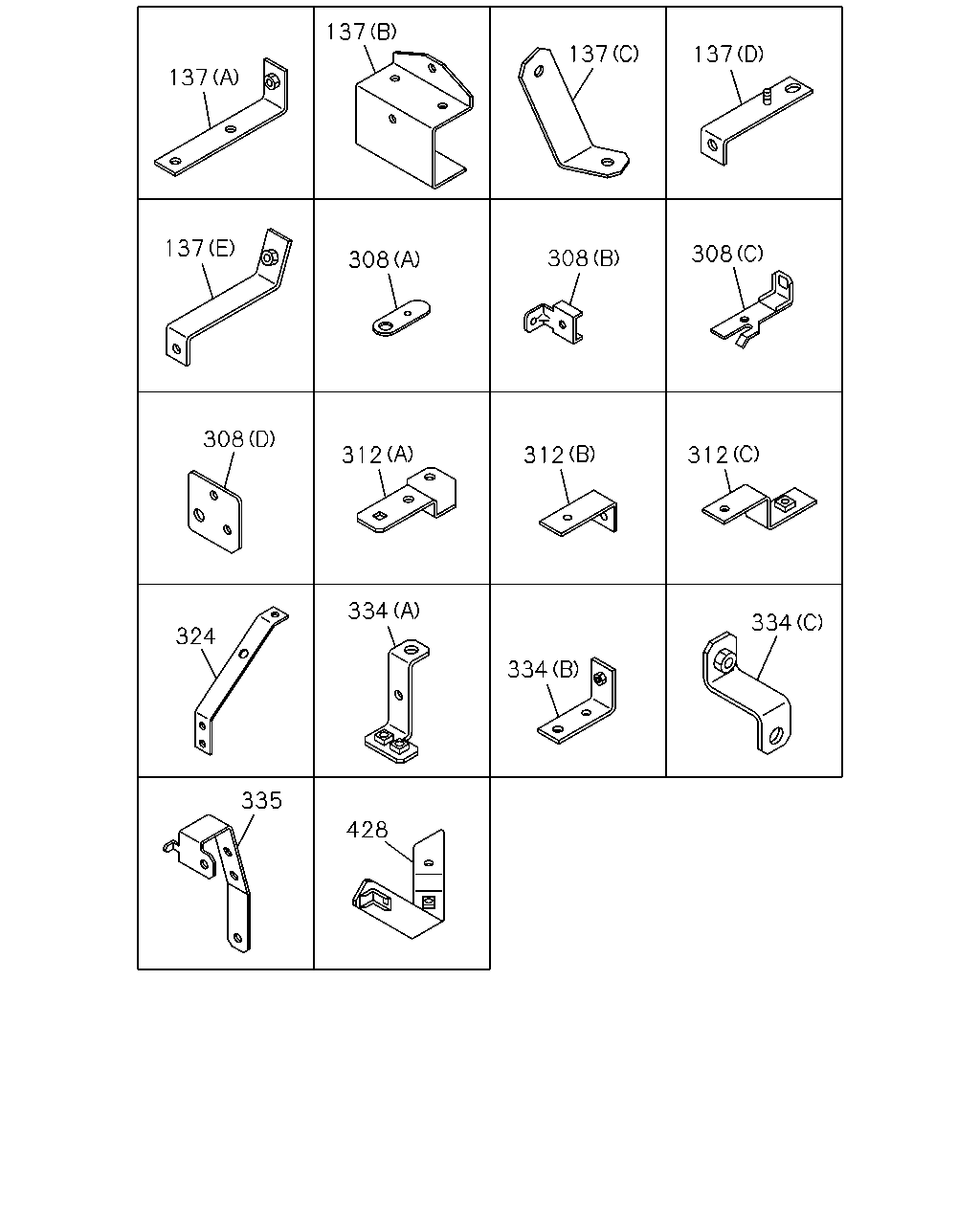

çizim 138033
137 137 137 137 137 308 308 308 308 334 334 324 334 335 428 312 312 312
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
(E) 		1-82698-233-0 01 1 0812- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		1-82698-140-0 01 1 0809- ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 0809- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 0809- ● ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97624-013-0 01 1 0809- ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0809-1010 ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0809- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0809- ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0809- ● ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0809- ● ●
312 BRACKET; CLIP HARNESS
(C) 		8-97609-110-1 01 1 0809- ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-97620-519-0 01 1 0809- ● ●
324 BRACKET; CLIP 1-47479-430-0 02 1 0809- ● ●
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (C) 		1-47475-868-0 02 1 0809- ● ●
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (B) 		1-47477-698-0 02 1 0809- ● ●
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (A) 		1-82699-639-1 01 1 0809- ● ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0809- ● ●
428 BRACKET 8-97620-514-0 01 1 0809- ● ●

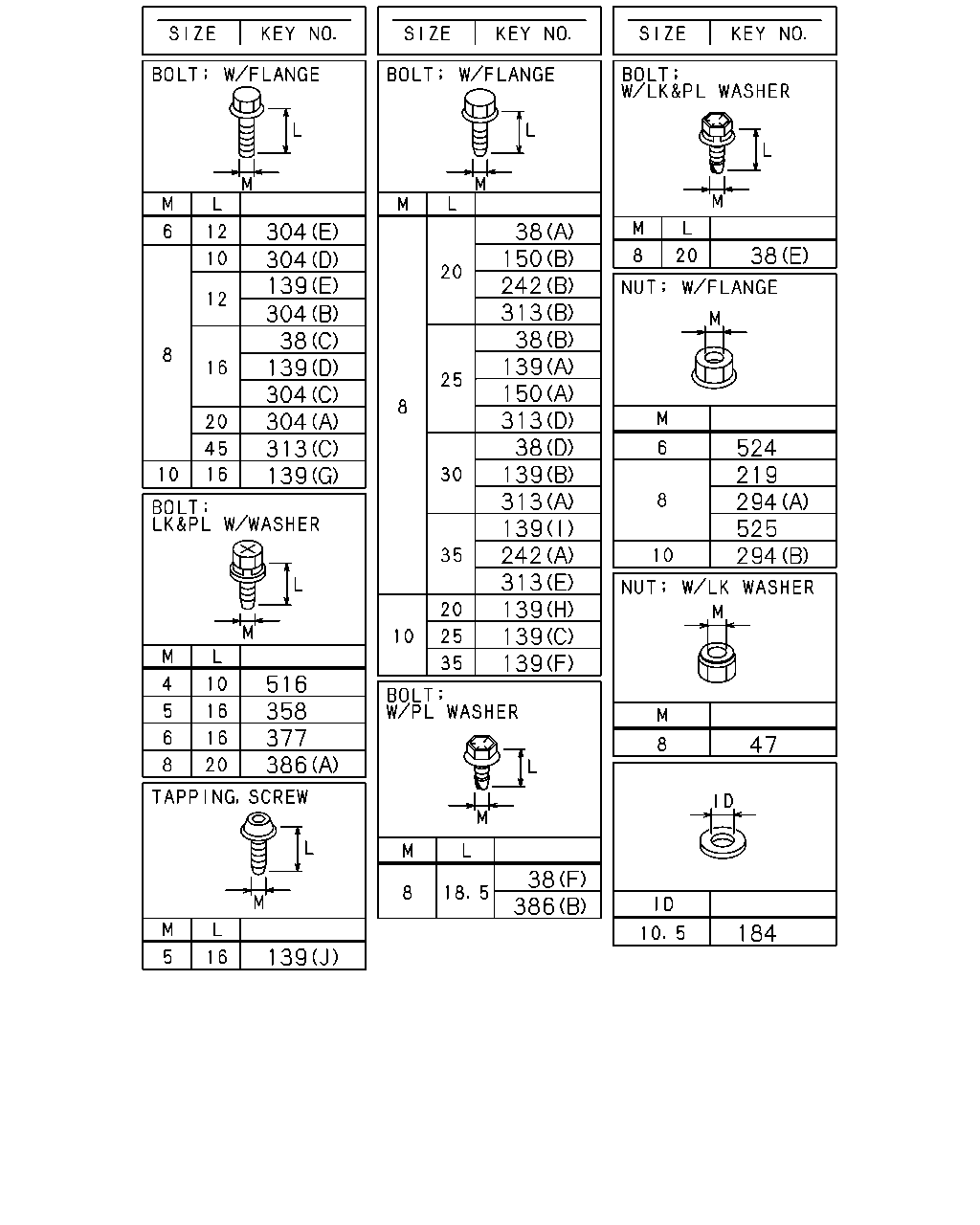

çizim 187339
304 139 304 304 139 38 304 313 304 139 38 242 150 313 139 38 313 150 38 313 139 139 313 139 139 139 242 38 524 294 219 525 294 47 184 38 386 516 358 377 386 139
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) M8X16 FLANGE 		0-28050-816-0 03 1 0809- ● ●
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0809- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0809- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0809- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0809- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0809- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0809- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0809- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0809-1201 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0811- ● ●
139 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (G) M10X16 FLANGE 		0-28051-016-0 03 1 0809- ● ●
139 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (H) M10X20 FLANGE 		0-28751-020-0 01 1 0809- ● ●
139 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0809- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0809- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0809- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0809 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0903 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0903 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0904- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0904- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0809 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0810- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0809-0809 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0811-0811 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0812- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0812- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0809- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (J) M5X16 TAPPING 		0-72180-516-0 01 1 0809- ● ●
139 BOLT; BRKT
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ●
150 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0809- ● ●
150 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0809- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0809- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0810- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0809- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0809- ● ●
242 BOLT; BRKT,HARNESS
FULLER FSO5206B OD M/T(Y4V) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ● ●
242 BOLT; BRKT,HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ● ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0809- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ● ●
294 NUT
FULLER FSO5206B OD M/T(Y4V) (B) M10 FLANGE 		0-91180-210-0 01 1 0809- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0810- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0810- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
FULLER FSO5206B OD M/T(Y4V) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810-0811 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810-0811 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810-0811 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0812- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0812- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0812- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0812- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-0809 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0809-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0902-0905 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0906- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0809-0809 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0809- ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0809- ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0809-1010 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0809- ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0809- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0809- ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 04 1 0809- ●
313 BOLT; BRKT
(C) M8X45 FLANGE 		0-28050-845-0 01 1 0809- ● ●
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0809- ● ●
313 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0809- ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0809- ● ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0809- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0809- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0809-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0809- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0809- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0809- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0809- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
