◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11142 - FVR-RHD(EUROPE)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#67771) — 153 parça

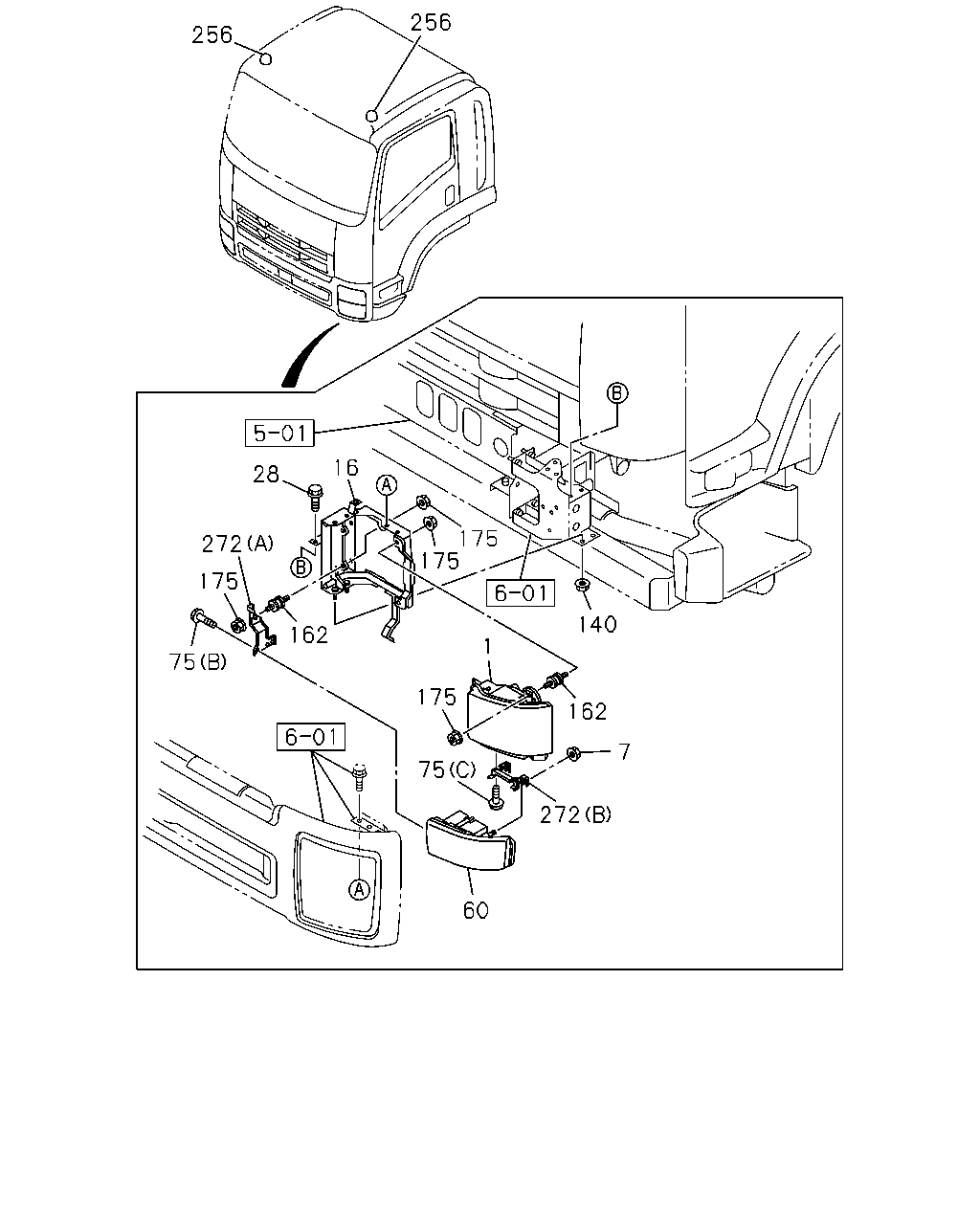

çizim 135952
256 256 16 28 175 175 272 175 140 162 1 75 175 162 7 75 272 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98098-479-1 01 1 0809-1108 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98193-581-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98225-618-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98241-310-0 01 1 1306- ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98098-480-1 01 1 0809-1108 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98193-582-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98225-619-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98241-311-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98098-496-2 01 1 0809-1211 ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98225-629-0 01 1 1212-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98241-347-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98098-497-2 01 1 0809-1211 ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98225-630-0 01 1 1212-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98241-348-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-477-1 01 1 0809-1108 ●
1 LAMP ASM; HEAD 8-98193-579-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD 8-98225-620-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD 8-98241-312-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-478-1 01 1 0809-1108 ●
1 LAMP ASM; HEAD 8-98193-580-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD 8-98225-621-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD 8-98241-313-0 01 1 1306- ●
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 0809- ● ●
16 BRACKET; HEADLAMP 8-98013-015-2 01 1 0809- ● ●
16 BRACKET; HEADLAMP 8-98013-016-2 01 1 0809- ● ●
28 BOLT; HEADLAMP
M10X25 FLANGE 		0-28651-025-0 04 1 0809- ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98146-230-1 01 1 0909-1302 ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-632-0 01 1 1303- ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98146-231-1 01 1 0909-1302 ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-633-0 01 1 1303- ● ●
60 LAMP ASM; FRT COMB 8-98047-052-1 01 1 0809-0908 ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98047-052-2 01 1 0909-1302 ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-630-0 01 1 1303- ● ●
60 LAMP ASM; FRT COMB 8-98047-053-1 01 1 0809-0908 ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98047-053-2 01 1 0909-1302 ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-631-0 01 1 1303- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 0809- ● ●
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 0809-0908 ● ●
75 SCREW; FRT COMB LAMP
FOG LAMP<T96> (A) 		8-98074-439-0 02 1 0909- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0809- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0809- ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 04 1 0809- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0809- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0809- ● ●
256 LAMP; MARKER 8-98097-466-3 01 1 0809- ● ●
256 LAMP; MARKER 8-98097-467-3 01 1 0809- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 0809- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 0809- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 0809- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 0809- ● ●

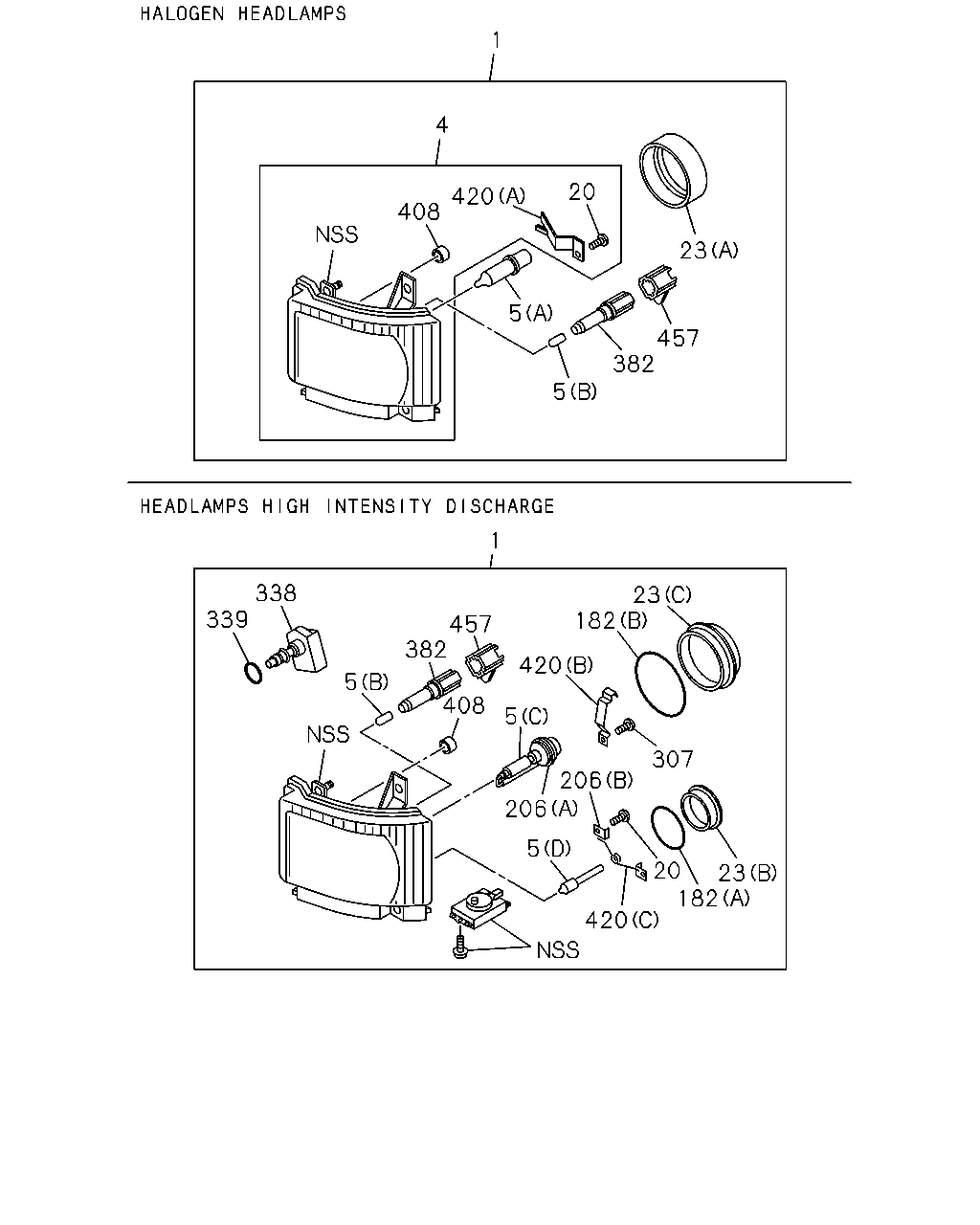

çizim 136102
1 4 408 420 20 5 5 382 457 23 338 339 5 457 1 23 182 420 5 408 206 307 23 20 182 420 5 382 206
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98098-479-1 01 1 0809-1108 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98193-581-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98225-618-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98241-310-0 01 1 1306- ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98098-480-1 01 1 0809-1108 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98193-582-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98225-619-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> 		8-98241-311-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98098-496-2 01 1 0809-1211 ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98225-629-0 01 1 1212-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98241-347-0 01 1 1306- ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98098-497-2 01 1 0809-1211 ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98225-630-0 01 1 1212-1305 ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98241-348-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-477-1 01 1 0809-1108 ●
1 LAMP ASM; HEAD 8-98193-579-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD 8-98225-620-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD 8-98241-312-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-478-1 01 1 0809-1108 ●
1 LAMP ASM; HEAD 8-98193-580-0 01 1 1109-1208 ●
1 LAMP ASM; HEAD 8-98225-621-0 01 1 1209-1305 ●
1 LAMP ASM; HEAD 8-98241-313-0 01 1 1306- ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> 		8-98051-400-0 01 1 0809-1108 ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> 		8-98199-564-0 01 1 1109- ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> 		8-98051-401-0 01 1 0809-1108 ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> 		8-98199-565-0 01 1 1109- ●
4 HEADLAMP UNIT 8-98051-398-0 01 1 0809-1108 ●
4 HEADLAMP UNIT 8-98199-566-0 01 1 1109- ●
4 HEADLAMP UNIT 8-98051-399-0 01 1 0809-1108 ●
4 HEADLAMP UNIT 8-98199-567-0 01 1 1109- ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 24V 75/70W 		1-82194-063-0 02 1 0809- ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0809- ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0809- ● ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (C) 85V 35W 		1-82194-092-0 02 1 0809- ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (D) 24V 70W 		8-94405-658-0 02 1 0809- ●
20 SCREW; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97378-871-0 06 1 0809- ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 0809- ●
20 SCREW; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-97378-871-0 04 1 0809- ●
23 COVER; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 		8-97232-491-0 02 1 0809- ●
23 COVER; BULB,HEADLAMP
(A) 		8-97232-491-0 02 1 0809- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 		8-98051-392-0 02 1 0809- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (C) 		8-98051-393-0 02 1 0809- ●
182 GASKET; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A) 		8-98051-391-0 02 1 0809- ●
182 GASKET; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 		8-98051-394-0 02 1 0809- ●
206 HOLDER; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A) 		8-97378-878-0 02 1 0809- ●
206 HOLDER; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 		8-97378-879-0 02 1 0809- ●
307 SCREW; TAPPING,HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-97378-871-0 06 1 0809- ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1109- ●
339 GASKET; LEVELING 1-86830-158-0 02 1 1109- ●
382 PLUG; SOCKET,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98225-685-0 02 1 1209-1211 ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209-1211 ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1212- ● ●
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0809-1208 ● ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98069-364-0 02 1 1209-1211 ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0809- ● ●
420 SPRING; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 		8-97378-875-0 02 1 0809-1208 ●
420 SPRING; BULB,HEADLAMP
(A) 		8-97378-875-0 02 1 0809-1208 ●
420 SPRING; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 		8-98218-601-0 02 1 1209- ●
420 SPRING; BULB,HEADLAMP
(A) 		8-98218-601-0 02 1 1209- ●
420 SPRING; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 		8-97378-876-0 02 1 0809- ●
420 SPRING; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (C) 		8-97378-877-0 02 1 0809- ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306- ● ●
çizim 136363
327 437 91 427 256 82 292 83 80 86
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0809- ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0809- ● ●
83 LENS; MARKER LAMP 8-98057-958-0 02 1 0809- ● ●
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 0809- ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0809- ● ●
256 LAMP; MARKER 8-98097-466-3 01 1 0809- ● ●
256 LAMP; MARKER 8-98097-467-3 01 1 0809- ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0809- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0809- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0809- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0809- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0809- ● ●

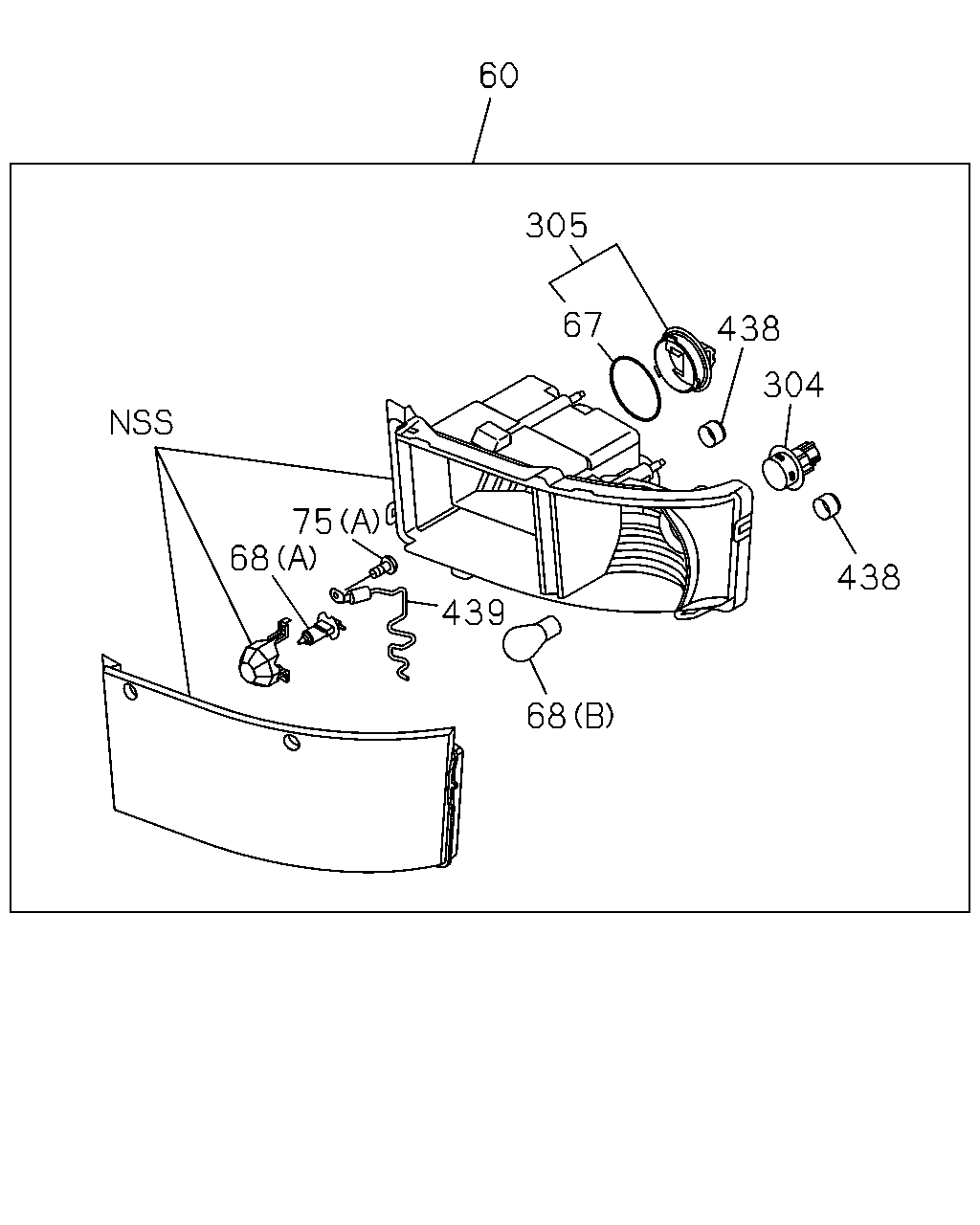

çizim 187331
60 304 438 305 75 438 68 68 439 67
BalonParca AdiParca NoAdetTipApplied Date A B
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98146-230-1 01 1 0909-1302 ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-632-0 01 1 1303- ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98146-231-1 01 1 0909-1302 ● ●
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-633-0 01 1 1303- ● ●
60 LAMP ASM; FRT COMB 8-98047-052-1 01 1 0809-0908 ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98047-052-2 01 1 0909-1302 ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-630-0 01 1 1303- ● ●
60 LAMP ASM; FRT COMB 8-98047-053-1 01 1 0809-0908 ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98047-053-2 01 1 0909-1302 ● ●
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-631-0 01 1 1303- ● ●
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1303- ● ●
68 BULB; FRT COMB LAMP
(A) 24V 70W 		1-82194-106-0 02 1 0809-0908 ● ●
68 BULB; FRT COMB LAMP
FOG LAMP<T96> (A) 24V 70W 		1-82194-106-0 02 1 0909- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 0809- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 0809- ● ●
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 0809-0908 ● ●
75 SCREW; FRT COMB LAMP
FOG LAMP<T96> (A) 		8-98074-439-0 02 1 0909- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0809- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0809- ● ●
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 0809- ● ●
305 COVER; FRT COMB LAMP
EXC. FOG LAMP<T96> 		8-98051-392-0 02 1 0909-1302 ● ●
305 COVER; FRT COMB LAMP
EXC. FOG LAMP<T96> 		8-98240-560-0 02 1 1303- ● ●
305 COVER; FRT COMB LAMP 8-98074-440-0 02 1 0809-0908 ● ●
305 COVER; FRT COMB LAMP
FOG LAMP<T96> 		8-98074-440-0 02 1 0909-1302 ● ●
305 COVER; FRT COMB LAMP
FOG LAMP<T96> 		8-98240-559-0 02 1 1303- ● ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 04 1 0809-1302 ● ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1303- ● ●
439 SPRING SET; COMB LAMP 8-98075-644-0 02 1 0809-0908 ● ●
439 SPRING SET; COMB LAMP
FOG LAMP<T96> 		8-98075-644-0 02 1 0909- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
