7-50 — FRONT SEAT (#67768) — 156 parça

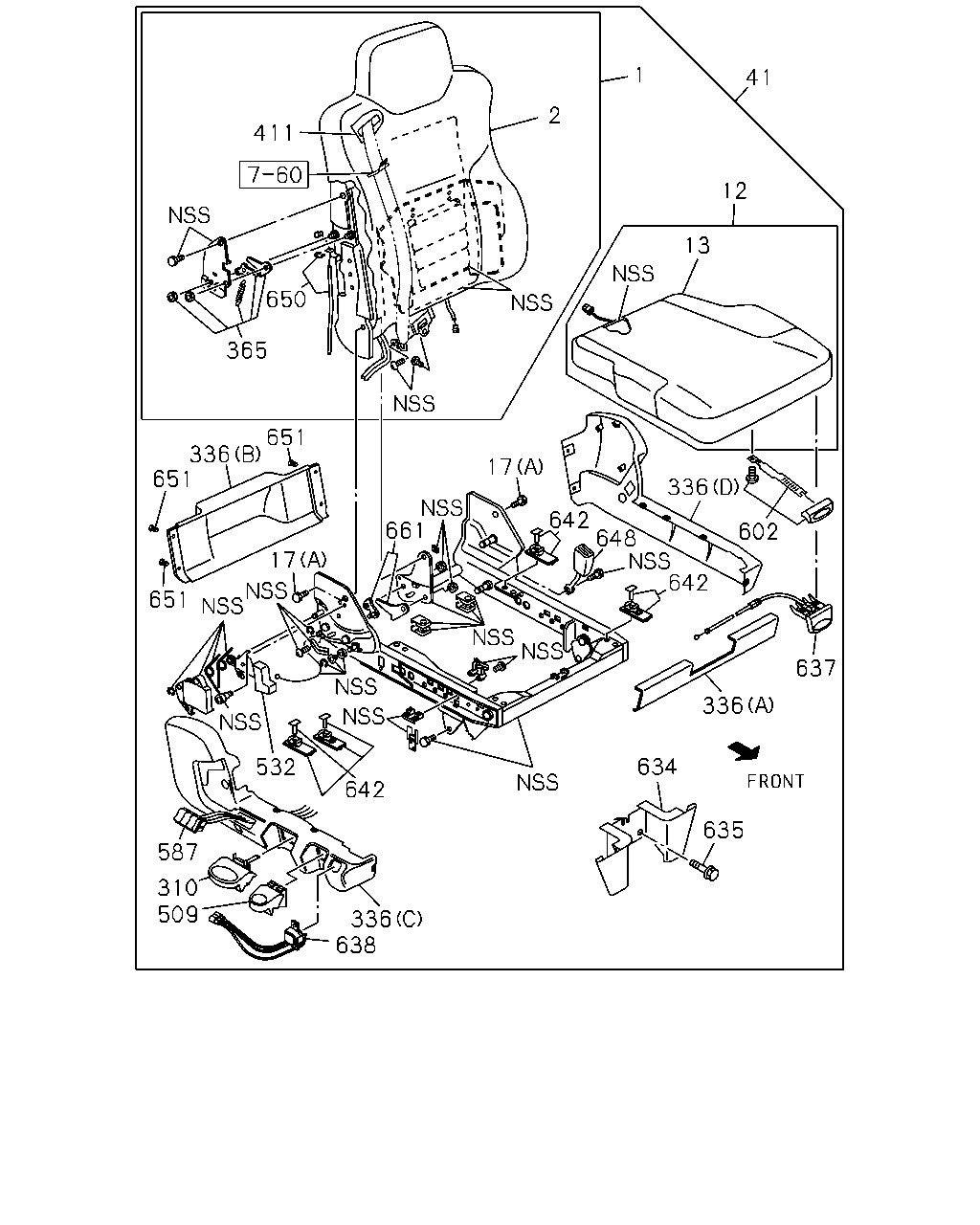

41 1 12 13 2 411 650 365 17 642 648 642 602 336 637 336 634 635 642 532 651 17 336 651 651 587 336 638 310 509 661

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-964-0	01	1	0809-	●	●
1	BACK ASM; SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-963-0	01	1	0809-	●	●
2	COVER; TRIM,FRT SEAT,BACK	8-98097-966-0	01	1	0809-1212	●	●
2	COVER; TRIM,FRT SEAT,BACK	8-98232-353-0	01	1	1301-	●	●
12	CUSHION; SEAT,FRT	8-98098-006-0	01	1	0809-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION	8-98098-007-0	01	1	0809-	●	●
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	0809-	●	●
17	BOLT; RECLINING (B)	8-98092-334-0	02	1	0809-	●	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0809-1212	●	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-	●	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0809-1212	●	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-	●	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT	8-98097-992-0	01	1	0809-	●	●
327	CLIP; COVER	8-98098-004-0	01	1	0809-	●	●
336	COVER; DRIVER SEAT (D)	8-98097-978-0	01	1	0809-	●	●
336	COVER; DRIVER SEAT (C)	8-98097-984-0	01	1	0809-	●	●
336	COVER; DRIVER SEAT (A)	8-98097-995-0	01	1	0809-	●	●
336	COVER; DRIVER SEAT (B)	8-98097-996-0	01	1	0809-	●	●
365	LOCK ASM; SEAT	8-98097-972-0	01	1	0809-	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	0809-	●	●
411	GUIDE; SEAT BELT	8-98097-967-0	01	1	0809-	●	●
509	LEVER; DAMPER	8-98097-988-0	01	1	0809-	●	●
532	LEVER ASM; TILT	8-98097-982-0	01	1	0809-	●	●
587	VALVE; LUMBAR SUPPORT	8-98097-986-0	01	1	0809-	●	●
602	KNOB; ADJ,SEAT	8-98098-008-0	01	1	0809-	●	●
634	COVER; CONNECTOR,SEAT	8-98088-279-0	01	1	0809-	●	●
635	BOLT; COVER M6X16	0-52000-616-0	02	1	0809-	●	●
637	LEVER; SLOPE ADJ	8-98097-989-0	01	1	0809-	●	●
638	VALVE; LOWERING	8-98097-994-0	01	1	0809-	●	●
642	SLIDER; CUSHION	8-98192-932-0	04	1	0809-	●	●
648	BUCKLE; SEAT BELT	8-98097-976-0	01	1	0809-	●	●
650	CABLE	8-98097-973-0	01	1	0809-1212	●	●
650	CABLE	8-98232-354-0	01	1	1301-	●	●
651	RIVET	8-98194-075-0	04	1	0809-	●	●
661	LOCK ASM; RECLINING	8-98097-980-0	01	1	0809-	●	●

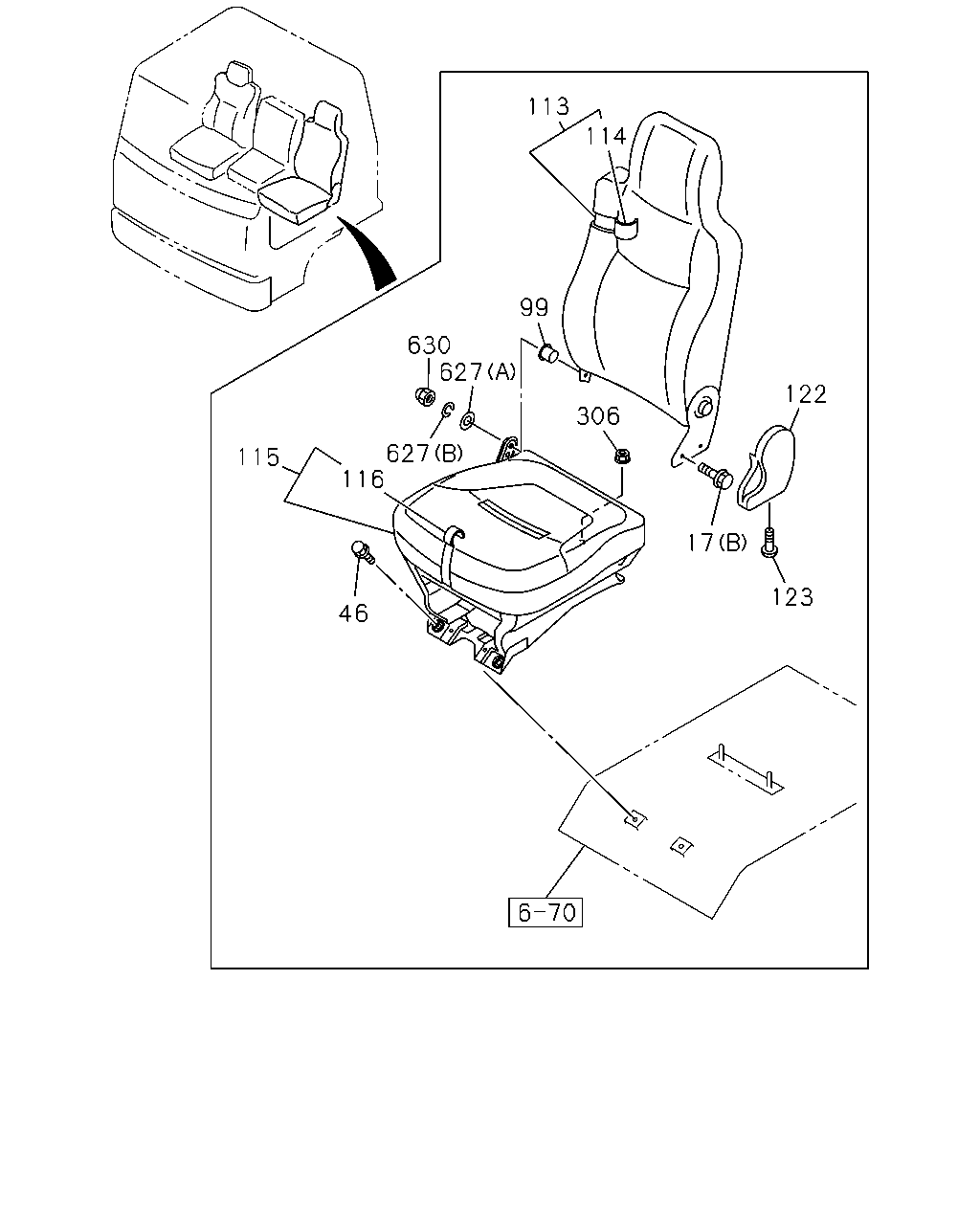

113 630 99 627 627 116 115 46 306 122 114 17 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	0809-	●	●
17	BOLT; RECLINING (B)	8-98092-334-0	02	1	0809-	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0809-	●	●
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	0809-1009	●	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-	●	●
113	BACK ASM; SEAT DARK GRAY	8-97409-969-0	01	1	0809-0902	●	●
113	BACK ASM; SEAT DARK GRAY	8-97416-221-0	01	1	0903-1009	●	●
113	BACK ASM; SEAT DARK GRAY	8-97421-422-0	01	1	1010-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97411-914-0	01	1	0809-0902	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97416-223-0	01	1	0903-1009	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-424-0	01	1	1010-	●	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97409-968-0	01	1	0809-0902	●	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-225-0	01	1	0903-1009	●	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-418-0	01	1	1010-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97411-913-0	01	1	0809-0902	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97416-227-0	01	1	0903-1009	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-420-0	01	1	1010-	●	●
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	0809-	●	●
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	0809-	●	●
306	NUT; SEAT ADJ M10 FLANGE	0-91180-110-0	02	1	0809-	●	●
327	CLIP; COVER	8-98098-004-0	01	1	0809-	●	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0809-	●	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0809-	●	●
630	NUT; CAP M8	8-98063-225-0	01	1	0809-	●	●

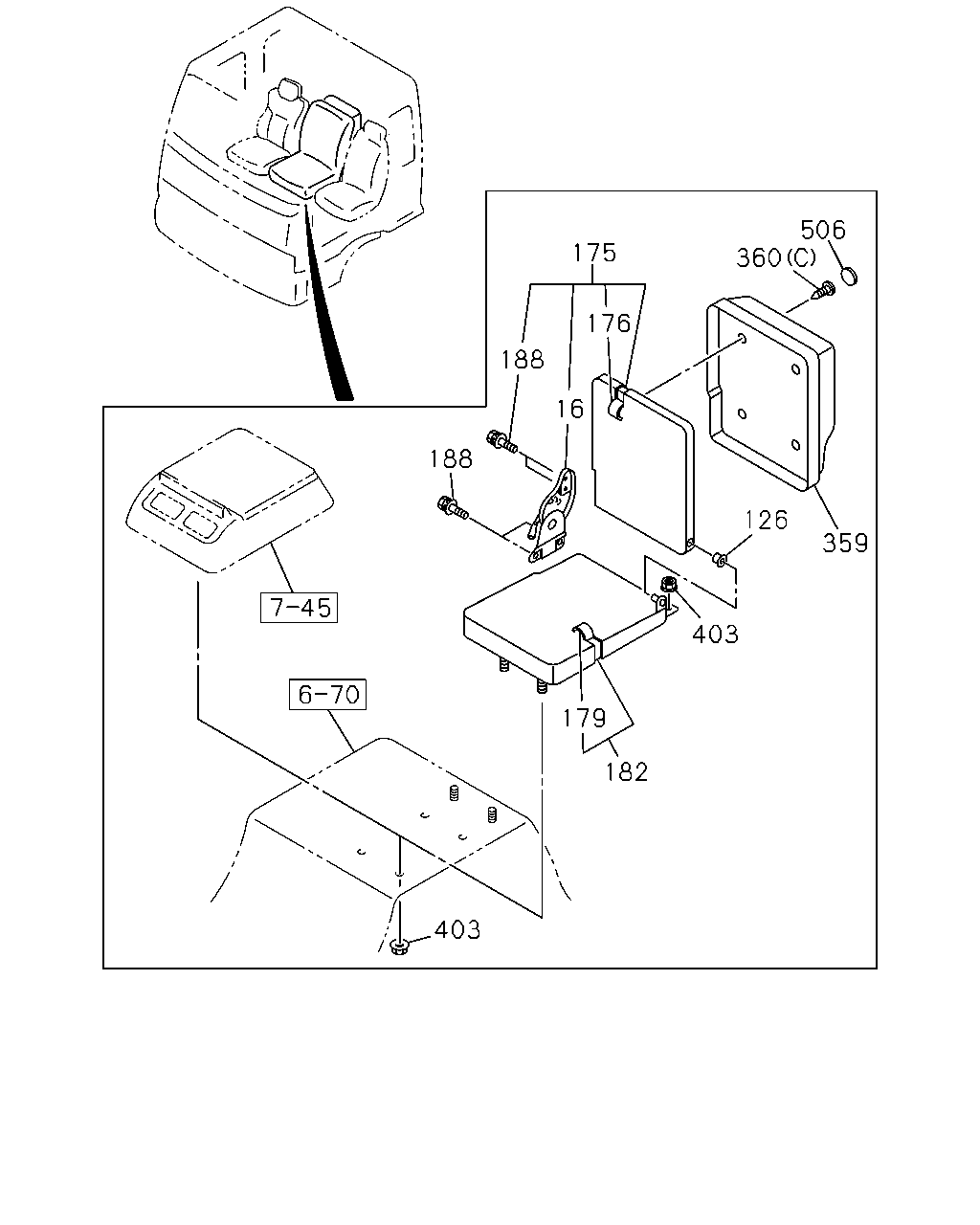

506 360 175 176 188 188 16 126 359 403 182 179 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	0809-	●	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	8-97854-900-0	01	1	0809-	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-984-0	01	1	0809-0902	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-233-0	01	1	0903-1009	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-434-1	01	1	1010-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-985-0	01	1	0809-0902	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-234-0	01	1	0903-1009	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-435-1	01	1	1010-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-983-0	01	1	0809-0902	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-237-0	01	1	0903-1009	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-432-1	01	1	1010-	●	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-982-0	01	1	0809-0902	●	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-235-0	01	1	0903-1009	●	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-430-3	01	1	1010-	●	●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	0809-	●	●
327	CLIP; COVER	8-98098-004-0	01	1	0809-	●	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0809-1006	●	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0809-1009	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0809-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0809-1110	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0809-1009	●	●
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	0809-	●	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	04	1	0809-1006	●	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1007-	●	●

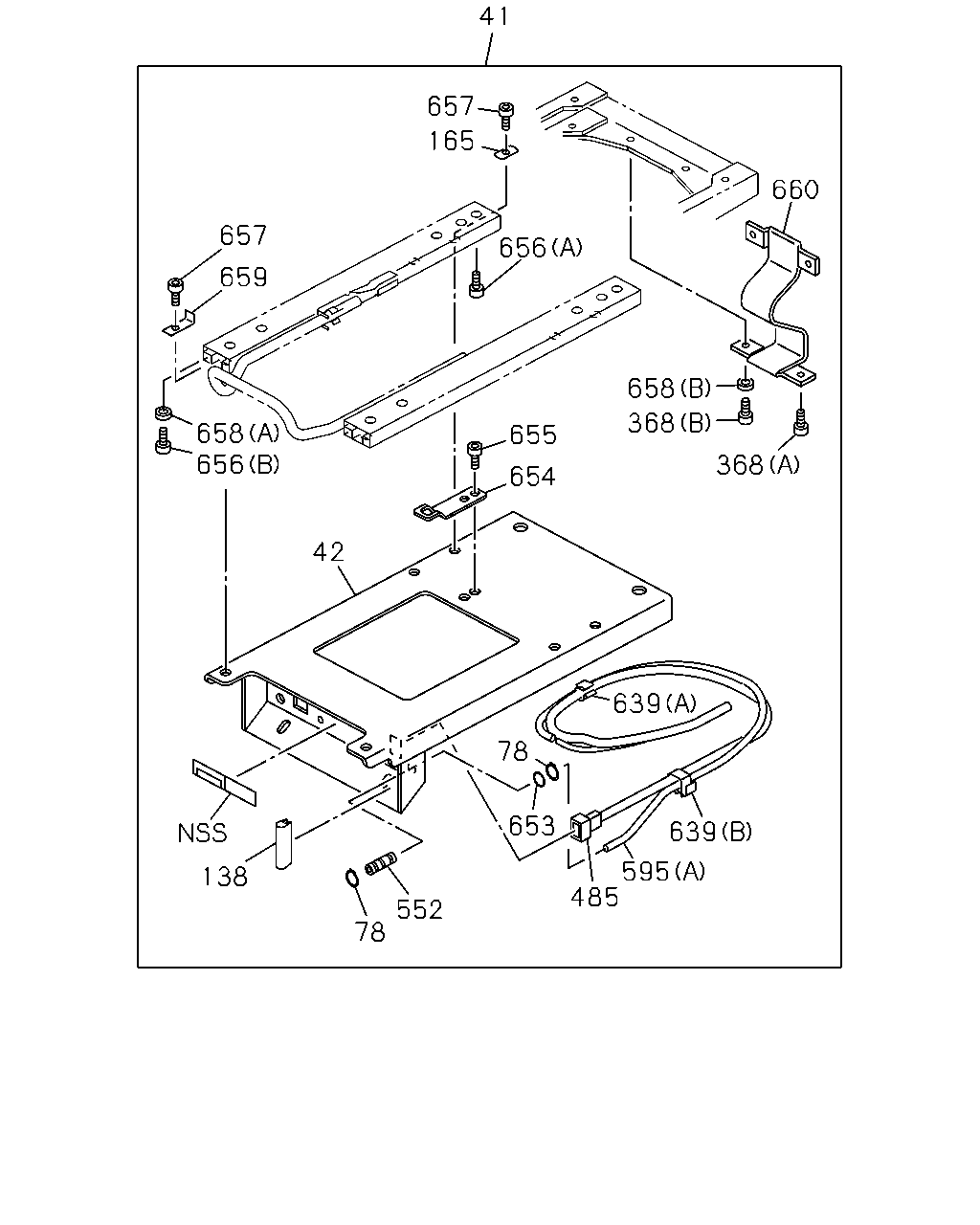

41 165 657 656 657 658 659 656 42 654 655 368 658 368 660 485 639 595 653 639 78 552 78 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0809-1212	●	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-	●	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0809-1212	●	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-	●	●
42	STAND; DRIVER SEAT	8-98106-346-0	01	1	0809-	●	●
78	RING; SNAP	8-98101-900-0	02	1	0809-	●	●
138	PROTECTOR; SEAT STAND	8-98106-351-0	01	1	0809-	●	●
165	WASHER; PL	1-75590-086-0	04	1	0809-	●	●
327	CLIP; COVER	8-98098-004-0	01	1	0809-	●	●
368	BOLT; SEAT (A)	8-98106-353-0	03	1	0809-	●	●
368	BOLT; SEAT (B)	8-98106-358-0	01	1	0809-	●	●
485	HARNESS; FRT SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-360-0	01	1	0809-	●	●
485	HARNESS; FRT SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-361-0	01	1	0809-	●	●
552	CONNECTOR	8-98101-902-0	01	1	0809-	●	●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	0809-	●	●
595	TUBE; NYLON (B)	8-98041-300-0	01	1	0809-	●	●
639	CLIP; SEAT (A)	8-98106-349-0	01	1	0809-	●	●
639	CLIP; SEAT (B)	8-98106-350-0	01	1	0809-	●	●
653	GASKET	8-98101-901-0	01	1	0809-	●	●
654	HOOK; STOPPER	8-98106-352-0	01	1	0809-	●	●
655	BOLT; HOOK	8-98106-353-0	02	1	0809-	●	●
656	BOLT; SLIDER TO SEAT (A)	1-75590-085-0	04	1	0809-	●	●
656	BOLT; SLIDER TO SEAT (B)	8-98106-354-0	02	1	0809-	●	●
657	BOLT; SLIDER TO STAND	1-75590-085-0	06	1	0809-	●	●
658	SPACER; BOLT (A)	8-98106-355-0	02	1	0809-	●	●
658	SPACER; BOLT (B)	8-98106-359-0	01	1	0809-	●	●
659	STOPPER	8-98106-356-0	02	1	0809-	●	●
660	BELT; TETHER	8-98106-357-0	01	1	0809-	●	●

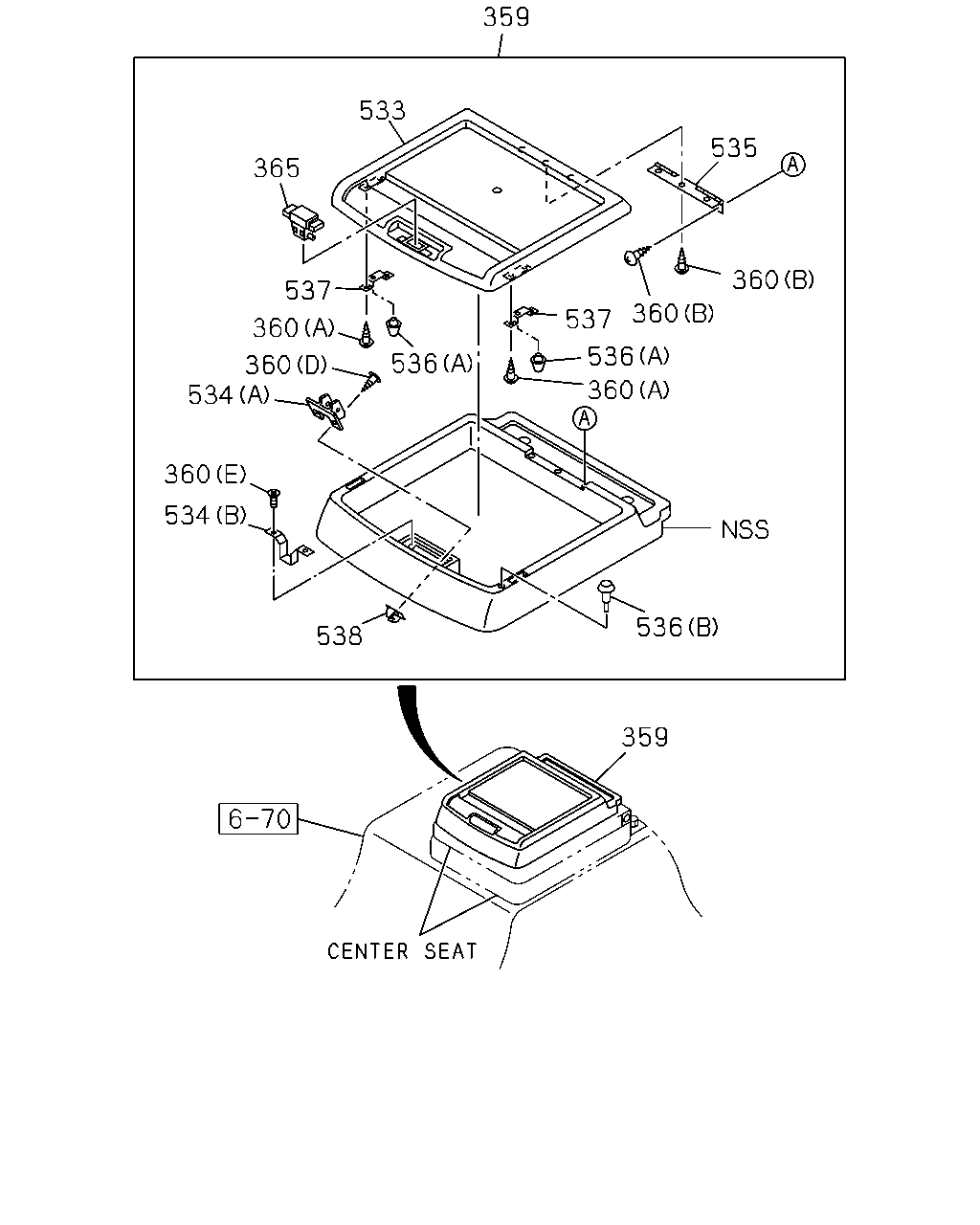

535 360 360 536 537 536 360 536 359 538 534 360 534 360 360 537 365 533 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
327	CLIP; COVER	8-98098-004-0	01	1	0809-	●	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0809-1006	●	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0809-1009	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0809-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0809-1110	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0809-1009	●	●
365	LOCK ASM; SEAT	8-98097-972-0	01	1	0809-	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	0809-	●	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-1	01	1	0809-1006	●	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1007-	●	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (A)	1-72538-181-0	01	1	0809-1009	●	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1010-	●	●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	0809-	●	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (A)	5-09983-002-1	02	1	0809-1009	●	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1010-	●	●
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC>	1-72548-057-1	02	1	0809-1009	●	●
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC>	1-09983-165-0	02	1	0809-1009	●	●

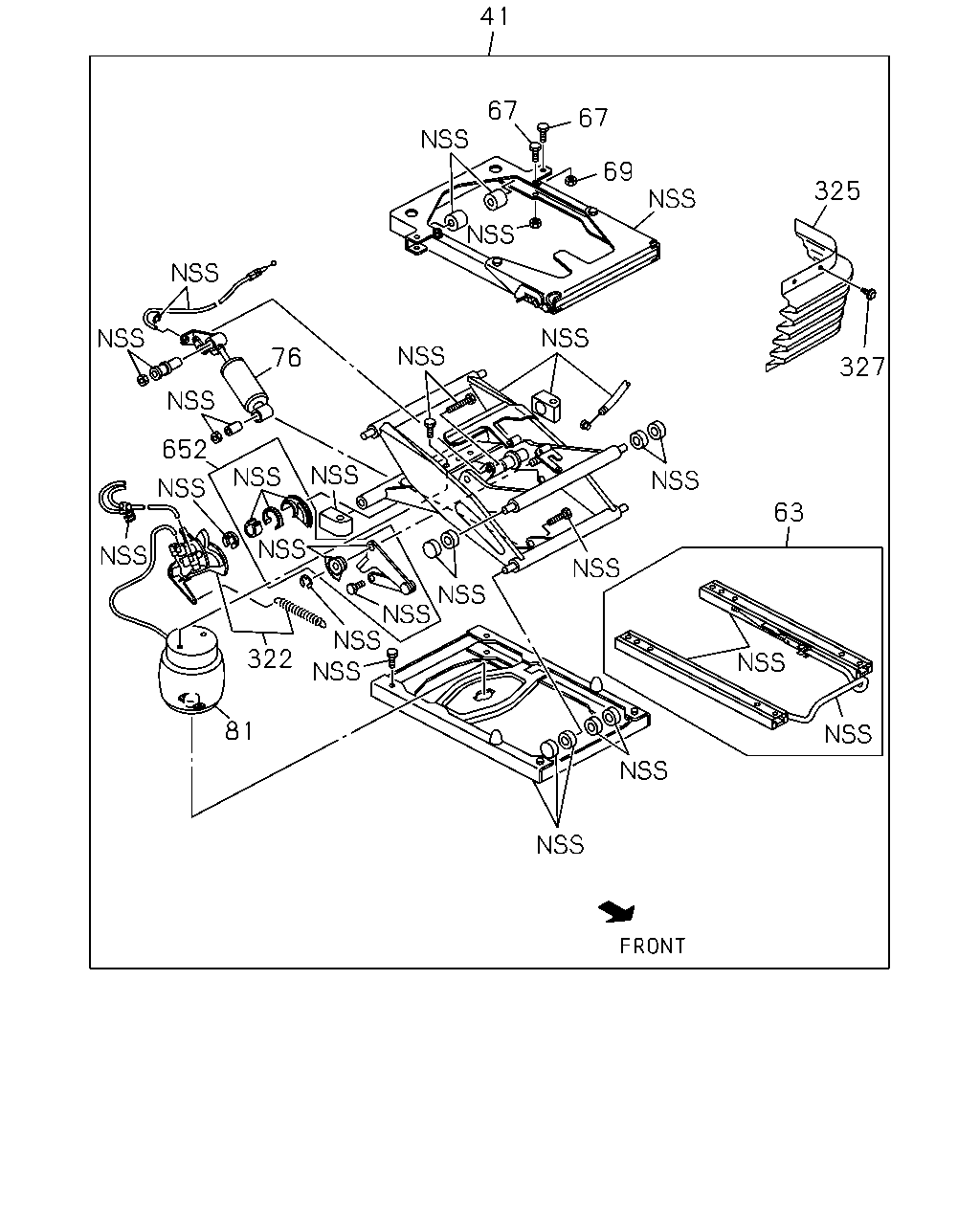

81 322 76 67 41 67 69 325 27 63 652

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0809-1212	●	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-	●	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0809-1212	●	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-	●	●
63	ADJUSTER; SEAT SLIDE	8-98098-005-0	01	1	0809-	●	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0809-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0809-	●	●
76	DAMPER; AIR SUSP	8-98097-999-0	01	1	0809-	●	●
81	SPRING; AIR	8-98098-000-0	01	1	0809-	●	●
322	VALVE; AIR SPRING	8-98098-001-0	01	1	0809-	●	●
325	COVER; SUSPENSION DEVICE	8-98098-003-0	01	1	0809-	●	●
327	CLIP; COVER	8-98098-004-0	01	1	0809-	●	●
652	LOCK ASM; HEIGHT	8-98098-002-0	01	1	0809-	●	●

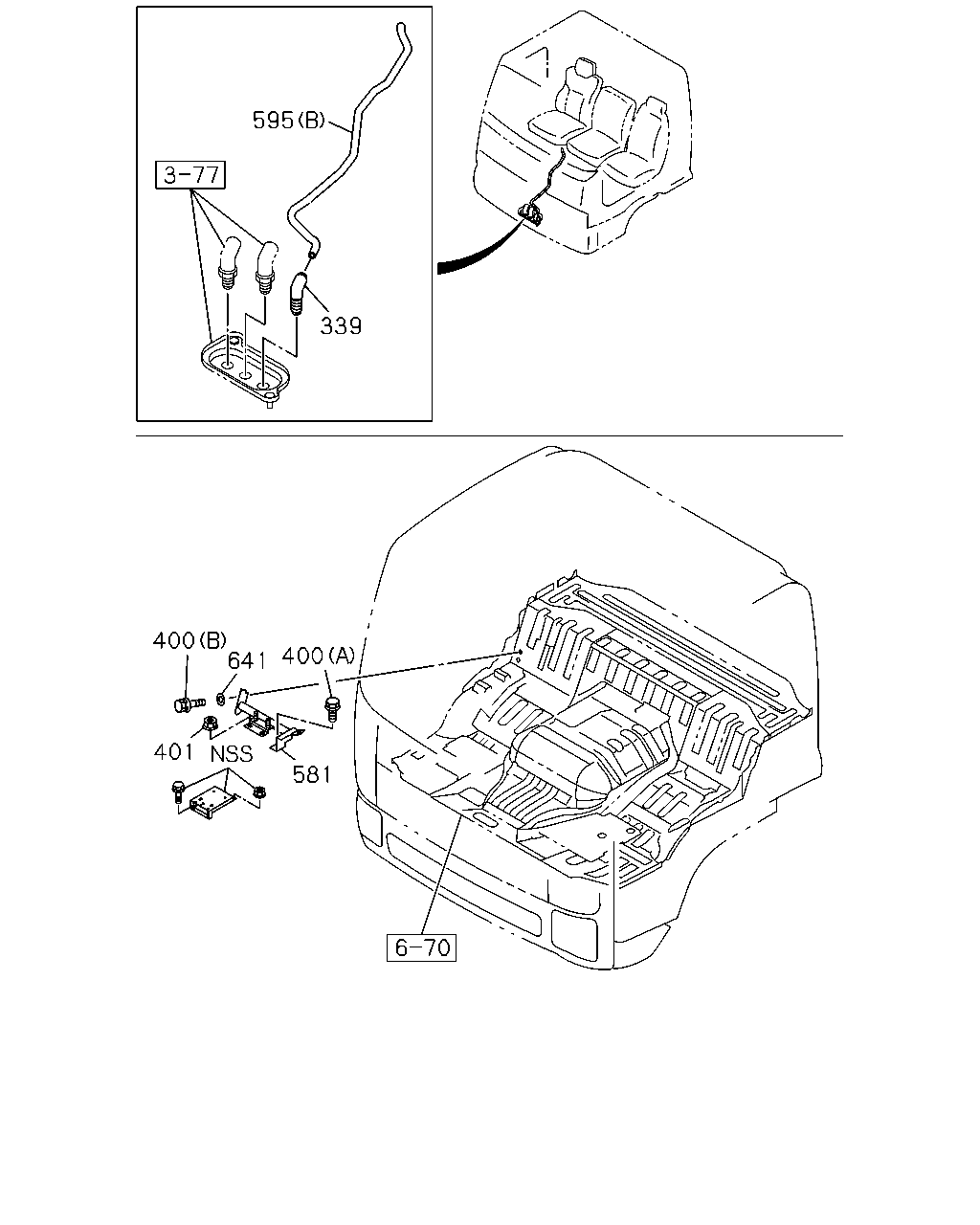

595 339 400 641 400 581 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
327	CLIP; COVER	8-98098-004-0	01	1	0809-	●	●
339	UNION; DRIVER SEAT	8-98014-971-0	01	1	0809-	●	●
400	BOLT; SUPPORT (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-	●	●
400	BOLT; SUPPORT (B)	8-98098-996-0	02	1	0809-	●	●
401	NUT; SUPPORT M10 FLANGE	0-91180-110-0	02	1	0809-	●	●
581	PIPE; SEAT	8-97589-693-3	01	1	0809-	●	●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	0809-	●	●
595	TUBE; NYLON (B)	8-98041-300-0	01	1	0809-	●	●
641	WASHER; SUPPORT	8-98099-007-0	02	1	0809-	●	●
