◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11142 - FVR-RHD(EUROPE)EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#67762) — 101 parça
çizim 132581
87 87 136 145 307 96 63 66 66 136 145 72 66 71 26 13 72 49 30 89 86
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0809- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0809- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0809- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0809- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0809- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0809- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0809- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 0809-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 0809-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 0809-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 0809-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0809- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0809- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0809- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0809- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0809- ● ●
72 SHEET
(B) 		8-98031-796-0 01 1 0809- ● ●
72 SHEET
(C) 		8-98031-797-0 01 1 0809- ● ●
72 SHEET
(E) 		8-98060-245-1 01 1 0809- ● ●
72 SHEET
(A) 		8-98064-776-0 01 1 0809- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0809- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0809- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0809- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 0809- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0809- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0809- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0809- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0809- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0809- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0809- ● ●

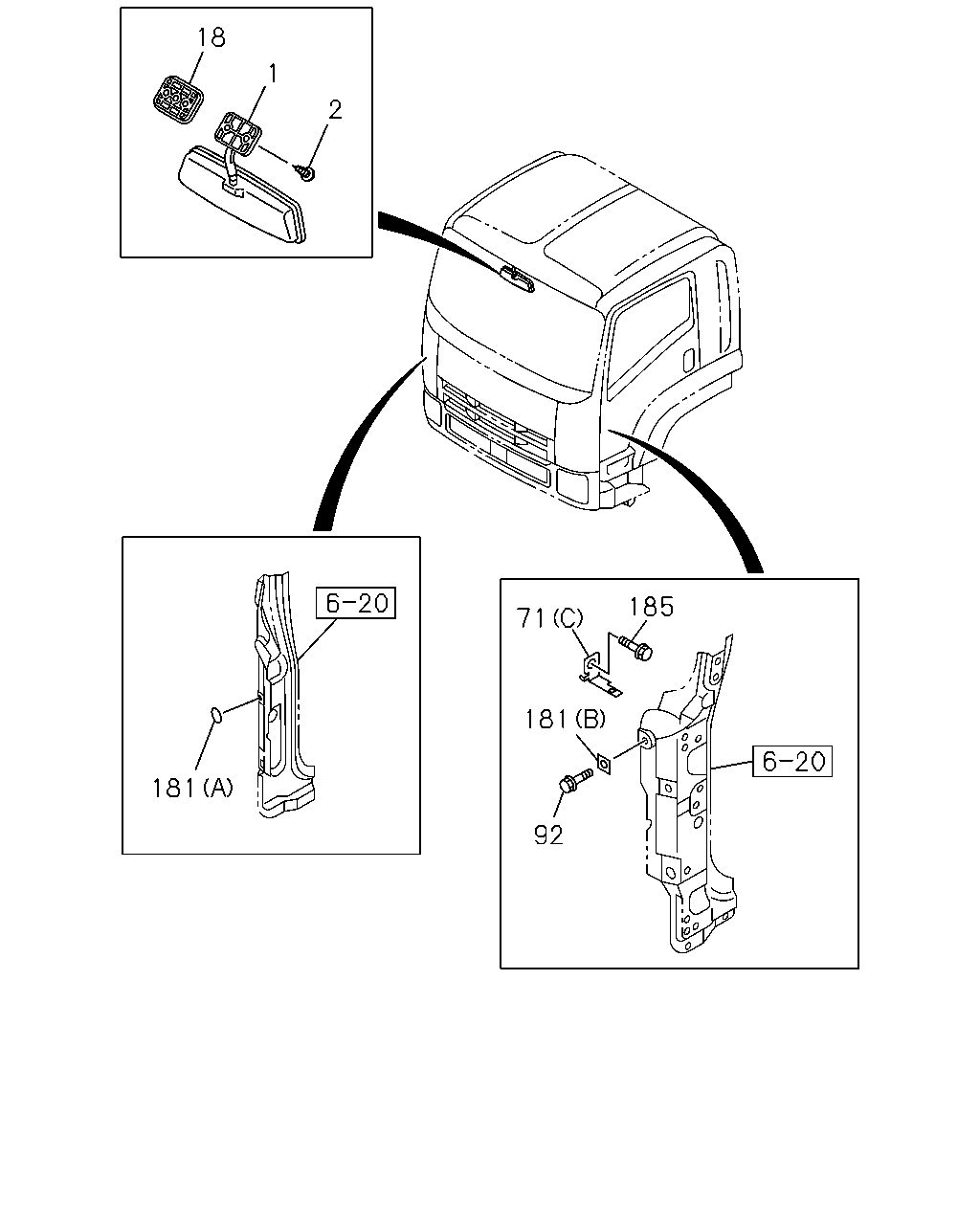

çizim 132828
18 1 2 181 185 71 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0809- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0809- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0809- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0809- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0809- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0809- ● ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0809- ● ●

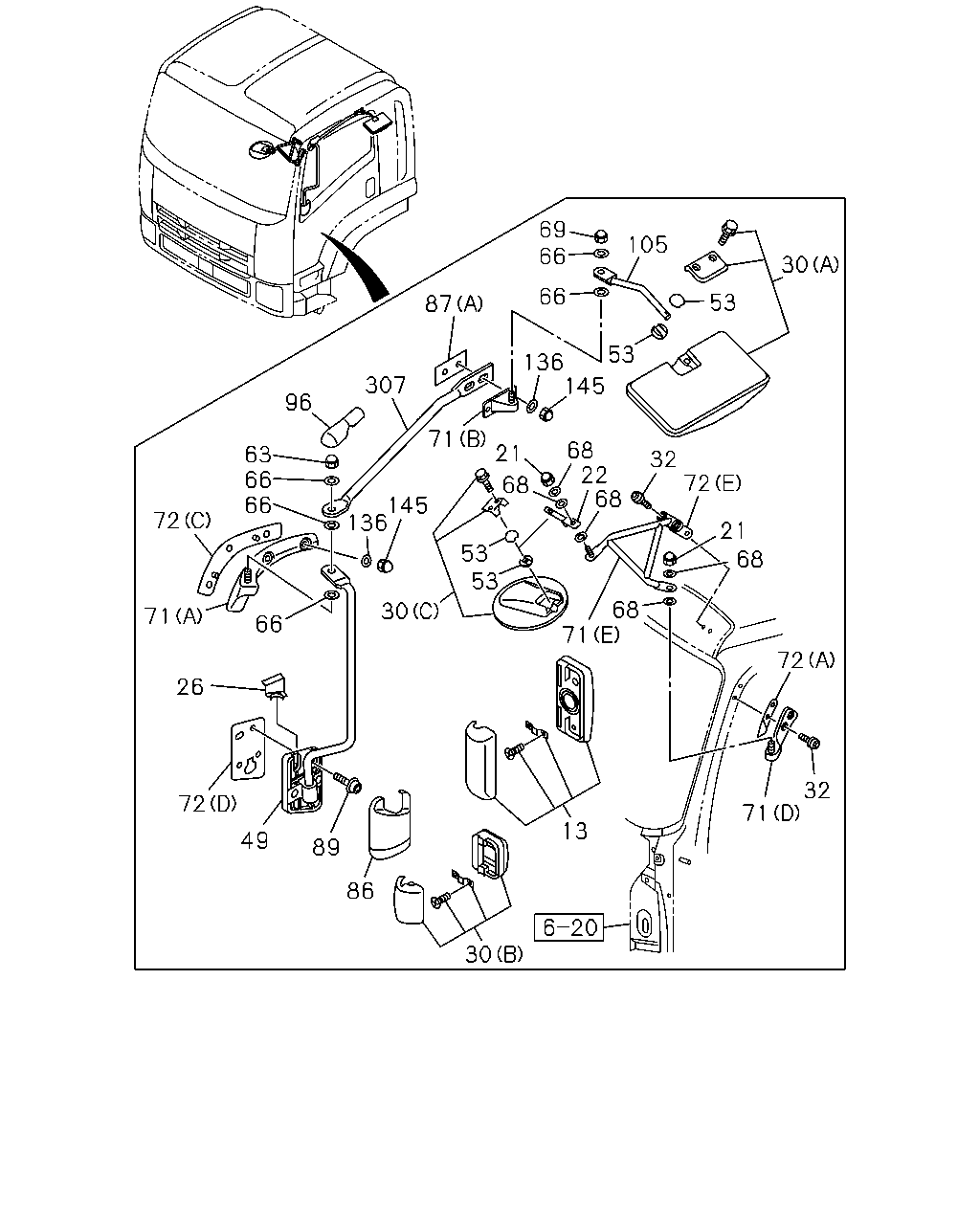

çizim 187319
30 53 105 69 66 66 53 145 136 87 307 96 63 66 66 72 71 26 66 30 53 53 136 145 71 21 68 68 22 68 32 72 21 68 71 68 72 32 71 13 30 86 89 49 72
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0809- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0809- ● ●
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 0809- ● ●
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 0809- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0809- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0809- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0809- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0809- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0809- ● ●
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 0809- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 0809-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 0809-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 0809-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 0809-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 0809- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 0809- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0809- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0809- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0809- ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0809- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0809- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0809- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0809- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0809- ● ●
72 SHEET
(B) 		8-98031-796-0 01 1 0809- ● ●
72 SHEET
(C) 		8-98031-797-0 01 1 0809- ● ●
72 SHEET
(E) 		8-98060-245-1 01 1 0809- ● ●
72 SHEET
(A) 		8-98064-776-0 01 1 0809- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0809- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0809- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0809- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 0809- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0809- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0809- ● ●
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 0809- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0809- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0809- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0809- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0809- ● ●
