Sayfa 0-12 - Isuzu EPC

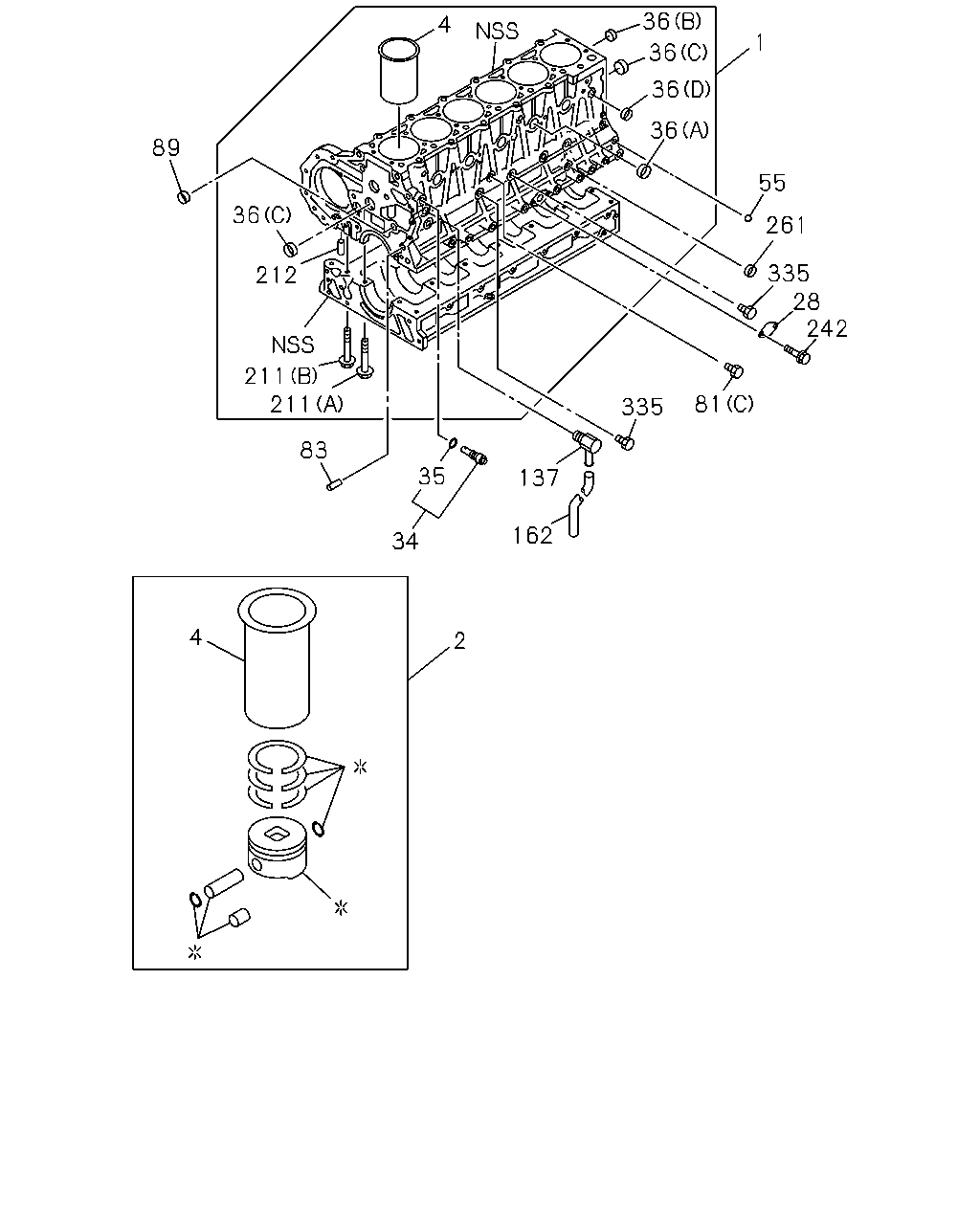

0-12 — CYLINDER BLOCK (#6776) — 255 parça

36 4 1 36 36 36 89 55 36 261 335 28 242 212 211 211 81 335 83 35 137 162 34 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-94395-860-8	01	1	9806-9807	●
1	BLOCK ASM; CYL	8-94392-486-0	01	1	9808-9911	●
1	BLOCK ASM; CYL	8-97602-025-2	01	1	0104-0504		●
1	BLOCK ASM; CYL	8-98005-409-3	01	1	0505-		●
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9806-9807			●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-0	06	1	9806-9911	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-1	06	1	9912-0108		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-246-2	06	1	0109-0305		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-3	06	1	0306-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-0	06	1	9806-9911	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-1	06	1	9912-0108		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-247-2	06	1	0109-0305		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-3	06	1	0306-		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-1	06	1	9806-9911			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-1	06	1	9806-9911			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9806-9911	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9806-9911	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9806-9911			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	9912-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9806-9911			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	9912-		●
28	COVER; OIL PORT	1-11219-163-0	01	1	9806-9911			●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9806-9911	●		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9912-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9806-9911	●		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9912-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	9806-9911	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	9912-		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9806-9911	●		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9912-		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9806-9911	●		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9912-		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9806-9911	●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9912-0502		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9806-9911			●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9806-9911	●		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	9912-		●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	9806-9911	●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	9912-0507		●
81	PLUG; WATER JACKET (D) M14X14	9-09862-156-0	01	1	0508-		●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	9806-9911	●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	9912-		●
81	PLUG; WATER JACKET (C) M14X9	8-94399-225-0	01	1	9806-9911			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9806-9911	●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9912-0306		●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9806-9911	●		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9912-		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9806-9911	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9912-		●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9806-9911			●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9806-9911			●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9912-0206		●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-0211		●
211	BOLT; CRANKCASE (A) 12-POINT HEAD M14X115 W/FLANGE	8-94396-207-3	14	1	9806-9911	●		●
211	BOLT; CRANKCASE (A) 12-POINT HEAD M14X115 W/FLANGE	8-94396-207-3	14	1	9912-		●
211	BOLT; CRANKCASE (B) 12-POINT HEAD M10X82	8-94399-553-2	25	1	9806-9911	●		●
211	BOLT; CRANKCASE (B) 12-POINT HEAD M10X82	8-94399-553-2	25	1	9912-		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9806-9911	●		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9912-0306		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-		●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9806-9911			●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9806-9911	●		●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9912-0307		●
335	PLUG; C/BL,SIDE M14X9	8-94399-225-0	03	1	9806-9911	●
335	PLUG; C/BL,SIDE M14X9	8-94399-225-0	03	1	9912-		●
335	PLUG; C/BL,SIDE M14X9	8-94399-225-0	05	1	9806-9911			●

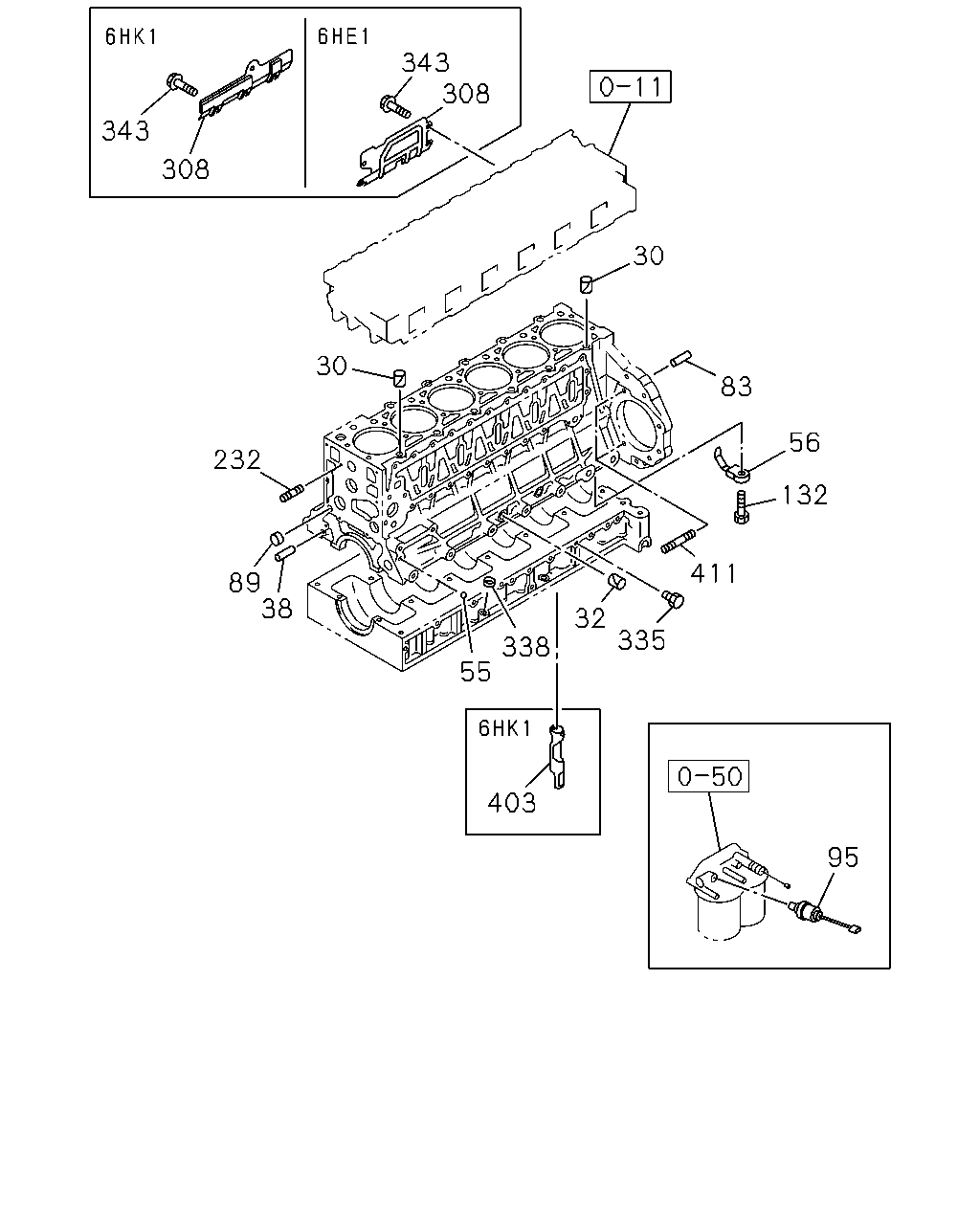

343 308 343 308 30 30 83 56 232 132 411 89 38 32 335 338 55 403 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9806-9911	●		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9912-		●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	9806-9911	●		●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	9912-		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9806-9911	●		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9912-		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9806-9911	●		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	9912-		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9806-9911	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9912-		●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9806-9911			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9806-9911	●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9912-0306		●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9806-9911	●		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9912-		●
95	PRESSURE UNIT; OIL	1-83151-040-0	01	1	9806-9911	●		●
95	PRESSURE UNIT; OIL	1-83151-040-0	01	1	9912-		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9806-9911	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9912-		●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9806-9911			●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9806-9911	●		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9912-0604		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-		●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	9806-9911	●
308	PROTECTOR; HEAT,HD COVER	8-94390-997-0	01	1	9912-		●
308	PROTECTOR; HEAT,HD COVER	8-94390-548-0	01	1	9806-9901			●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	9902-9911			●
335	PLUG; C/BL,SIDE M14X9	8-94399-225-0	03	1	9806-9911	●
335	PLUG; C/BL,SIDE M14X9	8-94399-225-0	03	1	9912-		●
335	PLUG; C/BL,SIDE M14X9	8-94399-225-0	05	1	9806-9911			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9806-9911	●		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9912-0607		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	9806-9911	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	03	1	9912-0512		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	03	1	0601-		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	9806-9911			●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9806-9911			●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9912-		●
411	STUD; BRG CASE M10X36.5 L=48.5	8-94396-145-0	02	1	9806-9911	●
411	STUD; BRG CASE M10X46.5 L=58.5	8-97066-386-1	02	1	9912-0301		●
411	STUD; BRG CASE M10X46.5 L=58.5	8-97363-237-0	02	1	0302-		●

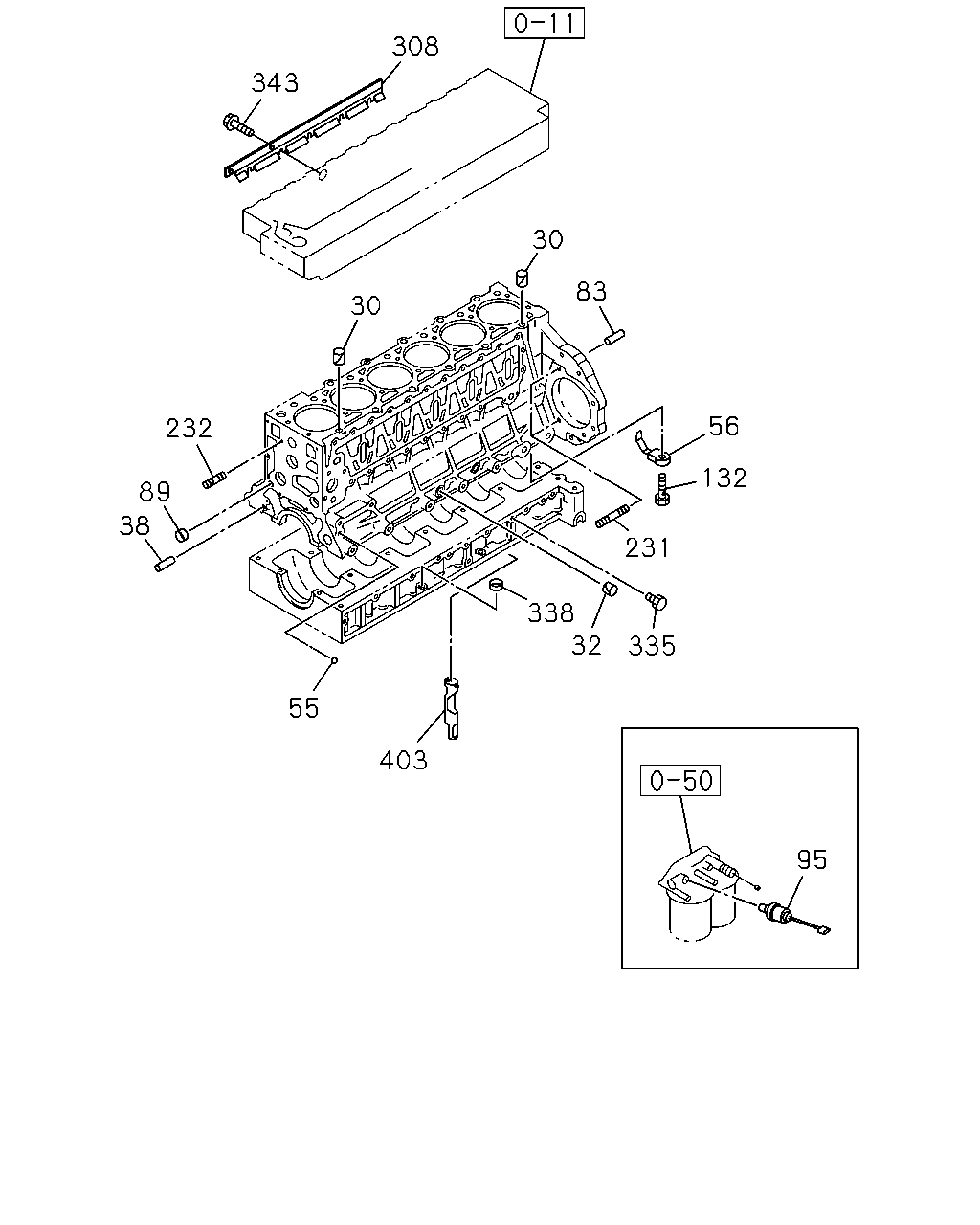

308 343 30 83 30 56 232 132 89 38 231 338 32 335 55 403 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9806-9911	●		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9912-		●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	9806-9911	●		●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	9912-		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9806-9911	●		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9912-		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9806-9911	●		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	9912-		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9806-9911	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9912-		●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9806-9911			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9806-9911	●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9912-0306		●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9806-9911	●		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9912-		●
95	PRESSURE UNIT; OIL	1-83151-040-0	01	1	9806-9911	●		●
95	PRESSURE UNIT; OIL	1-83151-040-0	01	1	9912-		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9806-9911	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9912-		●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9806-9911			●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9806-9911			●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9806-9911	●		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9912-0604		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-		●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	9806-9911	●
308	PROTECTOR; HEAT,HD COVER	8-94390-997-0	01	1	9912-		●
308	PROTECTOR; HEAT,HD COVER	8-94390-548-0	01	1	9806-9901			●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	9902-9911			●
335	PLUG; C/BL,SIDE M14X9	8-94399-225-0	03	1	9806-9911	●
335	PLUG; C/BL,SIDE M14X9	8-94399-225-0	03	1	9912-		●
335	PLUG; C/BL,SIDE M14X9	8-94399-225-0	05	1	9806-9911			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9806-9911	●		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9912-0607		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	9806-9911	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	03	1	9912-0512		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	03	1	0601-		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	9806-9911			●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9806-9911			●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9912-		●

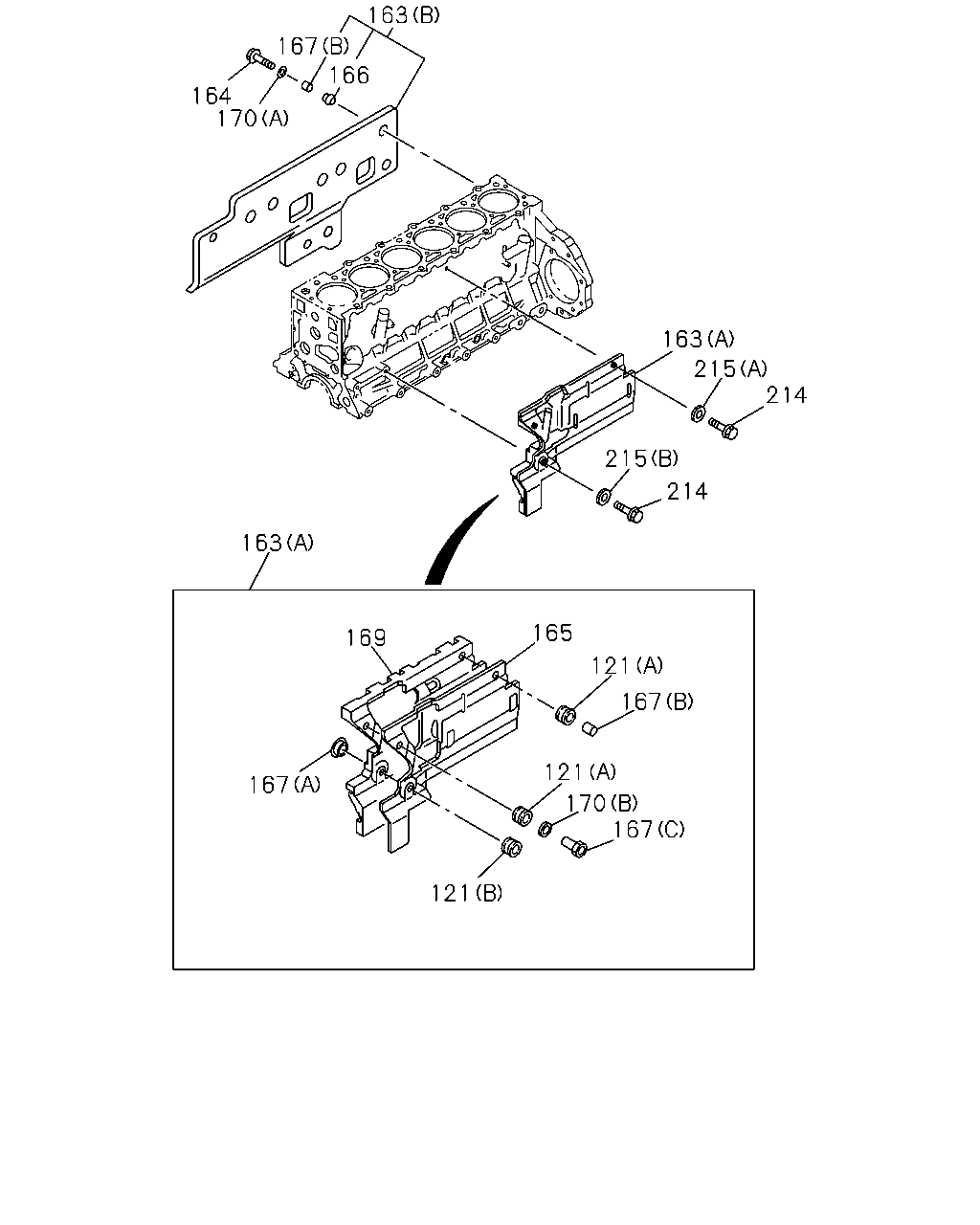

163 167 166 164 170 163 215 214 215 214 163 165 169 121 167 121 167 170 167 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
121	RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	02	1	9806-9911	●
121	RUBBER; MTG,COVER (B) OD=32	8-94396-221-0	01	1	9806-9911	●
163	COVER ASM; C/BL SKIRT (A)	8-94390-172-0	01	1	9806-9911	●
163	COVER ASM; C/BL SKIRT (B)	8-94395-894-0	01	1	9806-9911	●
164	BOLT; COVER BLOCK SKIRT M8X25 FLANGE	0-28680-825-0	04	1	9806-9911	●
165	COVER; C/BL SKIRT	8-94395-694-1	01	1	9806-9911	●
166	MOUNT; COVER BLOCK SKIRT OD=22	8-94140-428-1	04	1	9806-9911	●
167	TUBE; DIST,SIDE COVER (B) OD=13 T=9.5	8-94140-427-1	05	1	9806-9911	●
167	TUBE; DIST,SIDE COVER (C) M10	8-94393-791-2	01	1	9806-9911	●
167	TUBE; DIST,SIDE COVER (A) OD=32 W/FLANGE	8-94397-356-1	01	1	9806-9911	●
169	INSULATOR; SIDE COVER	8-94390-173-0	01	1	9806-9911	●
170	WASHER; COVER (A) ID=8.4 OD=22	9-09160-708-0	04	1	9806-9911	●
170	WASHER; COVER (B) ID=14 OD=22	9-47515-014-0	01	1	9806-9911	●
214	BOLT; NOISE COVER M10X25 FLANGE	0-28181-025-0	02	1	9806-9911	●
215	WASHER; PL,NOISE COVER (A) ID=10.5 OD=22	9-09164-610-0	01	1	9806-9911	●
215	WASHER; PL,NOISE COVER (B) ID=10.5 OD=32	9-09164-810-0	01	1	9806-9911	●

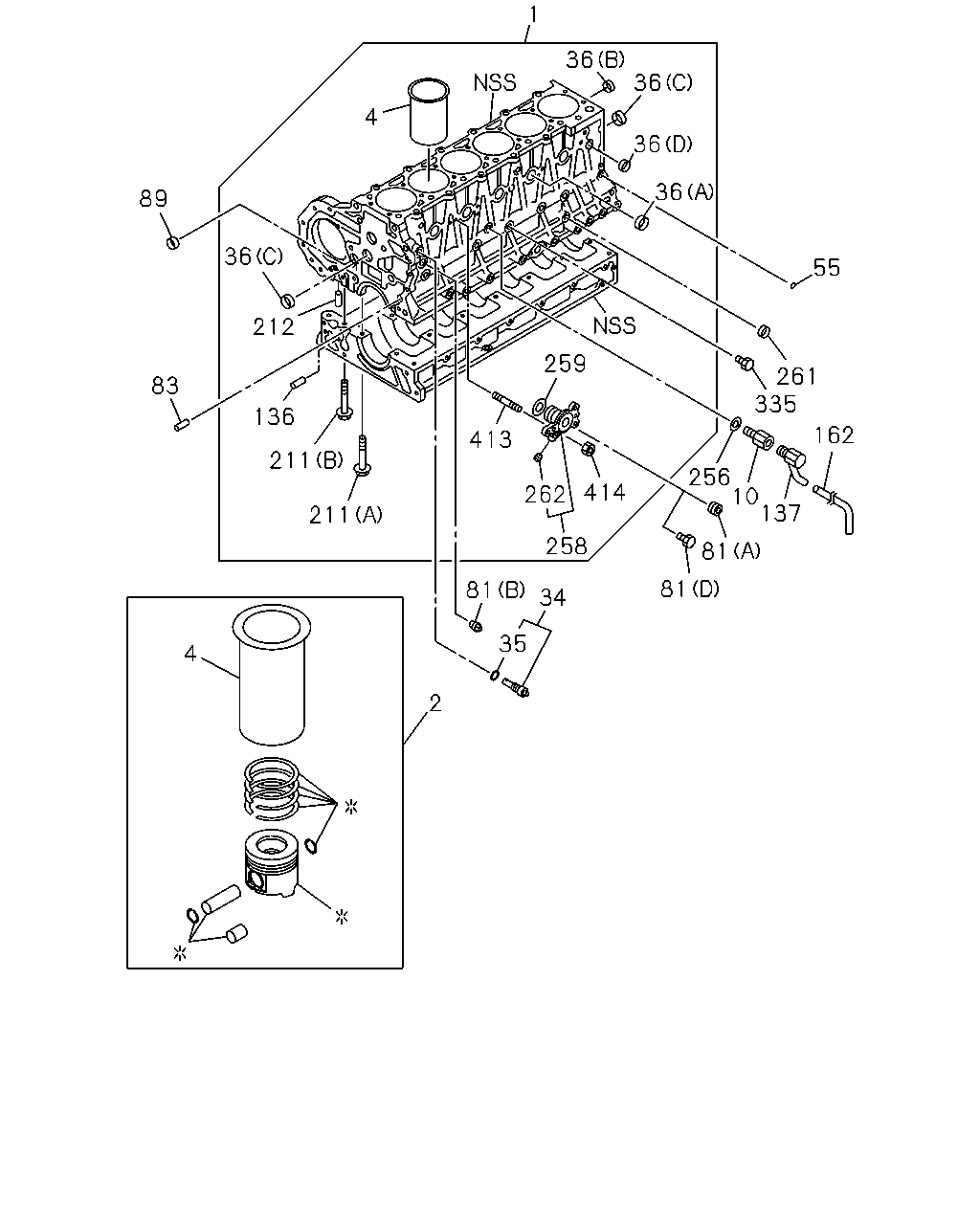

1 36 36 4 36 36 89 36 55 212 259 261 335 83 136 162 413 211 256 10 137 414 262 211 258 81 81 81 34 35 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-94395-860-8	01	1	9806-9807	●
1	BLOCK ASM; CYL	8-94392-486-0	01	1	9808-9911	●
1	BLOCK ASM; CYL	8-97602-025-2	01	1	0104-0504		●
1	BLOCK ASM; CYL	8-98005-409-3	01	1	0505-		●
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9806-9807			●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-0	06	1	9806-9911	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-1	06	1	9912-0108		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-246-2	06	1	0109-0305		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-3	06	1	0306-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-0	06	1	9806-9911	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-1	06	1	9912-0108		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-247-2	06	1	0109-0305		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-3	06	1	0306-		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-1	06	1	9806-9911			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-1	06	1	9806-9911			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9806-9911	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9806-9911	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9806-9911			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	9912-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9806-9911			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	9912-		●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	9806-9911	●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	9912-		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9806-9911	●		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9912-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9806-9911	●		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9912-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	9806-9911	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	9912-		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9806-9911	●		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9912-		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9806-9911	●		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9912-		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9806-9911	●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9912-0502		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9806-9911			●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9806-9911	●		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	9912-		●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	9806-9911	●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	9912-0507		●
81	PLUG; WATER JACKET (D) M14X14	9-09862-156-0	01	1	0508-		●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	9806-9911	●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	9912-		●
81	PLUG; WATER JACKET (C) M14X9	8-94399-225-0	01	1	9806-9911			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9806-9911	●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9912-0306		●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9806-9911	●		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9912-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	9912-		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9806-9911	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9912-		●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9806-9911			●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9806-9911			●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9912-0206		●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-0211		●
211	BOLT; CRANKCASE (A) 12-POINT HEAD M14X115 W/FLANGE	8-94396-207-3	14	1	9806-9911	●		●
211	BOLT; CRANKCASE (A) 12-POINT HEAD M14X115 W/FLANGE	8-94396-207-3	14	1	9912-		●
211	BOLT; CRANKCASE (B) 12-POINT HEAD M10X82	8-94399-553-2	25	1	9806-9911	●		●
211	BOLT; CRANKCASE (B) 12-POINT HEAD M10X82	8-94399-553-2	25	1	9912-		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9806-9911	●		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9912-0306		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-		●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0508-		●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	9806-9911	●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	9912-0507		●
258	ADAPTER; BLOCK HTR	8-97602-806-0	01	1	0508-		●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	9806-9911	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	9912-		●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9806-9911	●		●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9912-0307		●
262	PLUG; ADAPTER	1-13163-002-0	01	1	9806-9911	●
262	PLUG; ADAPTER	1-13163-002-0	01	1	9912-		●
335	PLUG; C/BL,SIDE M14X9	8-94399-225-0	03	1	9806-9911	●
335	PLUG; C/BL,SIDE M14X9	8-94399-225-0	03	1	9912-		●
335	PLUG; C/BL,SIDE M14X9	8-94399-225-0	05	1	9806-9911			●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	9806-9911	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	9912-0604		●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	0605-		●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	9806-9911	●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	9912-0602		●
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	0603-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
