Isuzu WW
▶
TRUCKS
▶
FVR
▶
11142 - FVR-RHD(EUROPE)EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

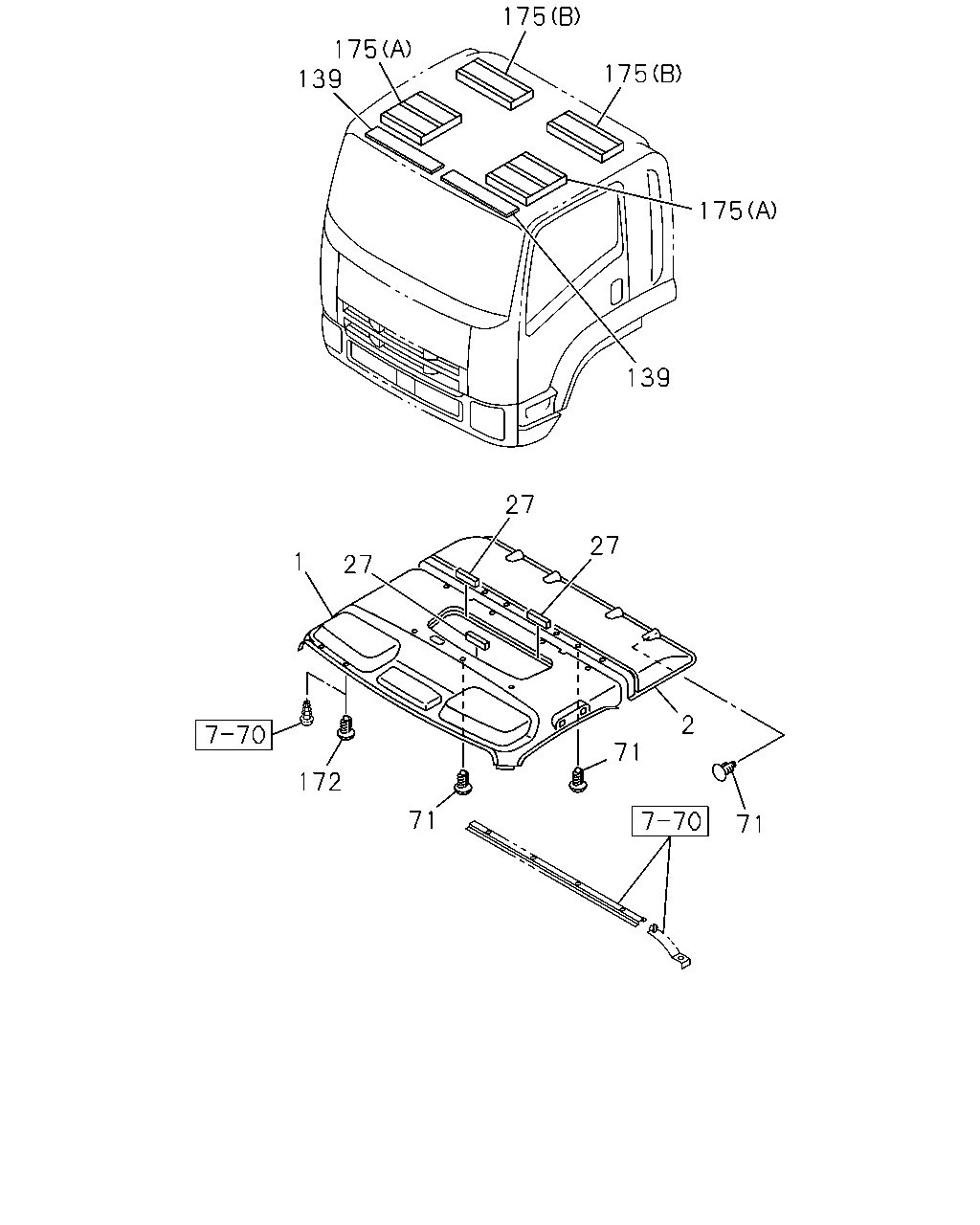

6-66 — HEAD LINING AND TRIM
(#67751) — 20 parça
Tümü
A - FGD5MV
B - FGR5MV
175
175
139
175
175
139
27
27
1
27
2
71
172
71
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY
8-97407-438-4
01
1
0809-0811
●
●
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY
8-97416-360-0
01
1
0812-1306
●
●
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-741-0
01
1
1307-
●
●
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY
8-97409-899-3
01
1
0809-1306
●
●
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-728-0
01
1
1307-
●
●
1
LINING; HD
FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97407-436-4
01
1
0809-0811
●
●
1
LINING; HD
FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97416-359-0
01
1
0812-1306
●
●
1
LINING; HD
FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97426-740-0
01
1
1307-
●
●
1
LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, FLUORESCENT LAMP<6UC> DARK GRAY
8-97409-898-3
01
1
0809-1306
●
●
1
LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-727-0
01
1
1307-
●
●
2
LINING; HD,ROOF RR
DARK GRAY
8-97415-674-0
01
1
0809-1306
●
●
2
LINING; HD,ROOF RR
DARK GRAY
8-97427-627-0
01
1
1307-
●
●
27
INSULATION; ROOF
8-98046-638-1
03
1
0809-0911
●
●
27
INSULATION; ROOF
FLUORESCENT LAMP<6UC>
8-98046-638-2
03
1
0912-
●
●
71
FASTENER; HD LINING
DARK GRAY
8-97405-282-0
07
1
0809-
●
●
139
SEAL; ROOF
8-98076-274-0
02
1
0809-1009
●
●
139
SEAL; ROOF
8-98169-116-0
02
1
1010-
●
●
172
RETAINER; HEAD LINING
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY
8-97411-875-0
14
1
0809-
●
●
175
CUSHION; HEAD LINING
(A)
8-98030-965-2
02
1
0809-
●
●
175
CUSHION; HEAD LINING
(B)
8-98082-685-1
02
1
0809-
●
●
