0-11 — CYLINDER HEAD (#6775) — 148 parça

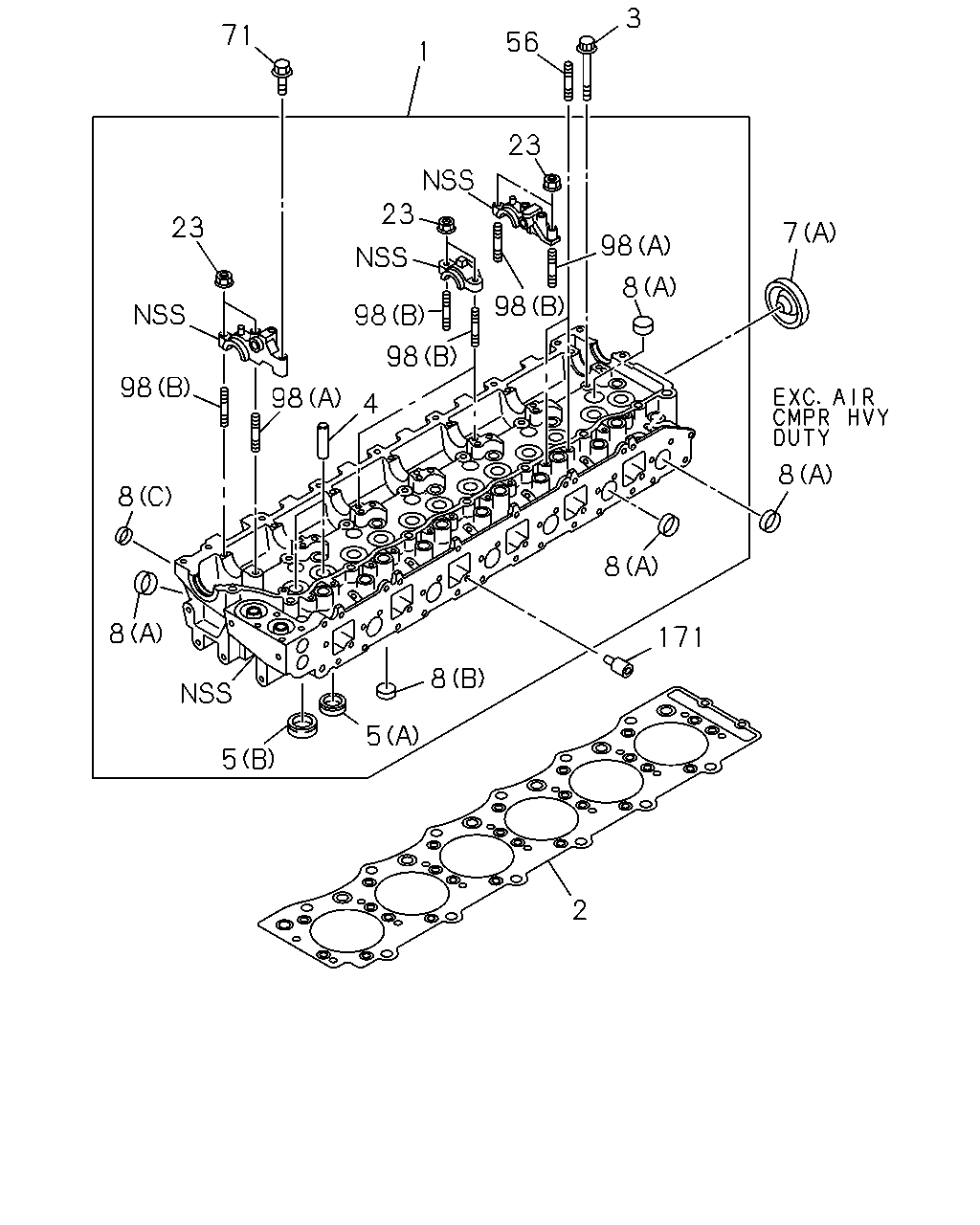

3 71 56 1 23 23 23 7 98 8 98 98 98 98 98 4 8 8 8 8 171 8 5 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	8-94391-162-2	01	1	9806-9911	●
1	HEAD ASM; CYL	8-94392-449-9	01	1	9912-0211		●
1	HEAD ASM; CYL	8-97602-686-1	01	1	0212-0406		●
1	HEAD ASM; CYL	8-97605-004-2	01	1	0407-0507		●
1	HEAD ASM; CYL	8-97606-991-6	01	1	0508-		●
1	HEAD ASM; CYL	8-94390-082-2	01	1	9806-9911			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-447-1	01	1	9806-9911	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-787-4	01	1	9912-0407		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97605-228-0	01	1	0408-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-346-1	01	1	9806-9911			●
3	BOLT; CYL HD TO BLOCK 12-POINT HEAD M14X115 W/FLANGE	8-94396-207-3	26	1	9806-9911	●		●
3	BOLT; CYL HD TO BLOCK 12-POINT HEAD M14X115 W/FLANGE	8-94396-207-3	26	1	9912-		●
4	GUIDE; VLV	8-94396-598-0	12	1	9806-9911	●		●
4	GUIDE; VLV	8-94390-780-0	24	1	9912-		●
5	SEAT; VLV INSERT (B) INLET OD=48	8-94394-462-0	06	1	9806-9911	●
5	SEAT; VLV INSERT (A) EXHAUST OD=38	8-94395-625-0	12	1	9912-0106		●
5	SEAT; VLV INSERT (A) EXHAUST OD=38	8-97216-511-0	12	1	0107-		●
5	SEAT; VLV INSERT (A) EXHAUST OD=43	8-94396-172-0	06	1	9806-9911	●		●
5	SEAT; VLV INSERT (B) INLET OD=38	8-94395-888-1	12	1	9912-		●
5	SEAT; VLV INSERT (B) INLET OD=52	8-94394-127-0	06	1	9806-9911			●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-94396-229-0	01	1	9806-9911	●		●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-94396-229-0	01	1	9912-0303		●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-97096-826-0	01	1	0304-		●
7	CUP; SEALING,CYL HEAD (B) OD=30	8-94393-509-0	01	1	9912-0101		●
7	CUP; SEALING,CYL HEAD THERMOSTAT DELETE<E6B> A/T<X9D> EXC. 15" CLU(RE9) (B) OD=30	8-94393-509-0	01	1	0102-		●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	17	1	9806-9911	●		●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	9912-		●
8	CUP; SEALING,WATER JACKET EXC. AIR CMPR HVY DUTY<E1Q> (A) OD=32	1-09600-012-1	01	1	9807-9911			●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	06	1	9912-		●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	9806-9911	●		●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	9912-		●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	9806-9911	●		●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	9912-		●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	9806-9911	●		●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	9912-0602		●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	0603-		●
56	STUD; NOZZLE HOLDER M8X66 L=90	1-09300-014-0	12	1	9806-9911	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	9806-9911	●		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	9912-0512		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0601-		●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	9806-9911	●		●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	9912-		●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	9806-9911	●		●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	9912-		●
171	SEAT; VLV	8-94394-678-1	06	1	9806-9911	●
171	SEAT; VLV	8-94395-571-1	06	1	9806-9911			●

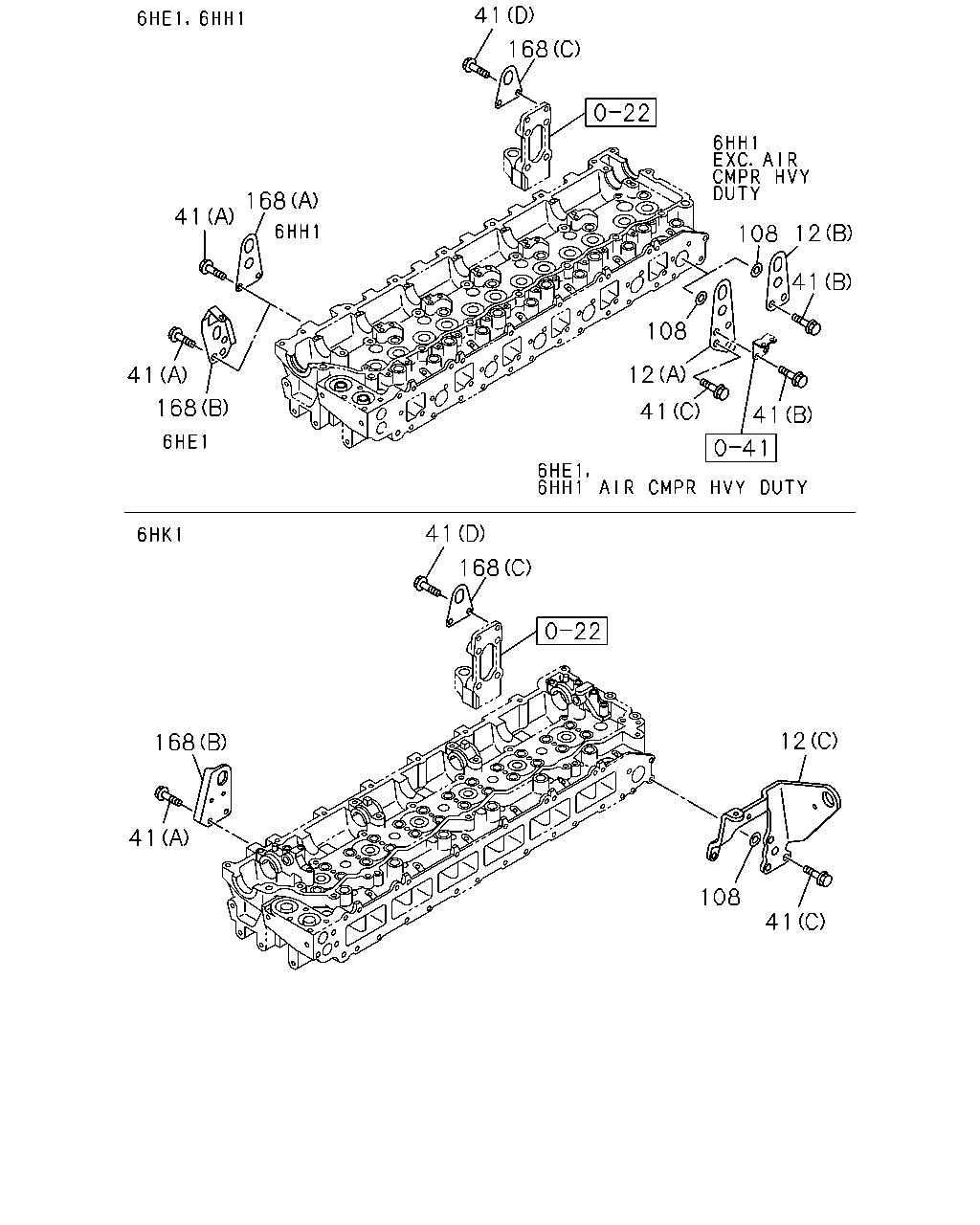

41 168 168 41 12 108 41 108 12 41 168 41 41 41 168 12 168 41 108 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	HANGER; ENG,RR (A)	8-94399-405-0	01	1	9806-9806	●		●
12	HANGER; ENG,RR (A)	8-94399-405-0	01	1	9807-9911	●
12	HANGER; ENG,RR AIR CMPR HVY DUTY<E1Q> (A)	8-94399-405-0	01	1	9807-9911			●
12	HANGER; ENG,RR EXC. AIR CMPR HVY DUTY<E1Q> (B)	8-94399-404-2	01	1	9807-9911			●
12	HANGER; ENG,RR (C)	8-94390-417-2	01	1	9912-		●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	9806-9807	●
41	BOLT; ENG HANGER EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) M10X20 FLANGE	0-28181-020-0	02	1	9806-9807			●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	9808-9911	●		●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	03	1	9912-0512		●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	03	1	0601-		●
41	BOLT; ENG HANGER (C) M12X22 FLANGE	0-28181-222-0	03	1	9806-9911	●
41	BOLT; ENG HANGER (C) M12X22 FLANGE	0-28181-222-0	03	1	9912-		●
41	BOLT; ENG HANGER (D) M10X25 FLANGE	0-28781-025-0	02	1	9806-9911	●
41	BOLT; ENG HANGER (D) M10X25 FLANGE	0-28781-025-0	02	1	9912-0512		●
41	BOLT; ENG HANGER (D) M10X25 FLANGE	0-28751-025-0	02	1	0601-		●
41	BOLT; ENG HANGER (C) M12X22 FLANGE	0-28181-222-0	01	1	9806-9809			●
41	BOLT; ENG HANGER AIR CMPR HVY DUTY<E1Q> (C) M12X22 FLANGE	0-28181-222-0	01	1	9810-9911			●
41	BOLT; ENG HANGER (B) M12X28 FLANGE	0-28181-228-0	02	1	9806-9911			●
108	GASKET; HANGER,RR ID=35.2	1-09623-375-0	01	1	9806-9809	●		●
108	GASKET; HANGER,RR ID=35.2	1-09623-375-0	01	1	9810-9911	●
108	GASKET; HANGER,RR AIR CMPR HVY DUTY<E1Q> ID=35.2	1-09623-375-0	01	1	9810-9911			●
108	GASKET; HANGER,RR ID=35.2	1-09623-375-0	01	1	9912-		●
168	HANGER; ENG,FRT (B) FRONT	8-94391-741-0	01	1	9806-9911	●
168	HANGER; ENG,FRT (B) FRONT	8-94391-741-0	01	1	9912-		●
168	HANGER; ENG,FRT (C) REAR RH	8-94394-398-0	01	1	9806-9911	●
168	HANGER; ENG,FRT (C) REAR RH	8-94394-398-0	01	1	9912-		●
168	HANGER; ENG,FRT (A) FRONT	8-94399-403-0	01	1	9806-9911			●

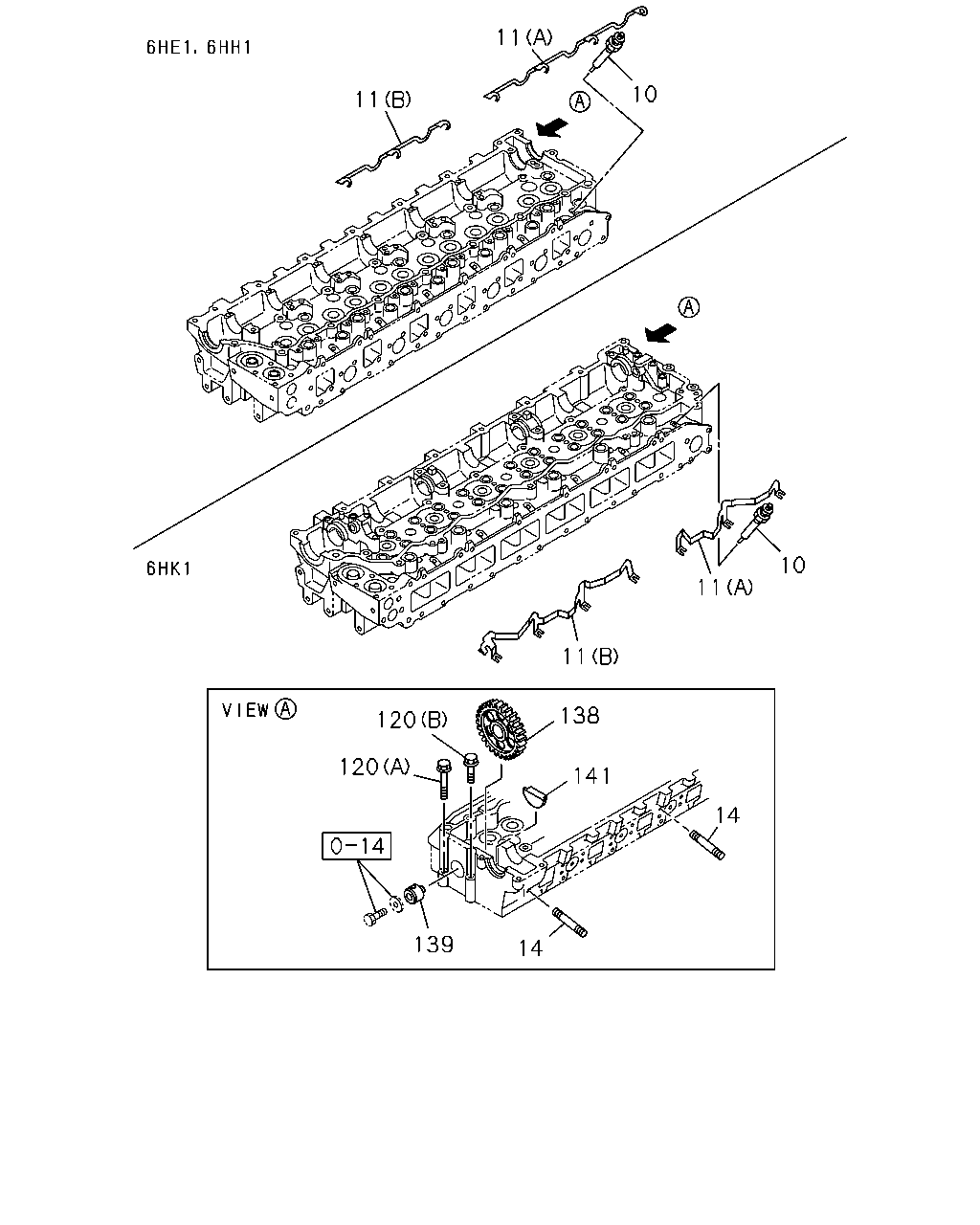

11 10 11 10 11 11 138 120 120 141 14 139 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	PLUG; GLOW	9-82513-928-9	06	1	9806-9809	●		●
10	PLUG; GLOW	1-82513-043-0	06	1	9810-9911	●		●
10	PLUG; GLOW	8-94392-815-4	06	1	9912-		●
11	CONNECTOR; GLOW PLUG (A) FRONT	8-94399-608-2	01	1	9806-9911	●		●
11	CONNECTOR; GLOW PLUG (B) REAR	8-94391-925-3	01	1	9912-		●
11	CONNECTOR; GLOW PLUG (B) REAR	8-94399-631-2	01	1	9806-9911	●		●
11	CONNECTOR; GLOW PLUG (A) FRONT	8-94392-843-1	01	1	9912-		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	9806-9911	●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	9912-		●
14	STUD; EXH MANIF M10X93 L=108	8-94396-123-0	02	1	9806-9911			●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	10	1	9806-9911			●
120	BOLT; CYL HD TO HSG (A) 12-POINT HEAD M10X73	8-94399-554-0	01	1	9806-9911	●		●
120	BOLT; CYL HD TO HSG (A) 12-POINT HEAD M10X73	8-94399-554-0	01	1	9912-		●
120	BOLT; CYL HD TO HSG (B) 12-POINT HEAD M10X43	8-94399-555-0	01	1	9806-9911	●		●
120	BOLT; CYL HD TO HSG (B) 12-POINT HEAD M10X43	8-94399-555-0	01	1	9912-		●
138	GEAR; IDLE Z=41	8-97112-607-0	01	1	9806-9911	●		●
138	GEAR; IDLE Z=41	8-97112-607-1	01	1	9912-		●
139	SHAFT; IDLE GEAR	8-97186-398-0	01	1	9806-9911	●		●
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	9912-		●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	9806-9911	●		●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	9912-		●

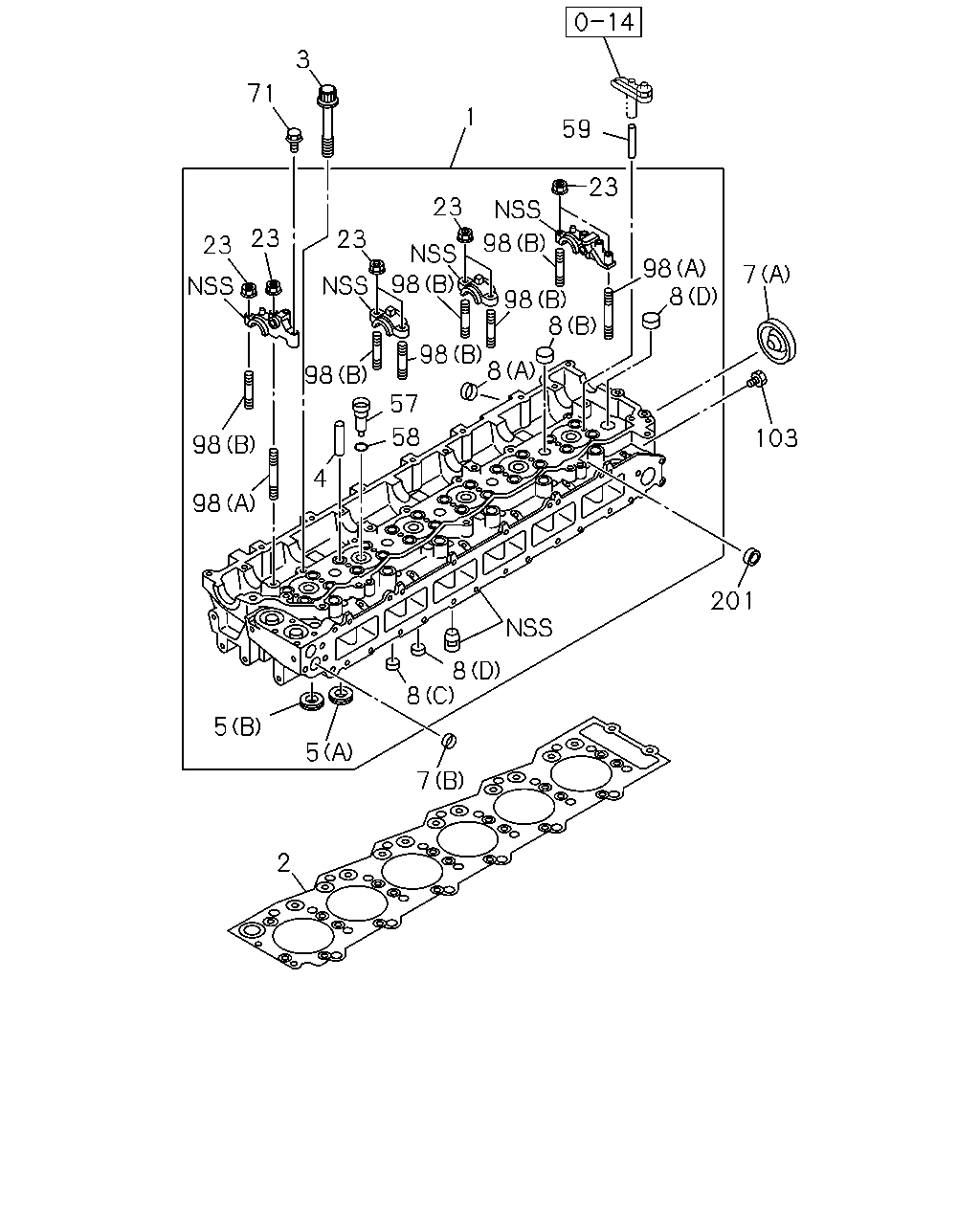

3 71 1 59 23 23 23 23 98 23 98 8 7 98 8 98 8 98 57 58 103 98 4 98 201 8 8 5 5 7 2 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	8-94391-162-2	01	1	9806-9911	●
1	HEAD ASM; CYL	8-94392-449-9	01	1	9912-0211		●
1	HEAD ASM; CYL	8-97602-686-1	01	1	0212-0406		●
1	HEAD ASM; CYL	8-97605-004-2	01	1	0407-0507		●
1	HEAD ASM; CYL	8-97606-991-6	01	1	0508-		●
1	HEAD ASM; CYL	8-94390-082-2	01	1	9806-9911			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-447-1	01	1	9806-9911	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-787-4	01	1	9912-0407		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97605-228-0	01	1	0408-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-346-1	01	1	9806-9911			●
3	BOLT; CYL HD TO BLOCK 12-POINT HEAD M14X115 W/FLANGE	8-94396-207-3	26	1	9806-9911	●		●
3	BOLT; CYL HD TO BLOCK 12-POINT HEAD M14X115 W/FLANGE	8-94396-207-3	26	1	9912-		●
4	GUIDE; VLV	8-94396-598-0	12	1	9806-9911	●		●
4	GUIDE; VLV	8-94390-780-0	24	1	9912-		●
5	SEAT; VLV INSERT (B) INLET OD=48	8-94394-462-0	06	1	9806-9911	●
5	SEAT; VLV INSERT (A) EXHAUST OD=38	8-94395-625-0	12	1	9912-0106		●
5	SEAT; VLV INSERT (A) EXHAUST OD=38	8-97216-511-0	12	1	0107-		●
5	SEAT; VLV INSERT (A) EXHAUST OD=43	8-94396-172-0	06	1	9806-9911	●		●
5	SEAT; VLV INSERT (B) INLET OD=38	8-94395-888-1	12	1	9912-		●
5	SEAT; VLV INSERT (B) INLET OD=52	8-94394-127-0	06	1	9806-9911			●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-94396-229-0	01	1	9806-9911	●		●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-94396-229-0	01	1	9912-0303		●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-97096-826-0	01	1	0304-		●
7	CUP; SEALING,CYL HEAD (B) OD=30	8-94393-509-0	01	1	9912-0101		●
7	CUP; SEALING,CYL HEAD THERMOSTAT DELETE<E6B> A/T<X9D> EXC. 15" CLU(RE9) (B) OD=30	8-94393-509-0	01	1	0102-		●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	17	1	9806-9911	●		●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	9912-		●
8	CUP; SEALING,WATER JACKET EXC. AIR CMPR HVY DUTY<E1Q> (A) OD=32	1-09600-012-1	01	1	9807-9911			●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	06	1	9912-		●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	9806-9911	●		●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	9912-		●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	9806-9911	●		●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	9912-		●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	9806-9911	●		●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	9912-0602		●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	0603-		●
57	SLEEVE; NOZZLE HOLDER	8-97600-972-0	06	1	9912-0109		●
57	SLEEVE; NOZZLE HOLDER	8-97602-301-1	06	1	0110-0507		●
57	SLEEVE; NOZZLE HOLDER	8-97606-661-0	06	1	0508-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.2	8-98004-187-0	06	1	0508-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27	1-09623-355-0	06	1	9912-0406		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	06	1	0407-		●
59	GUIDE; BRIDGE	8-94395-889-1	12	1	9912-0409		●
59	GUIDE; BRIDGE	8-97381-603-1	12	1	0410-		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	9806-9911	●		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	9912-0512		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0601-		●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	9806-9911	●		●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	9912-		●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	9806-9911	●		●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	9912-		●
103	PLUG; HD M8X6	8-94399-421-0	01	1	9912-0501		●
103	PLUG; HD M8X10	8-98003-416-0	01	1	0502-		●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-034-0	06	1	9912-		●
