◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11142 - FVR-RHD(EUROPE)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#67748) — 16 parça

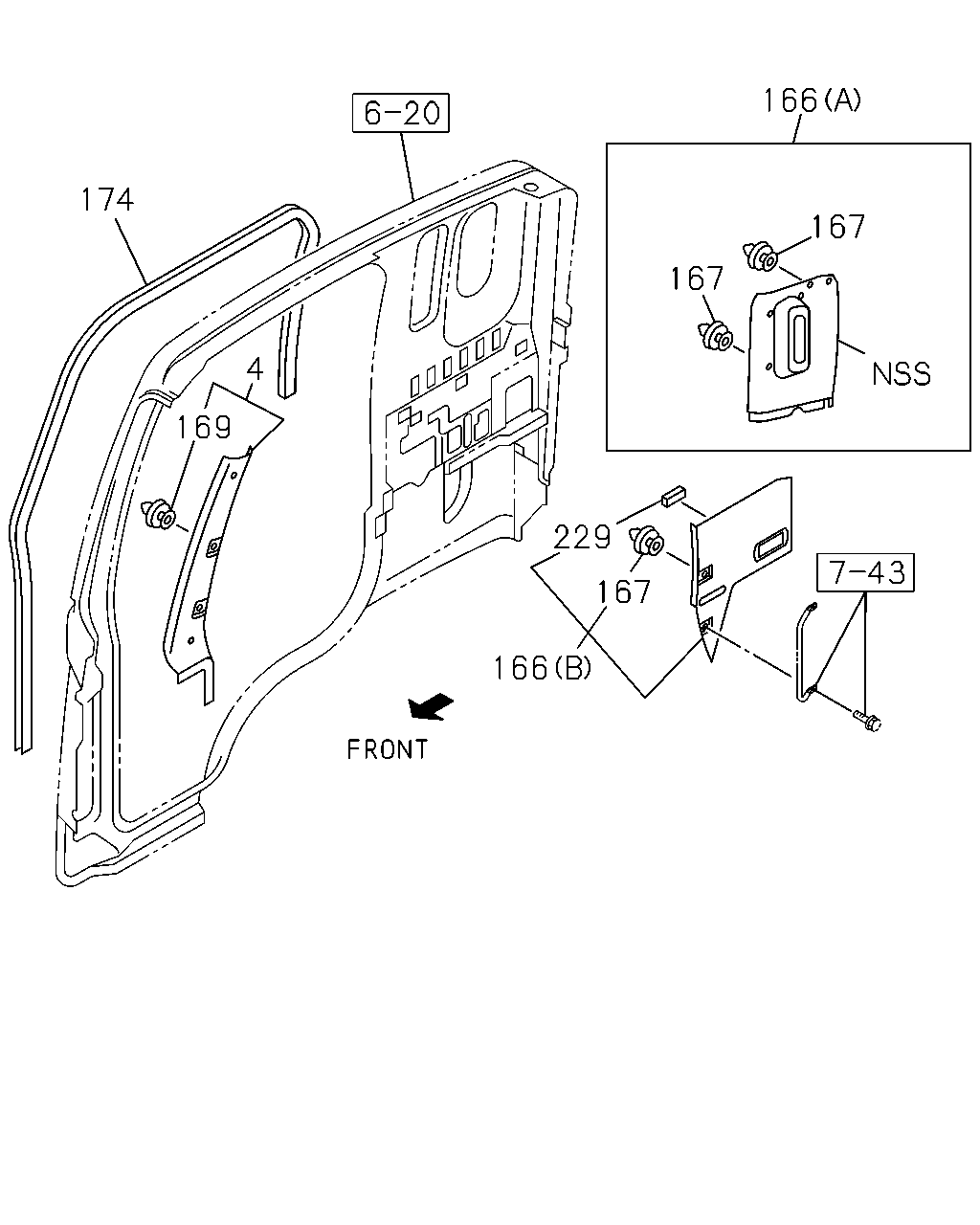

çizim 187315
166 174 167 167 4 169 229 167 166
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 0809- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 0809- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 0809- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-300-0 01 1 0809- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 0809- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 0809- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 0809- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 0809- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 08 1 0809- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0809- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-917-1 01 1 0809-0912 ● ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1001- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-918-1 01 1 0809-0912 ● ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1001- ● ●
229 SEAL 8-98080-972-0 02 1 0809- ● ●
229 SEAL 8-98092-662-0 01 1 0809- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
