◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11142 - FVR-RHD(EUROPE)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#67747) — 30 parça

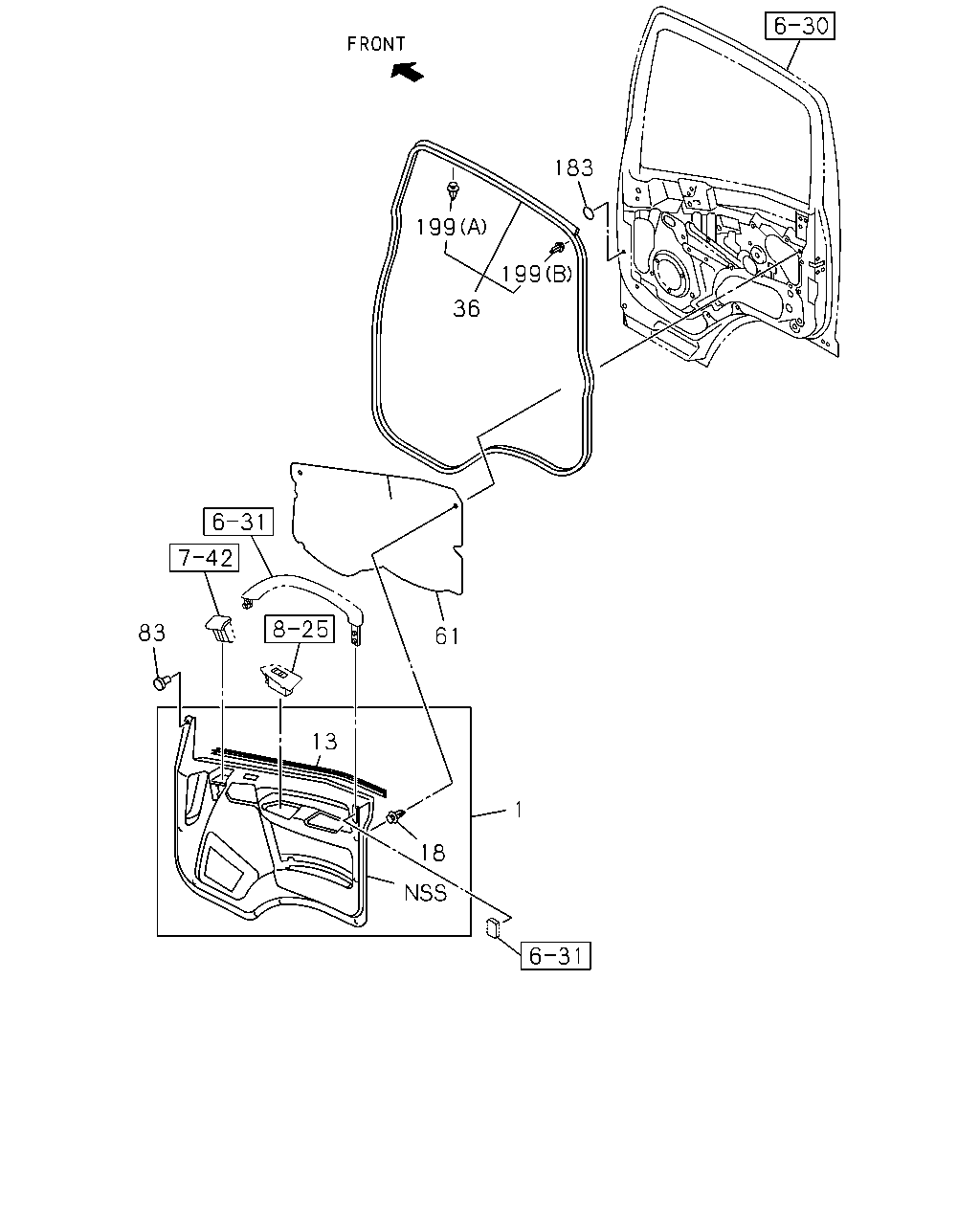

çizim 130761
183 199 199 36 83 61 13 1 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-304-6 01 1 0809- ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-306-6 01 1 0809- ● ●
13 SEAL; DOOR TRIM 8-98029-201-1 01 1 0809- ● ●
13 SEAL; DOOR TRIM 8-98029-202-1 01 1 0809- ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0809-1005 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0809-1005 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 14 1 1006- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-198-3 01 1 0809-1009 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1010- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 0809- ● ●
61 SEAL; WATER,DOOR PAD 8-98029-394-2 01 1 0809- ● ●
61 SEAL; WATER,DOOR PAD 8-98029-395-2 01 1 0809- ● ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 0809- ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0809- ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 40 1 0809-1009 ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 40 1 0809-1009 ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 1010- ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 01 1 0809-1009 ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 01 1 0809-1009 ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 02 1 1010- ● ●
çizim 187312
165 228 166 165 228 165 166 167
BalonParca AdiParca NoAdetTipApplied Date A B
165 LINER; DOOR LWR
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) (A) 		8-98084-036-3 01 1 0809- ● ●
165 LINER; DOOR LWR
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) (A) 		8-98084-037-3 01 1 0809- ● ●
165 LINER; DOOR LWR
TIRE 275/70R22.5-148/145M RIB EEC(5L4) (B) 		8-98084-038-4 01 1 0809- ● ●
165 LINER; DOOR LWR
TIRE 275/70R22.5-148/145M RIB EEC(5L4) (B) 		8-98084-039-4 01 1 0809- ● ●
165 LINER; DOOR LWR
TIRE 275/70R22.5-148/145M RIB EEC(5L4) (C) 		8-98084-041-1 01 1 0809- ● ●
165 LINER; DOOR LWR
TIRE 275/70R22.5-148/145M RIB EEC(5L4) (C) 		8-98084-042-1 01 1 0809- ● ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 09 1 0809- ● ●
167 CLIP; LINER
TIRE 275/70R22.5-148/145M RIB EEC(5L4) D8X13.5 		1-09987-248-1 17 1 0809- ● ●
228 NUT; SPIRE 8-94334-769-0 04 1 0809-1007 ● ●
228 NUT; SPIRE 8-94334-769-0 02 1 1008- ● ●
