◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11142 - FVR-RHD(EUROPE)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#67738) — 84 parça

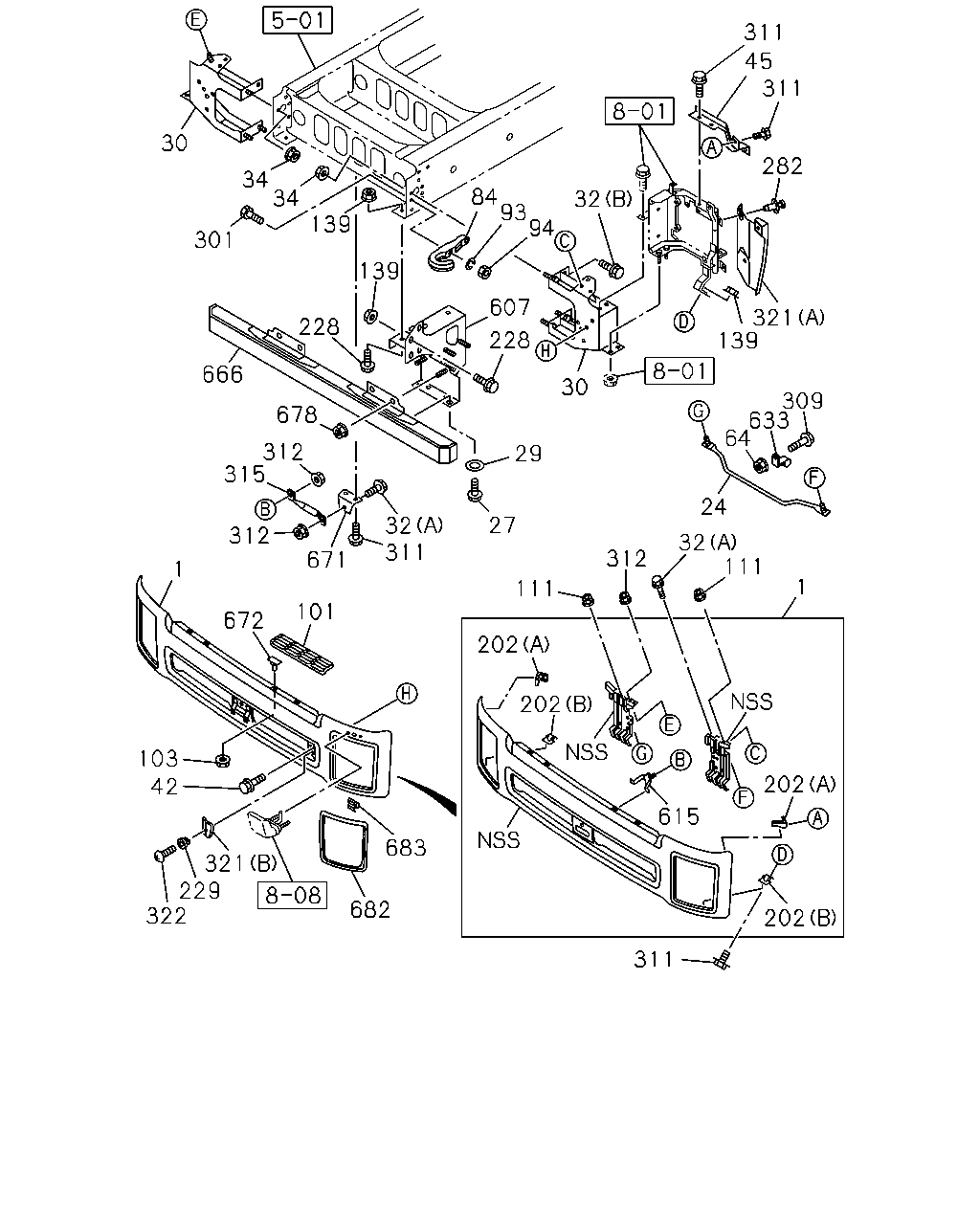

çizim 187434
311 45 311 30 282 34 34 84 93 94 32 139 301 139 607 321 139 228 228 30 666 309 633 64 678 312 315 29 24 312 27 32 311 32 111 312 671 1 1 111 101 672 202 202 103 42 202 615 683 321 229 322 682 202 311
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
HEAD LAMP WASHER<CE4> WHITE 		8-97411-633-1 01 1 0809- ●
1 BUMPER ASM; FRT
EXC. HEAD LAMP WASHER<CE4> WHITE 		8-97409-903-1 01 1 0809- ●
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 0809- ●
24 BAR; FRT BUMPER 8-97625-359-0 01 1 0809- ● ●
27 BOLT; BUMPER TO BACK BAR
M12X30 FLANGE 		0-28051-230-0 04 1 0809-1009 ● ●
27 BOLT; BUMPER TO BACK BAR
M12X35 FLANGE 		0-28651-235-0 04 1 1010- ● ●
29 WASHER; FRT BUMPER
ID=12.5 OD=32 		0-91614-712-0 04 1 1010-1409 ● ●
29 WASHER; FRT BUMPER
ID=12.5 OD=32 		0-91614-712-0 08 1 1410- ● ●
30 BRACKET; FRT BUMPER 8-98034-434-2 01 1 0809- ● ●
30 BRACKET; FRT BUMPER 8-98034-435-2 01 1 0809- ● ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 02 1 0809- ● ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 0809- ● ●
34 NUT; BRKT,BUMPER
M12 FLANGE 		0-91180-212-0 06 1 0809- ● ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 0809- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 0809- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 0809- ● ●
64 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 0809- ● ●
84 HOOK 1-57181-027-1 01 1 0809- ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 0809- ● ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0809- ● ●
101 STEP; BUMPER 8-97611-542-0 01 1 0809- ● ●
101 STEP; BUMPER 8-97611-543-0 01 1 0809- ● ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 0809- ● ●
111 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0809- ● ●
139 NUT; BRKT FIX
M16 		0-91110-516-0 02 1 0809- ● ●
139 NUT; BRKT FIX
M14 FLANGE 		0-91180-214-0 06 1 0809- ● ●
202 BRACKET; BUMPER SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) 		8-97613-636-0 01 1 0809-0905 ● ●
202 BRACKET; BUMPER SIDE
BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-97613-636-0 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904) EXC. HEAD LAMP WASHER<CE4> (A) 		8-97613-636-0 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) HEAD LAMP WASHER<CE4> (A) 		8-97613-636-0 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-97613-636-0 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) 		8-97613-637-0 01 1 0809-0905 ● ●
202 BRACKET; BUMPER SIDE
BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-97613-637-0 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904) EXC. HEAD LAMP WASHER<CE4> (A) 		8-97613-637-0 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) HEAD LAMP WASHER<CE4> (A) 		8-97613-637-0 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-97613-637-0 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) 		8-97613-640-1 01 1 0809-0905 ● ●
202 BRACKET; BUMPER SIDE
BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-97613-640-1 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904) EXC. HEAD LAMP WASHER<CE4> (B) 		8-97613-640-1 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) HEAD LAMP WASHER<CE4> (B) 		8-97613-640-1 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-97613-640-1 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) 		8-97613-641-1 01 1 0809-0905 ● ●
202 BRACKET; BUMPER SIDE
BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-97613-641-1 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904) EXC. HEAD LAMP WASHER<CE4> (B) 		8-97613-641-1 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) HEAD LAMP WASHER<CE4> (B) 		8-97613-641-1 01 1 0906- ●
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-97613-641-1 01 1 0906- ●
228 BOLT; BRKT
M16X40 		0-20851-640-0 02 1 0809- ● ●
228 BOLT; BRKT
M14X45 FLANGE 		0-28851-445-0 06 1 0809- ● ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 0809- ● ●
282 FASTENER; BUMPER FILLER
D8X13.5 		1-09987-248-1 08 1 0809- ● ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 01 1 0809- ● ●
301 BOLT; HOOK TO FRAME
M16X80 		0-10961-680-0 01 1 0809- ● ●
309 BOLT; CLIP
M6X16 FLANGE 		0-28650-616-0 01 1 0809- ● ●
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 06 1 0809- ● ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 0809- ● ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 0809- ● ●
315 STAY; BUMPER 8-97613-645-1 01 1 0809- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 0809- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 0809- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 0809- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 0809- ● ●
322 SCREW; COVER FIX
M5X16 TAPPING 		0-72180-516-0 02 1 0809- ● ●
607 BRACKET
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) 		8-98045-753-1 01 1 0809-1409 ● ●
607 BRACKET
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) 		8-98279-065-0 01 1 1410- ● ●
607 BRACKET
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) 		8-98045-754-1 01 1 0809-1409 ● ●
607 BRACKET
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) 		8-98279-066-0 01 1 1410- ● ●
607 BRACKET
TIRE 275/70R22.5-148/145M RIB EEC(5L4) 		8-98045-843-2 01 1 0809-1409 ● ●
607 BRACKET
TIRE 275/70R22.5-148/145M RIB EEC(5L4) 		8-98279-073-0 01 1 1410- ● ●
607 BRACKET
TIRE 275/70R22.5-148/145M RIB EEC(5L4) 		8-98045-844-2 01 1 0809-1409 ● ●
607 BRACKET
TIRE 275/70R22.5-148/145M RIB EEC(5L4) 		8-98279-074-0 01 1 1410- ● ●
615 BRACKET; BUMPER CENTER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) 		8-97613-643-1 01 1 0809-0905 ● ●
615 BRACKET; BUMPER CENTER
BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) 		8-97613-643-1 01 1 0906- ●
615 BRACKET; BUMPER CENTER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904) EXC. HEAD LAMP WASHER<CE4> 		8-97613-643-1 01 1 0906- ●
615 BRACKET; BUMPER CENTER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) HEAD LAMP WASHER<CE4> 		8-97613-643-1 01 1 0906- ●
615 BRACKET; BUMPER CENTER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) 		8-97613-643-1 01 1 0906- ●
633 CLIP; BUMPER
ID=16 H=24 L=20 		0-95207-315-0 01 1 0809- ● ●
666 PROTECTOR; UNDER 8-98045-820-2 01 1 0809-1105 ● ●
666 PROTECTOR; UNDER 8-98196-475-0 01 1 1106- ● ●
671 BRACKET; STAY 8-97620-889-0 01 1 0809- ● ●
672 STUD; STEP 8-97611-666-0 04 1 0809- ● ●
678 NUT; BUMPER TO BACK BAR
M12 FLANGE 		0-91180-212-0 04 1 0809- ● ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 0809- ● ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 0809- ● ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 0809- ● ●
