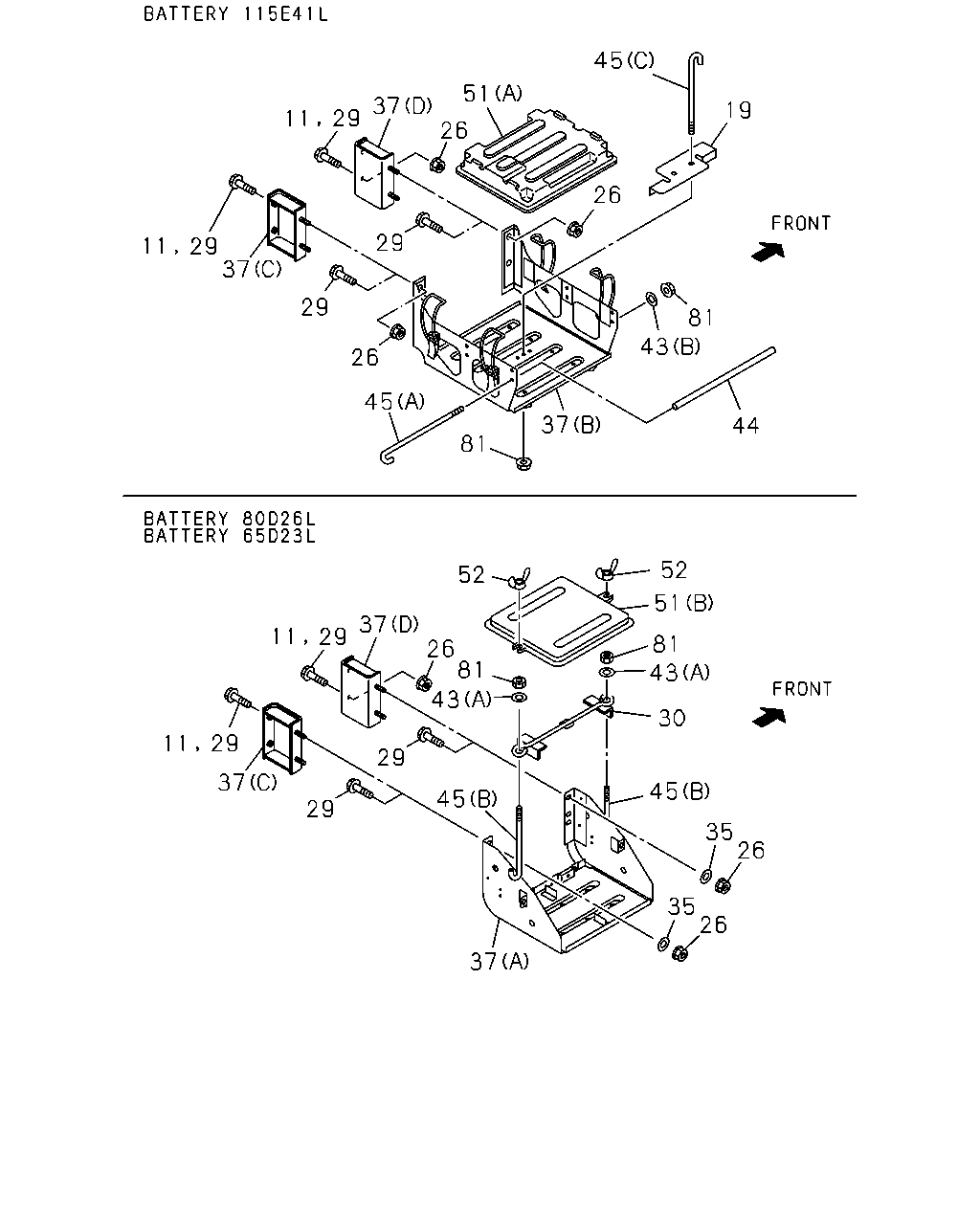

5-20 — BATTERY CARRIER (#67736) — 36 parça

45 51 37 26 19 29 11 26 29 29 37 11 29 81 43 26 45 37 44 81 52 52 51 37 26 81 29 11 81 43 43 30 29 11 29 37 45 45 29 35 26 35 26 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	04	1	1008-	●
19	STAY; BATTERY BATTERY 115E41L<8MA>	8-98120-443-0	01	1	0809-	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0903-	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0809-0809	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0809-1007	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1008-		●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0809-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0809-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0809-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0809-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98120-393-0	01	1	0809-	●	●
37	BRACKET; BATTERY (C)	8-98070-047-0	01	1	0809-0905	●
37	BRACKET; BATTERY (C)	8-98144-194-0	01	1	0906-	●
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	0809-	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	0809-	●	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	01	1	0809-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98120-442-0	01	1	0809-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (C) L=250	1-53616-081-0	02	1	0901-1003	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (C) L=250	1-53616-108-0	02	1	1004-1004	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	0809-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	01	1	0809-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (C)	8-98120-478-0	02	1	0809-0812	●	●
45	ROD; TENSION,BATTERY ITALY COUNTRY(CT6) BATTERY 115E41L<8MA> (C)	8-98120-478-0	02	1	0901-1004	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (C)	8-98120-478-0	02	1	1005-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (A)	1-53612-037-2	01	1	0901-1004	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0809-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	8-98122-848-0	01	1	0809-0810	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	8-98124-443-0	01	1	0811-0812	●	●
51	COVER; BATTERY ITALY COUNTRY(CT6) BATTERY 115E41L<8MA> (A)	8-98124-443-0	01	1	0901-1004	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	8-98124-443-0	01	1	1005-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0809-	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0809-0810	●	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE	0-91180-108-0	02	1	0809-0810	●	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE	0-91180-108-0	02	1	0811-	●	●
81	NUT; BATTERY BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	03	1	0809-	●	●
