4-11 — FRONT HUB AND DRUM OR ROTOR (#67712) — 19 parça

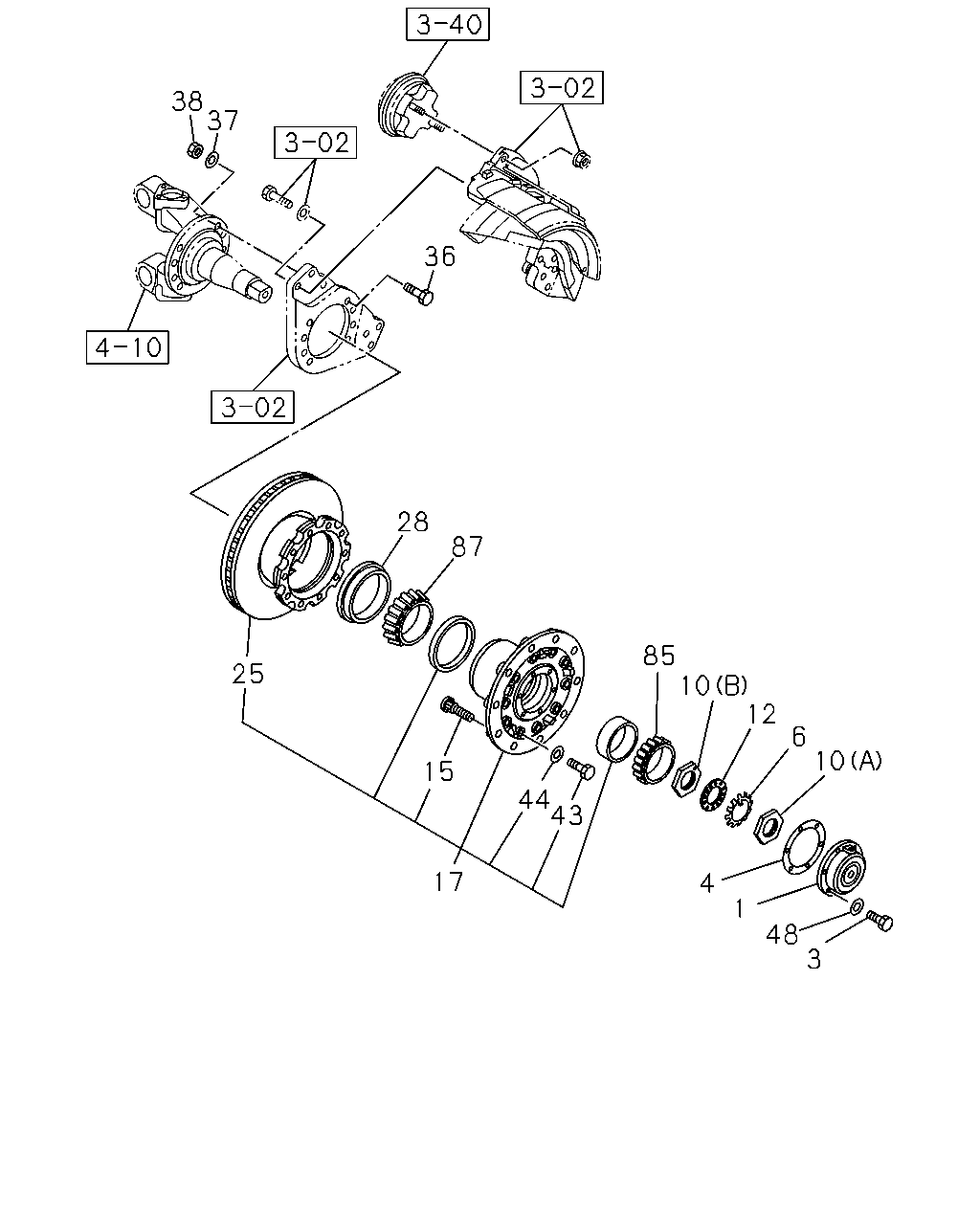

çizim 122810
38 37 36 28 87 85 10 12 25 6 10 15 44 43 17 4 1 48 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE 1-42313-028-0 02 1 0809- ● ●
3 BOLT; HUB CAP,FRT WHEEL 1-42319-189-0 12 1 0809- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-186-0 02 1 0809- ● ●
6 WASHER; LK,FRT HUB 1-42329-020-0 02 1 0809- ● ●
10 NUT; FRT HUB BRG
(A) 		1-42329-019-0 02 1 0809- ● ●
10 NUT; FRT HUB BRG
(B) 		1-42329-022-0 02 1 0809- ● ●
12 WASHER; LK,FRT HUB BRG 1-42329-021-0 02 1 0809- ● ●
15 PIN; WHEEL,FRT AXLE 1-42337-091-0 20 1 0809- ● ●
17 HUB; FRT AXLE 8-98122-636-0 02 1 0809- ● ●
25 ROTOR; DISC BRK,FRT 1-42316-051-0 02 1 0809- ● ●
28 SEAL; OIL,FRT HUB 1-09625-652-0 02 1 0809- ● ●
36 BOLT; BACK PLATE 1-42319-216-0 14 1 0809- ● ●
37 WASHER; LK,BACK PLATE 1-42319-214-0 14 1 0809- ● ●
38 NUT; BACK PLATE 1-42319-215-0 14 1 0809- ● ●
43 BOLT; DISC BRAKE FIX 8-98105-043-0 20 1 0809- ● ●
44 WASHER; LK,DISC BRAKE 1-41229-168-0 20 1 0809- ● ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-42319-190-0 12 1 0809- ● ●
85 CONE; BEARING,HUB OUTER 1-09812-252-0 02 1 0809- ● ●
87 CONE; BEARING,HUB INNER 1-09812-253-0 02 1 0809- ● ●
