◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10781 - FTR(THAI) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#6771) — 98 parça
çizim 5724
362
BalonParca AdiParca NoAdetTipApplied Date A B
362 PLACER; GUIDE BRIDGE 8-94392-014-0 01 1 0011- ● ●
çizim 42806
193 274 271 208 209 268 230 237 227 296 321 297 359 357 358
BalonParca AdiParca NoAdetTipApplied Date A B
193 JACK ASM
10TON THA 		1-85510-013-1 01 1 0011- ● ●
208 HANDLE; JACK
L=600 THA 		1-85515-008-0 01 1 0011-0105 ● ●
208 HANDLE; JACK
L=600 THA 		1-85515-009-0 01 1 0106- ● ●
209 CLIP; JACK HANDLE
THA 		1-73638-011-1 02 1 0011- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0011- ● ●
230 PUMP; GREASE
THA 		1-85556-007-2 01 1 0011- ● ●
237 BAG; TOOL
THA 		8-97917-409-1 01 1 0011- ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0011- ● ●
271 CLIP; TIRE HANGER
THA 		1-73638-012-1 02 1 0011- ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0011- ● ●
296 REPLACER; SLINGER 8-94396-858-0 01 1 0011- ● ●
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 0011- ● ●
321 SOCKET; PROP SHAFT
L=300 		1-85115-024-0 01 1 0011- ● ●
357 REPLACER; NOZZLE SLEEVE 8-94391-555-0 01 1 0011- ● ●
358 PLACER; NOZZLE SLEEVE 8-94391-556-0 01 1 0011- ● ●
359 PIVOT 8-94396-862-0 01 1 0011- ● ●
çizim 42848
1 10 9 12 13 17 23 22 21 20 29 29 57 61 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-019-0 01 1 0011- ●
9 WRENCH; WHEEL PIN
B=41X21 L=440 THA 		1-85113-015-1 01 1 0011- ● ●
10 WRENCH KIT; BRK ADJ 9-85110-013-0 01 1 0011- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 THA 		1-85116-011-0 01 1 0011- ● ●
13 WRENCH; MONKEY
L=255 THA 		1-85117-002-1 01 1 0011- ● ●
17 HAMMER
THA 		9-85121-406-0 01 1 0011- ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0011- ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0011- ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0011- ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0011- ● ●
29 DRIVER; SCREW
(B) <-> L=285 THA 		1-85151-004-0 01 1 0011- ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 THA 		8-94242-798-1 01 1 0011- ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 0011- ● ●
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 0011- ● ●
61 PULLER ASM; PILOT BRG 9-85210-157-0 01 1 0011- ● ●
çizim 42889
171 172 173 174 178 179 180 180 180 192 180 182
BalonParca AdiParca NoAdetTipApplied Date A B
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 0011- ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 0011- ● ●
173 WRENCH; COUPLING DRIVER 9-85111-942-0 01 1 0011- ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0011- ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0011- ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0011- ● ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 0011- ● ●
180 PULLER; FRT & RR HUB
(C) 		1-85210-002-0 02 1 0011- ● ●
180 PULLER; FRT & RR HUB
(D) 		1-85210-003-0 01 1 0011- ● ●
180 PULLER; FRT & RR HUB
(A) M20 		9-85210-187-0 01 1 0011- ● ●
180 PULLER; FRT & RR HUB
(B) B=90 		9-85113-534-0 01 1 0011- ●
182 REMOVER ASM 9-85210-095-0 01 1 0011- ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0011- ● ●

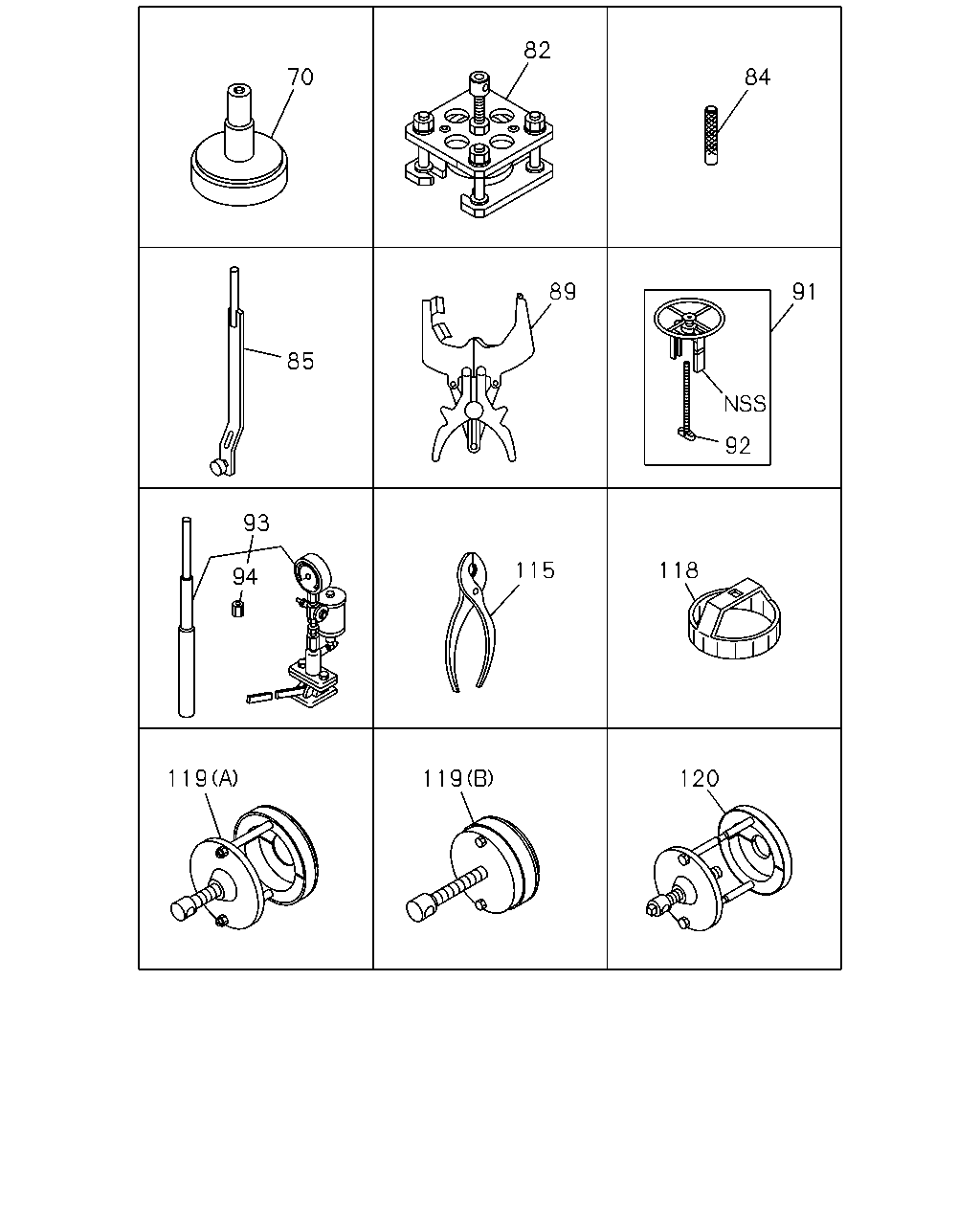

çizim 44539
82 84 70 89 91 85 92 93 115 118 94 119 119 120
BalonParca AdiParca NoAdetTipApplied Date A B
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 0011- ● ●
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 0011- ● ●
84 REPLACER; VALVE SEAL 8-94391-525-0 01 1 0011- ● ●
85 REPLACER ASM; VALVE SPR 8-94391-528-0 01 1 0011- ● ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 0011- ● ●
91 REPLACER ASM; CYL LINER 8-94391-526-0 01 1 0011- ● ●
92 ANKLE; REPLACER,CYL LINER 8-94391-554-0 01 1 0011- ● ●
93 SETTING KIT; VALVE GUIDE 8-97600-910-0 01 1 0011- ● ●
94 RING; VALVE GUIDE SET 8-97600-912-0 01 1 0011- ● ●
115 PLIER
THA 		5-85171-002-0 01 1 0011- ● ●
118 WRENCH; OIL FILTER 1-85221-097-0 01 1 0011- ● ●
119 PULLER ASM; TOP GEAR BRG
(A) 		9-85210-185-0 01 1 0011- ● ●
119 PULLER ASM; TOP GEAR BRG
(B) 		9-85210-186-0 01 1 0011- ● ●
120 PULLER ASM; MAIN REAR BRG 9-85210-192-0 01 1 0011- ● ●
çizim 44567
122 125 126 129 127 128 141 130 130 137 130 130 146 151 157 149 141 141
BalonParca AdiParca NoAdetTipApplied Date A B
122 PULLER ASM; COUNTER FRT 9-85210-129-1 01 1 0011- ● ●
125 PULLER ASM; KING PIN
L=360 		9-85210-151-0 01 1 0011- ● ●
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 0011- ● ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=105 		9-85113-509-0 01 1 0011- ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0011- ● ●
129 PULLER ASM; PITMAN ARM 9-85210-147-0 01 1 0011- ● ●
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 0011- ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 0011- ● ●
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 0011- ● ●
130 WRENCH; BOX
(C) B=41 & 46 L=165 		9-85113-401-0 01 1 0011- ● ●
137 PLIER; SHOE,RETURN SPRING 1-85210-025-0 01 1 0011- ●
141 HANDLE; WRENCH
(C) OD=25 L=480 THA 		1-85116-011-0 01 1 0011- ● ●
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 0011- ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 0011- ● ●
146 REPLACER KIT; LEAF SPR 1-85237-016-0 01 1 0011- ● ●
149 PLATE; PILOT BRG PULLER 1-85219-009-0 01 1 0011- ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR 1-85237-002-0 01 1 0011- ● ●
157 REPLACER KIT; RETURN SPR
(A) 		1-85237-002-0 01 1 0011- ●
157 REPLACER KIT; RETURN SPR
(B) 		9-85231-554-0 01 1 0011- ●
çizim 44572
157 153 154 158 159 160 162 163 163 161 162 163 163 166 167 169 170
BalonParca AdiParca NoAdetTipApplied Date A B
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0011- ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0011- ● ●
157 REPLACER KIT; RETURN SPR
(A) 		1-85237-002-0 01 1 0011- ●
157 REPLACER KIT; RETURN SPR
(B) 		9-85231-554-0 01 1 0011- ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0011- ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0011- ●
159 REMOVER; RETURN SPR 9-85231-555-0 01 1 0011- ●
160 REMOVER; NEEDLE BRG
L=228 		1-85238-010-0 01 1 0011- ● ●
161 REMOVER; TIE ROD ARM 9-85141-603-0 01 1 0011- ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=181 		1-85238-008-0 01 1 0011- ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=213 		1-85238-009-0 01 1 0011- ● ●
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 0011- ● ●
163 TOOL; SETTING
(D) L=150 		1-85221-163-0 01 1 0011- ● ●
163 TOOL; SETTING
(A) OD=120 		1-85221-164-0 01 1 0011- ● ●
163 TOOL; SETTING
(B) L=150 		9-85221-248-0 01 1 0011- ● ●
163 TOOL; SETTING
(C) L=350 		9-85221-310-0 01 1 0011- ● ●
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 0011- ● ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 0011- ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 0011- ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 0011- ● ●
