3-78 — FIXING PARTS; AIR PIPING (#67709) — 267 parça

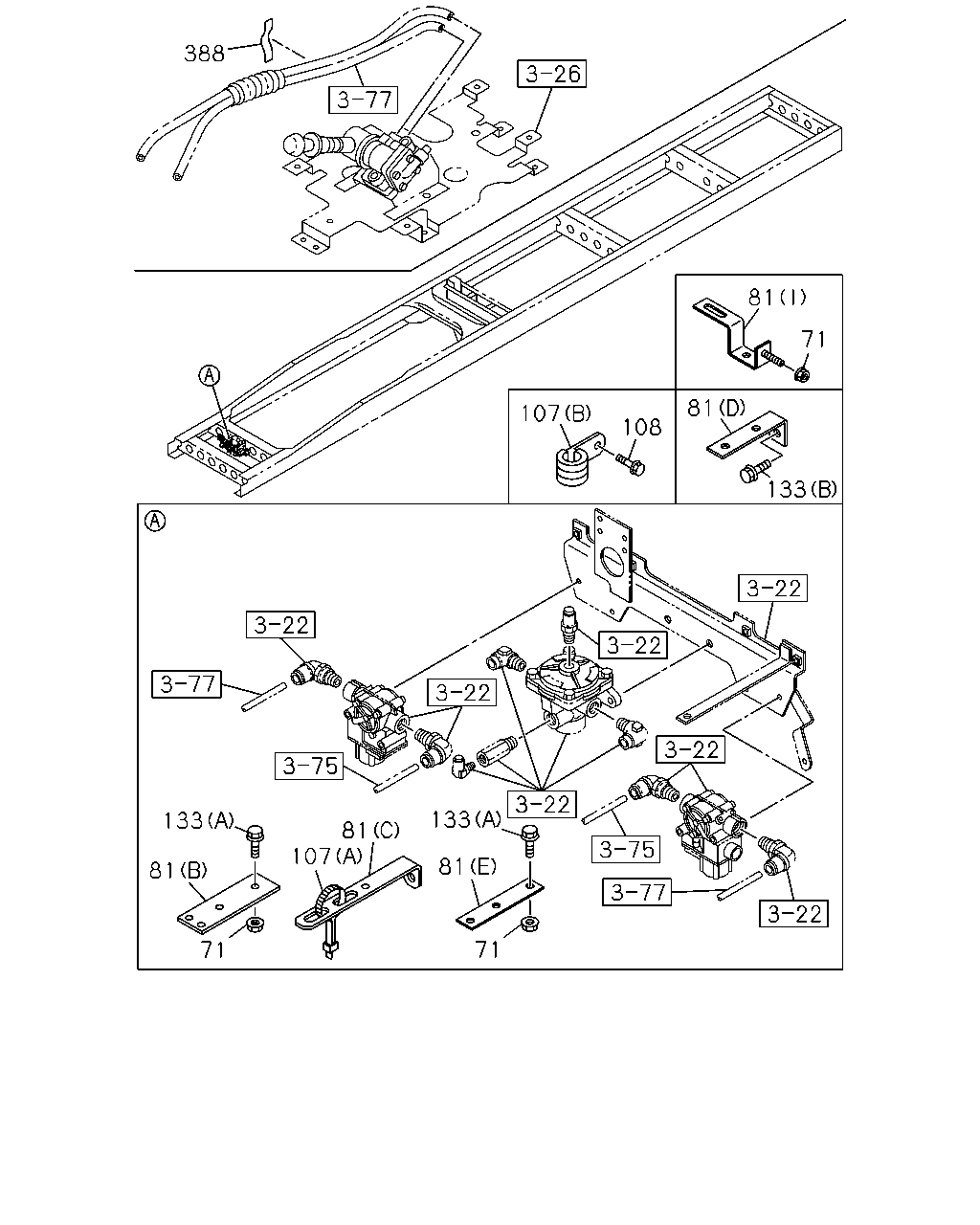

çizim 122189
388 81 71 81 107 108 133 133 133 81 107 81 81 71 71
BalonParca AdiParca NoAdetTipApplied Date A B
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
71 NUT; BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0812- ●
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 03 1 0809-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0812-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0809-0811 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
81 BRACKET; CLIP
(K) 		8-98186-380-0 01 1 1106- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 0809- ●
81 BRACKET; CLIP
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (A) 		1-47476-699-2 01 1 0809- ●
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0809- ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0809- ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0809-0812 ● ●
81 BRACKET; CLIP
(I) 		8-98129-212-0 04 1 0901-1012 ● ●
81 BRACKET; CLIP
(J) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(H) L=65 		1-47477-713-0 01 1 0809-0902 ● ●
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0903- ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0809- ● ●
81 BRACKET; CLIP
(E) L=170 		1-47479-380-0 01 1 0809- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0809- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0809- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 05 1 0809-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 31 1 0908- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0809-0811 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0812-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) (A) L=350 		1-09707-183-0 33 1 0908- ●
107 CLIP; NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 01 1 0809- ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 17 1 0809-0811 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 37 1 0812- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0809-0811 ●
107 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) (A) L=350 		1-09707-183-0 35 1 0812-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 35 1 0908- ●
107 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) (A) L=350 		1-09707-183-0 35 1 0908- ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809- ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0809-0811 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ● ●
133 BOLT; BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0809-0811 ●
133 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ●
133 BOLT; BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0811 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0811 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0812-0907 ●
133 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0908- ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0809-0811 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0809-0811 ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 0809- ● ●

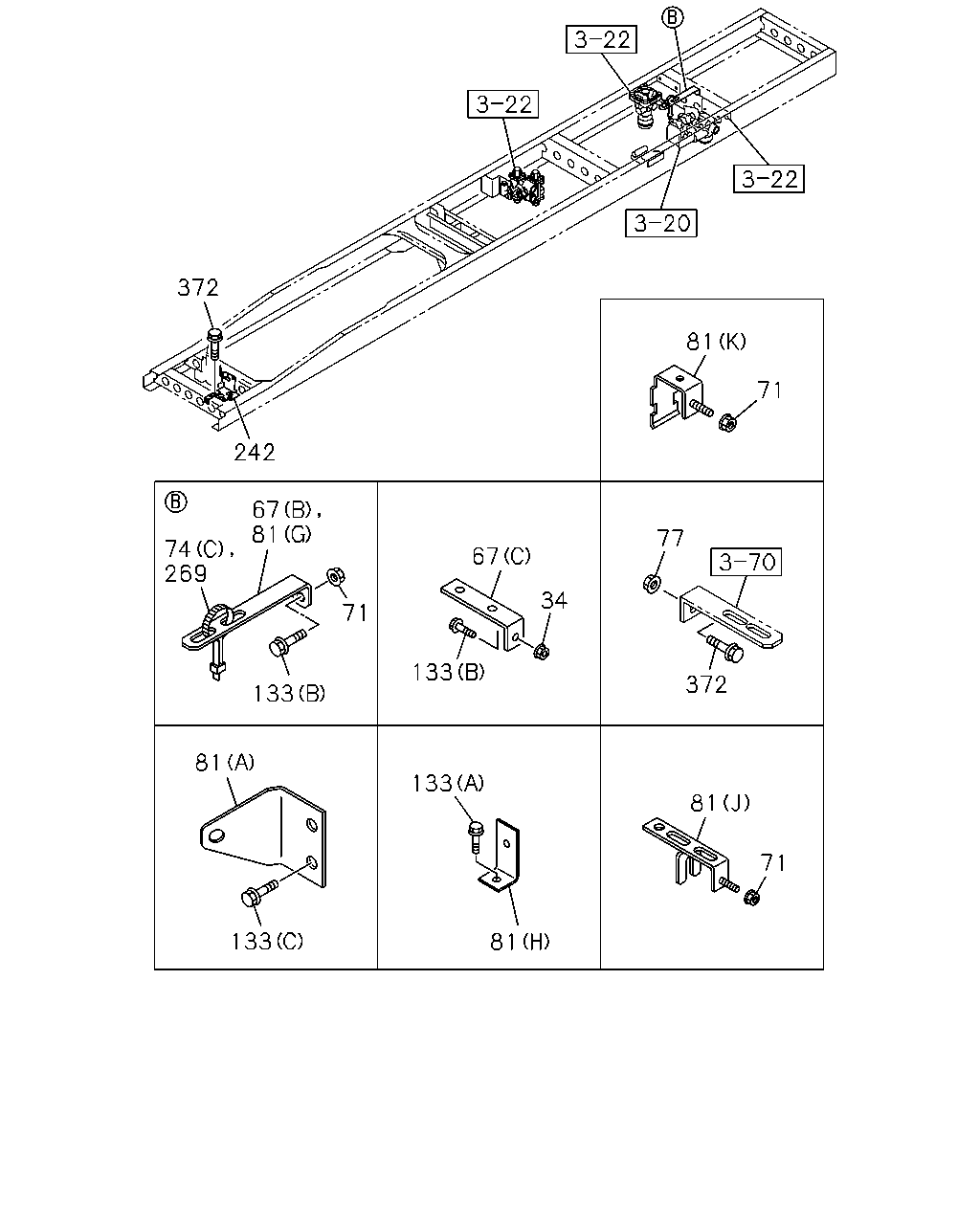

çizim 122303
372 81 71 242 67 81 77 74 269 67 34 71 133 372 133 81 133 81 71 133 81
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-0907 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-0907 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
67 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0809-0907 ●
67 BRACKET; CLIP
(A) 		1-47479-693-0 01 1 0809- ● ●
67 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0809- ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
71 NUT; BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0812- ●
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 03 1 0809-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0812-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0809-0811 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 0812- ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 0908- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) (C) L=350 		1-09707-183-0 06 1 0908- ●
74 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 07 1 0908- ●
74 CLIP; NYLON TUBE
(A) ID=16 L=28 		1-09700-872-0 01 1 0809- ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 0809-0811 ● ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 0809-0811 ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 0812-0907 ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 05 1 0908- ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 02 1 0809-0811 ●
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) (C) L=350 		1-09707-183-0 08 1 0812- ●
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 0809- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 12 1 0809-0811 ●
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 09 1 0812-1009 ●
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 10 1 1010- ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809- ●
81 BRACKET; CLIP
(K) 		8-98186-380-0 01 1 1106- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 0809- ●
81 BRACKET; CLIP
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (A) 		1-47476-699-2 01 1 0809- ●
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0809- ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0809- ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0809-0812 ● ●
81 BRACKET; CLIP
(I) 		8-98129-212-0 04 1 0901-1012 ● ●
81 BRACKET; CLIP
(J) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(H) L=65 		1-47477-713-0 01 1 0809-0902 ● ●
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0903- ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0809- ● ●
81 BRACKET; CLIP
(E) L=170 		1-47479-380-0 01 1 0809- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0809- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0809- ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0809-0811 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ● ●
133 BOLT; BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0809-0811 ●
133 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ●
133 BOLT; BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0811 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0811 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0812-0907 ●
133 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0908- ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0809-0811 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0809-0811 ● ●
242 BRACKET; PIPE CLIP 8-98074-610-0 01 1 0809- ● ●
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0809-0810 ●
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0811- ●
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0811- ●
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 02 1 0809- ●
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0809-0811 ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0812- ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0809- ● ●

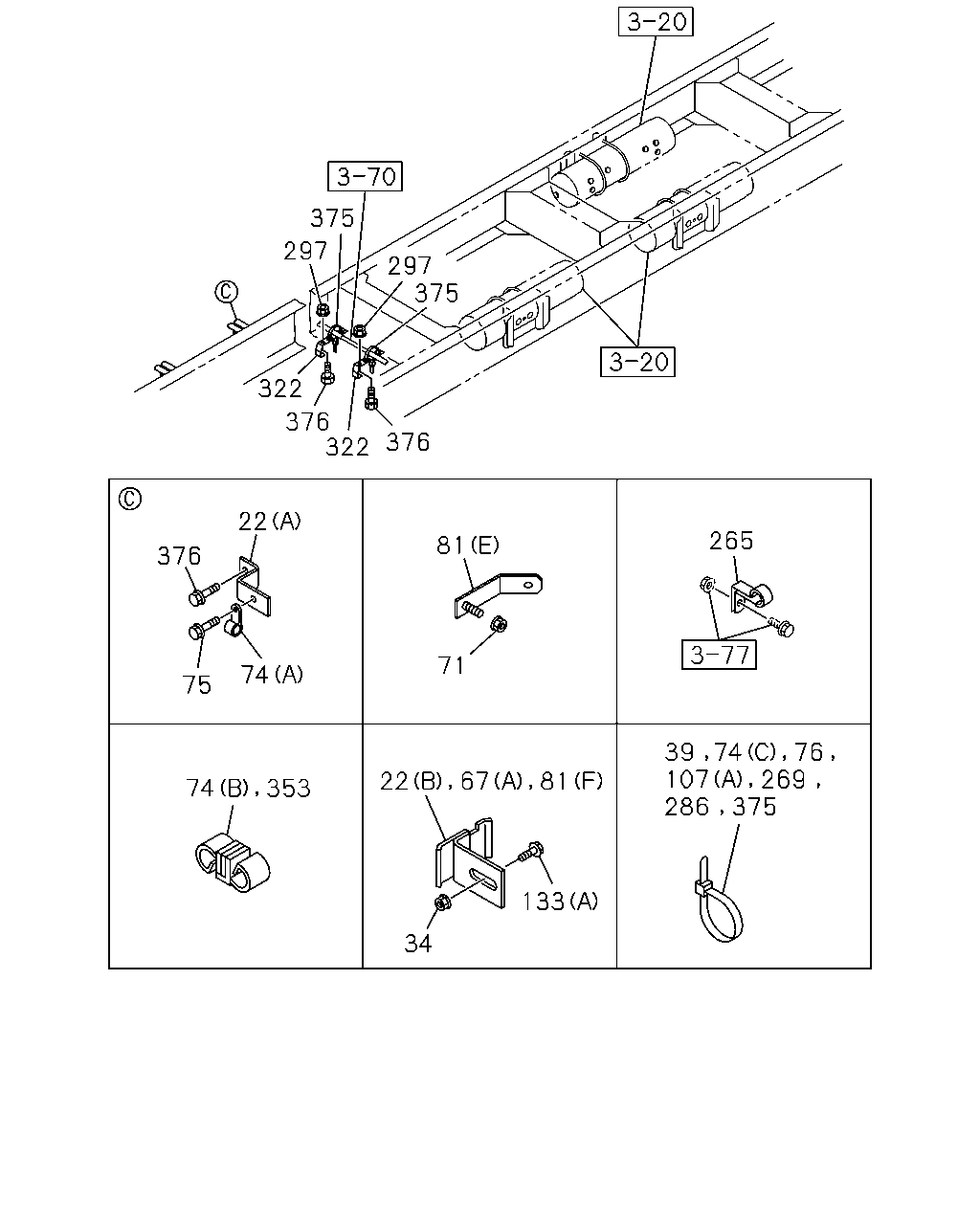

çizim 122788
375 297 297 375 322 376 322 376 22 265 81 376 71 74 75 81 133 34 74 353 22 67 39 74 76 107 269 286 375
BalonParca AdiParca NoAdetTipApplied Date A B
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 0809- ●
22 BRACKET; CLIP
(A) 		1-47475-881-0 01 1 0809- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-0907 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-0907 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
39 CLIP; AIR PIPE
L=350 		1-09707-183-0 04 1 0809-0809 ●
39 CLIP; AIR PIPE
L=350 		1-09707-183-0 12 1 0810- ●
67 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0809-0907 ●
67 BRACKET; CLIP
(A) 		1-47479-693-0 01 1 0809- ● ●
67 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0809- ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
71 NUT; BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0812- ●
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 03 1 0809-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0812-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0809-0811 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 0812- ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 0908- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) (C) L=350 		1-09707-183-0 06 1 0908- ●
74 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 07 1 0908- ●
74 CLIP; NYLON TUBE
(A) ID=16 L=28 		1-09700-872-0 01 1 0809- ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 0809-0811 ● ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 0809-0811 ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 0812-0907 ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 05 1 0908- ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 02 1 0809-0811 ●
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) (C) L=350 		1-09707-183-0 08 1 0812- ●
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 0809- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 12 1 0809-0811 ●
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 09 1 0812-1009 ●
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 10 1 1010- ●
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809- ●
76 CLIP; NYLON TUBE
L=350 		1-09707-183-0 05 1 0809- ●
81 BRACKET; CLIP
(K) 		8-98186-380-0 01 1 1106- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 0809- ●
81 BRACKET; CLIP
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (A) 		1-47476-699-2 01 1 0809- ●
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0809- ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0809- ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0809-0812 ● ●
81 BRACKET; CLIP
(I) 		8-98129-212-0 04 1 0901-1012 ● ●
81 BRACKET; CLIP
(J) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(H) L=65 		1-47477-713-0 01 1 0809-0902 ● ●
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0903- ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0809- ● ●
81 BRACKET; CLIP
(E) L=170 		1-47479-380-0 01 1 0809- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0809- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0809- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 05 1 0809-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 31 1 0908- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0809-0811 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0812-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) (A) L=350 		1-09707-183-0 33 1 0908- ●
107 CLIP; NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 01 1 0809- ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 17 1 0809-0811 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 37 1 0812- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0809-0811 ●
107 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) (A) L=350 		1-09707-183-0 35 1 0812-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 35 1 0908- ●
107 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) (A) L=350 		1-09707-183-0 35 1 0908- ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0809-0811 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ● ●
133 BOLT; BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0809-0811 ●
133 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ●
133 BOLT; BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0811 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0811 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0812-0907 ●
133 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0908- ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0809-0811 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0809-0811 ● ●
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0809- ● ●
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0809-0810 ●
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0811- ●
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0811- ●
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 02 1 0809- ●
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0809- ●
297 NUT; BRKT
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 01 1 0809- ●
297 NUT; BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 02 1 0809- ●
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) 		1-47479-598-0 01 1 0809- ●
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-47479-598-0 02 1 0809- ●
353 CLIP; AIR PIPE
ID=18 & 18 		8-94323-068-0 02 1 0809- ●
353 CLIP; AIR PIPE
ID=18 & 18 		8-94323-068-0 01 1 0809- ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) L=350 		1-09707-183-0 02 1 0809-0811 ● ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 03 1 0812- ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 03 1 0812- ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0809-0811 ● ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 0812-0906 ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 0907- ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0907- ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 01 1 0809- ●
376 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0809-0811 ●
376 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0812- ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 02 1 0809- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
