3-77 — BRAKE PIPING; AIR,REAR
(#67708) — 100 parça
Tümü
A - FGD5MV
B - FGR5MV
◀

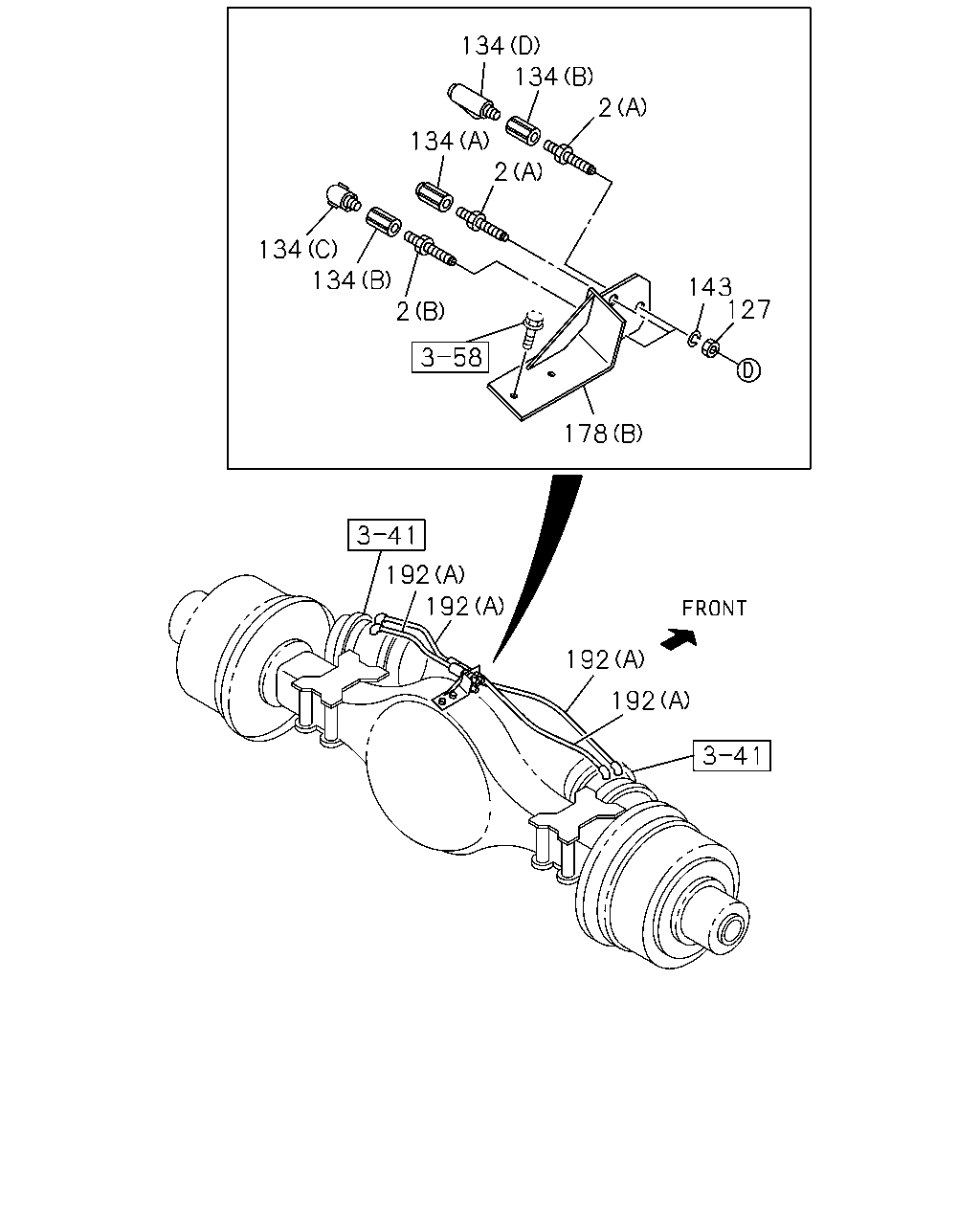

[377A] REAR AXLE SIDE;LEAF SUS (19 parça)

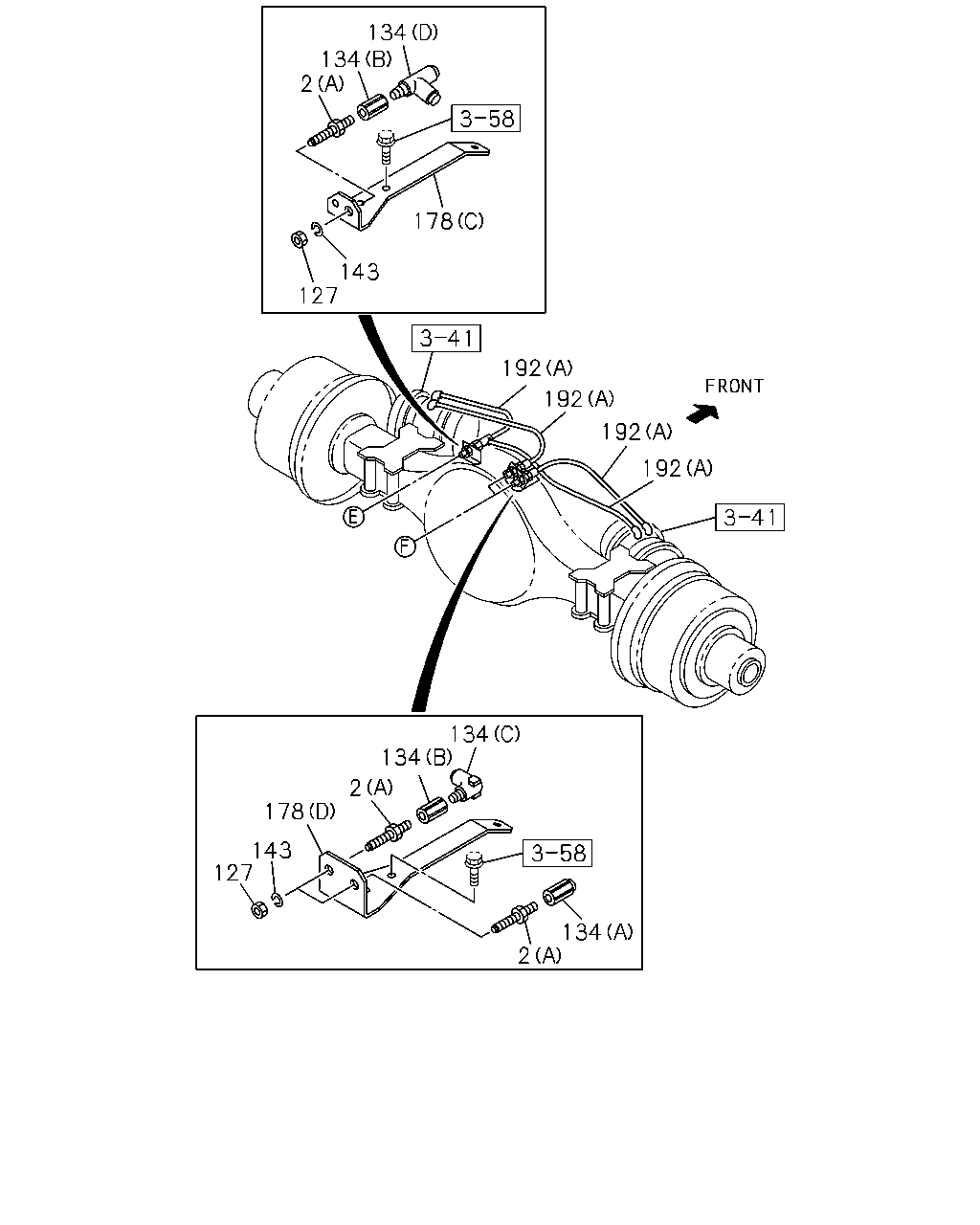

[377A] REAR AXLE SIDE;AIR SUS (19 parça)

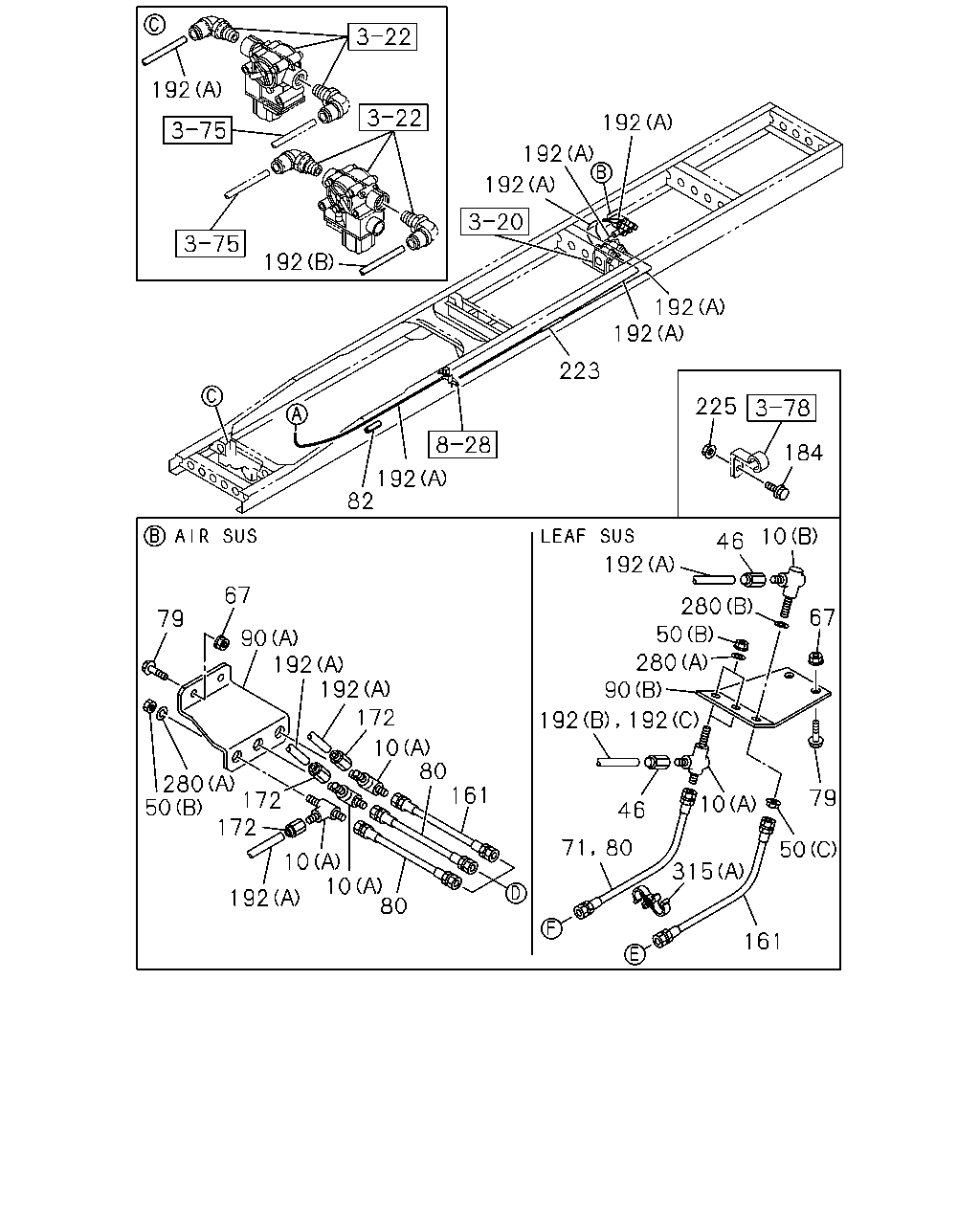

[377A] FRAME SIDE (39 parça)

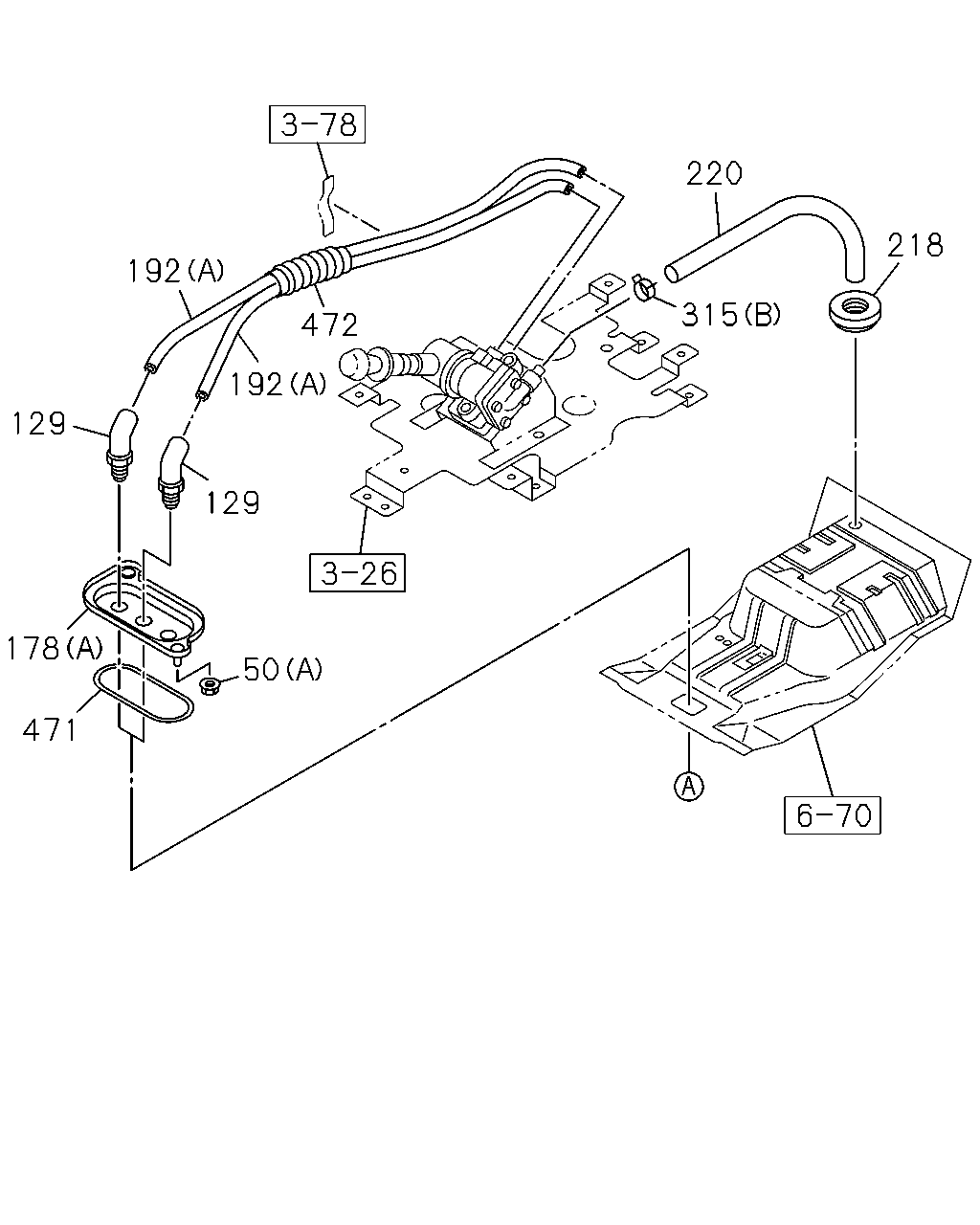

[377A] CAB SIDE (23 parça)
▶
134
134
2
178
143
127
192
192
192
192
134
134
2
178
143
127
134
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
UNION; AIR PIPE
(A) M16 L=65 STRAIGHT
0-92123-110-0
02
1
0809-
●
2
UNION; AIR PIPE
(B) M16 L=74
0-92123-310-0
01
1
0809-
●
2
UNION; AIR PIPE
(A) M16 L=65 STRAIGHT
0-92123-110-0
03
1
0809-
●
127
NUT; UNION
M16
0-91111-516-0
03
1
0809-
●
●
134
CONNECTOR
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0809-
●
●
134
CONNECTOR
(B) M16 & RC3/8 STRAIGHT
1-09660-882-0
02
1
0809-
●
●
134
CONNECTOR
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0809-
●
●
134
CONNECTOR
(D) DIN12X2 & R3/8 3WAY
1-09661-007-0
01
1
0809-
●
●
143
WASHER; LK,UNION
ID=16.2
0-91510-816-0
03
1
0809-
●
●
178
BRACKET; UNION
(B)
8-98075-789-0
01
1
0809-
●
178
BRACKET; UNION
(A)
8-98017-054-1
01
1
0809-
●
●
178
BRACKET; UNION
(C)
8-98074-407-0
01
1
0809-
●
178
BRACKET; UNION
(D)
8-98074-408-0
01
1
0809-
●
192
TUBE; NYLON
(B)
8-98085-803-0
01
1
0809-
●
192
TUBE; NYLON
(C)
8-98085-806-0
01
1
0809-
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0809-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0809-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0809-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0809-
●
●
134
134
2
134
2
134
134
2
143
127
178
192
192
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
UNION; AIR PIPE
(A) M16 L=65 STRAIGHT
0-92123-110-0
02
1
0809-
●
2
UNION; AIR PIPE
(B) M16 L=74
0-92123-310-0
01
1
0809-
●
2
UNION; AIR PIPE
(A) M16 L=65 STRAIGHT
0-92123-110-0
03
1
0809-
●
127
NUT; UNION
M16
0-91111-516-0
03
1
0809-
●
●
134
CONNECTOR
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0809-
●
●
134
CONNECTOR
(B) M16 & RC3/8 STRAIGHT
1-09660-882-0
02
1
0809-
●
●
134
CONNECTOR
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0809-
●
●
134
CONNECTOR
(D) DIN12X2 & R3/8 3WAY
1-09661-007-0
01
1
0809-
●
●
143
WASHER; LK,UNION
ID=16.2
0-91510-816-0
03
1
0809-
●
●
178
BRACKET; UNION
(B)
8-98075-789-0
01
1
0809-
●
178
BRACKET; UNION
(A)
8-98017-054-1
01
1
0809-
●
●
178
BRACKET; UNION
(C)
8-98074-407-0
01
1
0809-
●
178
BRACKET; UNION
(D)
8-98074-408-0
01
1
0809-
●
192
TUBE; NYLON
(B)
8-98085-803-0
01
1
0809-
●
192
TUBE; NYLON
(C)
8-98085-806-0
01
1
0809-
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0809-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0809-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0809-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0809-
●
●
192
192
192
192
192
192
192
223
225
184
192
82
10
46
192
67
280
50
280
90
67
79
90
192
192
172
192
192
10
80
161
280
50
172
172
79
10
46
80
71
50
10
10
315
80
192
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
CONNECTOR; FLEX HOSE
(A) M16 2WAY
1-09650-182-1
03
1
0809-
●
10
CONNECTOR; FLEX HOSE
(B) M16 ELBOW
0-92135-210-0
01
1
0809-
●
10
CONNECTOR; FLEX HOSE
(A) M16 2WAY
1-09650-182-1
02
1
0809-
●
46
NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT
1-09660-876-0
03
1
0809-
●
50
NUT; UNION BRKT
(B) M12
0-91111-512-0
03
1
0809-
●
50
NUT; UNION BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
0809-
●
●
50
NUT; UNION BRKT
(B) M12
0-91111-512-0
02
1
0809-
●
50
NUT; UNION BRKT
(C) M16
0-91111-516-0
01
1
0809-
●
67
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
02
1
0809-
●
●
71
HOSE; FLEX,RWD RR
L=680
1-09363-742-0
02
1
0809-0910
●
79
BOLT; HOSE BRKT
M8X35 FLANGE
0-28650-835-0
02
1
0809-
●
79
BOLT; HOSE BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0809-
●
80
HOSE; FLEX,POWER CHAMBER
L=680
1-09363-742-0
02
1
0911-
●
80
HOSE; FLEX,POWER CHAMBER
L=420
1-09363-805-0
01
1
0809-
●
80
HOSE; FLEX,POWER CHAMBER
L=460
1-09363-963-0
01
1
0809-
●
82
SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40
1-09337-013-0
01
1
0809-
●
90
BRACKET; PIPE UNION
(A)
8-98115-767-0
01
1
0809-
●
90
BRACKET; PIPE UNION
(B)
1-47477-851-1
01
1
0809-
●
161
HOSE; FLEX,QUICK RELEASE VLV
L=420
1-09363-805-0
01
1
0809-
●
161
HOSE; FLEX,QUICK RELEASE VLV
L=600
1-09363-746-0
01
1
0809-
●
172
ADAPTER; UNION
DIN12 & M16 STRAIGHT
1-09660-876-0
03
1
0809-
●
184
BOLT; TUBE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0809-
●
●
192
TUBE; NYLON
(B)
8-98085-803-0
01
1
0809-
●
192
TUBE; NYLON
(C)
8-98085-806-0
01
1
0809-
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0809-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0809-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0809-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0809-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0809-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0809-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0809-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0809-
●
●
225
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
01
1
0809-
●
●
280
WASHER; LK
(A) ID=12.2
0-91510-812-0
03
1
0809-
●
280
WASHER; LK
(A) ID=12.2
0-91510-812-0
02
1
0809-
●
280
WASHER; LK
(B) ID=16.2
0-91510-816-0
01
1
0809-
●
315
CLIP
(B) ID=14
8-94238-572-0
01
1
0912-
●
●
315
CLIP
(A) ID=18 & 18
8-94323-068-0
02
1
0809-
●
315
CLIP
(A) ID=18 & 18
8-94323-068-0
01
1
0809-
●
220
218
192
315
472
192
129
129
178
50
471
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
50
NUT; UNION BRKT
(B) M12
0-91111-512-0
03
1
0809-
●
50
NUT; UNION BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
0809-
●
●
50
NUT; UNION BRKT
(B) M12
0-91111-512-0
02
1
0809-
●
50
NUT; UNION BRKT
(C) M16
0-91111-516-0
01
1
0809-
●
129
CONNECTOR; NYLON TUBE
8-97611-963-1
01
1
0809-
●
●
129
CONNECTOR; NYLON TUBE
8-97611-963-1
01
1
0809-
●
●
178
BRACKET; UNION
(B)
8-98075-789-0
01
1
0809-
●
178
BRACKET; UNION
(A)
8-98017-054-1
01
1
0809-
●
●
178
BRACKET; UNION
(C)
8-98074-407-0
01
1
0809-
●
178
BRACKET; UNION
(D)
8-98074-408-0
01
1
0809-
●
192
TUBE; NYLON
(B)
8-98085-803-0
01
1
0809-
●
192
TUBE; NYLON
(C)
8-98085-806-0
01
1
0809-
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0809-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0809-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0809-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0809-
●
●
218
GROMMET; VINYL HOSE
OD=24
9-61166-007-0
01
1
0912-
●
●
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
0912-
●
●
315
CLIP
(B) ID=14
8-94238-572-0
01
1
0912-
●
●
315
CLIP
(A) ID=18 & 18
8-94323-068-0
02
1
0809-
●
315
CLIP
(A) ID=18 & 18
8-94323-068-0
01
1
0809-
●
471
SEAL; BRKT
1-79738-832-0
01
1
0809-
●
●
472
TUBE; SPUTTER
8-98067-708-0
01
1
0809-
●
●
