8-80 — WINDSHIELD WIPER AND WASHER (#6769) — 45 parça

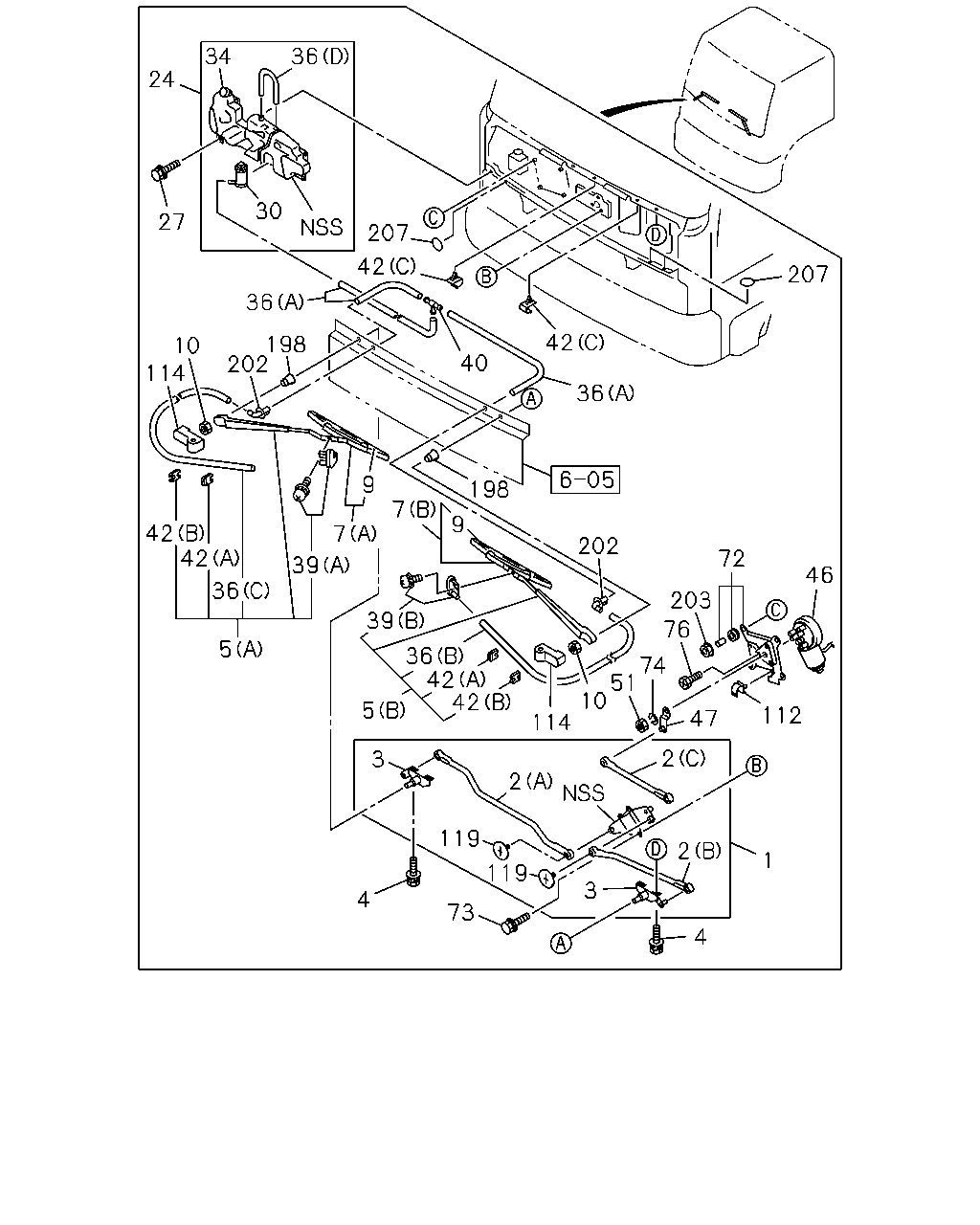

çizim 8453
34 36 24 30 27 207 42 207 36 42 198 202 10 114 40 36 198 9 7 9 42 42 7 202 72 39 46 36 203 39 76 5 36 42 42 74 51 10 5 112 47 114 2 3 2 119 2 119 1 3 4 73 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER 1-83312-137-1 01 1 0011- ● ●
2 LINK; FRT WIPER
(B) 		1-83312-142-1 01 1 0011- ● ●
2 LINK; FRT WIPER
(A) 		1-83312-143-1 01 1 0011- ● ●
2 LINK; FRT WIPER
(C) 		1-86810-066-1 01 1 0011- ● ●
3 PIVOT ASM; FRT WIPER 1-86810-067-1 02 1 0011- ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0011- ● ●
5 ARM; WIPER
(B) 		1-86810-143-0 01 1 0011-0205 ● ●
5 ARM; WIPER
(B) 		1-83315-087-0 01 1 0206- ● ●
5 ARM; WIPER
(A) 		1-86810-142-0 01 1 0011-0205 ● ●
5 ARM; WIPER
(A) 		1-83315-089-0 01 1 0206- ● ●
7 BLADE; WIPER
(B) 		1-83315-046-2 01 1 0011- ● ●
7 BLADE; WIPER
(A) 		1-83315-045-2 01 1 0011- ● ●
9 RUBBER; FRT WIPER BLADE 1-83355-014-0 02 1 0011- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 0011- ● ●
24 TANK ASM; WASHER 1-86815-013-7 01 1 0011- ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0011- ● ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 0011- ● ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 0011- ● ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 0011- ● ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 THA 		8-94389-303-0 01 1 0011- ● ●
36 HOSE; WASHER
(B) L=660 		1-86810-037-0 01 1 0011- ● ●
36 HOSE; WASHER
(C) L=680 		1-86810-036-0 01 1 0011-0011 ● ●
36 HOSE; WASHER
(C) L=670 		1-86810-147-0 01 1 0012- ● ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-86810-041-0 01 1 0011-0205 ● ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-83315-086-0 01 1 0206- ● ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-86810-040-0 01 1 0011-0205 ● ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-83315-085-0 01 1 0206- ● ●
40 JOINT; WASHER HOSE
3WAY THA 		1-83338-005-0 01 1 0011- ● ●
42 CLIP; WASHER HOSE
(C) THA 		1-09987-247-0 05 1 0011- ● ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 0011- ● ●
42 CLIP; WASHER HOSE
(B) 		1-86810-045-0 02 1 0011- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
THA 		1-86810-059-0 01 1 0011- ● ●
47 ARM; CRANK,WIPER MOTOR
THA 		1-86810-060-0 01 1 0011- ● ●
51 NUT; WIPER MOTOR LINK
THA 		1-83319-012-0 01 1 0011- ● ●
72 BRACKET; WIPER MOTOR
THA 		1-86810-056-0 01 1 0011- ● ●
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0011- ● ●
74 WASHER; ARM TO MOTOR
THA 		1-83319-011-0 01 1 0011- ● ●
76 SCREW; BRKT TO WIPER MOTOR
THA 		1-86810-062-0 03 1 0011- ● ●
112 CLIP; HARNESS,WIPER MOTOR
THA 		1-86810-061-0 01 1 0011- ● ●
114 COVER; FRT WIPER ARM 1-86810-144-0 02 1 0011- ● ●
119 STOPPER; WIPER LINK
THA 		1-86810-074-0 02 1 0011- ● ●
198 COVER; PIVOT,WIPER 1-86810-016-3 02 1 0011- ● ●
202 GROMMET; WIPER 1-86815-003-2 02 1 0011- ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0011- ● ●
207 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 03 1 0011- ● ●
