◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11142 - FVR-RHD(EUROPE)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20A - MANUAL TRANSMISSION ASM AND CASE ▶
2-20A — MANUAL TRANSMISSION ASM AND CASE (#67679) — 119 parça

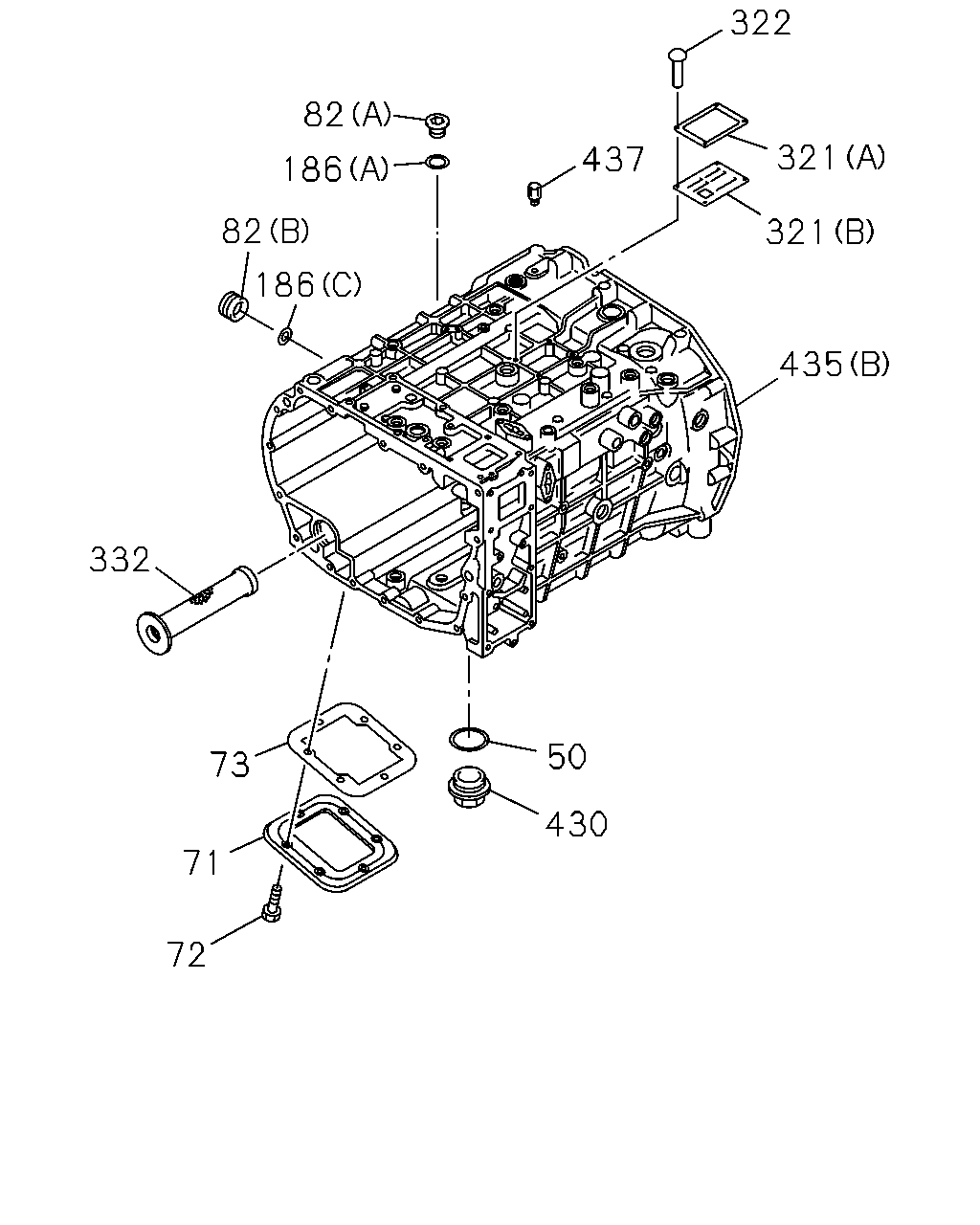

çizim 106646
322 82 321 437 186 82 321 186 435 332 50 73 430 71 72
BalonParca AdiParca NoAdetTipApplied Date
50 GASKET; DRAIN PLUG 1-33119-293-0 01 1 0809-
71 COVER; SIDE,TRANS CASE 1-33119-407-0 01 1 0809-1305
71 COVER; SIDE,TRANS CASE 1-33119-622-0 01 1 1306-
72 BOLT; SIDE COVER
M10X22 		1-36129-014-1 06 1 0809-1305
72 BOLT; SIDE COVER
M10X22 		1-33119-592-0 06 1 1306-
73 GASKET; SIDE COVER TO TRANS CASE 1-33119-237-0 01 1 0809-
82 PLUG; SCREW,CASE
(A) 		1-33119-171-0 01 1 0809-1305
82 PLUG; SCREW,CASE
(A) 		1-33119-619-0 01 1 1306-
82 PLUG; SCREW,CASE
(B) 		1-33119-268-0 02 1 0809-1305
82 PLUG; SCREW,CASE
(B) 		1-33119-620-0 02 1 1306-
82 PLUG; SCREW,CASE
(C) 		1-33119-285-0 02 1 0809-1305
82 PLUG; SCREW,CASE
(C) 		1-33119-618-0 02 1 1306-
186 RING; SEAL
(A) 		1-33119-249-0 01 1 0809-
186 RING; SEAL
(B) 		1-33119-286-0 02 1 0809-
186 RING; SEAL
(C) 		1-33119-435-0 02 1 0809-
321 PLATE; NAME
(A) 		1-33119-519-0 01 1 0809-
321 PLATE; NAME
(B) 		1-33119-520-0 01 1 0809-
322 RIVET; NAME PLATE 1-33119-556-0 04 1 0809-1305
322 RIVET; NAME PLATE 1-33119-617-0 04 1 1306-
332 FILTER; OIL 1-33119-437-0 01 1 0809-
430 PLUG; OIL DRAIN 1-33119-156-0 01 1 0809-1305
430 PLUG; OIL DRAIN 1-33119-621-0 01 1 1306-
435 CASE; TRANS
(B) 		1-33111-371-0 01 1 0809-
435 CASE; TRANS
(A) 		1-33111-373-0 01 1 0809-1305
435 CASE; TRANS
(A) 		1-33111-380-0 01 1 1306-
437 BREATHER; TRANS 1-36122-004-0 01 1 0809-1305
437 BREATHER; TRANS 1-36122-006-0 01 1 1306-

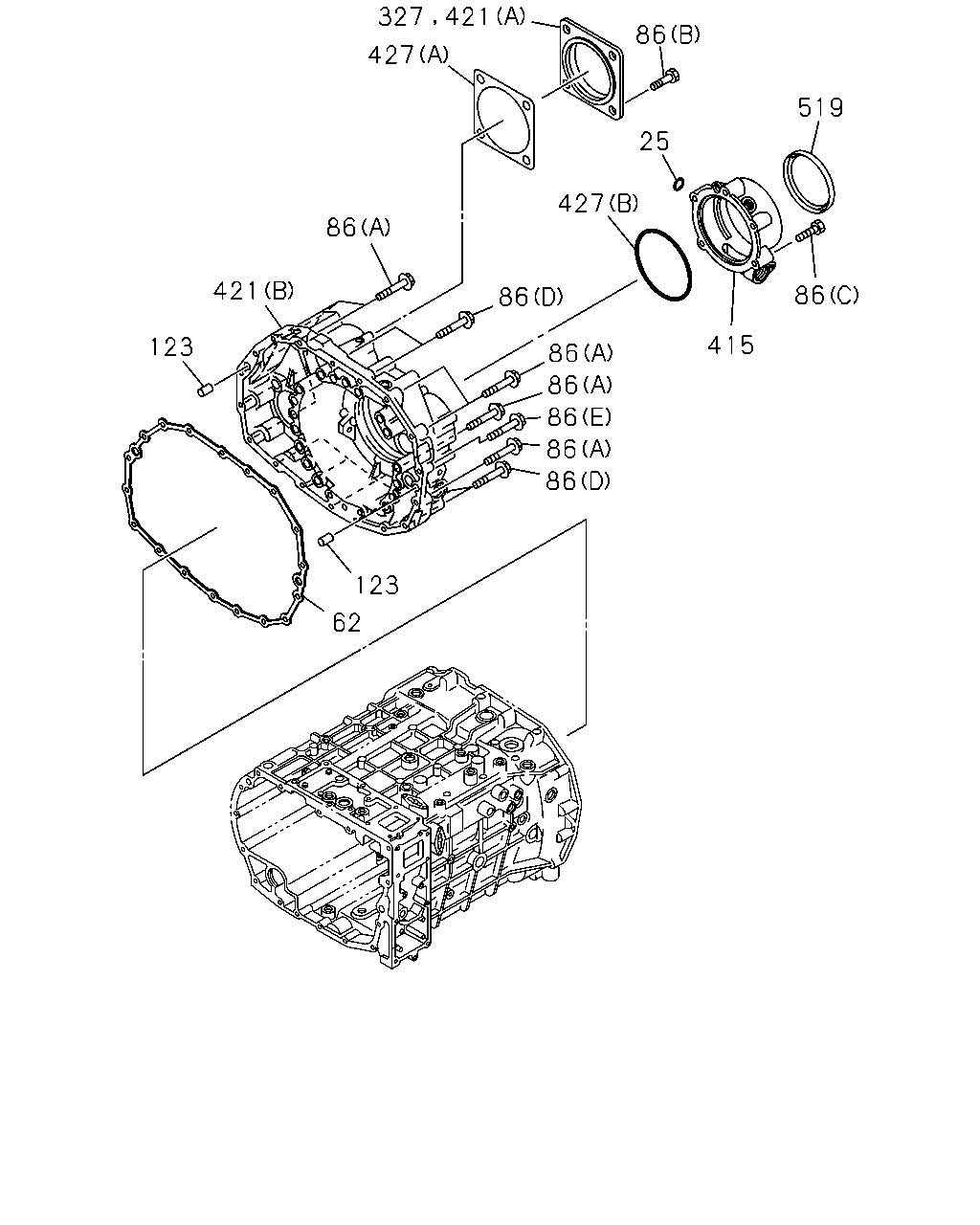

çizim 106797
327 421 427 86 25 427 519 86 415 86 86 421 123 62 123 86 86 86 86 86
BalonParca AdiParca NoAdetTipApplied Date
25 GASKET; COVER 1-33139-060-0 01 1 0809-
62 GASKET; RR COVER 1-33132-087-0 01 1 0809-
86 BOLT; RR COVER
(A) M10X70 		1-33119-522-0 12 1 0809-1305
86 BOLT; RR COVER
(A) M10X70 		1-33119-616-0 12 1 1306-
86 BOLT; RR COVER
(D) M10X110 		1-33139-057-0 05 1 0809-1305
86 BOLT; RR COVER
(D) M10X110 		1-33139-235-0 05 1 1306-
86 BOLT; RR COVER
(E) M10X50 		1-33139-058-0 01 1 0809-1305
86 BOLT; RR COVER
(E) M10X50 		1-33139-236-0 01 1 1306-
86 BOLT; RR COVER
(C) M10X60 		1-33139-118-0 05 1 0809-1305
86 BOLT; RR COVER
(C) M10X60 		1-33139-237-0 05 1 1306-
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (B) M12X25 		1-33119-400-0 04 1 0809-1305
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (B) M12X25 		1-33119-594-0 04 1 1306-
123 DOWEL; TRANS CASE 1-33119-292-0 04 1 0809-
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-273-0 01 1 1306-
415 COVER; BRG 1-33131-262-0 01 1 0809-1305
415 COVER; BRG 1-33131-269-0 01 1 1306-
421 COVER; RR,TRANS
(B) 		1-33131-261-0 01 1 0809-1305
421 COVER; RR,TRANS
(B) 		1-33131-275-0 01 1 1306-
421 COVER; RR,TRANS
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33131-165-0 01 1 0809-1305
427 GASKET; RR COVER
(B) 		1-33132-078-0 01 1 0809-1305
427 GASKET; RR COVER
(B) 		1-33132-088-0 01 1 1306-
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33132-054-0 01 1 0809-
519 GASKET; SHAFT 1-33139-059-0 01 1 0809-
çizim 107069
468 329 82 186 245 478 477 29 27 561 314 561 24 435 33 113 330 315 28 463 413 561 36 36 37 2 561 343 412
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; CLU 1-31111-183-0 01 1 0809-
24 COVER; CHECK HOLE,DUST 1-31119-024-0 01 1 0809-1305
24 COVER; CHECK HOLE,DUST 1-31119-059-0 01 1 1306-
27 BOLT; COVER TO CLU HSG 1-31119-025-0 04 1 0809-1305
27 BOLT; COVER TO CLU HSG 1-31119-058-0 04 1 1306-
28 COVER; FRT,TRANS CASE 1-33121-166-0 01 1 0809-
29 BOLT; FRT COVER
M8X30 		1-33549-172-0 06 1 0809-1305
29 BOLT; FRT COVER
M8X30 		1-33549-581-0 06 1 1306-
33 SEAL; OIL,FRT COVER,T/M 1-33219-321-0 01 1 0809-
36 BEARING; NEEDLE,CLU HSG 1-09811-396-0 04 1 0809-
37 SEAL; DUST,CLU HSG 1-09625-002-0 02 1 0809-1103
37 SEAL; DUST,CLU HSG 1-09625-002-0 02 1 1104-
82 PLUG; SCREW,CASE
(A) 		1-33119-171-0 01 1 0809-1305
82 PLUG; SCREW,CASE
(A) 		1-33119-619-0 01 1 1306-
82 PLUG; SCREW,CASE
(B) 		1-33119-268-0 02 1 0809-1305
82 PLUG; SCREW,CASE
(B) 		1-33119-620-0 02 1 1306-
82 PLUG; SCREW,CASE
(C) 		1-33119-285-0 02 1 0809-1305
82 PLUG; SCREW,CASE
(C) 		1-33119-618-0 02 1 1306-
113 GASKET; FRT COVER TO TRANS CASE 1-33122-024-0 01 1 0809-
186 RING; SEAL
(A) 		1-33119-249-0 01 1 0809-
186 RING; SEAL
(B) 		1-33119-286-0 02 1 0809-
186 RING; SEAL
(C) 		1-33119-435-0 02 1 0809-
245 PIPE; OIL 1-33119-517-0 01 1 0809-
314 GASKET; CASE 1-33112-052-0 01 1 0809-
315 BOLT; CASE
M10X70 		1-33119-522-0 17 1 0809-1305
315 BOLT; CASE
M10X70 		1-33119-616-0 17 1 1306-
329 PUMP ASM; OIL 1-34150-121-0 01 1 0809-1305
329 PUMP ASM; OIL 1-34150-123-0 01 1 1306-
330 RING; RET 1-33129-005-0 01 1 0809-
343 BOLT; CLU HSG TO PLATE
M10X75 FLANGE 		8-94399-669-1 01 1 0809-
412 CAP; CLU HSG 1-31119-026-0 01 1 0809-
413 BALL; CLU HSG 1-31119-014-0 04 1 0809-
435 CASE; TRANS
(B) 		1-33111-371-0 01 1 0809-
435 CASE; TRANS
(A) 		1-33111-373-0 01 1 0809-1305
435 CASE; TRANS
(A) 		1-33111-380-0 01 1 1306-
463 COVER; DUST,FRT COVER 1-33129-004-0 01 1 0809-1305
463 COVER; DUST,FRT COVER 1-33129-018-0 01 1 1306-
468 GASKET; OIL PUMP 1-34159-122-0 01 1 0809-
477 BOLT; OIL PUMP
M8X30 		1-33549-172-0 08 1 0809-1305
477 BOLT; OIL PUMP
M8X30 		1-33549-581-0 08 1 1306-
478 WASHER; LK,OIL PUMP 1-36129-007-0 08 1 0809-1305
478 WASHER; LK,OIL PUMP 1-33549-583-0 08 1 1306-
561 PLUG
(A) 		1-31119-044-0 02 1 0809-1305
561 PLUG
(B) 		1-31119-045-0 03 1 0809-1305
561 PLUG
(C) 		1-31119-046-0 02 1 0809-1305
561 PLUG
(D) 		1-31119-047-0 01 1 0809-1305

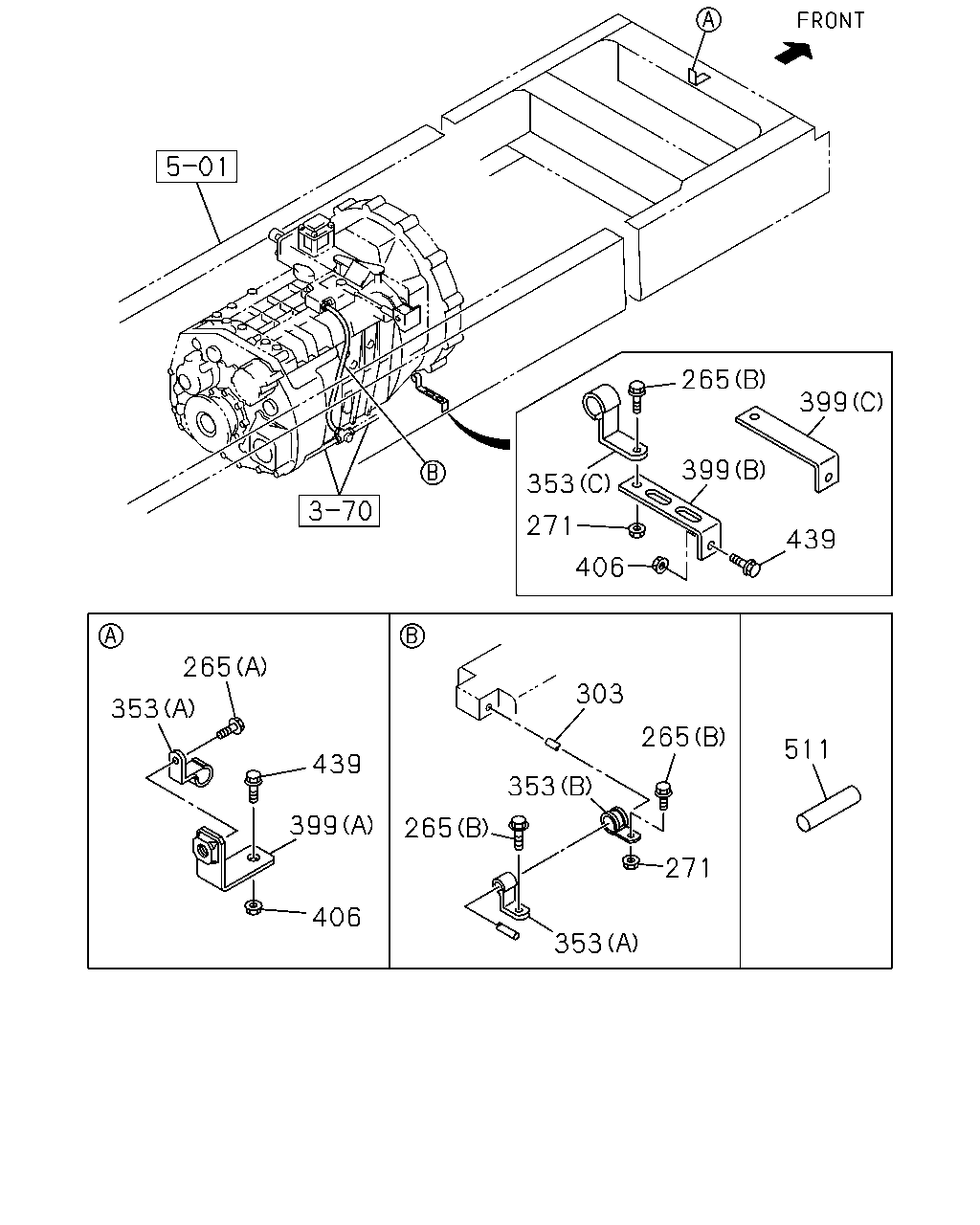

çizim 107126
265 399 399 353 271 439 406 265 303 353 265 511 439 353 399 265 271 406 353
BalonParca AdiParca NoAdetTipApplied Date
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
265 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0809-
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 03 1 0809-
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-
303 TUBE; NYLON
EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0901-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0809-
353 CLIP; NYLON TUBE
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0903-
353 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0809-0902
353 CLIP; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28 		1-09701-067-0 01 1 0903-
353 CLIP; NYLON TUBE
(A) ID=11 L=20 		0-95235-035-0 01 1 0809-
353 CLIP; NYLON TUBE
(A) ID=11 L=20 		0-95235-035-0 03 1 0809-
353 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 02 1 0809-
399 BRACKET; CLIP
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-47479-598-0 01 1 0809-0902
399 BRACKET; CLIP
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=95 		1-82699-085-0 01 1 0903-
399 BRACKET; CLIP
ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98085-674-0 01 1 0809-
406 NUT; BRKT
EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 01 1 0809-
406 NUT; BRKT
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 02 1 0809-
439 BOLT; BRKT
EXC. ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 01 1 0809-
439 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 02 1 0809-
511 TUBE; CORRUGATE
EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0901-
çizim 187389
1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		8-98113-658-1 01 1 0809-
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		8-98113-657-1 01 1 0809-
