2-05 — CLUTCH PIPING (#67675) — 108 parça

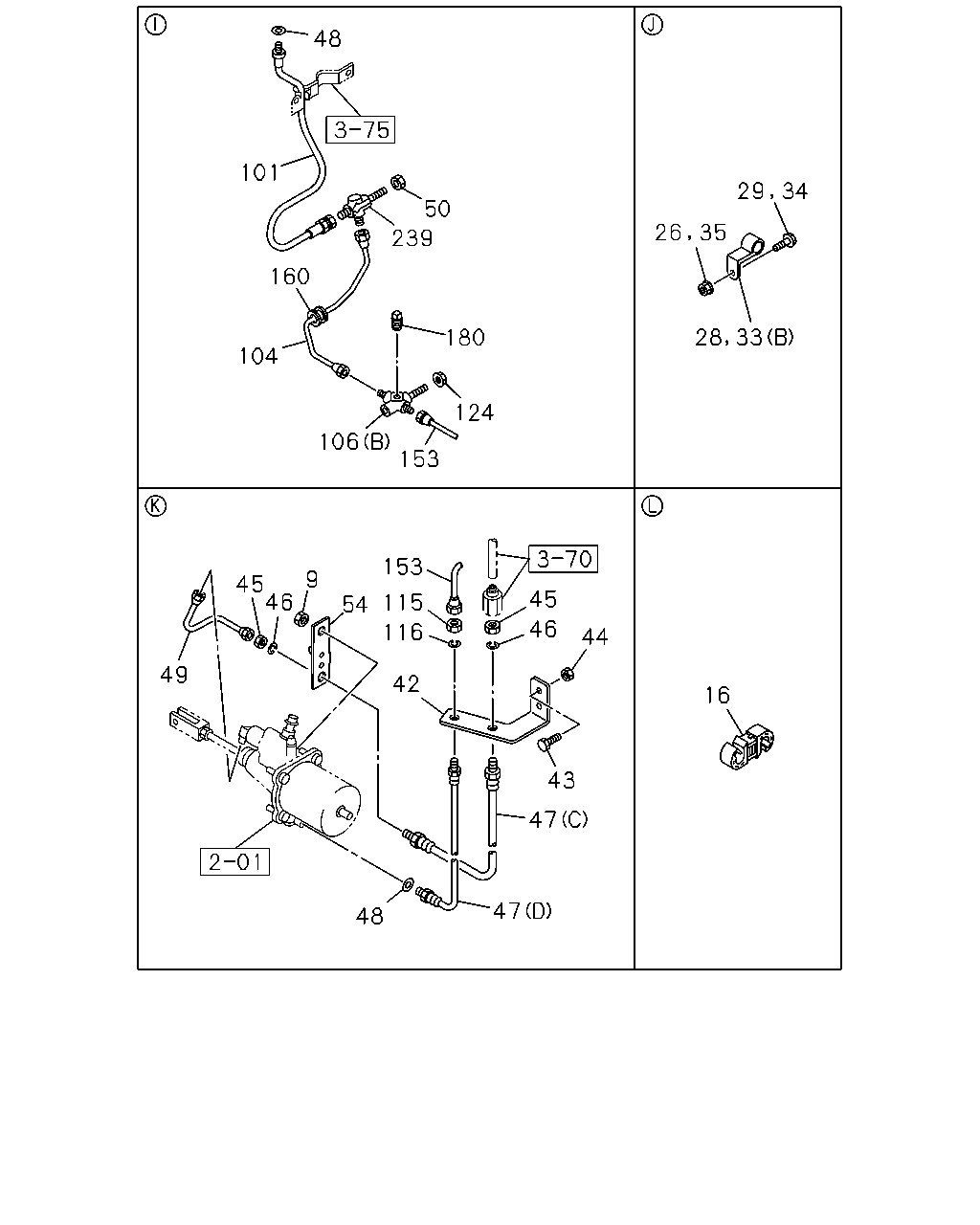

48 101 50 239 160 180 104 124 106 153 153 9 45 46 45 115 54 46 116 44 49 42 16 43 47 47 48 29 34 26 35 28 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-208-0	02	1	0809-	●	●
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	0809-	●	●
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0809-	●	●
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	03	1	0809-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0812-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	03	1	0809-0811	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0809-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0809-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0809-	●	●
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	0809-	●	●
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0809-	●	●
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	0809-	●	●
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0809-	●	●
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0809-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0809-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0809-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0809-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	0809-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	02	1	0809-1009	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-812-0	02	1	1010-1011	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0809-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0809-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0809-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0809-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0809-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	0809-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	0809-	●	●
50	NUT; UNION M12	0-91111-512-0	01	1	0809-	●	●
54	BRACKET; AIR,FLEX HOSE FULLER FSO5206B OD M/T(Y4V)	1-47475-372-0	01	1	0809-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=500	8-98072-350-0	01	1	0809-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=533 SERVICED BY L=550	1-47428-753-0	01	1	0809-	●	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	0809-	●	●
106	UNION; OIL PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0809-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0809-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0809-1011	●	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0809-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0809-0907	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0809-	●	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-	●	●
180	PLUG; PIPE PT1/4	9-99204-513-0	01	1	0809-	●	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	0809-	●	●

109 47 131 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0809-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0809-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0809-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0809-	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	0809-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0809-0907	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0809-	●	●

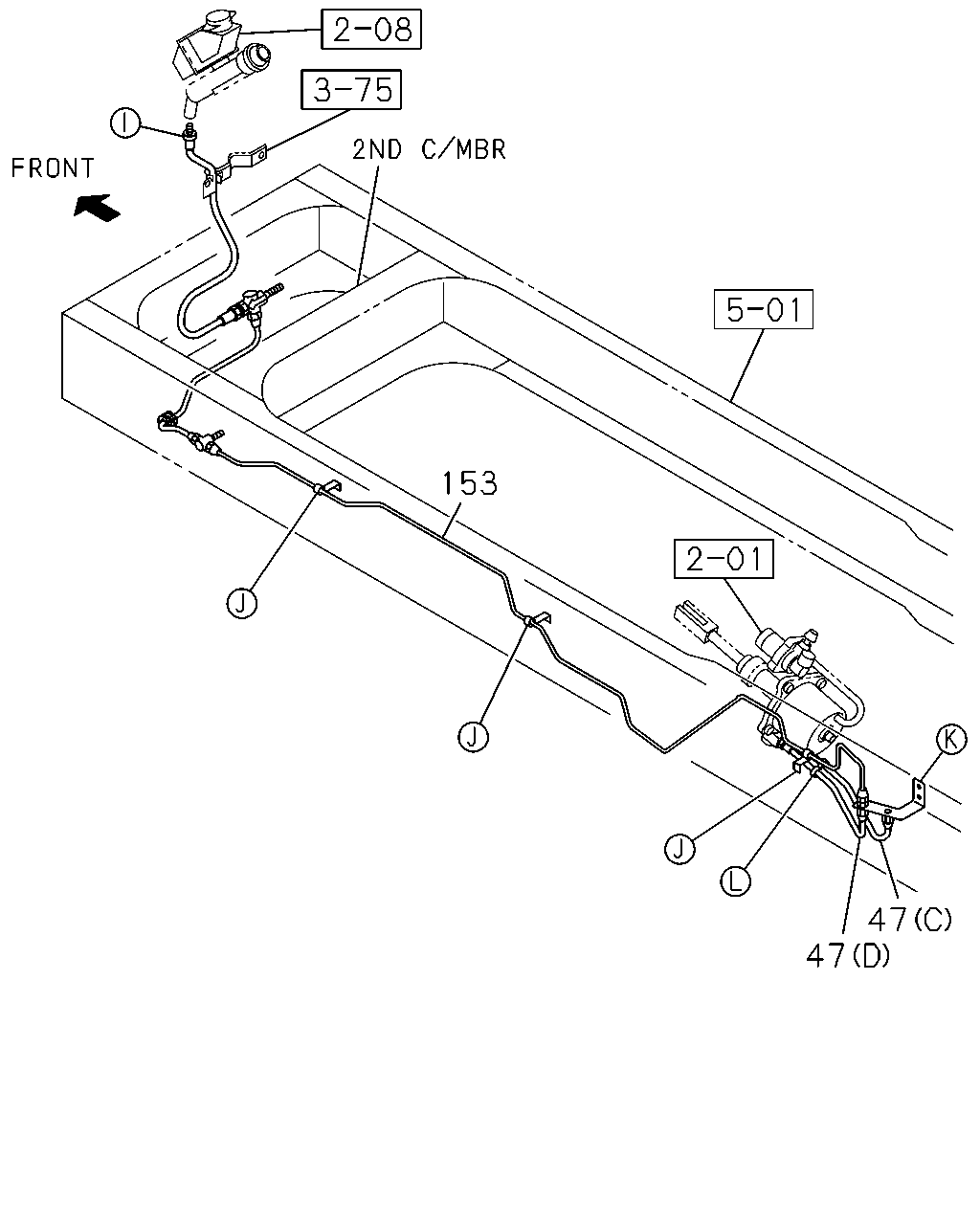

153 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0809-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0809-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0809-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0809-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0809-0907	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0809-	●	●

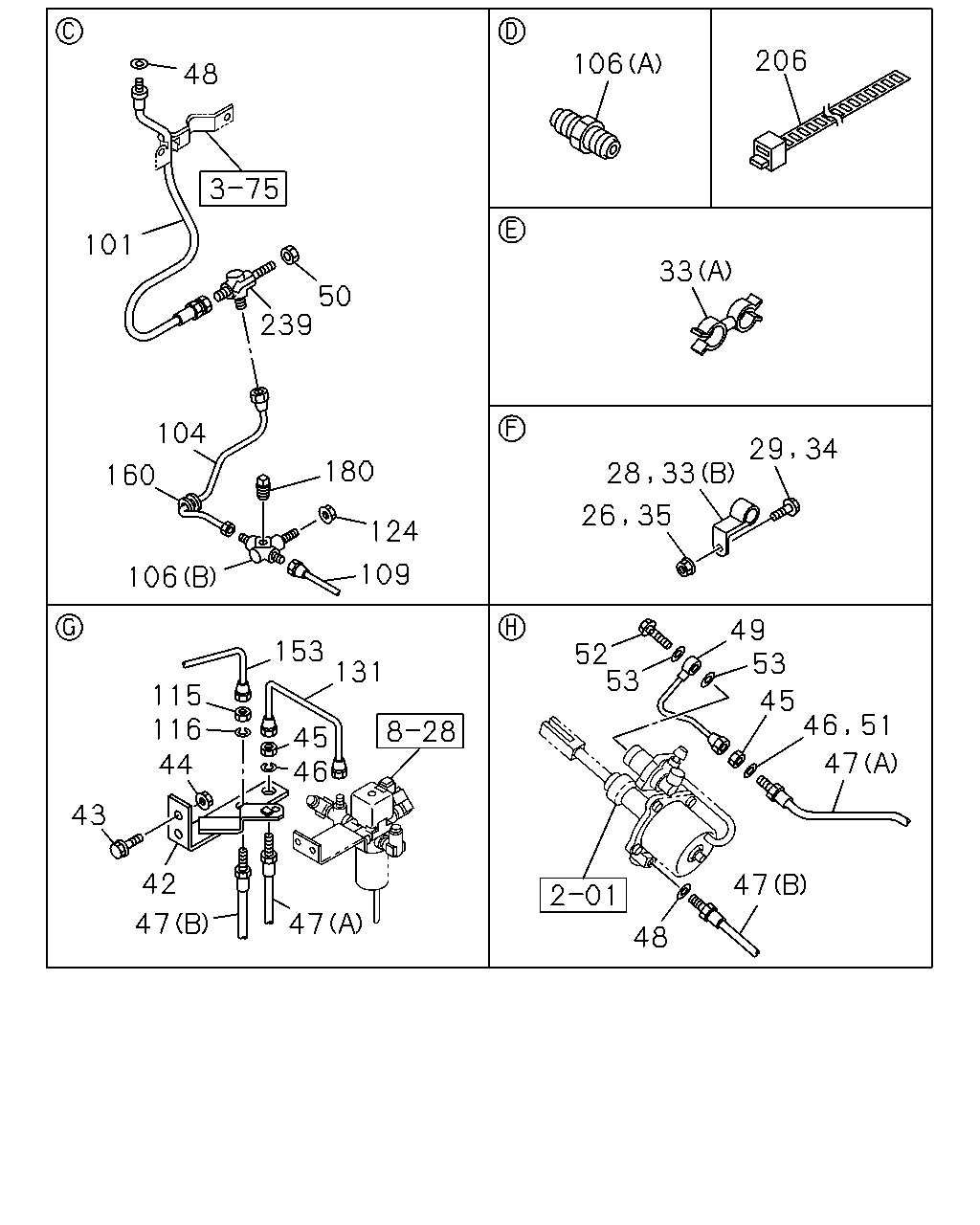

206 106 48 101 33 50 239 104 180 160 124 109 106 49 53 153 52 53 131 115 116 44 45 45 46 47 43 42 47 47 47 48 46 51 26 35 28 33 29 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0809-	●	●
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	03	1	0809-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0812-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	03	1	0809-0811	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0809-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0809-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0809-	●	●
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	0809-	●	●
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0809-	●	●
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	0809-	●	●
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0809-	●	●
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0809-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0809-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0809-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0809-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	0809-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	02	1	0809-1009	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-812-0	02	1	1010-1011	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0809-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0809-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0809-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0809-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0809-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	0809-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	0809-	●	●
50	NUT; UNION M12	0-91111-512-0	01	1	0809-	●	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1012-	●	●
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0809-	●	●
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=500	8-98072-350-0	01	1	0809-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=533 SERVICED BY L=550	1-47428-753-0	01	1	0809-	●	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	0809-	●	●
106	UNION; OIL PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0809-	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	0809-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0809-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0809-1011	●	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0809-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0809-0907	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0809-	●	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-	●	●
180	PLUG; PIPE PT1/4	9-99204-513-0	01	1	0809-	●	●
206	CLIP; TUBE FULLER FSO5206B OD M/T(Y4V) L=350	1-09707-183-0	01	1	0812-	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	0809-	●	●
