1-56 — EXHAUST BRAKE SYSTEM (#67671) — 88 parça

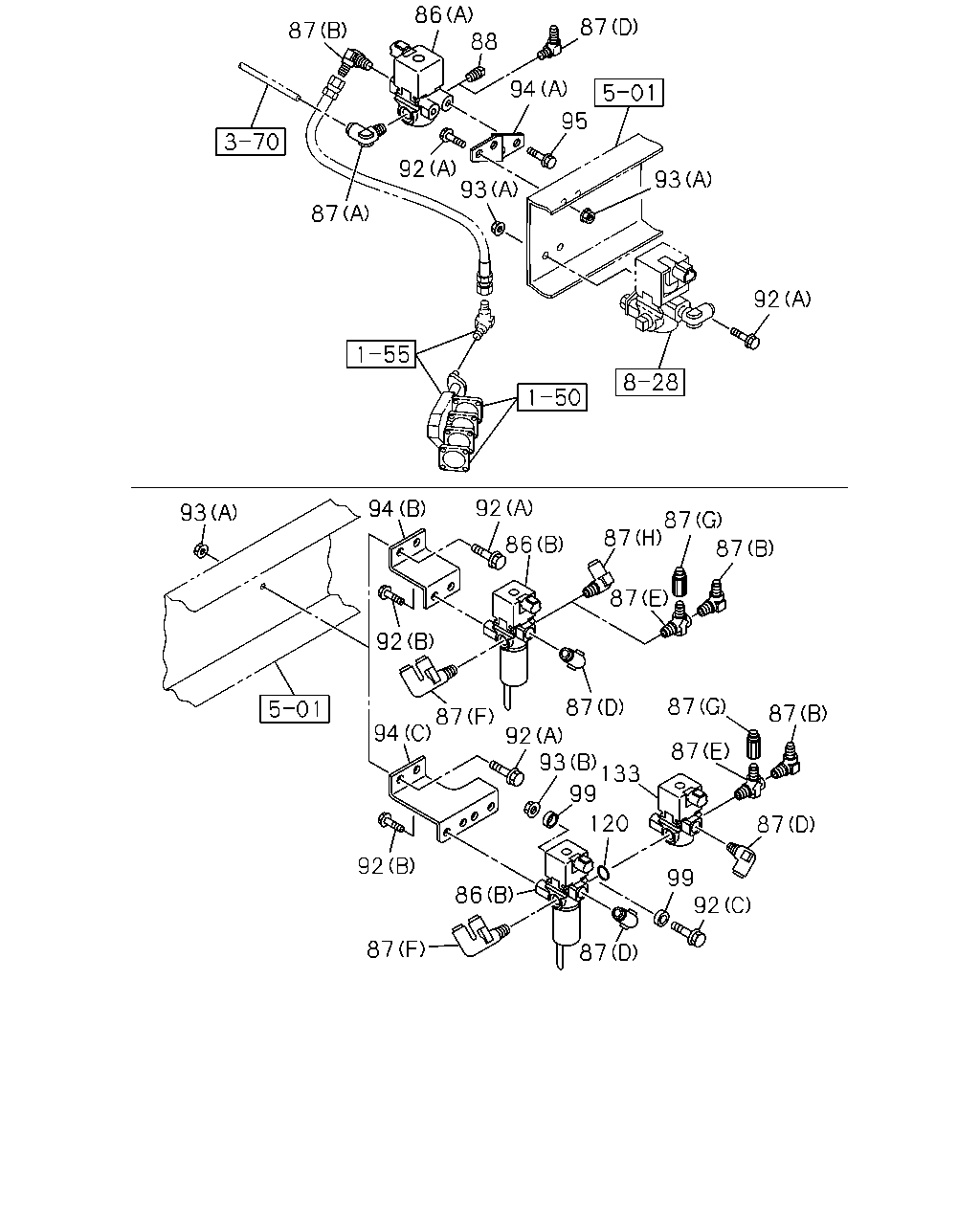

çizim 187379
95 94 88 86 87 92 87 93 93 92 87 87 87 86 92 94 93 92 87 92 94 93 133 87 87 87 87 87 120 99 92 99 87 86 87 92 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0809- ● ●
87 CONNECTOR
FULLER FSO5206B OD M/T(Y4V) (F) 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (F) 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
FULLER FSO5206B OD M/T(Y4V) (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809-1111 ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1111 ● ●
87 CONNECTOR
FULLER FSO5206B OD M/T(Y4V) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1111 ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1111 ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0809- ● ●
88 PLUG
FVR AIR SUS(FGD***) PT1/4 		9-99204-513-0 01 1 0809- ● ●
88 PLUG
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) PT1/4 		9-99204-513-0 01 1 0809- ● ●
92 BOLT; MAG VLV
FULLER FSO5206B OD M/T(Y4V) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8X30 FLANGE 		0-28650-830-0 02 1 0809- ● ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0809- ● ●
93 NUT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0809- ● ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 02 1 0809- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) (B) 		1-47471-374-1 01 1 0809-1004 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) (B) 		8-98154-633-0 01 1 1005-1111 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FULLER FSO5206B OD M/T(Y4V) (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) (A) 		8-98057-863-0 01 1 0809- ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0809- ● ●
99 WASHER; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ● ●
120 GASKET; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ● ●
133 VALVE; MAG,PTO CONT
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112- ● ●

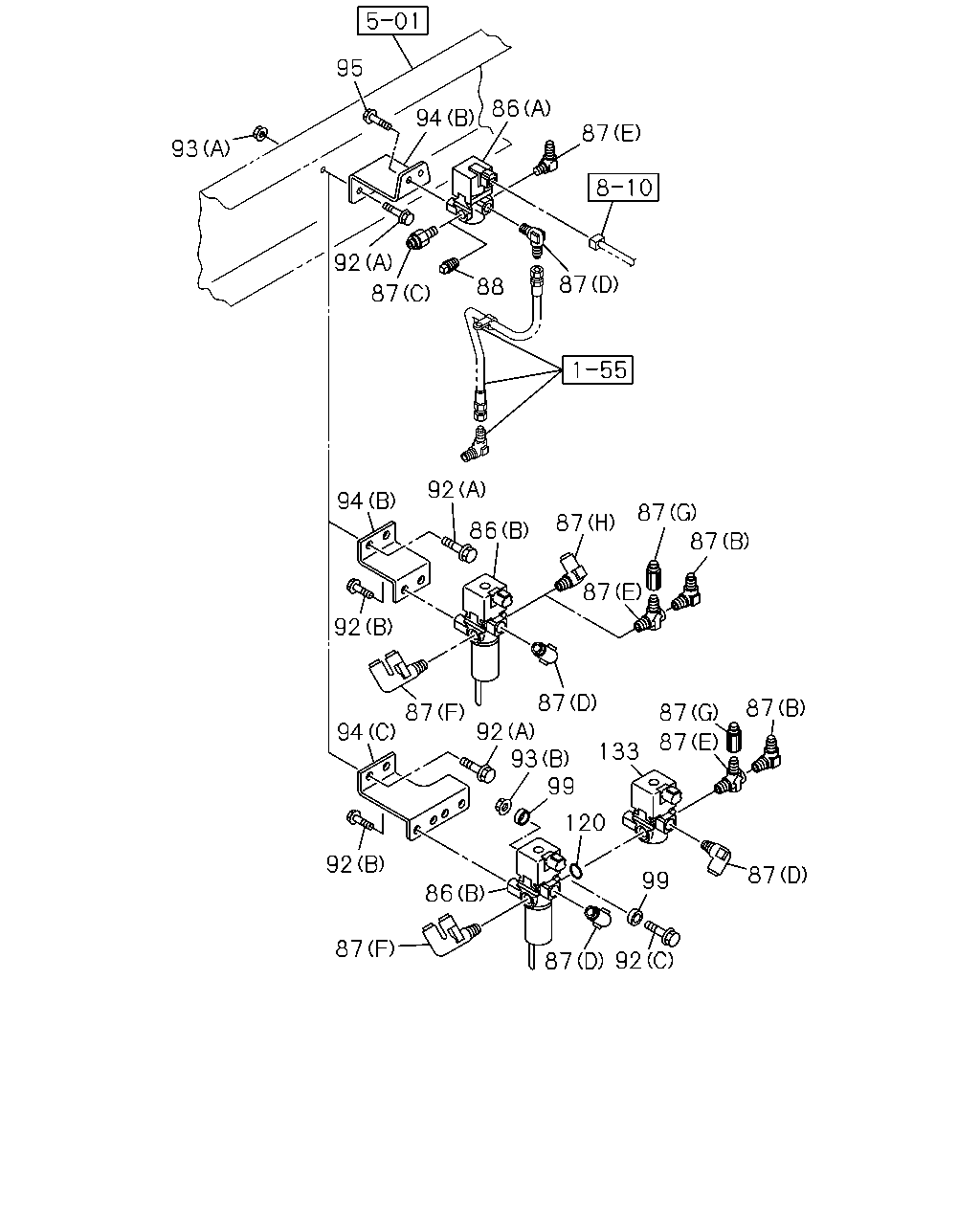

çizim 187382
95 86 94 87 93 92 87 88 87 92 94 87 87 87 86 87 92 87 87 87 94 87 92 93 99 87 133 120 92 87 99 86 87 92 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0809- ● ●
87 CONNECTOR
FULLER FSO5206B OD M/T(Y4V) (F) 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (F) 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
FULLER FSO5206B OD M/T(Y4V) (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809-1111 ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1111 ● ●
87 CONNECTOR
FULLER FSO5206B OD M/T(Y4V) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1111 ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1111 ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0809- ● ●
88 PLUG
FVR AIR SUS(FGD***) PT1/4 		9-99204-513-0 01 1 0809- ● ●
88 PLUG
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) PT1/4 		9-99204-513-0 01 1 0809- ● ●
92 BOLT; MAG VLV
FULLER FSO5206B OD M/T(Y4V) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8X30 FLANGE 		0-28650-830-0 02 1 0809- ● ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0809- ● ●
93 NUT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0809- ● ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 02 1 0809- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) (B) 		1-47471-374-1 01 1 0809-1004 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) (B) 		8-98154-633-0 01 1 1005-1111 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FULLER FSO5206B OD M/T(Y4V) (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) (A) 		8-98057-863-0 01 1 0809- ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0809- ● ●
99 WASHER; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ● ●
120 GASKET; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ● ●
133 VALVE; MAG,PTO CONT
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112- ● ●
