◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10781 - FTR(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#6767) — 41 parça

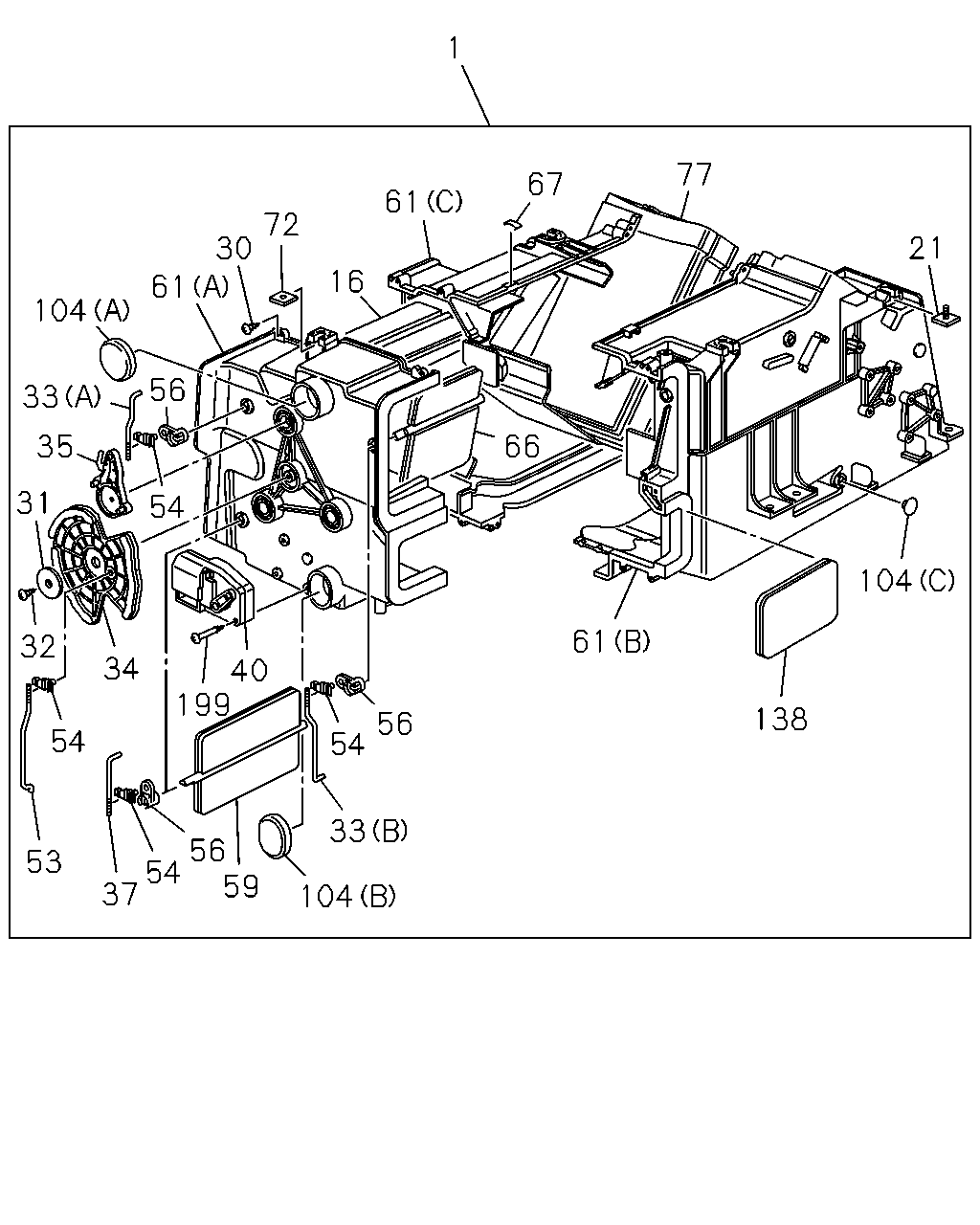

çizim 42839
1 77 67 61 72 30 21 16 61 104 56 33 66 35 31 54 104 61 32 34 40 199 138 56 54 54 33 56 54 59 37 53 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT 1-83511-139-3 01 1 0011- ● ●
5 SCREW; BRKT
M4X16 THA 		8-94324-850-0 01 1 0012- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0011- ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0011- ● ●
30 SCREW; HTR UNIT
M4X16 THA 		8-94324-850-0 12 1 0011-0011 ● ●
30 SCREW; HTR UNIT
M4X16 THA 		8-94324-850-0 11 1 0012- ● ●
31 WASHER; HTR UNIT
THA 		8-94129-950-0 01 1 0011- ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 02 1 0011- ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0011- ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0011-0011 ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0011- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0011-0011 ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 02 1 0012- ● ●
37 ROD; LEVER 1-83579-620-1 01 1 0011- ● ●
40 ACTUATOR; HTR UNIT 1-83579-649-1 01 1 0011- ● ●
53 ROD; SHUTTER LEVER 1-83579-622-0 01 1 0011- ● ●
54 CLIP; SHUTTER LEVER 1-83579-488-0 04 1 0011-0011 ● ●
54 CLIP; SHUTTER LEVER
THA 		8-94248-794-0 03 1 0012- ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0011-0011 ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 02 1 0012- ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0011- ● ●
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 0011-0011 ● ●
61 CASE; HTR UNIT 1-83564-401-0 01 1 0012- ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0011- ● ●
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 0011-0011 ● ●
61 CASE; HTR UNIT 1-83564-402-0 01 1 0012- ● ●
63 LINING; HTR UNIT 1-83578-033-0 01 1 0012- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 0011- ● ●
67 CLIP; HTR UNIT
THA 		1-83574-148-0 01 1 0011- ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0011- ● ●
76 BRACKET; HTR UNIT 1-83573-194-0 01 1 0012- ● ●
77 COVER; HTR CASE 1-83579-802-0 01 1 0011-0011 ● ●
77 COVER; HTR CASE
THA 		8-97102-661-0 01 1 0012- ● ●
104 CAP; CASE,HTR UNIT
(A) 		1-83579-617-0 01 1 0011- ● ●
104 CAP; CASE,HTR UNIT
(B) 		1-83579-618-0 01 1 0011- ● ●
104 CAP; CASE,HTR UNIT
(C) THA 		8-94328-657-0 04 1 0011- ● ●
104 CAP; CASE,HTR UNIT
THA 		8-94387-703-0 01 1 0012- ● ●
132 BRACKET; HTR CORE 1-83573-195-0 01 1 0012- ● ●
138 COVER; HTR CASE 1-83579-599-2 01 1 0011-0011 ● ●
142 LEVER; ACTUATOR 1-83564-345-1 01 1 0012- ● ●
199 SCREW; ACTUATOR 8-94348-809-0 02 1 0011- ● ●
