Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#67669) — 606 parça

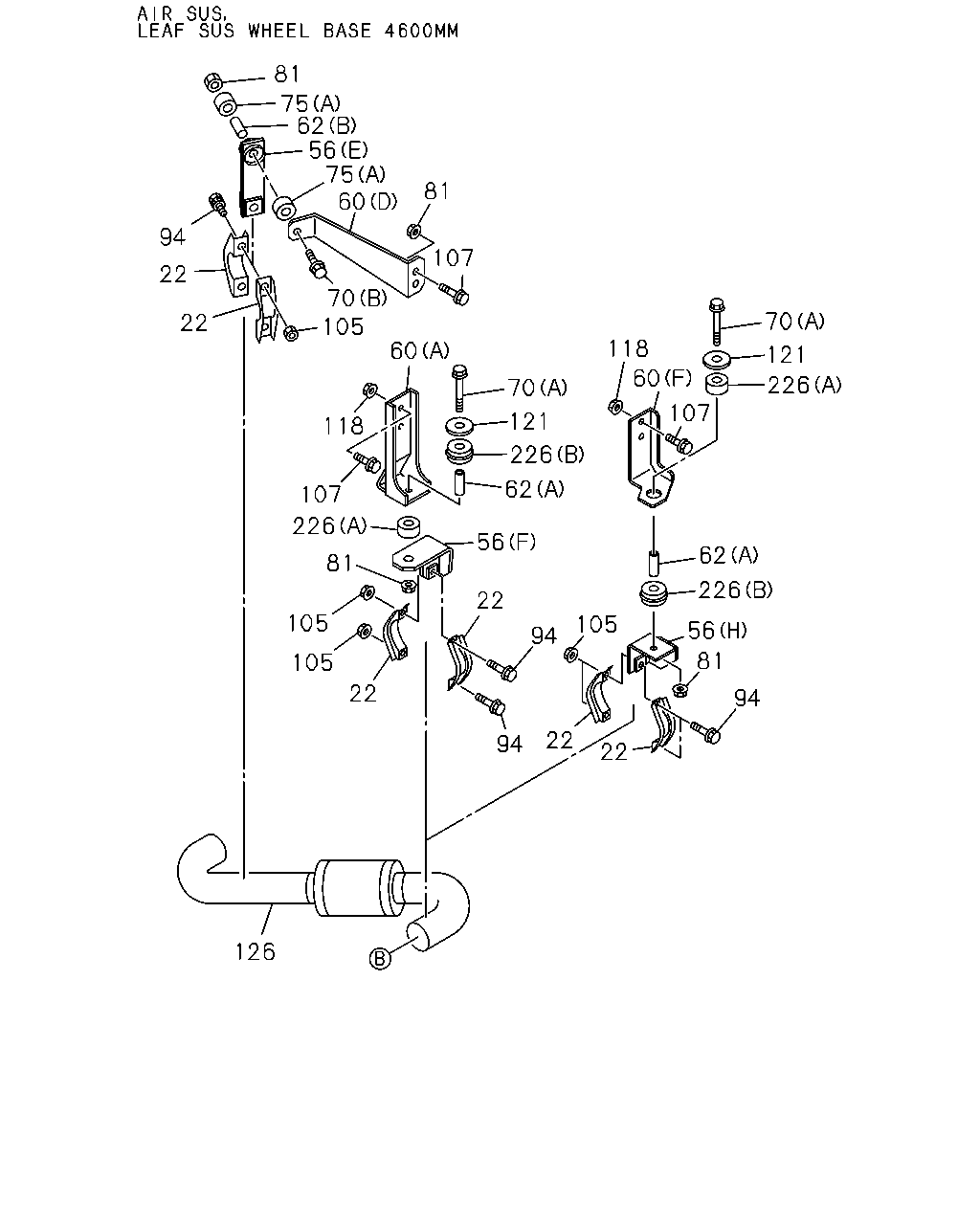

81 62 75 56 60 75 107 81 94 22 22 105 70 60 118 70 226 121 118 107 60 70 226 121 62 226 56 81 22 94 22 94 94 105 56 22 105 22 105 226 62 107 81 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0809-	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0809-	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0809-	●
22	CLAMP; EXH PIPE WHEEL BASE 4600MM(46W) ID=80-84	1-22133-233-0	02	1	0809-		●
22	CLAMP; EXH PIPE WHEEL BASE 4600MM(46W) ID=80-84	1-22133-233-0	02	1	0809-		●
56	BRACKET; CLAMP,EXH PIPE (G) L=94	1-22131-575-0	01	1	0809-	●
56	BRACKET; CLAMP,EXH PIPE (E) L=204	1-22131-520-1	01	1	0809-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W) (E) L=204	1-22131-520-1	01	1	0809-		●
56	BRACKET; CLAMP,EXH PIPE (F)	8-98070-639-0	01	1	0809-1301	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W) (F)	8-98070-639-0	01	1	0809-1301		●
56	BRACKET; CLAMP,EXH PIPE (H)	8-98233-450-0	01	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W) (H)	8-98233-450-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	0809-	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98072-104-0	01	1	0809-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3900MM(39W) (C)	8-98071-227-0	01	1	0809-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3900MM(39W) (D)	8-98071-231-0	01	1	0809-		●
60	BRACKET; FRAME TO BRKT (F)	8-98233-451-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4600MM(46W) (F)	8-98233-451-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (E)	8-98098-129-0	01	1	0809-	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1301	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1301	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4600MM(46W) (A)	8-98070-628-0	01	1	0809-1301		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1302-1309	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1302-1309	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT (D)	8-98070-641-0	01	1	0809-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4600MM(46W) (D)	8-98070-641-0	01	1	0809-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3900MM(39W) (C)	8-98071-228-0	01	1	0809-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3900MM(39W) (B)	8-98072-708-0	01	1	0809-		●
62	TUBE; DIST,BRKT WHEEL BASE 3900MM(39W) (A)	8-98060-852-0	02	1	0906-		●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0906	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0906	●
62	TUBE; DIST,BRKT WHEEL BASE 4600MM(46W) (B) L=22	1-22159-392-0	01	1	0809-0906		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-	●
62	TUBE; DIST,BRKT WHEEL BASE 4600MM(46W) (B) L=22	9-22159-024-0	01	1	0907-		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0809-0905	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0809-0905	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0809-0905	●	●
62	TUBE; DIST,BRKT WHEEL BASE 3900MM(39W) (A)	8-98060-852-0	01	1	0809-0905		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0906-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0906-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0906-	●
62	TUBE; DIST,BRKT WHEEL BASE 4600MM(46W) (A)	8-98060-852-0	01	1	0906-		●
70	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE	0-28051-070-0	02	1	0906-		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-	●
70	BOLT; BRKT WHEEL BASE 4600MM(46W) (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905	●	●
70	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-	●
70	BOLT; BRKT WHEEL BASE 4600MM(46W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-		●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-094-0	02	1	0809-	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-193-0	02	1	0809-	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4600MM(46W) (A) OD=40	1-22159-193-0	02	1	0809-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●
81	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	0906-		●
81	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	0906-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-0810	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-0810	●
81	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	02	1	0809-0810		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0811-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0811-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-	●	●
81	NUT; BRKT WHEEL BASE 3900MM(39W) M10 FLANGE	0-91180-210-0	02	1	0906-		●
81	NUT; BRKT WHEEL BASE 3900MM(39W) M10 FLANGE	0-91180-210-0	04	1	0809-0810		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0809-	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0809-	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0809-	●
94	BOLT; CLAMP WHEEL BASE 4600MM(46W) M10X40 FLANGE	0-28651-040-0	02	1	0809-		●
94	BOLT; CLAMP WHEEL BASE 4600MM(46W) M10X40 FLANGE	0-28651-040-0	02	1	0809-		●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0809-	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0809-	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0809-	●
105	NUT; CLAMP WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	02	1	0809-		●
105	NUT; CLAMP WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	02	1	0809-		●
107	BOLT; BRKT WHEEL BASE 3900MM(39W) M10X40 FLANGE	0-28651-040-0	02	1	0911-		●
107	BOLT; BRKT WHEEL BASE 3900MM(39W) M10X40 FLANGE	0-28651-040-0	02	1	0911-		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-0910	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-0910	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0911-	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0911-	●
107	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X35 FLANGE	0-28651-035-0	02	1	0911-		●
107	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X35 FLANGE	0-28651-035-0	02	1	0911-		●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0809-	●	●
118	NUT; SILENCER MTG BRKT WHEEL BASE 3900MM(39W) M10 FLANGE	0-91180-210-0	02	1	0809-		●
121	WASHER; PL,BRKT WHEEL BASE 3900MM(39W) ID=8.4 OD=22	1-09503-154-2	02	1	0906-		●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0809-0905	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0809-0905	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0809-0905	●	●
121	WASHER; PL,BRKT WHEEL BASE 3900MM(39W) ID=8.4 OD=22	1-09503-154-2	01	1	0809-0905		●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0906-	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0906-	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0906-	●
121	WASHER; PL,BRKT WHEEL BASE 4600MM(46W) ID=8.4 OD=22	1-09503-154-2	01	1	0906-		●
126	PIPE; EXH,RR	1-22126-646-2	01	1	0809-1301	●
126	PIPE; EXH,RR WHEEL BASE 4600MM(46W)	1-22126-646-2	01	1	0809-1301		●
126	PIPE; EXH,RR	8-98233-519-0	01	1	1302-	●
126	PIPE; EXH,RR WHEEL BASE 4600MM(46W)	8-98233-519-0	01	1	1302-		●
226	RUBBER; CUSHION WHEEL BASE 3900MM(39W) (A)	8-94457-277-1	02	1	0906-		●
226	RUBBER; CUSHION WHEEL BASE 3900MM(39W) (B)	8-94457-278-1	02	1	0906-		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION WHEEL BASE 3900MM(39W) (A)	8-94457-277-1	01	1	0809-0905		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-	●
226	RUBBER; CUSHION WHEEL BASE 4600MM(46W) (A)	8-94457-277-1	01	1	0906-		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION WHEEL BASE 3900MM(39W) (B)	8-94457-278-1	01	1	0809-0905		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-	●
226	RUBBER; CUSHION WHEEL BASE 4600MM(46W) (B)	8-94457-278-1	01	1	0906-		●

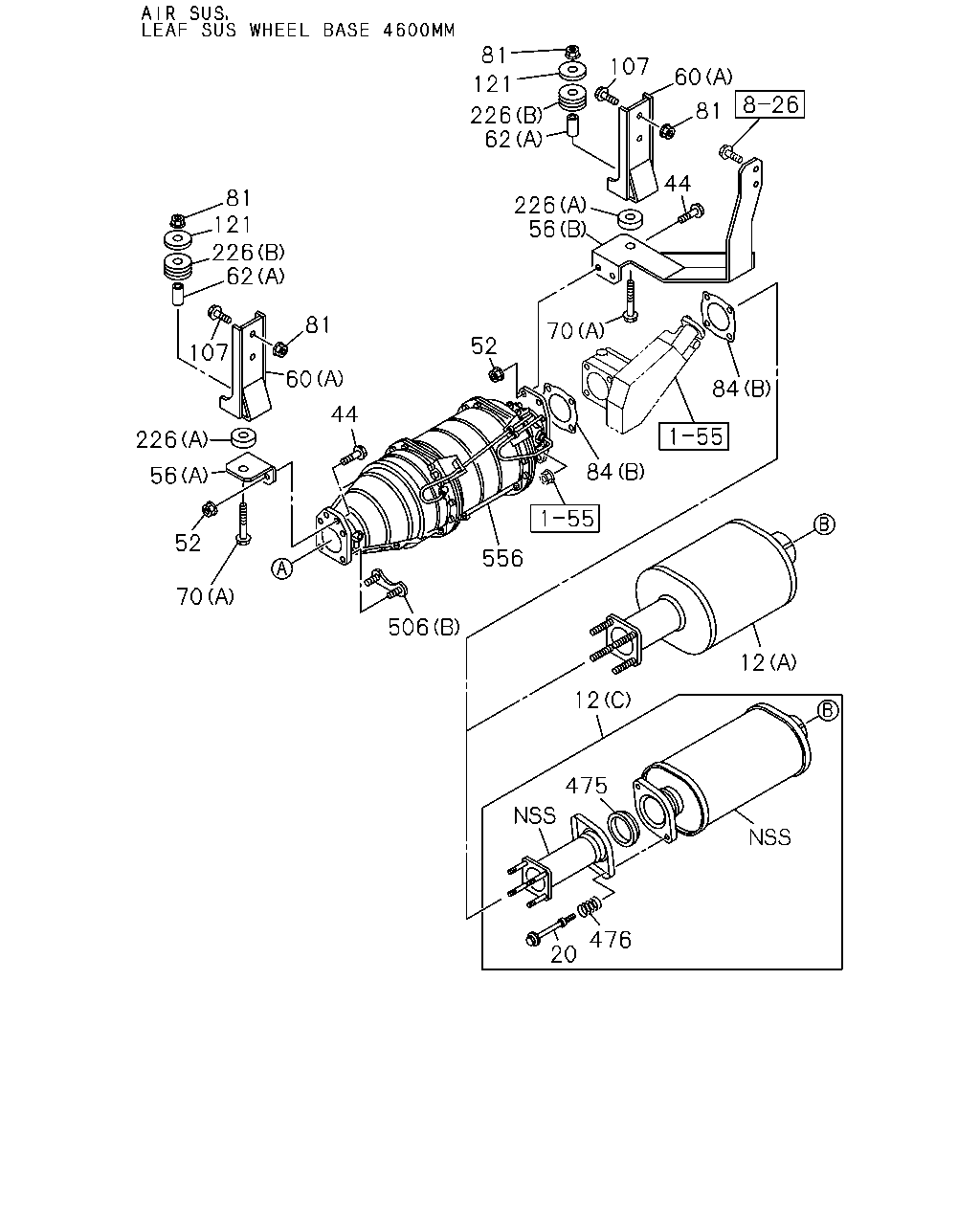

20 475 476 12 12 556 506 84 84 70 52 44 70 52 56 226 62 107 81 60 81 226 121 56 226 62 226 121 81 107 44 81 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH (A)	8-98041-925-1	01	1	0809-1301	●
12	SILENCER ASM; EXH WHEEL BASE 4600MM(46W) (A)	8-98041-925-1	01	1	0809-1301		●
12	SILENCER ASM; EXH (C)	8-98234-507-0	01	1	1302-	●
12	SILENCER ASM; EXH WHEEL BASE 4600MM(46W) (C)	8-98234-507-0	01	1	1302-		●
12	SILENCER ASM; EXH WHEEL BASE 3900MM(39W) (B)	8-98070-098-2	01	1	0809-		●
20	BOLT; FLANGE,EXH PIPE	8-98233-481-0	02	1	1302-	●
20	BOLT; FLANGE,EXH PIPE WHEEL BASE 4600MM(46W)	8-98233-481-0	02	1	1302-		●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	08	1	0809-	●	●
44	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0809-0907		●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0908-		●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0809-	●	●
56	BRACKET; CLAMP,EXH PIPE (G) L=94	1-22131-575-0	01	1	0809-	●
56	BRACKET; CLAMP,EXH PIPE (E) L=204	1-22131-520-1	01	1	0809-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W) (E) L=204	1-22131-520-1	01	1	0809-		●
56	BRACKET; CLAMP,EXH PIPE (F)	8-98070-639-0	01	1	0809-1301	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W) (F)	8-98070-639-0	01	1	0809-1301		●
56	BRACKET; CLAMP,EXH PIPE (H)	8-98233-450-0	01	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W) (H)	8-98233-450-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	0809-	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98072-104-0	01	1	0809-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3900MM(39W) (C)	8-98071-227-0	01	1	0809-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3900MM(39W) (D)	8-98071-231-0	01	1	0809-		●
60	BRACKET; FRAME TO BRKT (F)	8-98233-451-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4600MM(46W) (F)	8-98233-451-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (E)	8-98098-129-0	01	1	0809-	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1301	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1301	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4600MM(46W) (A)	8-98070-628-0	01	1	0809-1301		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1302-1309	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1302-1309	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT (D)	8-98070-641-0	01	1	0809-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4600MM(46W) (D)	8-98070-641-0	01	1	0809-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3900MM(39W) (C)	8-98071-228-0	01	1	0809-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3900MM(39W) (B)	8-98072-708-0	01	1	0809-		●
62	TUBE; DIST,BRKT WHEEL BASE 3900MM(39W) (A)	8-98060-852-0	02	1	0906-		●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0906	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0906	●
62	TUBE; DIST,BRKT WHEEL BASE 4600MM(46W) (B) L=22	1-22159-392-0	01	1	0809-0906		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-	●
62	TUBE; DIST,BRKT WHEEL BASE 4600MM(46W) (B) L=22	9-22159-024-0	01	1	0907-		●

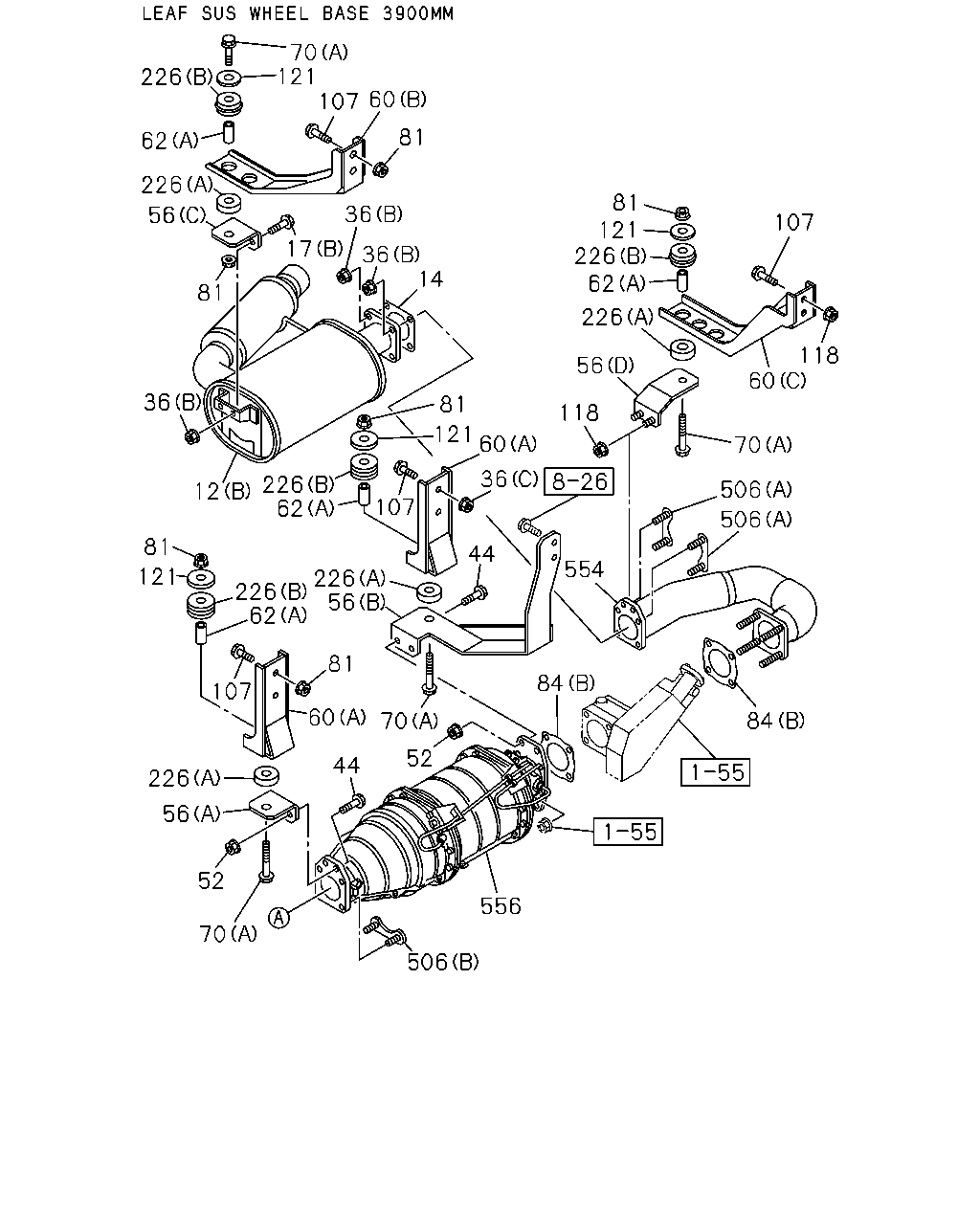

62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0809-0905	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0809-0905	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0809-0905	●	●
62	TUBE; DIST,BRKT WHEEL BASE 3900MM(39W) (A)	8-98060-852-0	01	1	0809-0905		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0906-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0906-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0906-	●
62	TUBE; DIST,BRKT WHEEL BASE 4600MM(46W) (A)	8-98060-852-0	01	1	0906-		●
70	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE	0-28051-070-0	02	1	0906-		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-	●
70	BOLT; BRKT WHEEL BASE 4600MM(46W) (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905	●	●
70	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-	●
70	BOLT; BRKT WHEEL BASE 4600MM(46W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●
81	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	0906-		●
81	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	0906-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-0810	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-0810	●
81	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	02	1	0809-0810		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0811-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0811-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-	●	●
81	NUT; BRKT WHEEL BASE 3900MM(39W) M10 FLANGE	0-91180-210-0	02	1	0906-		●
81	NUT; BRKT WHEEL BASE 3900MM(39W) M10 FLANGE	0-91180-210-0	04	1	0809-0810		●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0809-	●	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	02	1	0809-	●	●
107	BOLT; BRKT WHEEL BASE 3900MM(39W) M10X40 FLANGE	0-28651-040-0	02	1	0911-		●
107	BOLT; BRKT WHEEL BASE 3900MM(39W) M10X40 FLANGE	0-28651-040-0	02	1	0911-		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-0910	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-0910	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0911-	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0911-	●
107	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X35 FLANGE	0-28651-035-0	02	1	0911-		●
107	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X35 FLANGE	0-28651-035-0	02	1	0911-		●
121	WASHER; PL,BRKT WHEEL BASE 3900MM(39W) ID=8.4 OD=22	1-09503-154-2	02	1	0906-		●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0809-0905	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0809-0905	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0809-0905	●	●
121	WASHER; PL,BRKT WHEEL BASE 3900MM(39W) ID=8.4 OD=22	1-09503-154-2	01	1	0809-0905		●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0906-	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0906-	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0906-	●
121	WASHER; PL,BRKT WHEEL BASE 4600MM(46W) ID=8.4 OD=22	1-09503-154-2	01	1	0906-		●
226	RUBBER; CUSHION WHEEL BASE 3900MM(39W) (A)	8-94457-277-1	02	1	0906-		●
226	RUBBER; CUSHION WHEEL BASE 3900MM(39W) (B)	8-94457-278-1	02	1	0906-		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION WHEEL BASE 3900MM(39W) (A)	8-94457-277-1	01	1	0809-0905		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-	●
226	RUBBER; CUSHION WHEEL BASE 4600MM(46W) (A)	8-94457-277-1	01	1	0906-		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION WHEEL BASE 3900MM(39W) (B)	8-94457-278-1	01	1	0809-0905		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-	●
226	RUBBER; CUSHION WHEEL BASE 4600MM(46W) (B)	8-94457-278-1	01	1	0906-		●
475	BEARING; SEAL,VIBNON,EXH PIPE	8-98233-479-0	01	1	1302-	●
475	BEARING; SEAL,VIBNON,EXH PIPE WHEEL BASE 4600MM(46W)	8-98233-479-0	01	1	1302-		●
476	SPRING; VIBNON,EXH PIPE	8-98233-482-0	02	1	1302-	●
476	SPRING; VIBNON,EXH PIPE WHEEL BASE 4600MM(46W)	8-98233-482-0	02	1	1302-		●
506	BRACKET; STUD (B) M12X35	1-22131-963-0	02	1	0809-1203	●	●
506	BRACKET; STUD WHEEL BASE 3900MM(39W) (A)	1-22134-214-0	02	1	0809-		●
556	DPD ASM 6HK1-TCS ENG(80L)	8-97606-314-5	01	1	0809-1011	●	●
556	DPD ASM 6HK1-TCS ENG(80L)	8-97622-899-3	01	1	1012-	●	●
556	DPD ASM 6HK1-TCC ENG(81L)	8-97613-331-6	01	1	0809-1010	●	●
556	DPD ASM 6HK1-TCC ENG(81L)	8-97622-883-3	01	1	1011-	●	●

556 467 5 558 5 5 559 5 5 557 550 560 422 560 423 423 534 547 422 5 561 550 561 547 550

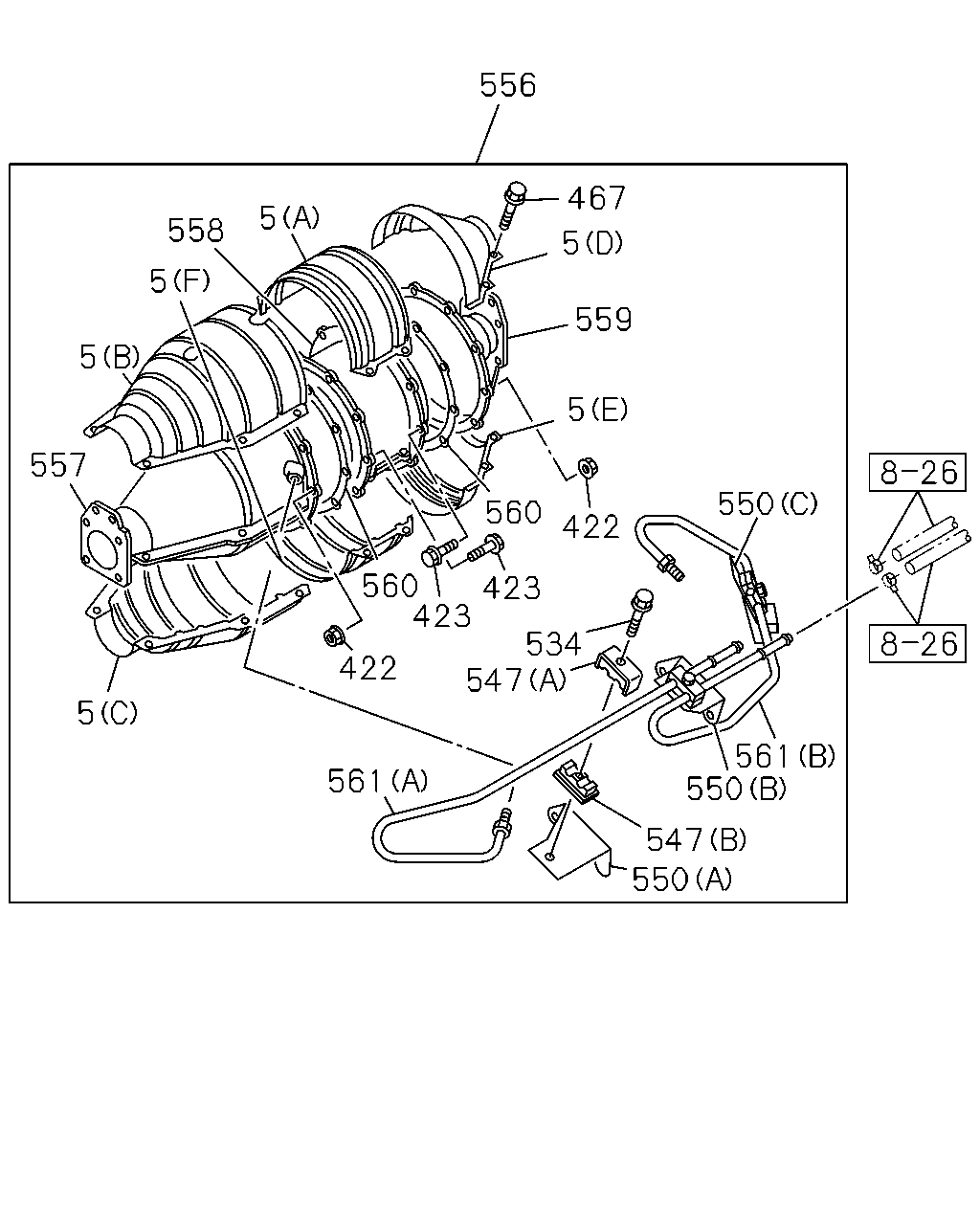

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PROTECTOR; HEAT 6HK1-TCS ENG(80L) (B)	8-97611-098-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCS ENG(80L) (C)	8-97611-099-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCS ENG(80L) (A)	8-97611-100-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCS ENG(80L) (F)	8-97611-101-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCS ENG(80L) (D)	8-97611-102-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCS ENG(80L) (E)	8-97611-103-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCC ENG(81L) (A)	8-97605-172-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCC ENG(81L) (B)	8-97611-086-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCC ENG(81L) (C)	8-97611-087-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCC ENG(81L) (D)	8-97611-088-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCC ENG(81L) (E)	8-97611-089-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCC ENG(81L) (F)	8-97613-390-0	01	1	0809-	●	●
5	PROTECTOR; HEAT (G)	8-98073-436-0	01	1	0809-1406	●	●
5	PROTECTOR; HEAT (G)	8-98255-001-0	01	1	1407-	●	●
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	0809-	●	●
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	0809-	●	●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0809-	●	●
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0809-	●	●
547	CLIP; PIPE (A)	8-97381-635-0	03	1	0809-	●	●
547	CLIP; PIPE (B)	8-97381-636-0	03	1	0809-	●	●
550	BRACKET; DPD 6HK1-TCS ENG(80L) (A)	8-97611-096-0	01	1	0809-	●	●
550	BRACKET; DPD 6HK1-TCS ENG(80L) (B)	8-97611-097-0	01	1	0809-	●	●
550	BRACKET; DPD 6HK1-TCC ENG(81L) (A)	8-97611-083-0	01	1	0809-	●	●
550	BRACKET; DPD 6HK1-TCC ENG(81L) (B)	8-97611-084-0	01	1	0809-	●	●
550	BRACKET; DPD (C)	8-97611-085-0	01	1	0809-	●	●
556	DPD ASM 6HK1-TCS ENG(80L)	8-97606-314-5	01	1	0809-1011	●	●
556	DPD ASM 6HK1-TCS ENG(80L)	8-97622-899-3	01	1	1012-	●	●
556	DPD ASM 6HK1-TCC ENG(81L)	8-97613-331-6	01	1	0809-1010	●	●
556	DPD ASM 6HK1-TCC ENG(81L)	8-97622-883-3	01	1	1011-	●	●
557	CATALYST ASM 6HK1-TCS ENG(80L)	8-97608-054-5	01	1	0809-	●	●
557	CATALYST ASM 6HK1-TCC ENG(81L)	8-97608-055-7	01	1	0809-	●	●
558	FILTER ASM 6HK1-TCS ENG(80L)	8-97608-056-2	01	1	0809-	●	●
558	FILTER ASM 6HK1-TCC ENG(81L)	8-97608-057-3	01	1	0809-	●	●
559	COVER; RR 6HK1-TCS ENG(80L)	8-97611-090-0	01	1	0809-1011	●	●
559	COVER; RR 6HK1-TCS ENG(80L)	8-97622-903-0	01	1	1012-	●	●
559	COVER; RR 6HK1-TCC ENG(81L)	8-97611-078-0	01	1	0809-1010	●	●
559	COVER; RR 6HK1-TCC ENG(81L)	8-97622-887-0	01	1	1011-	●	●
560	GASKET; DPD 6HK1-TCS ENG(80L)	8-97611-092-0	02	1	0809-	●	●
560	GASKET; DPD 6HK1-TCC ENG(81L)	8-97611-080-0	02	1	0809-	●	●
561	PIPE; DPD 6HK1-TCS ENG(80L) (A)	8-97611-093-0	01	1	0809-1011	●	●
561	PIPE; DPD 6HK1-TCS ENG(80L) (A)	8-97622-904-0	01	1	1012-	●	●
561	PIPE; DPD 6HK1-TCS ENG(80L) (B)	8-97611-094-0	01	1	0809-1011	●	●
561	PIPE; DPD 6HK1-TCS ENG(80L) (B)	8-97622-905-0	01	1	1012-	●	●
561	PIPE; DPD 6HK1-TCC ENG(81L) (A)	8-97611-081-0	01	1	0809-1010	●	●
561	PIPE; DPD 6HK1-TCC ENG(81L) (A)	8-97622-888-0	01	1	1011-	●	●
561	PIPE; DPD 6HK1-TCC ENG(81L) (B)	8-97611-082-0	01	1	0809-1010	●	●
561	PIPE; DPD 6HK1-TCC ENG(81L) (B)	8-97622-889-0	01	1	1011-	●	●

52 60 70 49 46 75 56 62 75 94 81 22 49 22 318 84 36 1 52 294 320 168 8 52 571 571 1 350 349 349 350 6 5 17 44 571 36 1 2 34 36 46 105

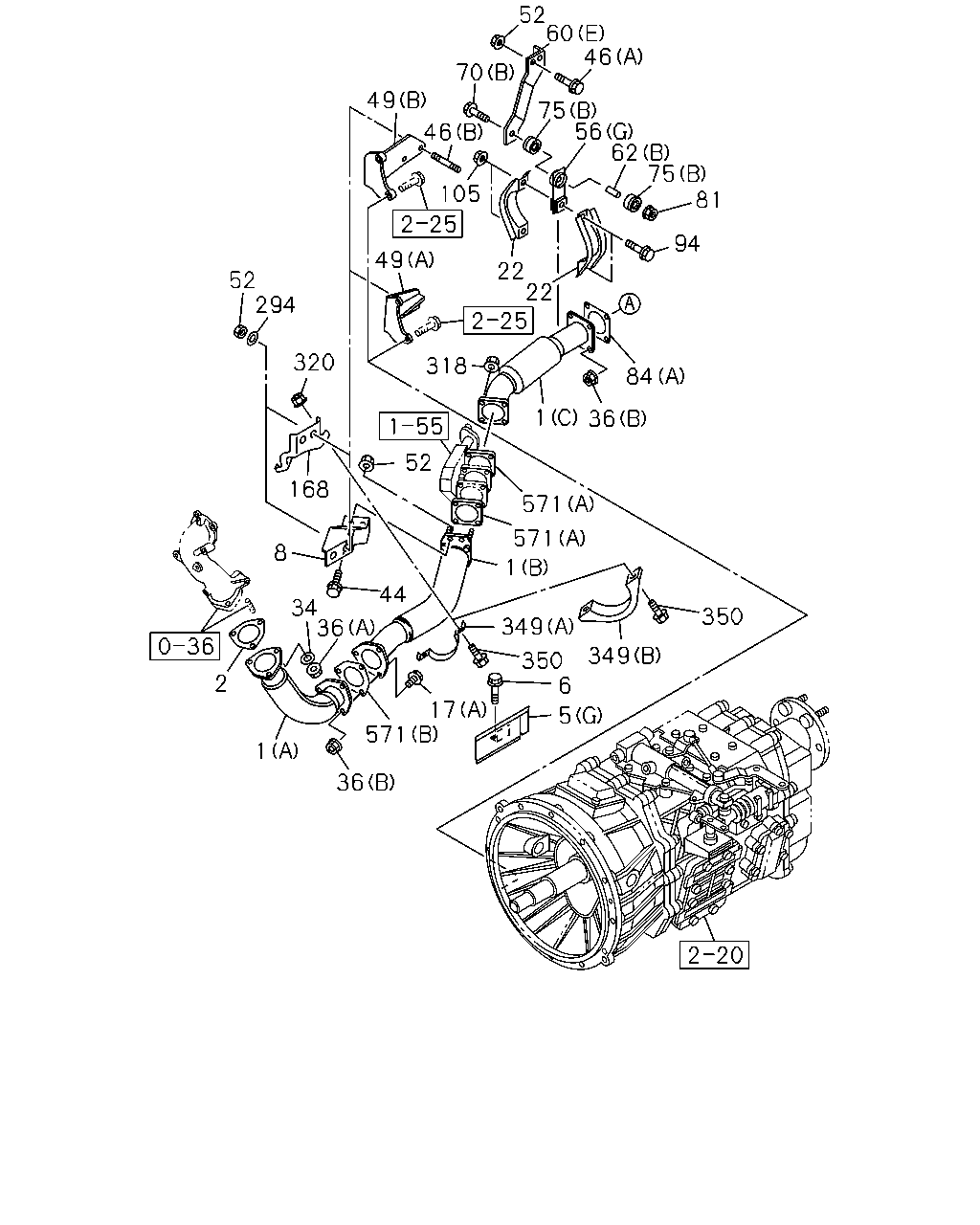

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (B)	8-98070-601-0	01	1	0809-1209	●
1	PIPE; EXH (B)	8-98220-351-0	01	1	1210-	●
1	PIPE; EXH 6HK1-TCS ENG(80L) (C)	8-98097-603-0	01	1	0809-	●
1	PIPE; EXH 6HK1-TCC ENG(81L) (C)	8-98084-229-0	01	1	0809-	●
1	PIPE; EXH (A)	8-98061-088-1	01	1	0809-0902	●	●
1	PIPE; EXH (A)	8-98120-560-0	01	1	0903-1209	●	●
1	PIPE; EXH (A)	8-98215-406-0	01	1	1210-	●	●
1	PIPE; EXH (B)	8-98047-778-0	01	1	0809-1209		●
1	PIPE; EXH (B)	8-98221-117-0	01	1	1210-		●
1	PIPE; EXH 6HK1-TCS ENG(80L) (C)	1-22123-893-1	01	1	0809-		●
1	PIPE; EXH 6HK1-TCC ENG(81L) (C)	8-98070-119-0	01	1	0809-		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-98043-481-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCS ENG(80L) (B)	8-97611-098-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCS ENG(80L) (C)	8-97611-099-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCS ENG(80L) (A)	8-97611-100-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCS ENG(80L) (F)	8-97611-101-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCS ENG(80L) (D)	8-97611-102-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCS ENG(80L) (E)	8-97611-103-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCC ENG(81L) (A)	8-97605-172-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCC ENG(81L) (B)	8-97611-086-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCC ENG(81L) (C)	8-97611-087-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCC ENG(81L) (D)	8-97611-088-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCC ENG(81L) (E)	8-97611-089-0	01	1	0809-	●	●
5	PROTECTOR; HEAT 6HK1-TCC ENG(81L) (F)	8-97613-390-0	01	1	0809-	●	●
5	PROTECTOR; HEAT (G)	8-98073-436-0	01	1	0809-1406	●	●
5	PROTECTOR; HEAT (G)	8-98255-001-0	01	1	1407-	●	●
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	0809-	●	●
8	BRACKET; EXH PIPE FULLER FSO5206B OD M/T(Y4V)	8-98069-914-0	01	1	0809-		●
8	BRACKET; EXH PIPE ZF9S1110 M/T(Y5E)	8-98070-600-0	01	1	0809-1209		●
8	BRACKET; EXH PIPE ZF9S1110 M/T(Y5E)	8-98120-522-0	01	1	1210-		●
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-	●	●
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	0809-	●	●
17	BOLT; EXH PIPE WHEEL BASE 3900MM(39W) (B) M10X35 FLANGE	0-28651-035-0	02	1	0809-		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0809-	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0809-	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0809-	●
22	CLAMP; EXH PIPE WHEEL BASE 4600MM(46W) ID=80-84	1-22133-233-0	02	1	0809-		●
22	CLAMP; EXH PIPE WHEEL BASE 4600MM(46W) ID=80-84	1-22133-233-0	02	1	0809-		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0809-	●	●
36	NUT; EXH PIPE WHEEL BASE 3900MM(39W) (C) M10 FLANGE	0-91180-210-0	02	1	0811-		●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0809-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0809-	●	●
36	NUT; EXH PIPE WHEEL BASE 3900MM(39W) (B) M12 FLANGE	0-91180-212-0	04	1	0809-		●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	08	1	0809-	●	●
44	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0809-0907		●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0908-		●
46	BOLT; BRKT,EXH PIPE (B) M10X25 L=40	0-44011-025-0	02	1	1210-	●	●
46	BOLT; BRKT,EXH PIPE (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-	●
49	BRACKET; EXH PIPE TO TRANS FULLER FSO5206B OD M/T(Y4V) (A)	8-98069-908-0	01	1	0809-1209	●	●
49	BRACKET; EXH PIPE TO TRANS FULLER FSO5206B OD M/T(Y4V) (B)	8-98123-995-0	01	1	1210-	●	●
49	BRACKET; EXH PIPE TO TRANS ZF9S1110 M/T(Y5E) (A)	8-98069-900-0	01	1	0809-1209	●
49	BRACKET; EXH PIPE TO TRANS ZF9S1110 M/T(Y5E) (B)	8-98124-769-0	01	1	1210-	●
49	BRACKET; EXH PIPE TO TRANS ZF9S1110 M/T(Y5E) (A)	8-98069-944-1	01	1	0809-1209		●
49	BRACKET; EXH PIPE TO TRANS ZF9S1110 M/T(Y5E) (B)	8-98120-497-0	01	1	1210-		●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0809-	●	●
56	BRACKET; CLAMP,EXH PIPE (G) L=94	1-22131-575-0	01	1	0809-	●
56	BRACKET; CLAMP,EXH PIPE (E) L=204	1-22131-520-1	01	1	0809-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W) (E) L=204	1-22131-520-1	01	1	0809-		●
56	BRACKET; CLAMP,EXH PIPE (F)	8-98070-639-0	01	1	0809-1301	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W) (F)	8-98070-639-0	01	1	0809-1301		●
56	BRACKET; CLAMP,EXH PIPE (H)	8-98233-450-0	01	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W) (H)	8-98233-450-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	0809-	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98072-104-0	01	1	0809-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3900MM(39W) (C)	8-98071-227-0	01	1	0809-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3900MM(39W) (D)	8-98071-231-0	01	1	0809-		●
60	BRACKET; FRAME TO BRKT (F)	8-98233-451-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4600MM(46W) (F)	8-98233-451-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (E)	8-98098-129-0	01	1	0809-	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1301	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1301	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4600MM(46W) (A)	8-98070-628-0	01	1	0809-1301		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1302-1309	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1302-1309	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT (D)	8-98070-641-0	01	1	0809-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4600MM(46W) (D)	8-98070-641-0	01	1	0809-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3900MM(39W) (C)	8-98071-228-0	01	1	0809-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3900MM(39W) (B)	8-98072-708-0	01	1	0809-		●
62	TUBE; DIST,BRKT WHEEL BASE 3900MM(39W) (A)	8-98060-852-0	02	1	0906-		●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0906	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0906	●
62	TUBE; DIST,BRKT WHEEL BASE 4600MM(46W) (B) L=22	1-22159-392-0	01	1	0809-0906		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-	●
62	TUBE; DIST,BRKT WHEEL BASE 4600MM(46W) (B) L=22	9-22159-024-0	01	1	0907-		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0809-0905	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0809-0905	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0809-0905	●	●
62	TUBE; DIST,BRKT WHEEL BASE 3900MM(39W) (A)	8-98060-852-0	01	1	0809-0905		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0906-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0906-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0906-	●
62	TUBE; DIST,BRKT WHEEL BASE 4600MM(46W) (A)	8-98060-852-0	01	1	0906-		●
70	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE	0-28051-070-0	02	1	0906-		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-	●
70	BOLT; BRKT WHEEL BASE 4600MM(46W) (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905	●	●
70	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-	●
70	BOLT; BRKT WHEEL BASE 4600MM(46W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-		●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-094-0	02	1	0809-	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-193-0	02	1	0809-	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4600MM(46W) (A) OD=40	1-22159-193-0	02	1	0809-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●
81	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	0906-		●
81	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	0906-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-0810	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-0810	●
81	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	02	1	0809-0810		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0811-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0811-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-	●	●
81	NUT; BRKT WHEEL BASE 3900MM(39W) M10 FLANGE	0-91180-210-0	02	1	0906-		●
81	NUT; BRKT WHEEL BASE 3900MM(39W) M10 FLANGE	0-91180-210-0	04	1	0809-0810		●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0809-	●	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	02	1	0809-	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0809-	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0809-	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0809-	●
94	BOLT; CLAMP WHEEL BASE 4600MM(46W) M10X40 FLANGE	0-28651-040-0	02	1	0809-		●
94	BOLT; CLAMP WHEEL BASE 4600MM(46W) M10X40 FLANGE	0-28651-040-0	02	1	0809-		●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0809-	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0809-	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0809-	●
105	NUT; CLAMP WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	02	1	0809-		●
105	NUT; CLAMP WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	02	1	0809-		●
168	BRACKET; EXH PIPE,FRT	8-98071-144-0	01	1	0809-1209	●
168	BRACKET; EXH PIPE,FRT	8-98221-369-1	01	1	1210-	●
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	0809-	●	●
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	0809-	●	●
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	0809-	●
349	CLAMP; EXH PIPE (A)	8-98058-351-0	01	1	0809-1209	●
349	CLAMP; EXH PIPE (B)	8-98115-162-0	01	1	1210-	●
350	BOLT; CLAMP,EXH PIPE M10X30 FLANGE	0-28651-030-0	02	1	0809-	●
571	GASKET (A)	1-22116-043-0	02	1	0809-	●	●
571	GASKET (B)	8-98043-481-0	01	1	0809-	●	●

70 121 107 226 60 81 62 226 81 121 226 62 36 56 107 17 36 14 81 226 118 60 56 36 81 118 121 60 70 36 226 62 506 12 107 506 81 554 44 121 226 226 56 62 81 84 107 60 84 70 52 44 226 56 52 556 70 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH (A)	8-98041-925-1	01	1	0809-1301	●
12	SILENCER ASM; EXH WHEEL BASE 4600MM(46W) (A)	8-98041-925-1	01	1	0809-1301		●
12	SILENCER ASM; EXH (C)	8-98234-507-0	01	1	1302-	●
12	SILENCER ASM; EXH WHEEL BASE 4600MM(46W) (C)	8-98234-507-0	01	1	1302-		●
12	SILENCER ASM; EXH WHEEL BASE 3900MM(39W) (B)	8-98070-098-2	01	1	0809-		●
14	GASKET; SILENCER TO EXH PIPE WHEEL BASE 3900MM(39W)	1-22116-042-0	01	1	0809-		●
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-	●	●
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	0809-	●	●
17	BOLT; EXH PIPE WHEEL BASE 3900MM(39W) (B) M10X35 FLANGE	0-28651-035-0	02	1	0809-		●
36	NUT; EXH PIPE WHEEL BASE 3900MM(39W) (C) M10 FLANGE	0-91180-210-0	02	1	0811-		●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0809-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0809-	●	●
36	NUT; EXH PIPE WHEEL BASE 3900MM(39W) (B) M12 FLANGE	0-91180-212-0	04	1	0809-		●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	08	1	0809-	●	●
44	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0809-0907		●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0908-		●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0809-	●	●
56	BRACKET; CLAMP,EXH PIPE (G) L=94	1-22131-575-0	01	1	0809-	●
56	BRACKET; CLAMP,EXH PIPE (E) L=204	1-22131-520-1	01	1	0809-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W) (E) L=204	1-22131-520-1	01	1	0809-		●
56	BRACKET; CLAMP,EXH PIPE (F)	8-98070-639-0	01	1	0809-1301	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W) (F)	8-98070-639-0	01	1	0809-1301		●
56	BRACKET; CLAMP,EXH PIPE (H)	8-98233-450-0	01	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W) (H)	8-98233-450-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	0809-	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98072-104-0	01	1	0809-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3900MM(39W) (C)	8-98071-227-0	01	1	0809-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3900MM(39W) (D)	8-98071-231-0	01	1	0809-		●
60	BRACKET; FRAME TO BRKT (F)	8-98233-451-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4600MM(46W) (F)	8-98233-451-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (E)	8-98098-129-0	01	1	0809-	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1301	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1301	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4600MM(46W) (A)	8-98070-628-0	01	1	0809-1301		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1302-1309	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1302-1309	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT (D)	8-98070-641-0	01	1	0809-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4600MM(46W) (D)	8-98070-641-0	01	1	0809-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3900MM(39W) (C)	8-98071-228-0	01	1	0809-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3900MM(39W) (B)	8-98072-708-0	01	1	0809-		●
62	TUBE; DIST,BRKT WHEEL BASE 3900MM(39W) (A)	8-98060-852-0	02	1	0906-		●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0906	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0906	●
62	TUBE; DIST,BRKT WHEEL BASE 4600MM(46W) (B) L=22	1-22159-392-0	01	1	0809-0906		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-	●
62	TUBE; DIST,BRKT WHEEL BASE 4600MM(46W) (B) L=22	9-22159-024-0	01	1	0907-		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0809-0905	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0809-0905	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0809-0905	●	●
62	TUBE; DIST,BRKT WHEEL BASE 3900MM(39W) (A)	8-98060-852-0	01	1	0809-0905		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0906-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0906-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0906-	●
62	TUBE; DIST,BRKT WHEEL BASE 4600MM(46W) (A)	8-98060-852-0	01	1	0906-		●
70	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE	0-28051-070-0	02	1	0906-		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-	●
70	BOLT; BRKT WHEEL BASE 4600MM(46W) (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905	●	●
70	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-0905		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-	●
70	BOLT; BRKT WHEEL BASE 4600MM(46W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0905	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-	●
81	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	0906-		●
81	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	0906-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-0810	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-0810	●
81	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	02	1	0809-0810		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0811-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0811-0905	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-	●	●
81	NUT; BRKT WHEEL BASE 3900MM(39W) M10 FLANGE	0-91180-210-0	02	1	0906-		●
81	NUT; BRKT WHEEL BASE 3900MM(39W) M10 FLANGE	0-91180-210-0	04	1	0809-0810		●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0809-	●	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	02	1	0809-	●	●
107	BOLT; BRKT WHEEL BASE 3900MM(39W) M10X40 FLANGE	0-28651-040-0	02	1	0911-		●
107	BOLT; BRKT WHEEL BASE 3900MM(39W) M10X40 FLANGE	0-28651-040-0	02	1	0911-		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-0910	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-0910	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0911-	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0911-	●
107	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X35 FLANGE	0-28651-035-0	02	1	0911-		●
107	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X35 FLANGE	0-28651-035-0	02	1	0911-		●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0809-	●	●
118	NUT; SILENCER MTG BRKT WHEEL BASE 3900MM(39W) M10 FLANGE	0-91180-210-0	02	1	0809-		●
121	WASHER; PL,BRKT WHEEL BASE 3900MM(39W) ID=8.4 OD=22	1-09503-154-2	02	1	0906-		●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0809-0905	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0809-0905	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0809-0905	●	●
121	WASHER; PL,BRKT WHEEL BASE 3900MM(39W) ID=8.4 OD=22	1-09503-154-2	01	1	0809-0905		●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0906-	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0906-	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0906-	●
121	WASHER; PL,BRKT WHEEL BASE 4600MM(46W) ID=8.4 OD=22	1-09503-154-2	01	1	0906-		●
226	RUBBER; CUSHION WHEEL BASE 3900MM(39W) (A)	8-94457-277-1	02	1	0906-		●
226	RUBBER; CUSHION WHEEL BASE 3900MM(39W) (B)	8-94457-278-1	02	1	0906-		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION WHEEL BASE 3900MM(39W) (A)	8-94457-277-1	01	1	0809-0905		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-	●
226	RUBBER; CUSHION WHEEL BASE 4600MM(46W) (A)	8-94457-277-1	01	1	0906-		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-0905	●	●
226	RUBBER; CUSHION WHEEL BASE 3900MM(39W) (B)	8-94457-278-1	01	1	0809-0905		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-	●
226	RUBBER; CUSHION WHEEL BASE 4600MM(46W) (B)	8-94457-278-1	01	1	0906-		●
506	BRACKET; STUD (B) M12X35	1-22131-963-0	02	1	0809-1203	●	●
506	BRACKET; STUD WHEEL BASE 3900MM(39W) (A)	1-22134-214-0	02	1	0809-		●
554	PIPE; EXH,SILENCER WHEEL BASE 3900MM(39W)	8-98085-262-0	01	1	0809-		●
556	DPD ASM 6HK1-TCS ENG(80L)	8-97606-314-5	01	1	0809-1011	●	●
556	DPD ASM 6HK1-TCS ENG(80L)	8-97622-899-3	01	1	1012-	●	●
556	DPD ASM 6HK1-TCC ENG(81L)	8-97613-331-6	01	1	0809-1010	●	●
556	DPD ASM 6HK1-TCC ENG(81L)	8-97622-883-3	01	1	1011-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
