Sayfa 1-41 - Isuzu EPC

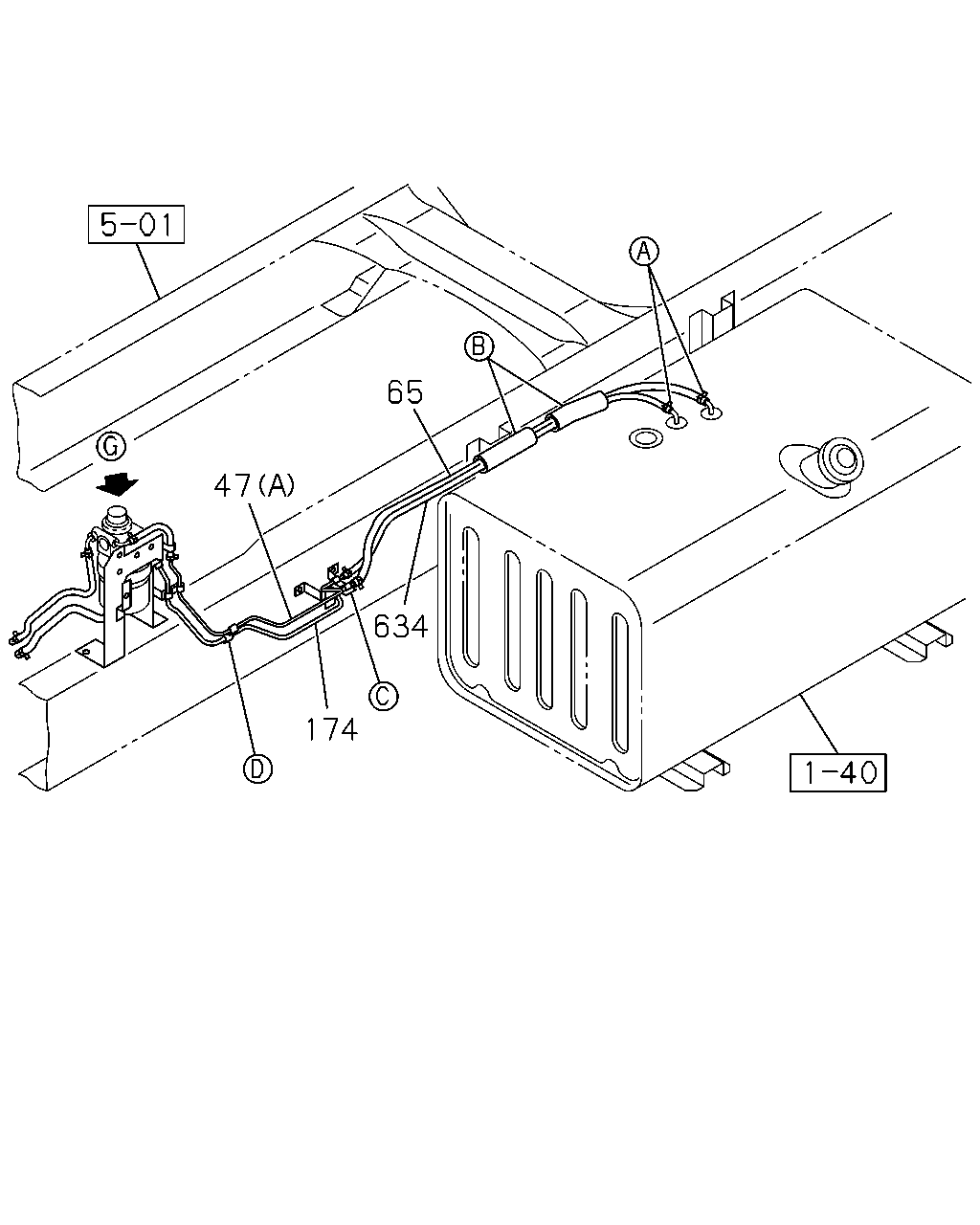

1-41 — FUEL PIPING; CHASSIS (#67667) — 70 parça

47 65 47 634 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B)	8-98127-647-0	01	1	0809-	●	●
47	PIPE; FUEL,RETURN (A) L=688	8-98129-921-0	01	1	0809-	●	●
65	HOSE; FUEL,DELIVERY PIPE L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0809	●	●
65	HOSE; FUEL,DELIVERY PIPE L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0810-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	0809-	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) L=730 SERVICED BY L=3000	0-01558-300-0	01	1	0810-	●	●
634	HOSE; RUBBER RETURN L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0809	●	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0810-	●	●

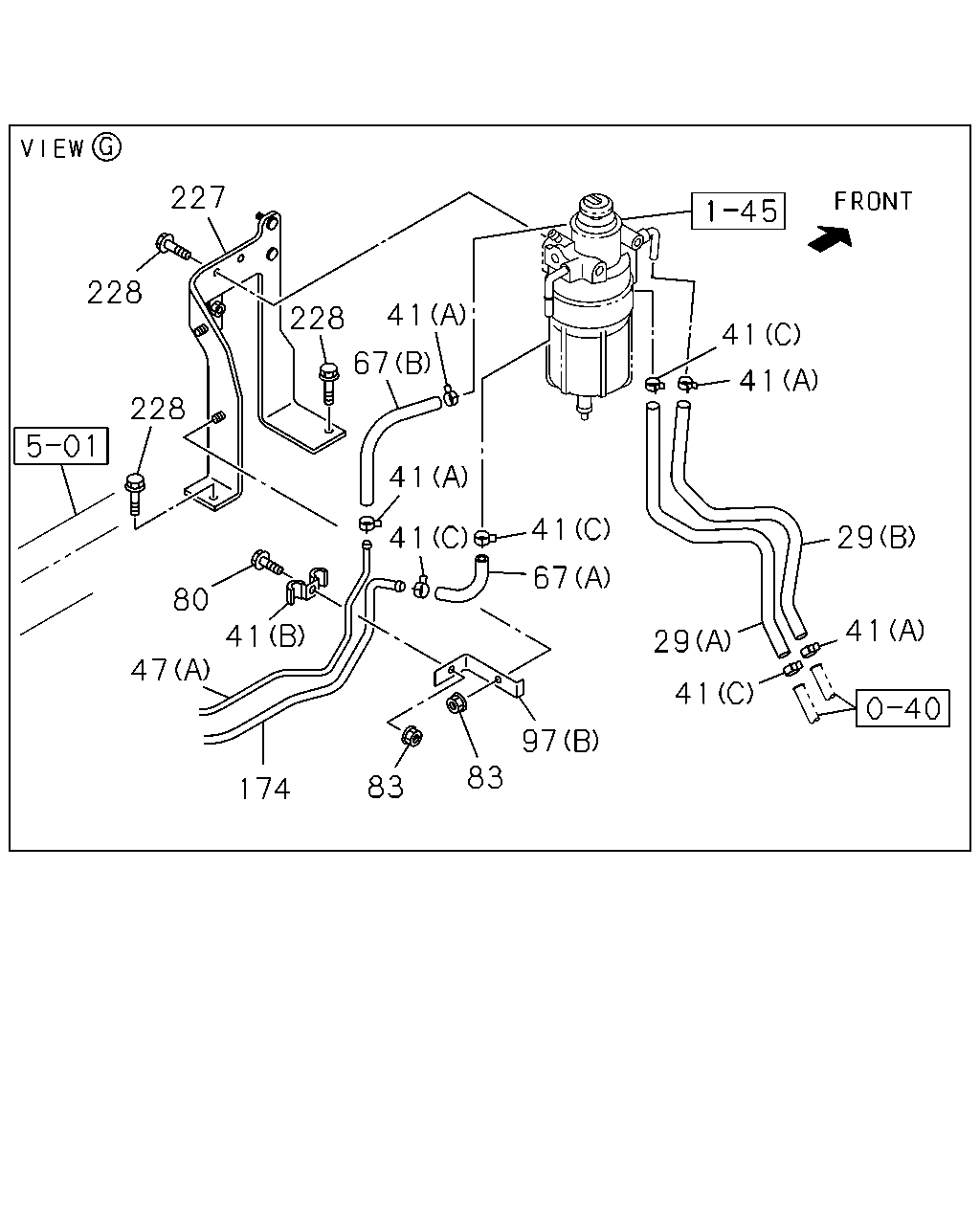

41 41 29 41 41 29 41 67 97 83 83 174 47 41 80 41 41 41 67 228 228 228 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0809-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (A) ID=13	8-94238-571-0	08	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	06	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0809-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B)	8-98127-647-0	01	1	0809-	●	●
47	PIPE; FUEL,RETURN (A) L=688	8-98129-921-0	01	1	0809-	●	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0809-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-	●	●
97	BRACKET; CLIP (C)	8-98129-922-0	01	1	0809-	●	●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0809-	●	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0809-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	0809-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0809-	●	●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28050-825-0	02	1	0809-	●	●
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●

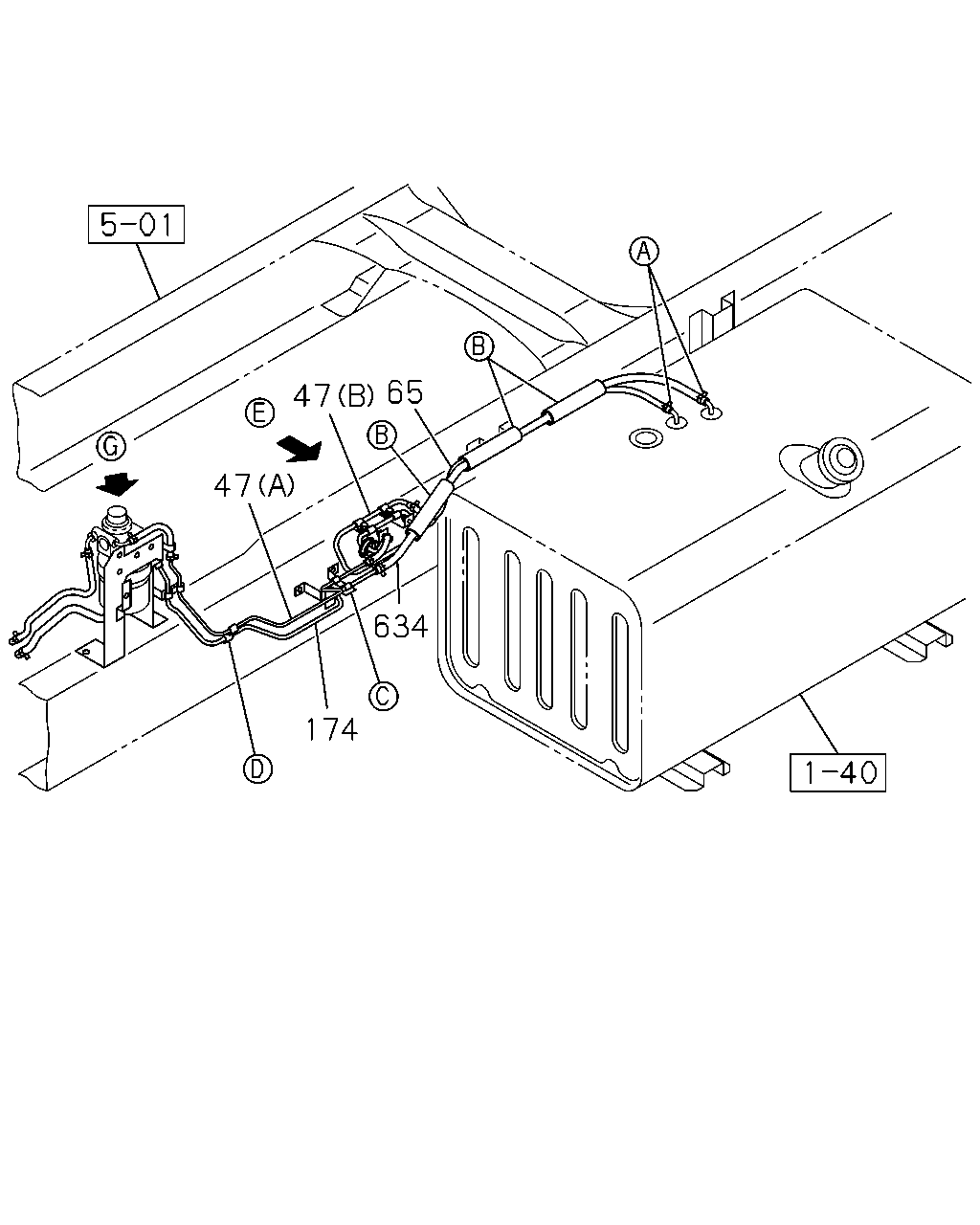

65 47 634 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B)	8-98127-647-0	01	1	0809-	●	●
47	PIPE; FUEL,RETURN (A) L=688	8-98129-921-0	01	1	0809-	●	●
65	HOSE; FUEL,DELIVERY PIPE L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0809	●	●
65	HOSE; FUEL,DELIVERY PIPE L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0810-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	0809-	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) L=730 SERVICED BY L=3000	0-01558-300-0	01	1	0810-	●	●
634	HOSE; RUBBER RETURN L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0809	●	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0810-	●	●

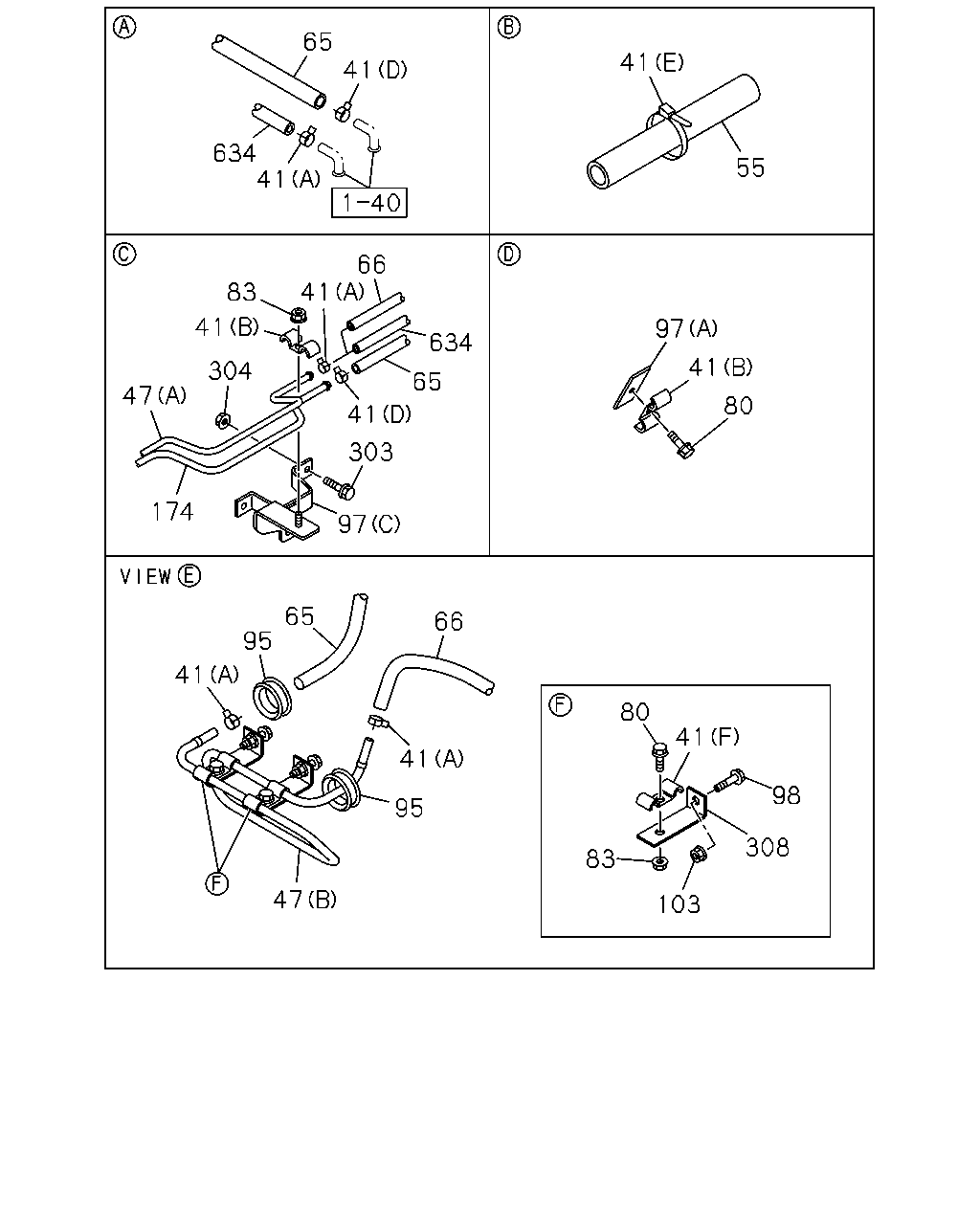

65 41 41 634 41 55 66 83 41 41 97 634 41 304 65 47 80 41 303 174 97 65 66 95 41 80 41 41 98 95 308 83 47 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (A) ID=13	8-94238-571-0	08	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	06	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0809-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B)	8-98127-647-0	01	1	0809-	●	●
47	PIPE; FUEL,RETURN (A) L=688	8-98129-921-0	01	1	0809-	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-	●	●
65	HOSE; FUEL,DELIVERY PIPE L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0809	●	●
65	HOSE; FUEL,DELIVERY PIPE L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0810-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) L=180 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0809-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-	●	●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) ID=28 OD=35 T=25	1-09332-011-1	02	1	0809-	●	●
97	BRACKET; CLIP (C)	8-98129-922-0	01	1	0809-	●	●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0809-	●	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0809-	●	●
98	BOLT; BRKT,FUEL PIPE 6HK1-TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	02	1	0809-	●	●
103	NUT; BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0809-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	0809-	●	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0809-	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0809-	●	●
308	BRACKET; FUEL PIPE 6HK1-TCS ENG(80L) L=75	1-47478-323-0	02	1	0809-	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) L=730 SERVICED BY L=3000	0-01558-300-0	01	1	0810-	●	●
634	HOSE; RUBBER RETURN L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0809	●	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0810-	●	●
