Isuzu WW
▶
TRUCKS
▶
FVR
▶
11142 - FVR-RHD(EUROPE)EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

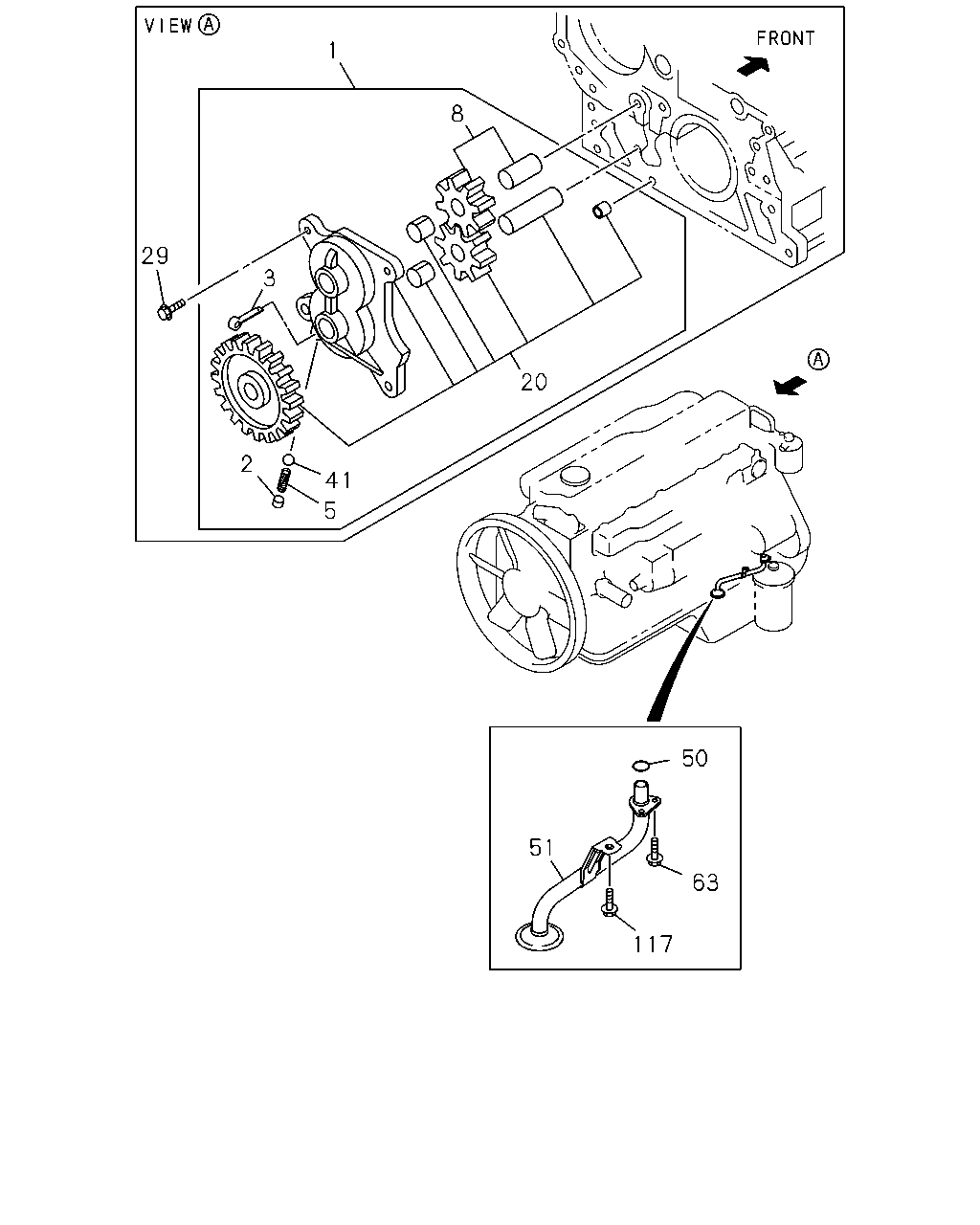

0-51 — OIL PUMP AND OIL STRAINER
(#67653) — 17 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCC ENG
1
29
3
2
41
5
8
20
51
50
63
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; OIL
8-94390-414-3
01
1
0809-1209
●
●
1
PUMP ASM; OIL
8-97641-835-0
01
1
1210-
●
●
2
SEAT; SPR
5-13165-004-0
01
1
0809-
●
●
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
0809-
●
●
5
SPRING; COIL
5-09580-098-0
01
1
0809-
●
●
8
GEAR; DRIVEN,OIL PUMP
8-97602-115-0
01
1
0809-1209
●
●
8
GEAR; DRIVEN,OIL PUMP
8-97641-838-0
01
1
1210-
●
●
20
GEAR; DRIVE,OIL PUMP
8-97602-132-1
01
1
0809-1209
●
●
20
GEAR; DRIVE,OIL PUMP
8-97641-839-0
01
1
1210-
●
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28050-825-0
04
1
0809-
●
●
41
BALL; OIL RELIEF VLV
5-09843-003-0
01
1
0809-
●
●
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
0809-
●
●
51
STRAINER & PIPE ASM; OIL
8-98045-646-3
01
1
0809-1209
●
●
51
STRAINER & PIPE ASM; OIL
8-98204-158-0
01
1
1210-
●
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE
0-28080-814-0
02
1
0809-1209
●
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
M8X16 HEX SOCKET
0-58330-816-0
02
1
1210-
●
●
117
BOLT; STAY TO CRANKCASE
M10X75 FLANGE
8-94399-669-1
01
1
0809-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
