Isuzu WW
▶
TRUCKS
▶
FTR
▶
10781 - FTR(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#6764) — 34 parça
Tümü
A - FTR5MC
B - FTR5MF
◀
[840A] NO.3 (10 parça)
[840A] NO.2 (11 parça)
[840A] NO.1 (13 parça)
▶

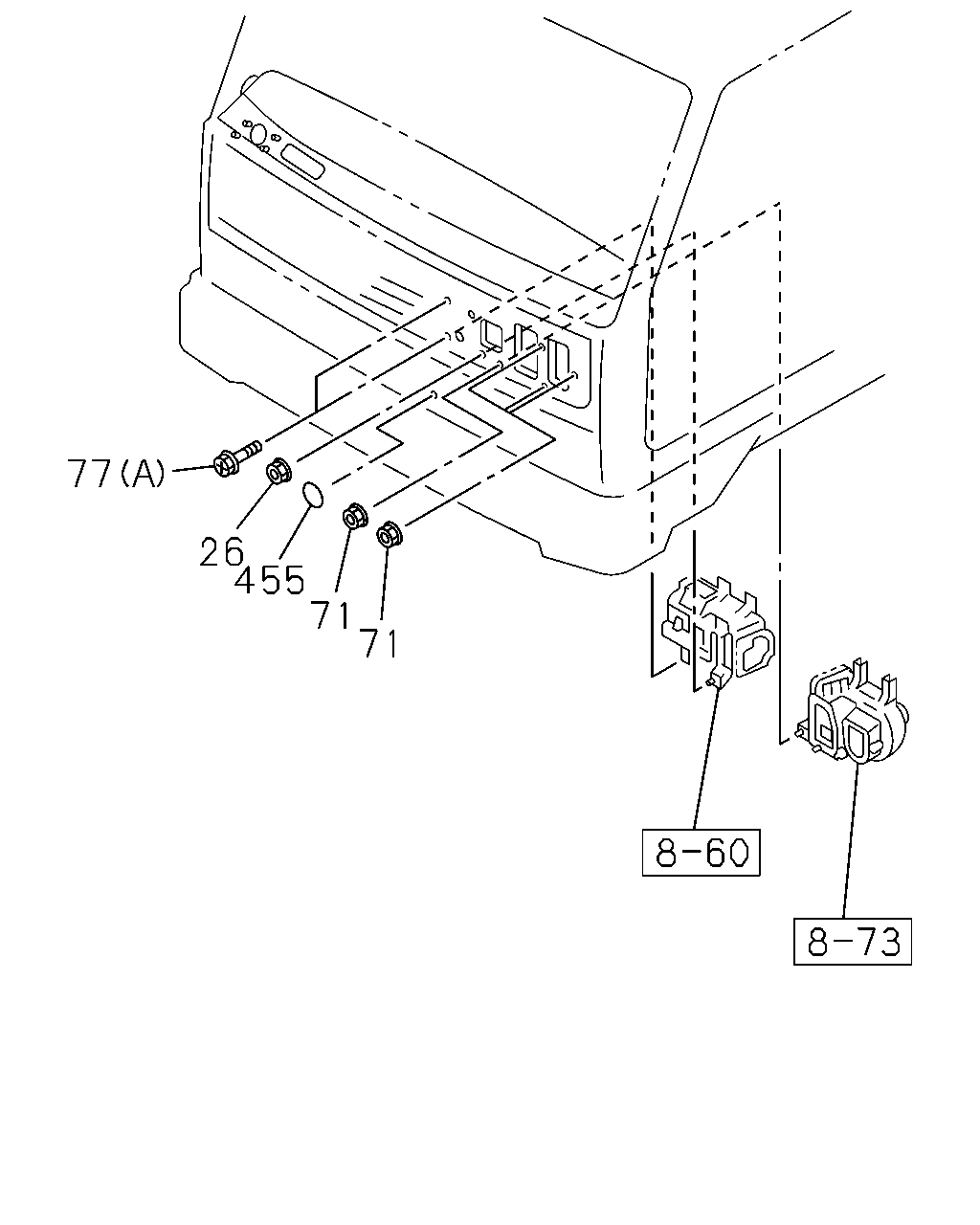

77
26
455
71
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
26
NUT; HTR
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0011-
●
●
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0011-
●
●
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0011-
●
●
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER THA
8-94279-201-0
02
1
0011-
●
●
321
NUT; DUCT FIX
M6 FLANGE
0-91150-106-0
01
1
0303-
●
●
455
SEAL; CLIP HOLE
OD=25 BLACK THA
1-76798-019-0
01
1
0011-
●
●
459
PANEL; CONTROL ASM,A/C
1-83549-013-0
01
1
0011-
●
●
459
PANEL; CONTROL ASM,A/C
1-83549-017-0
01
1
0011-
●
●
460
SWITCH; CONTROL ASM,A/C
1-82489-006-0
01
1
0011-
●
●
461
KNOB; CONTROL ASM,A/C
1-83549-016-0
01
1
0011-
●
●

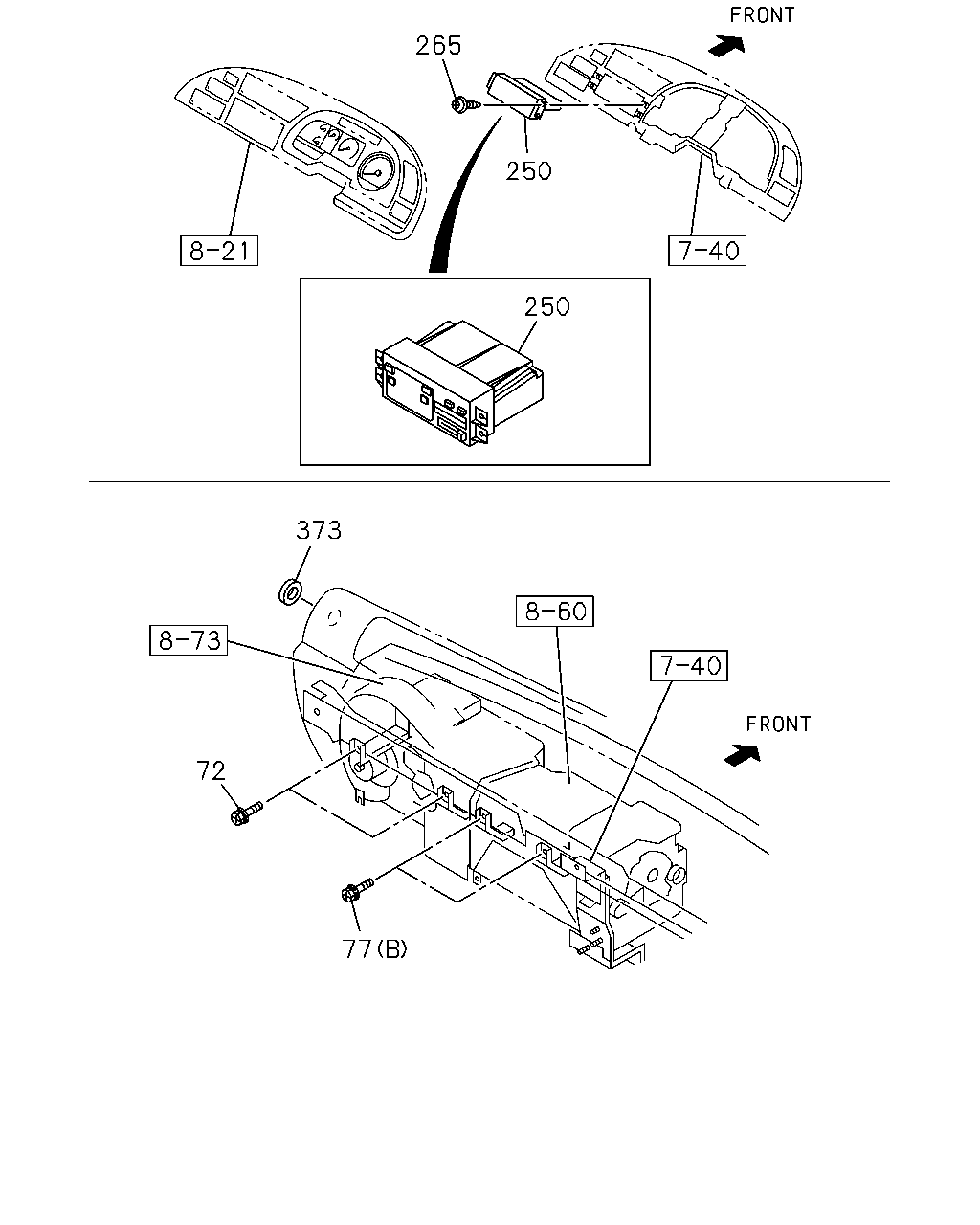

265
250
250
373
72
77
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
72
BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER THA
8-94279-201-0
02
1
0011-
●
●
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0011-
●
●
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER THA
8-94279-201-0
02
1
0011-
●
●
250
CONTROL ASM; A/C
1-83543-034-1
01
1
0011-
●
●
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74110-620-0
01
1
0011-
●
●
321
NUT; DUCT FIX
M6 FLANGE
0-91150-106-0
01
1
0303-
●
●
373
RUBBER; JOINT
1-76378-291-0
02
1
0011-
●
●
459
PANEL; CONTROL ASM,A/C
1-83549-013-0
01
1
0011-
●
●
459
PANEL; CONTROL ASM,A/C
1-83549-017-0
01
1
0011-
●
●
460
SWITCH; CONTROL ASM,A/C
1-82489-006-0
01
1
0011-
●
●
461
KNOB; CONTROL ASM,A/C
1-83549-016-0
01
1
0011-
●
●

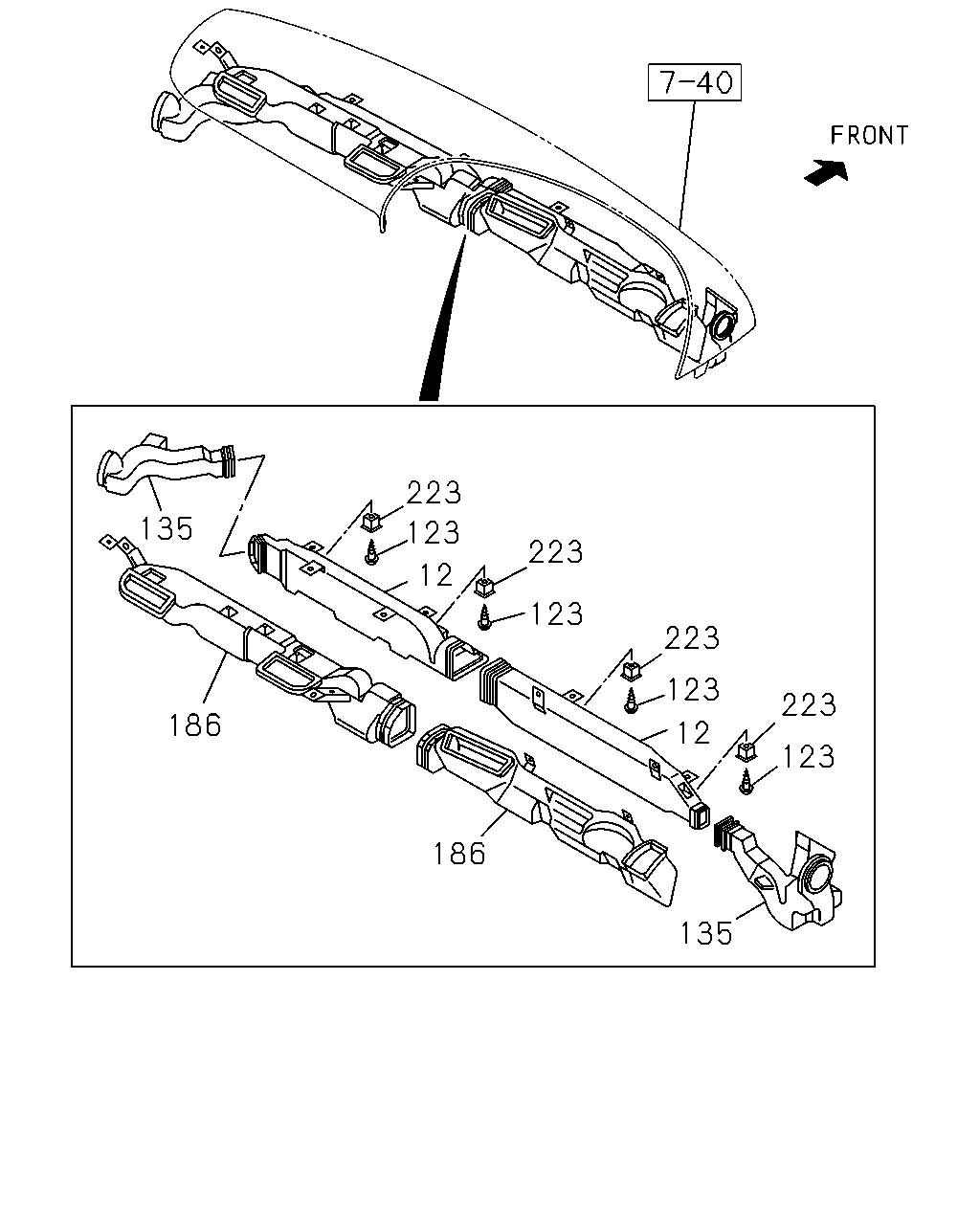

223
135
123
223
12
123
223
123
223
186
12
123
186
135
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
NOZZLE; DEFROSTER
1-76378-321-6
01
1
0011-
●
●
12
NOZZLE; DEFROSTER
1-76377-172-6
01
1
0011-
●
●
123
SCREW; DUCT
M5X14 THA
8-94279-325-0
08
1
0011-
●
●
135
HOSE; DEFROSTER
1-76378-253-4
01
1
0011-
●
●
135
HOSE; DEFROSTER
1-76378-252-7
01
1
0011-
●
●
186
DUCT; VENTILATOR
1-76378-418-0
01
1
0011-
●
●
186
DUCT; VENTILATOR
1-76377-173-6
01
1
0011-
●
●
223
GROMMET; SCREW
8-94279-084-2
04
1
0011-
●
●
321
NUT; DUCT FIX
M6 FLANGE
0-91150-106-0
01
1
0303-
●
●
459
PANEL; CONTROL ASM,A/C
1-83549-013-0
01
1
0011-
●
●
459
PANEL; CONTROL ASM,A/C
1-83549-017-0
01
1
0011-
●
●
460
SWITCH; CONTROL ASM,A/C
1-82489-006-0
01
1
0011-
●
●
461
KNOB; CONTROL ASM,A/C
1-83549-016-0
01
1
0011-
●
●
