Isuzu WW
▶
TRUCKS
▶
FVR
▶
11142 - FVR-RHD(EUROPE)EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

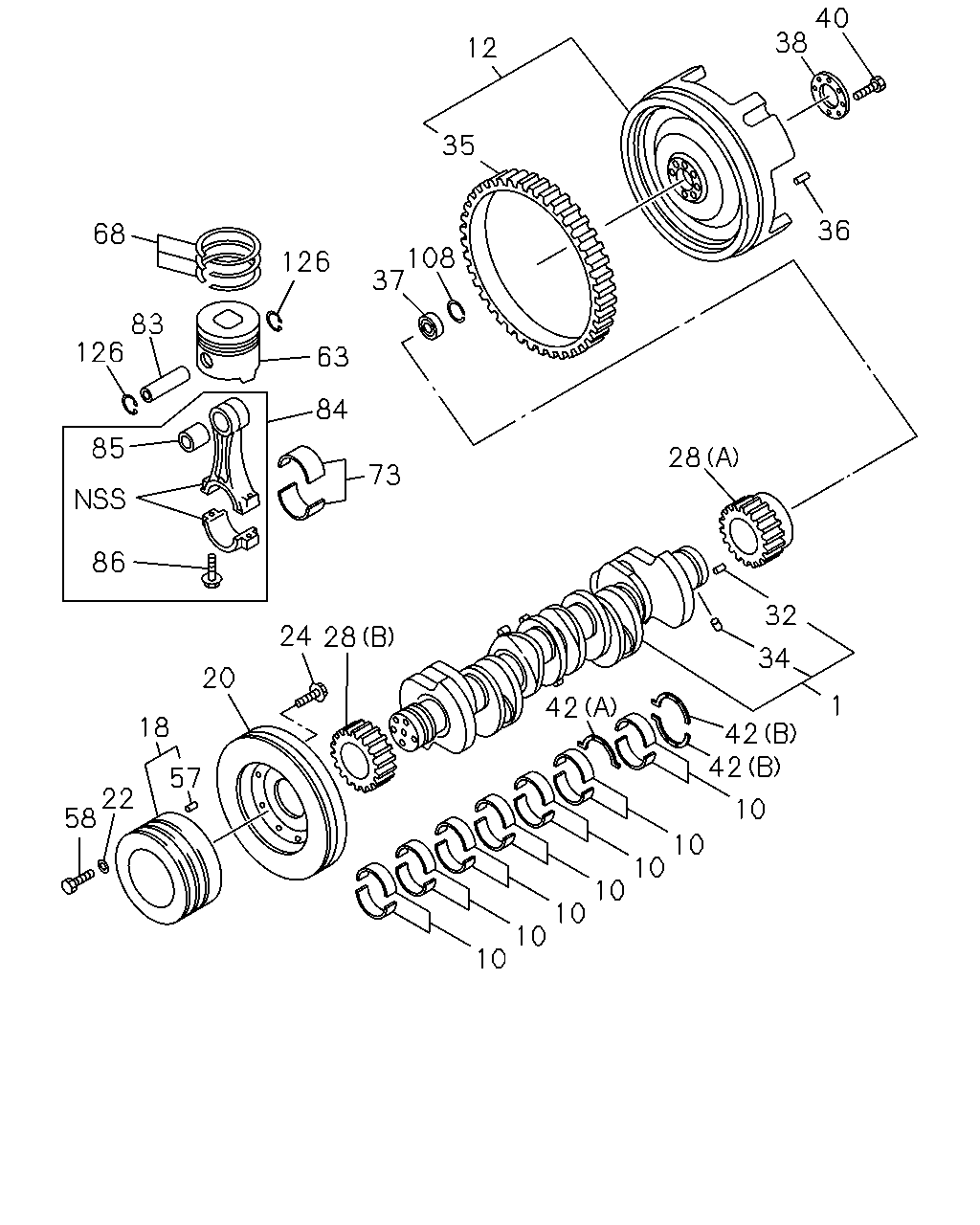

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#67636) — 35 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCC ENG
12
35
108
38
40
36
28
73
84
63
126
37
83
68
126
85
86
24
28
20
18
57
22
58
10
42
34
32
1
42
42
10
10
10
10
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CRANKSHAFT
8-97603-004-0
01
1
0809-
●
●
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
07
1
0809-
●
●
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
07
1
0809-
●
●
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
07
1
0809-
●
●
12
FLYWHEEL
8-97602-463-2
01
1
0809-
●
●
18
PULLEY; CR/SHF
3-GROOVE
8-97606-944-0
01
1
0809-
●
●
20
DAMPER; CR/SHF
8-97613-696-0
01
1
0809-1004
●
20
DAMPER; CR/SHF
8-97613-696-1
01
1
1005-
●
●
20
DAMPER; CR/SHF
8-94392-276-2
01
1
0809-1004
●
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
0809-
●
●
24
BOLT; DAMPER
M10X16 FLANGE
0-28151-016-0
06
1
0809-
●
●
28
GEAR; CR/SHF
(A) Z=42
8-94392-255-1
01
1
0809-
●
●
28
GEAR; CR/SHF
(B) Z=41
8-94396-954-2
01
1
0809-
●
●
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
02
1
0809-
●
●
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
0809-
●
●
35
GEAR; RING
Z=140
8-94396-784-1
01
1
0809-
●
●
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
0809-
●
●
37
BEARING; PILOT,TOP GEAR SHAFT
8-94392-288-0
01
1
0809-
●
●
38
WASHER; FLYWHEEL
ID=55 OD=110
8-94397-496-1
01
1
0809-
●
●
40
BOLT; FLYWHEEL
M16X62
8-94393-070-2
08
1
0809-
●
●
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
0809-
●
●
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
0809-
●
●
57
PIN; PULLEY
OD=8 L=16
8-94391-156-0
01
1
0809-
●
●
58
BOLT; CR/SHF PULLEY
M16X50
0-20951-650-0
04
1
0809-
●
●
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98041-141-2
06
1
0809-
●
●
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98040-125-0
06
1
0809-
●
●
73
METAL SET; CONN ROD,STANDARD
GREEN
8-97616-358-0
06
1
0809-
●
●
73
METAL SET; CONN ROD,STANDARD
YELLOW
8-97616-359-0
06
1
0809-
●
●
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-98018-863-1
06
1
0809-
●
●
84
ROD ASM; CONN
8-98018-425-2
06
1
0809-
●
●
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94391-794-1
06
1
0809-
●
●
86
BOLT; CONNROD
M13X57 FLANGE
1-12235-035-0
12
1
0809-1004
●
●
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
12
1
1005-
●
●
108
RING; SNAP,BRG SET
OD=59.2
9-09180-155-0
01
1
0809-
●
●
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7
8-98006-828-0
12
1
0809-
●
●
