◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11142 - FVR-RHD(EUROPE)EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#67630) — 19 parça

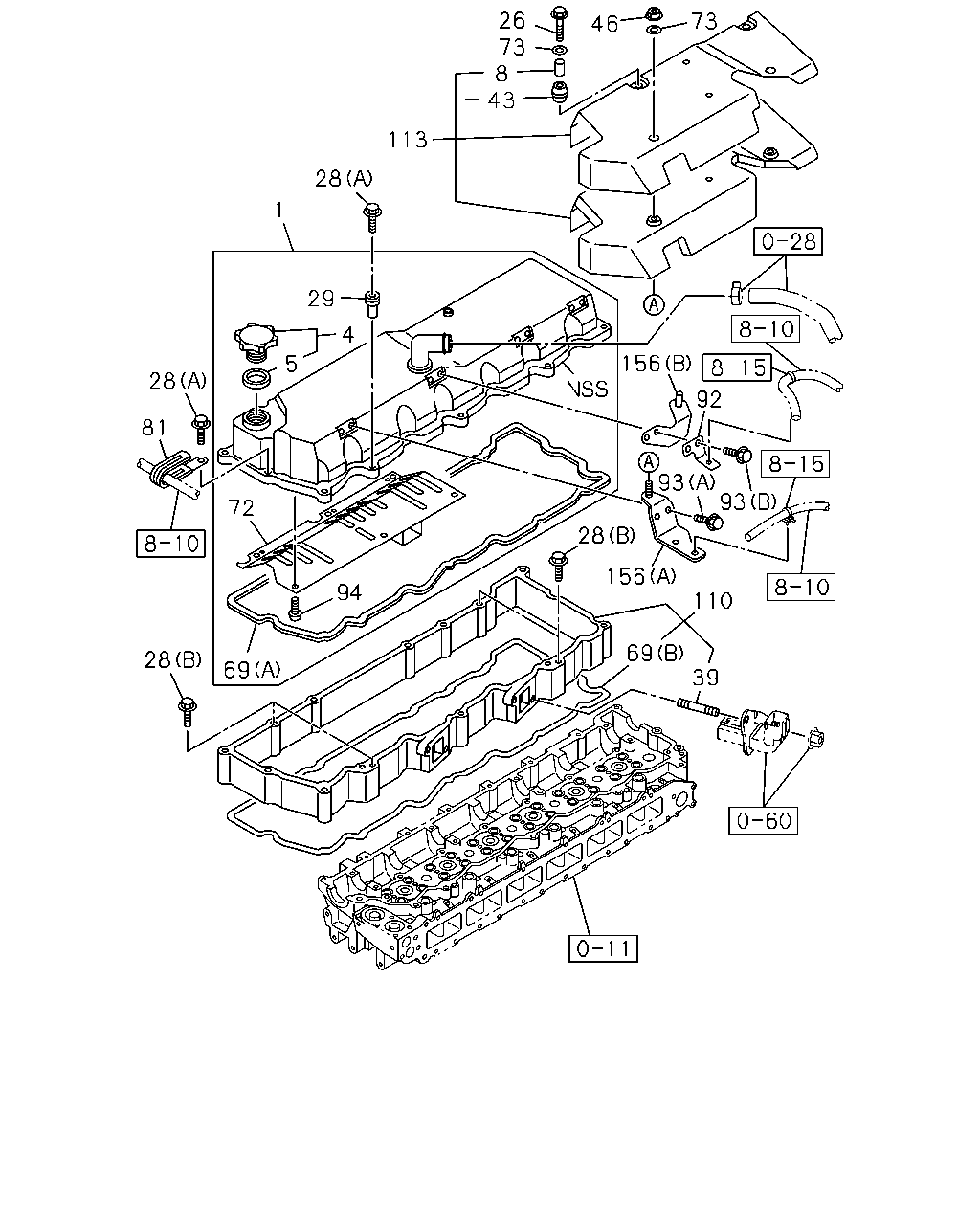

çizim 14980
26 73 8 43 73 46 113 28 1 29 4 156 5 28 92 81 93 93 72 28 156 94 110 69 39 28 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-250-3 01 1 0809-0907 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-433-0 01 1 0908-0910 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-541-3 01 1 0911-1106 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-754-0 01 1 1107-1301 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-057-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-334-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-781-0 01 1 1409- ● ●

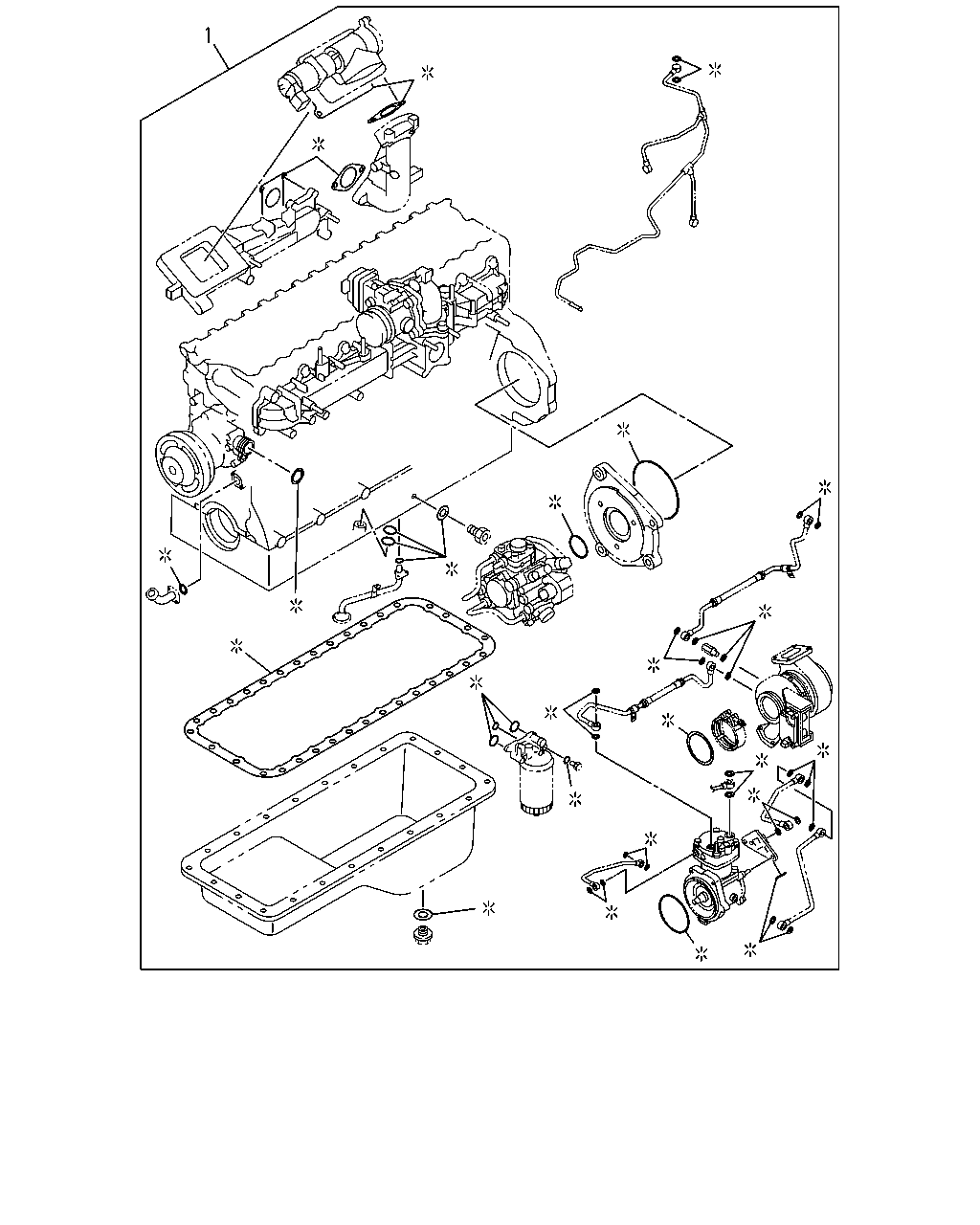

çizim 187360
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-250-3 01 1 0809-0907 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-433-0 01 1 0908-0910 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-541-3 01 1 0911-1106 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-754-0 01 1 1107-1301 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-057-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-334-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-781-0 01 1 1409- ● ●

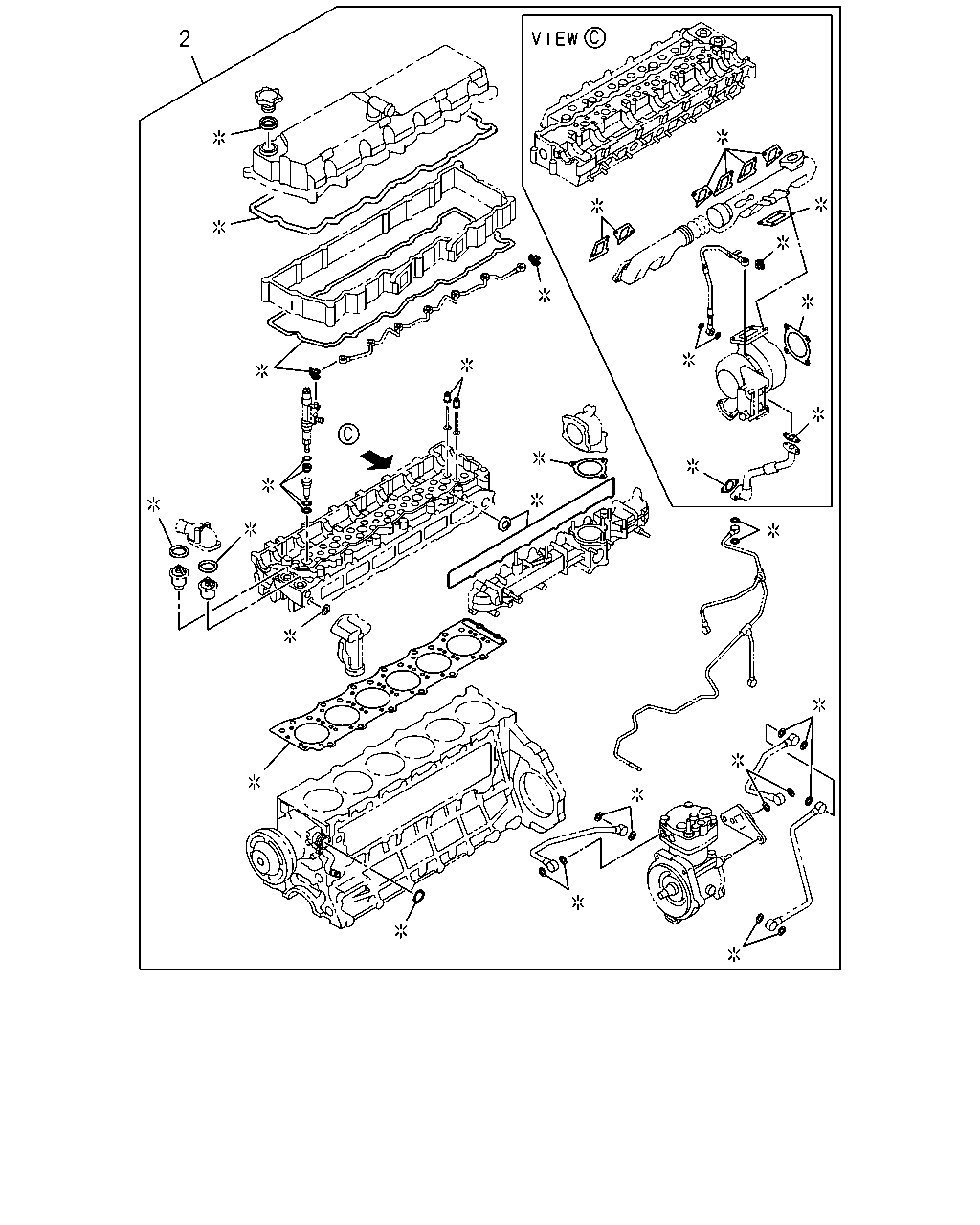

çizim 187361
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87813-251-1 01 1 0809-0907 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-434-4 01 1 0908-1301 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-056-0 01 1 1302-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-274-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-782-0 01 1 1409- ● ●
