◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10781 - FTR(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#6763) — 27 parça

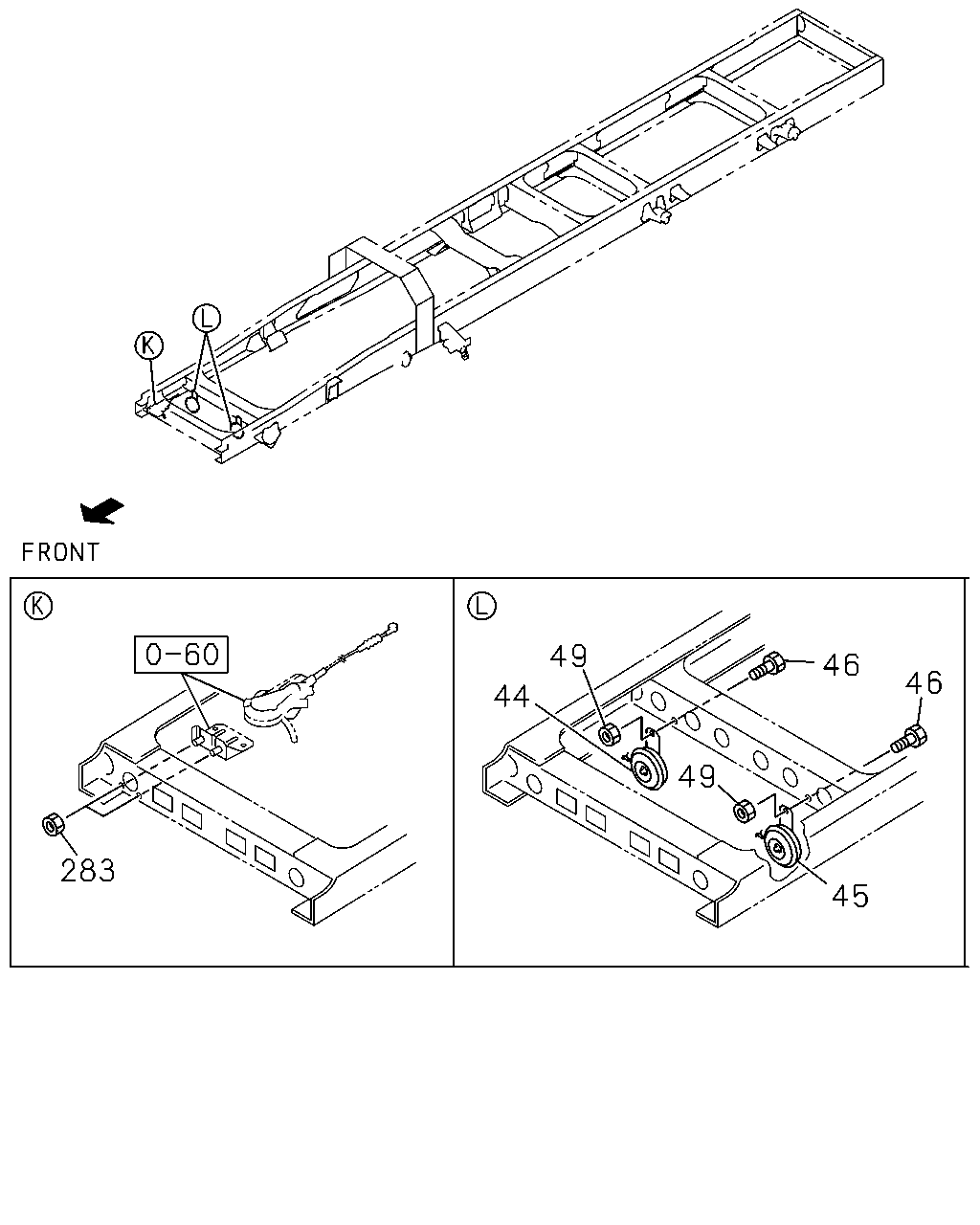

çizim 5723
49 46 46 44 49 283 45
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE
THA 		8-97915-997-1 01 1 0011- ● ●
45 HORN; LOW NOTE
THA 		8-97915-998-1 01 1 0011- ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 0011- ● ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0011- ● ●
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0011- ● ●

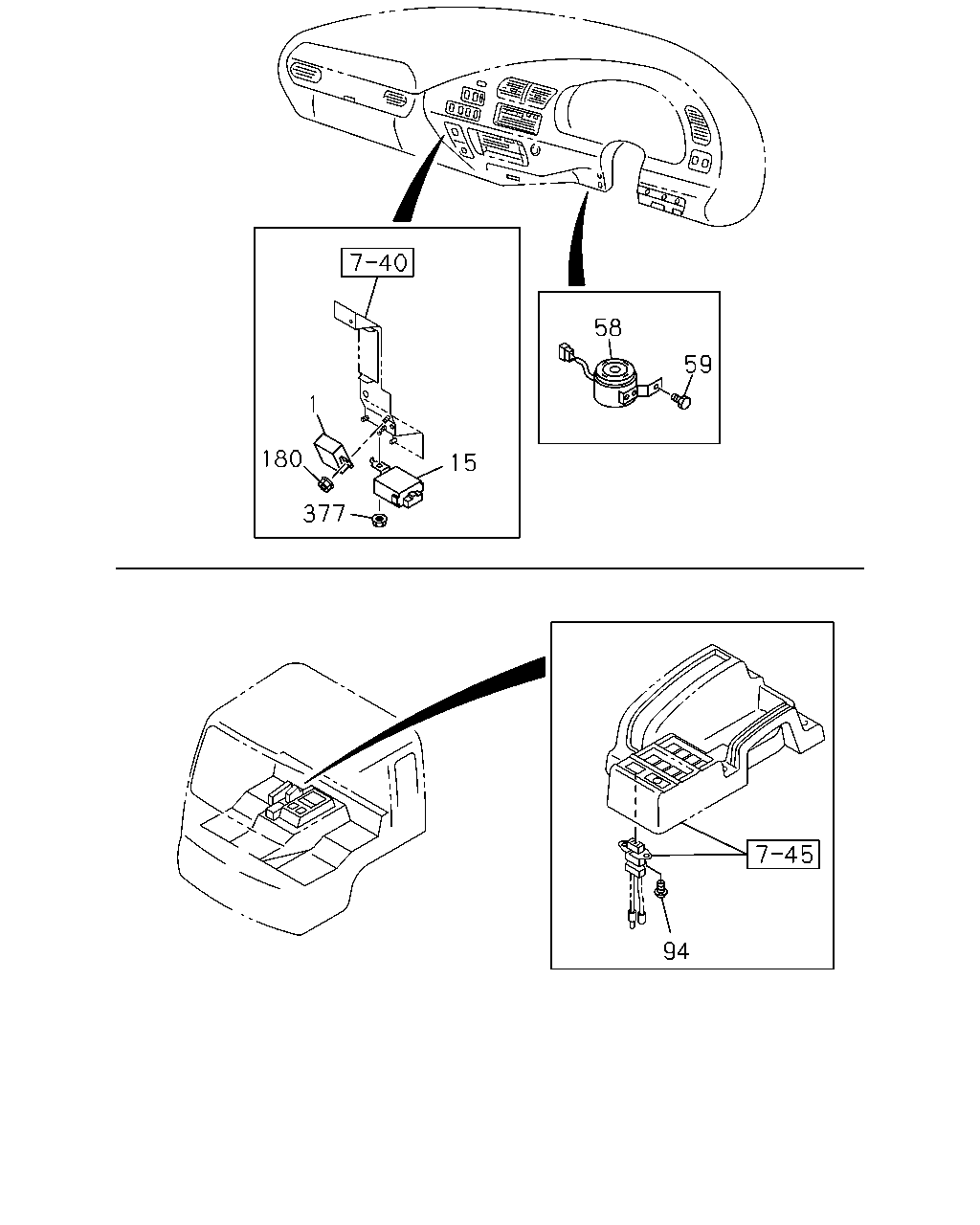

çizim 41032
58 59 1 180 15 377 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 1-83470-060-0 01 1 0011- ● ●
15 RELAY; STOP & TAIL WARNING
24V,25WX2,10WX2 		1-82550-299-0 01 1 0011- ● ●
58 BUZZER; AIR PRESSURE WARNING
NIKKO 		1-83460-056-0 01 1 0011- ● ●
58 BUZZER; AIR PRESSURE WARNING
EXC. NIKKO<Y70> METRO 		1-83460-074-1 01 1 0011- ● ●
59 SCREW; BUZZER
M5X14 THA 		8-94279-325-0 01 1 0011- ● ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 0011- ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0011- ● ●
377 NUT; RELAY
M6 FLANGE 		0-91150-106-0 01 1 0011- ● ●

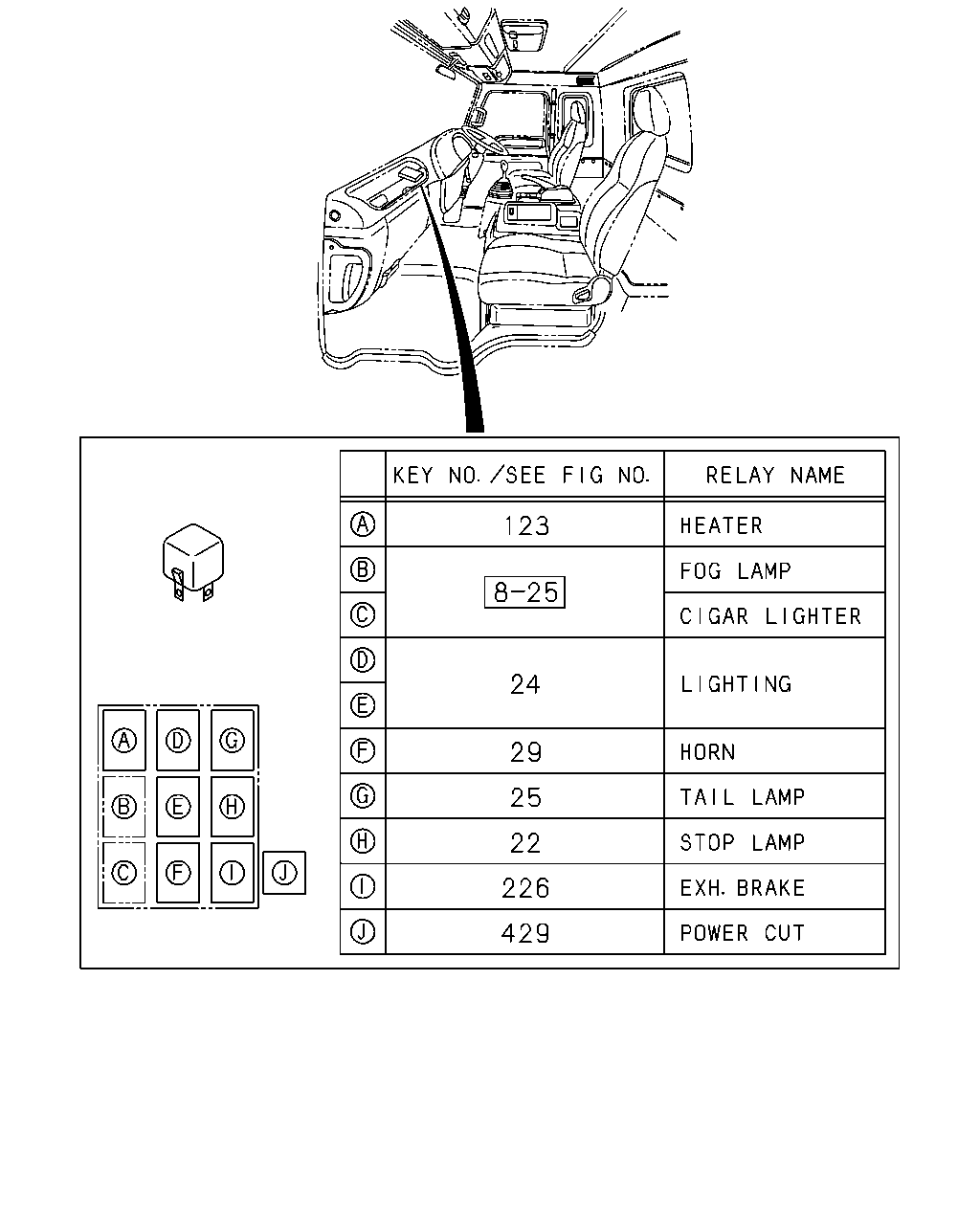

çizim 45149
123 24 29 25 22 226 429
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0011-0111 ● ●
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112- ● ●
24 RELAY; LIGHTING
24V 12.5A JIDECO THA 		8-97062-815-1 02 1 0011-0111 ● ●
24 RELAY; LIGHTING
24V 12.5A MATSUSHITA THA 		8-97262-933-0 02 1 0112- ● ●
25 RELAY; TAIL LAMP
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0011-0111 ● ●
25 RELAY; TAIL LAMP
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112- ● ●
29 RELAY; HORN
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0011-0111 ● ●
29 RELAY; HORN
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112- ● ●
123 RELAY; HTR
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0011-0111 ● ●
123 RELAY; HTR
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112- ● ●
226 RELAY; EXH BRK
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0011-0111 ● ●
226 RELAY; EXH BRK
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112- ● ●
429 RELAY; POWER CUT
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0011-0111 ● ●
429 RELAY; POWER CUT
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0112- ● ●
