Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#67610) — 452 parça

483 16 483 48 48 483 16 49 16 16 48 213 612 48 213 48 16 16 612 81 612 16 16 483 171 483 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

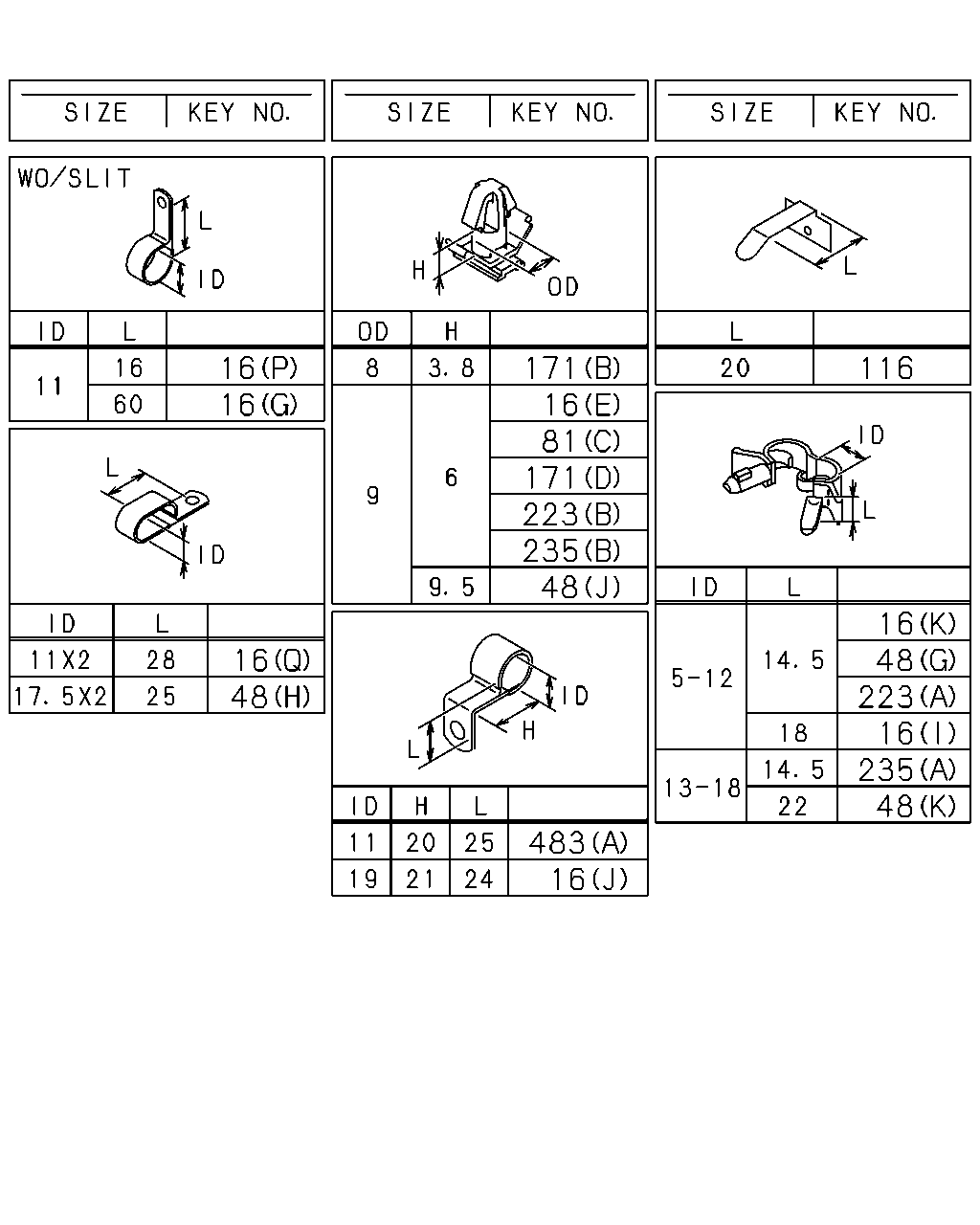

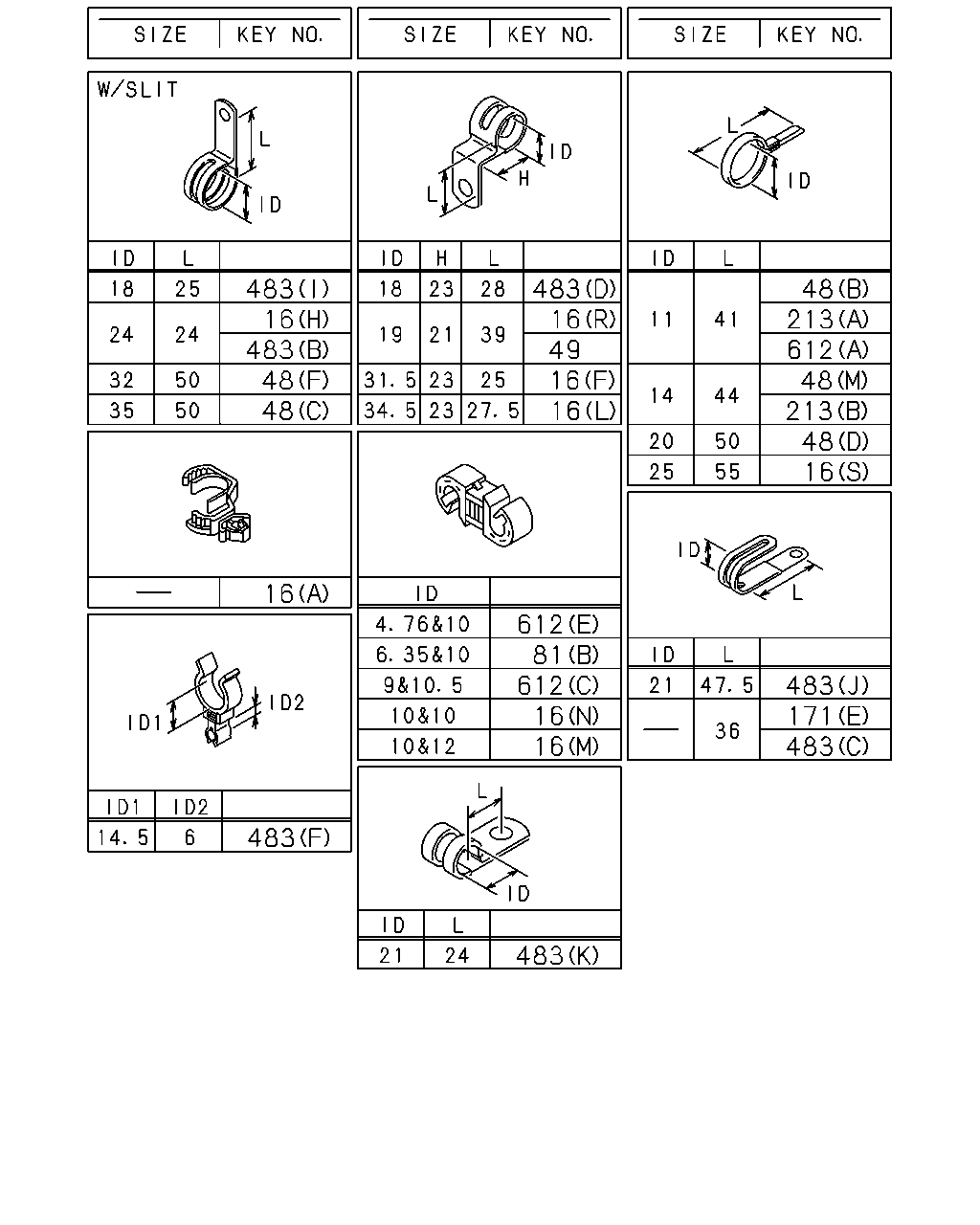

16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0803-
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0803-
16	CLIP; HARNESS (G) ID=11 L=60	0-95235-096-0	01	1	0803-0807
16	CLIP; HARNESS (Q) ID=11X2 L=16	1-09700-734-0	01	1	0803-
16	CLIP; HARNESS (R) ID=19 L=39 H=21	1-09700-972-1	01	1	0803-0807
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	01	1	0803-0808
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	0809-
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	03	1	0803-0911
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	02	1	0803-0911
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	01	1	0912-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	02	1	0803-
16	CLIP; HARNESS (K) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	0803-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0803-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0803-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	0803-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0803-
16	CLIP; HARNESS (S) ID=25 L=55	9-09917-573-0	01	1	0803-0811
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	0803-
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0803-
16	CLIP; HARNESS (O) L=250	1-09707-126-0	01	1	0803-0806
16	CLIP; HARNESS (O) L=250	1-09707-126-0	02	1	0807-
48	CLIP; FRAME HARNESS (J) OD=9 H=9.5	1-09709-179-0	01	1	0803-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1003-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	13	1	0810-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	15	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (M) ID=14 L=44	9-09917-427-0	15	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (D) ID=20 L=50	9-09917-430-0	05	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (D) ID=20 L=50	9-09917-430-0	07	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (M) ID=14 L=44	9-09917-427-0	07	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	08	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	10	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (M) ID=14 L=44	9-09917-427-0	10	1	1008-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=35 L=50	1-09701-214-0	01	1	0803-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-
48	CLIP; FRAME HARNESS (I) L=600	1-09707-107-1	01	1	0803-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0803-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=42	5-09700-358-0	01	1	0803-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	03	1	0803-0901
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0902-1201
48	CLIP; FRAME HARNESS (M) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0803-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0803-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50	1-09701-055-1	01	1	0803-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	12	1	0803-0804
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	12	1	0805-0808
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	12	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	12	1	0810-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	14	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	14	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (K) ID=13-18 L=22	1-09709-292-0	01	1	0805-0808
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	11	1	0805-0808
48	CLIP; FRAME HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) L=180	1-09707-162-1	01	1	0807-0809
48	CLIP; FRAME HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250	5-09707-030-1	04	1	0807-0809
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	0808-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0803-0901
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	0803-1007
81	CLIP; HARNESS WHEEL BASE 3400MM(34W) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1008-1010
81	CLIP; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-1011
81	CLIP; HARNESS WHEEL BASE 3400MM(34W) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-1011
81	CLIP; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1012-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1012-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-
171	CLIP; STARTER HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97101-436-0	01	1	0803-0803
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) (B) OD=8 H=3.8	1-09709-309-0	01	1	0804-1102
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	0803-0803
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0804-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180	1-09707-162-1	01	1	0807-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6	1-09709-178-0	01	1	0807-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36	8-94224-891-1	01	1	0807-
213	CLIP; END CROSS HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	0902-
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	09	1	0803-0901
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	07	1	0902-
483	CLIP; ENG HARNESS (K) ID=21 L=24	1-09701-201-0	01	1	1005-
483	CLIP; ENG HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	01	1	0803-0803
483	CLIP; ENG HARNESS (G)	1-09701-124-0	01	1	0803-0803
483	CLIP; ENG HARNESS (F) ID=14.5 & 6	8-94312-791-0	01	1	0803-0803
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	0803-
483	CLIP; ENG HARNESS (B) ID=24 L=24	1-09701-001-1	01	1	0803-
483	CLIP; ENG HARNESS (H)	1-09987-281-0	01	1	0803-
483	CLIP; ENG HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0803-
483	CLIP; ENG HARNESS (I) ID=18 L=25	8-94121-004-1	01	1	0803-
483	CLIP; ENG HARNESS (J) ID=21 L=47.5	8-94178-108-0	01	1	0803-
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	01	1	0803-
612	CLIP; HARNESS DPD (C) T=9 & 10.5	8-97371-949-0	03	1	0803-0804
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0803-
612	CLIP; HARNESS DPD (E) ID=4.76 & 10.0	1-09709-305-0	03	1	0803-
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0803-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0803-

16 16 483 16 171 483 183 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0803-
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0803-
16	CLIP; HARNESS (G) ID=11 L=60	0-95235-096-0	01	1	0803-0807
16	CLIP; HARNESS (Q) ID=11X2 L=16	1-09700-734-0	01	1	0803-
16	CLIP; HARNESS (R) ID=19 L=39 H=21	1-09700-972-1	01	1	0803-0807
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	01	1	0803-0808
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	0809-
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	03	1	0803-0911
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	02	1	0803-0911
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	01	1	0912-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	02	1	0803-
16	CLIP; HARNESS (K) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	0803-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0803-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0803-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	0803-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0803-
16	CLIP; HARNESS (S) ID=25 L=55	9-09917-573-0	01	1	0803-0811
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	0803-
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0803-
16	CLIP; HARNESS (O) L=250	1-09707-126-0	01	1	0803-0806
16	CLIP; HARNESS (O) L=250	1-09707-126-0	02	1	0807-
171	CLIP; STARTER HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97101-436-0	01	1	0803-0803
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) (B) OD=8 H=3.8	1-09709-309-0	01	1	0804-1102
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	0803-0803
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0804-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180	1-09707-162-1	01	1	0807-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6	1-09709-178-0	01	1	0807-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36	8-94224-891-1	01	1	0807-
183	CLIP; CONNECTOR L=175	1-09707-178-0	01	1	0803-0803
483	CLIP; ENG HARNESS (K) ID=21 L=24	1-09701-201-0	01	1	1005-
483	CLIP; ENG HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	01	1	0803-0803
483	CLIP; ENG HARNESS (G)	1-09701-124-0	01	1	0803-0803
483	CLIP; ENG HARNESS (F) ID=14.5 & 6	8-94312-791-0	01	1	0803-0803
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	0803-
483	CLIP; ENG HARNESS (B) ID=24 L=24	1-09701-001-1	01	1	0803-
483	CLIP; ENG HARNESS (H)	1-09987-281-0	01	1	0803-
483	CLIP; ENG HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0803-
483	CLIP; ENG HARNESS (I) ID=18 L=25	8-94121-004-1	01	1	0803-
483	CLIP; ENG HARNESS (J) ID=21 L=47.5	8-94178-108-0	01	1	0803-
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	01	1	0803-

16 16 171 16 81 171 223 235 48 116 16 48 223 16 235 48 16 48 483 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0803-
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0803-
16	CLIP; HARNESS (G) ID=11 L=60	0-95235-096-0	01	1	0803-0807
16	CLIP; HARNESS (Q) ID=11X2 L=16	1-09700-734-0	01	1	0803-
16	CLIP; HARNESS (R) ID=19 L=39 H=21	1-09700-972-1	01	1	0803-0807
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	01	1	0803-0808
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	0809-
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	03	1	0803-0911
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	02	1	0803-0911
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	01	1	0912-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	02	1	0803-
16	CLIP; HARNESS (K) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	0803-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0803-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0803-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	0803-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0803-
16	CLIP; HARNESS (S) ID=25 L=55	9-09917-573-0	01	1	0803-0811
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	0803-
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0803-
16	CLIP; HARNESS (O) L=250	1-09707-126-0	01	1	0803-0806
16	CLIP; HARNESS (O) L=250	1-09707-126-0	02	1	0807-
48	CLIP; FRAME HARNESS (J) OD=9 H=9.5	1-09709-179-0	01	1	0803-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1003-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	13	1	0810-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	15	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (M) ID=14 L=44	9-09917-427-0	15	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (D) ID=20 L=50	9-09917-430-0	05	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (D) ID=20 L=50	9-09917-430-0	07	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (M) ID=14 L=44	9-09917-427-0	07	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	08	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	10	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (M) ID=14 L=44	9-09917-427-0	10	1	1008-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=35 L=50	1-09701-214-0	01	1	0803-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-
48	CLIP; FRAME HARNESS (I) L=600	1-09707-107-1	01	1	0803-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0803-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=42	5-09700-358-0	01	1	0803-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	03	1	0803-0901
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0902-1201
48	CLIP; FRAME HARNESS (M) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0803-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0803-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50	1-09701-055-1	01	1	0803-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	12	1	0803-0804
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	12	1	0805-0808
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	12	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	12	1	0810-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	14	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	14	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (K) ID=13-18 L=22	1-09709-292-0	01	1	0805-0808
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	11	1	0805-0808
48	CLIP; FRAME HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) L=180	1-09707-162-1	01	1	0807-0809
48	CLIP; FRAME HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250	5-09707-030-1	04	1	0807-0809
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0803-0901
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	0803-1007
81	CLIP; HARNESS WHEEL BASE 3400MM(34W) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1008-1010
81	CLIP; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-1011
81	CLIP; HARNESS WHEEL BASE 3400MM(34W) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-1011
81	CLIP; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1012-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1012-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	0803-
171	CLIP; STARTER HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97101-436-0	01	1	0803-0803
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) (B) OD=8 H=3.8	1-09709-309-0	01	1	0804-1102
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	0803-0803
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0804-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180	1-09707-162-1	01	1	0807-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6	1-09709-178-0	01	1	0807-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36	8-94224-891-1	01	1	0807-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0803-
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) L=140	5-09707-031-1	01	1	0809-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	02	1	0803-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0803-
483	CLIP; ENG HARNESS (K) ID=21 L=24	1-09701-201-0	01	1	1005-
483	CLIP; ENG HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	01	1	0803-0803
483	CLIP; ENG HARNESS (G)	1-09701-124-0	01	1	0803-0803
483	CLIP; ENG HARNESS (F) ID=14.5 & 6	8-94312-791-0	01	1	0803-0803
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	0803-
483	CLIP; ENG HARNESS (B) ID=24 L=24	1-09701-001-1	01	1	0803-
483	CLIP; ENG HARNESS (H)	1-09987-281-0	01	1	0803-
483	CLIP; ENG HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0803-
483	CLIP; ENG HARNESS (I) ID=18 L=25	8-94121-004-1	01	1	0803-
483	CLIP; ENG HARNESS (J) ID=21 L=47.5	8-94178-108-0	01	1	0803-
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	01	1	0803-

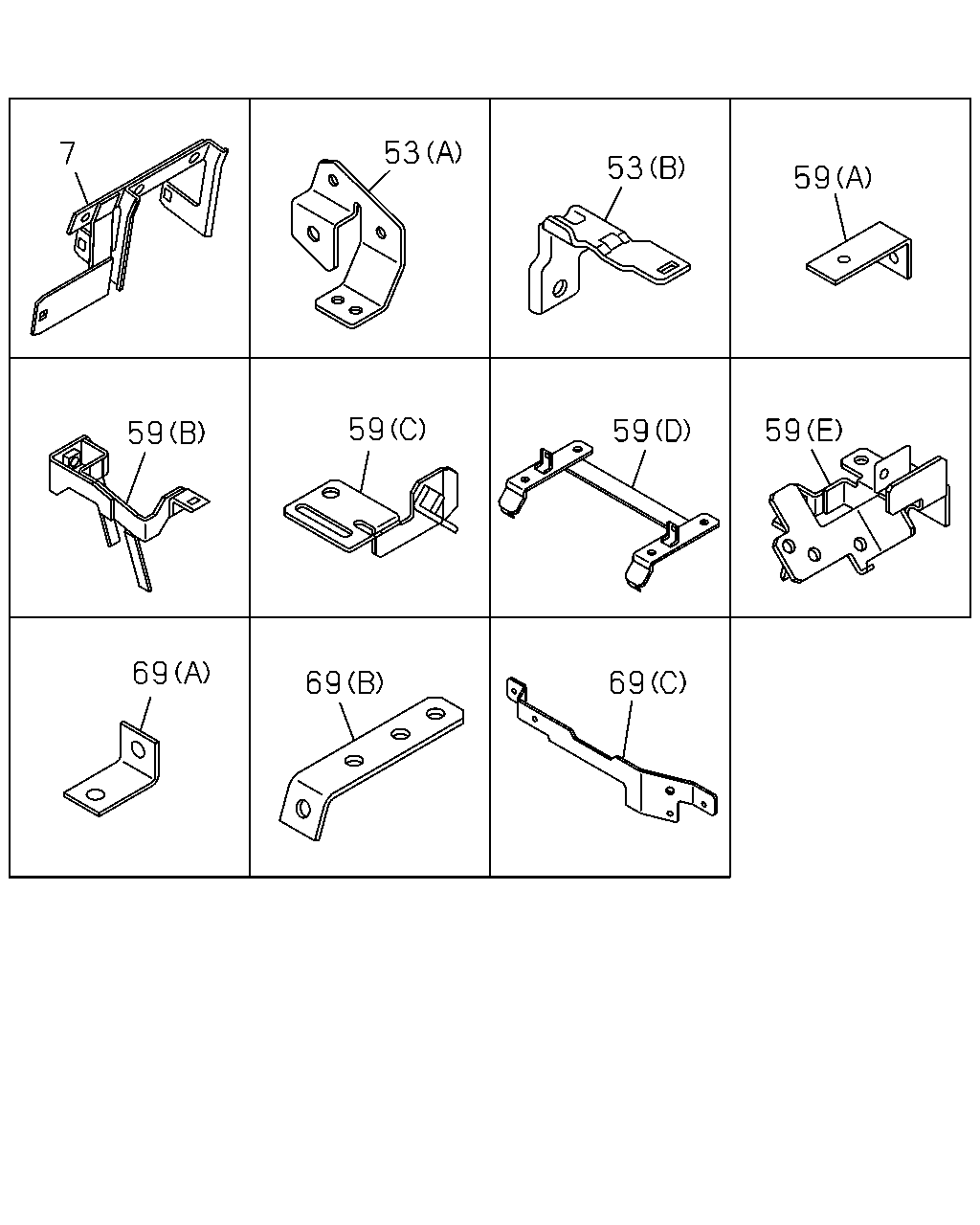

53 7 53 59 59 59 59 59 69 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0803-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	0803-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98084-590-0	01	1	0803-
59	BRACKET; FRAME HARNESS (A) L=55	1-47475-304-0	01	1	0812-0901
59	BRACKET; FRAME HARNESS (A) L=55	1-47475-304-0	01	1	0803-0807
59	BRACKET; FRAME HARNESS (C)	8-97616-305-0	01	1	0803-
59	BRACKET; FRAME HARNESS (D)	8-97619-533-0	01	1	0803-
59	BRACKET; FRAME HARNESS (E)	8-97619-535-0	01	1	0803-
59	BRACKET; FRAME HARNESS (B)	8-98099-963-0	01	1	0803-
69	BRACKET; CLIP (C)	8-97614-738-0	01	1	0803-
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=55	1-47475-304-0	01	1	0803-0803
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-82698-167-0	01	1	0804-

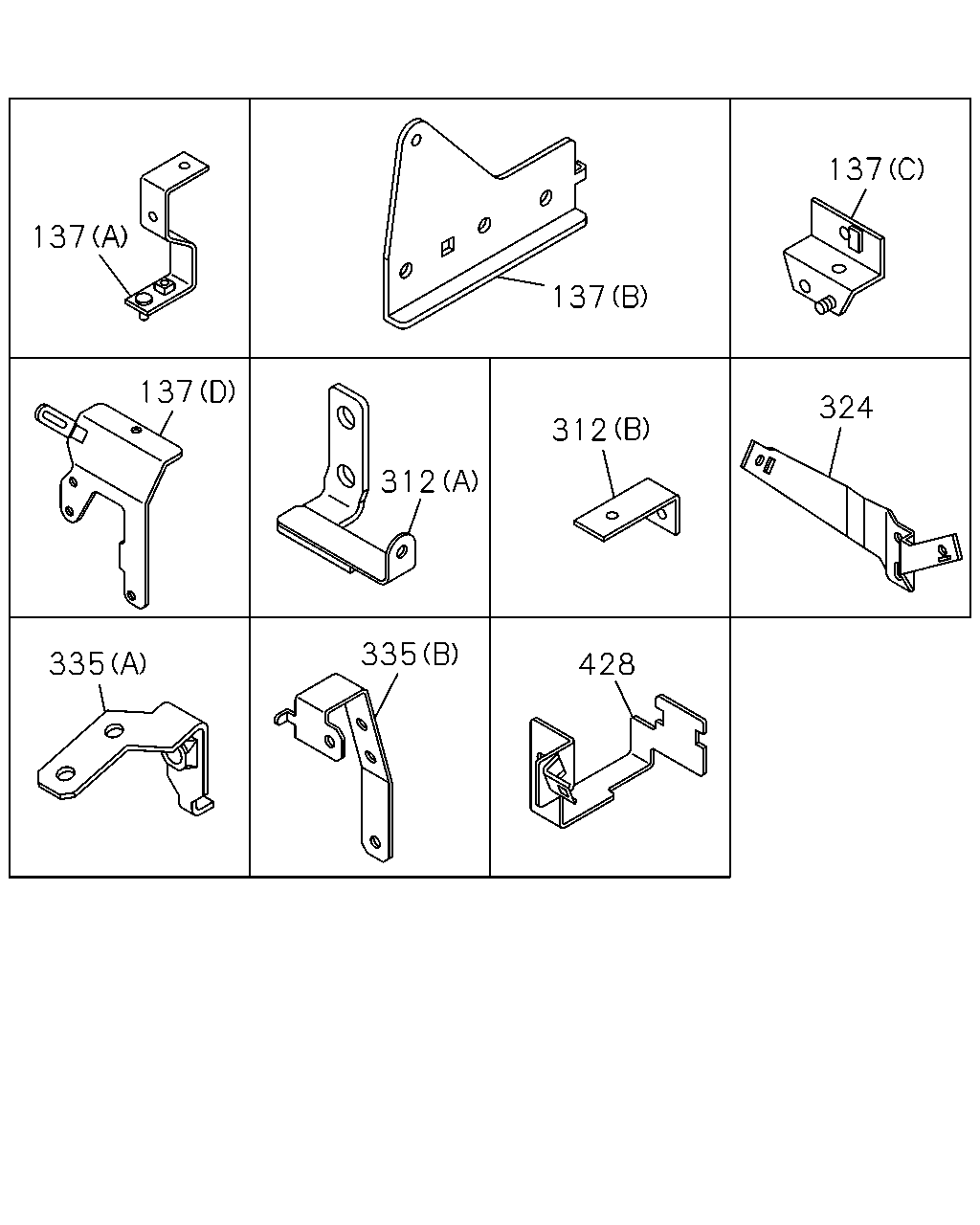

137 137 137 137 324 312 335 335 428 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (D)	8-97618-098-2	01	1	0803-
137	BRACKET; HARNESS CLAMP (B)	8-97624-016-0	01	1	0803-
137	BRACKET; HARNESS CLAMP (C)	8-98058-354-1	01	1	0803-
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	0803-
312	BRACKET; CLIP HARNESS (A)	8-98094-804-0	01	1	0803-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0803-
324	BRACKET; CLIP	8-98061-653-2	01	1	0803-
324	BRACKET; CLIP	8-98061-654-2	01	1	0803-
335	BRACKET; CONNECTOR WHEEL BASE 3400MM(34W) (A)	8-97619-478-1	01	1	0803-
335	BRACKET; CONNECTOR WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B)	8-97619-097-1	01	1	0803-
428	BRACKET	8-98090-951-0	01	1	0803-0806
428	BRACKET	8-98116-461-0	01	1	0807-

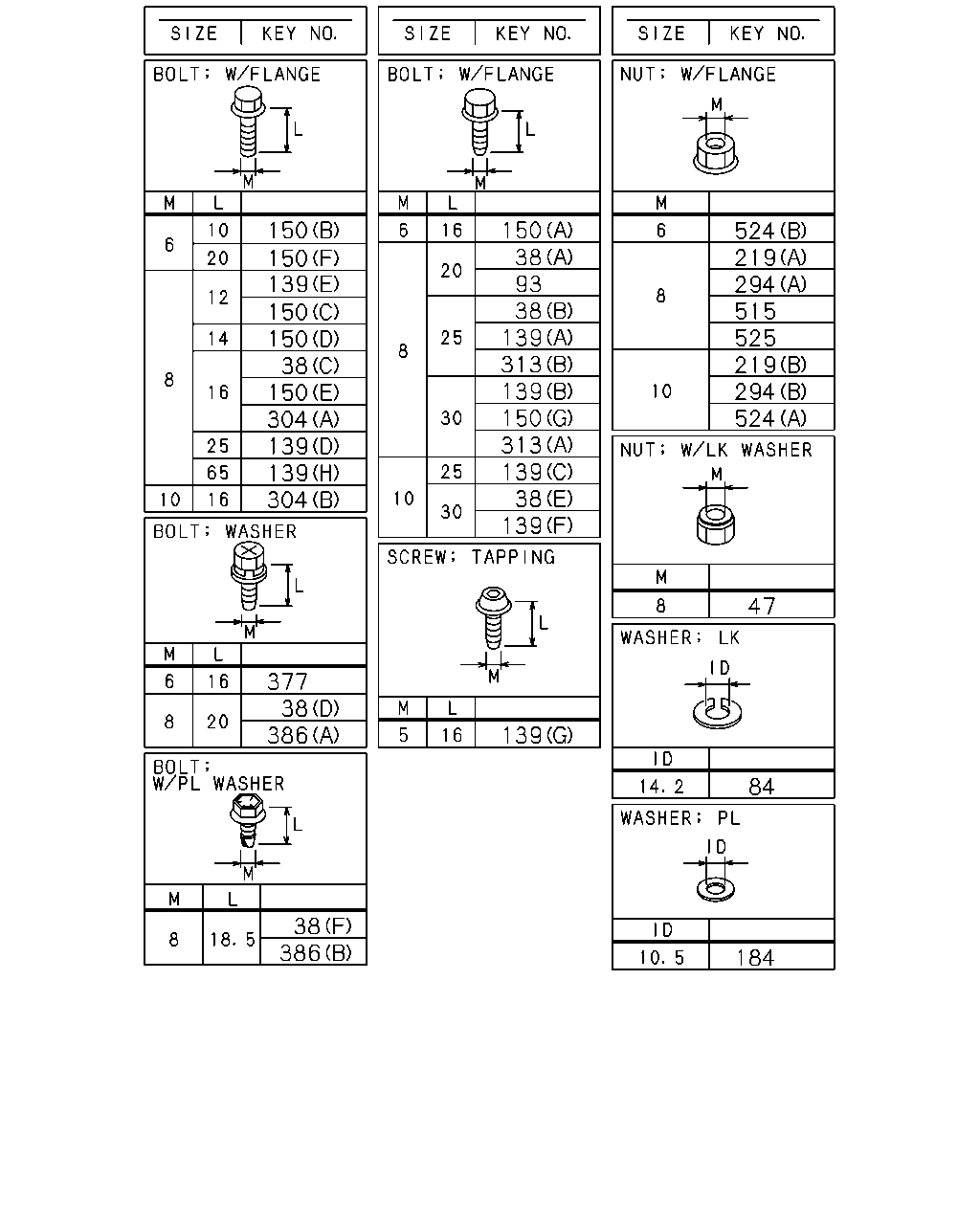

150 139 150 150 38 150 150 139 304 139 304 150 93 38 38 313 139 139 313 150 139 139 38 524 294 219 515 525 294 219 524 47 84 139 386 377 38 38 184 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	0803-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	0803-
38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0803-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
84	WASHER; LK BRKT,HARNESS ID=14.2	0-91510-814-0	02	1	0803-
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-0808
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (H) M8X65 FLANGE	1-09044-072-1	01	1	0809-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0807
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0807
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0808-0811
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0812-0901
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0812-0901
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0902-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0803-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	0803-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0803-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0803-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0803-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0803-
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	0803-
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	0803-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-
150	BOLT; CLIP (B) M6X10 FLANGE	0-28050-610-0	01	1	0803-0803
150	BOLT; CLIP (D) M8X14 FLANGE	0-28080-814-0	01	1	0803-0803
150	BOLT; CLIP (F) M6X20 FLANGE	0-28050-620-0	01	1	0803-1004
150	BOLT; CLIP (F) M6X20 FLANGE	0-28050-620-0	02	1	1005-
150	BOLT; CLIP (C) M8X12 FLANGE	0-28050-812-0	01	1	0803-
150	BOLT; CLIP (E) M8X16 FLANGE	0-28050-816-0	01	1	0803-
150	BOLT; CLIP (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-
150	BOLT; CLIP (G) M8X30 FLANGE	0-28650-830-0	01	1	0803-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0806-
219	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0803-
219	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0803-
219	NUT MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE	0-91180-210-0	01	1	0807-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0803-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0902-
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	0803-1010
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1011-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1011-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0803-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0803-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0912
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0912
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1001-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0803-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0803-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0803-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0902-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0902-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0902-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0902-
304	BOLT; ENG HARNESS CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	0803-0803
304	BOLT; ENG HARNESS CLIP (B) M10X16 FLANGE	0-28151-016-0	01	1	0803-0803
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0803-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0803-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0803-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0803-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-
524	NUT; HARNESS (A) M10 FLANGE	0-91180-110-0	01	1	0809-
524	NUT; HARNESS (B) M6 FLANGE	0-91180-106-0	04	1	0803-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0803
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0803
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0804-1008
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-

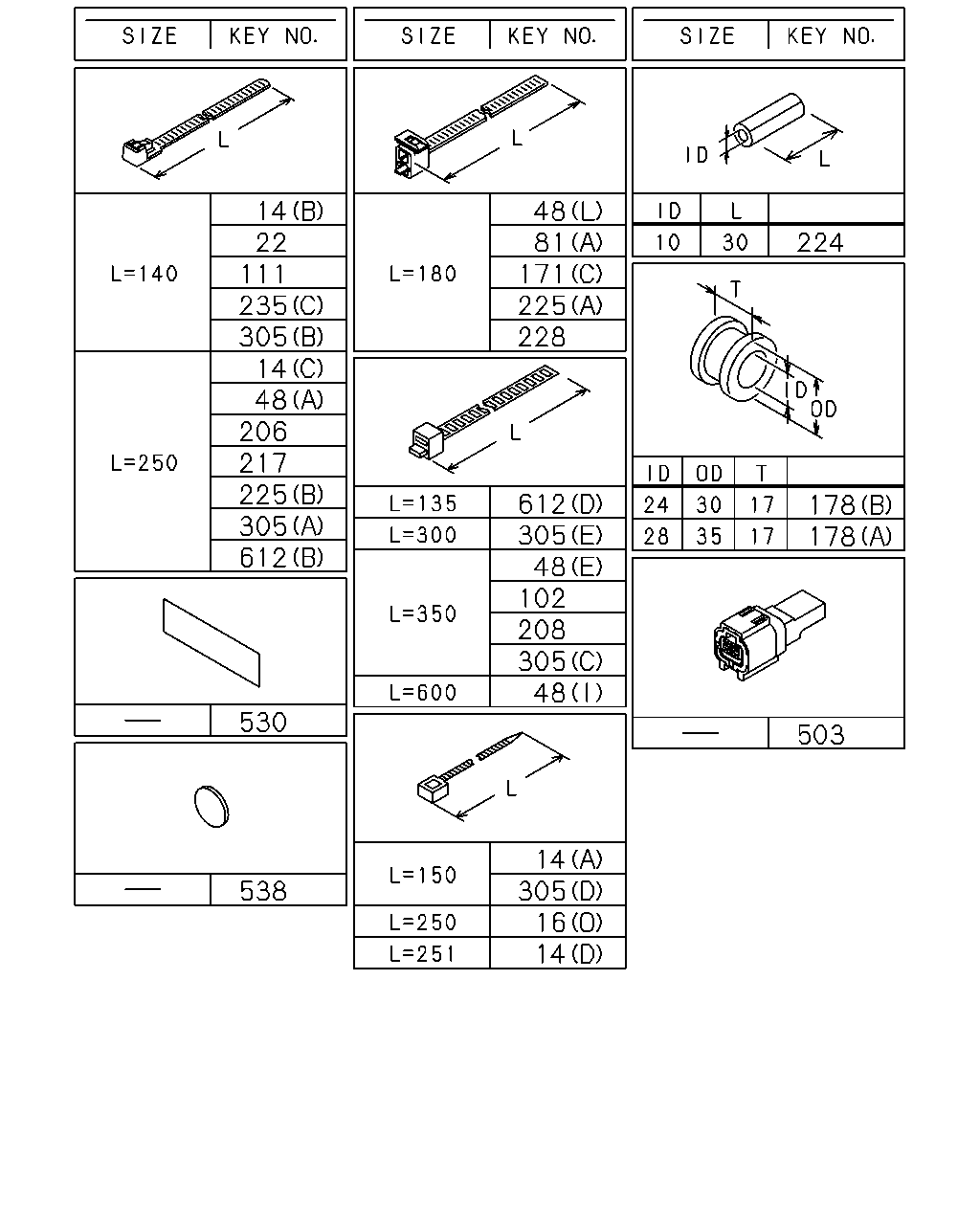

14 22 111 235 305 14 48 206 217 225 305 612 48 81 171 225 228 224 612 305 48 102 208 305 48 178 178 530 503 14 305 16 14 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	02	1	0803-
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	01	1	0803-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	15	1	0803-0812
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	30	1	0901-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	0803-0808
14	CLIP; BAND,HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=140	5-09707-031-1	02	1	0809-1107
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1108-
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	0803-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	03	1	0803-0803
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	04	1	0804-
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0803-
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0803-
16	CLIP; HARNESS (G) ID=11 L=60	0-95235-096-0	01	1	0803-0807
16	CLIP; HARNESS (Q) ID=11X2 L=16	1-09700-734-0	01	1	0803-
16	CLIP; HARNESS (R) ID=19 L=39 H=21	1-09700-972-1	01	1	0803-0807
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	01	1	0803-0808
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	0809-
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	03	1	0803-0911
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	02	1	0803-0911
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	01	1	0912-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	02	1	0803-
16	CLIP; HARNESS (K) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	0803-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0803-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0803-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	0803-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0803-
16	CLIP; HARNESS (S) ID=25 L=55	9-09917-573-0	01	1	0803-0811
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	0803-
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0803-
16	CLIP; HARNESS (O) L=250	1-09707-126-0	01	1	0803-0806
16	CLIP; HARNESS (O) L=250	1-09707-126-0	02	1	0807-
22	CLIP; ENG HARNESS L=140	5-09707-031-1	03	1	0803-0803
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	0804-
48	CLIP; FRAME HARNESS (J) OD=9 H=9.5	1-09709-179-0	01	1	0803-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1003-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	13	1	0810-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	15	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (M) ID=14 L=44	9-09917-427-0	15	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (D) ID=20 L=50	9-09917-430-0	05	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (D) ID=20 L=50	9-09917-430-0	07	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (M) ID=14 L=44	9-09917-427-0	07	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	08	1	0803-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	10	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (M) ID=14 L=44	9-09917-427-0	10	1	1008-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=35 L=50	1-09701-214-0	01	1	0803-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-
48	CLIP; FRAME HARNESS (I) L=600	1-09707-107-1	01	1	0803-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0803-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=42	5-09700-358-0	01	1	0803-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	03	1	0803-0901
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0902-1201
48	CLIP; FRAME HARNESS (M) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0803-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0803-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50	1-09701-055-1	01	1	0803-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	12	1	0803-0804
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	12	1	0805-0808
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	12	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	12	1	0810-0901
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	14	1	0902-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	14	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (K) ID=13-18 L=22	1-09709-292-0	01	1	0805-0808
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	11	1	0805-0808
48	CLIP; FRAME HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) L=180	1-09707-162-1	01	1	0807-0809
48	CLIP; FRAME HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250	5-09707-030-1	04	1	0807-0809
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0803-0901
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	0803-1007
81	CLIP; HARNESS WHEEL BASE 3400MM(34W) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1008-1010
81	CLIP; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-1011
81	CLIP; HARNESS WHEEL BASE 3400MM(34W) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-1011
81	CLIP; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1012-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1012-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-
102	CLIP; BAND L=350	1-09707-183-0	01	1	0803-0911
111	CLIP; STOP LAMP SW HARNESS L=140	5-09707-031-1	03	1	0803-0807
171	CLIP; STARTER HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97101-436-0	01	1	0803-0803
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) (B) OD=8 H=3.8	1-09709-309-0	01	1	0804-1102
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	0803-0803
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0804-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180	1-09707-162-1	01	1	0807-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6	1-09709-178-0	01	1	0807-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36	8-94224-891-1	01	1	0807-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0803-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	0803-0811
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	0812-
178	GROMMET; HARNESS WHEEL BASE 3400MM(34W) (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	0812-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0803-0811
178	GROMMET; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0812-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	0803-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0803-0810
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	0811-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0803-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1101-
217	CLIP; RR BODY HARNESS EXC. REVERSING WARNING BUZZER<YM9> L=250	5-09707-030-1	01	1	0812-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0803-0901
224	SLEEVE; RUBBER,HARNESS ID=10 OD=14 L=30	9-09956-682-0	01	1	0803-0803
224	SLEEVE; RUBBER,HARNESS ID=10 OD=14 L=30	9-09956-682-0	01	1	0809-
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	0803-
225	CLIP; AIR TANK HARNESS (B) L=250	5-09707-030-1	01	1	0803-0811
228	CLIP; COOLER HARNESS L=180	1-09707-162-1	01	1	0803-0803
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) L=140	5-09707-031-1	01	1	0809-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	02	1	0803-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0803-
305	CLIP; ENG HARNESS (C) L=350	8-94152-256-1	01	1	0803-0905
305	CLIP; ENG HARNESS (E) L=300	1-09707-001-1	01	1	0906-
305	CLIP; ENG HARNESS (D) L=150	8-97355-273-0	01	1	0803-0905
305	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=140	5-09707-031-1	01	1	0803-0803
305	CLIP; ENG HARNESS MZX6P M/T(RSW) (A) L=250	5-09707-030-1	01	1	0804-0809
305	CLIP; ENG HARNESS MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250	5-09707-030-1	01	1	0810-
305	CLIP; ENG HARNESS (A) L=250	5-09707-030-1	01	1	0803-0803
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	01	1	0804-0905
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	02	1	0906-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	0803-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0803-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	15	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0803-1305
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0803-
612	CLIP; HARNESS DPD (C) T=9 & 10.5	8-97371-949-0	03	1	0803-0804
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0803-
612	CLIP; HARNESS DPD (E) ID=4.76 & 10.0	1-09709-305-0	03	1	0803-
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0803-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
