◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11138 - FRR RHD EUROPE EURO4 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#67609) — 735 parça

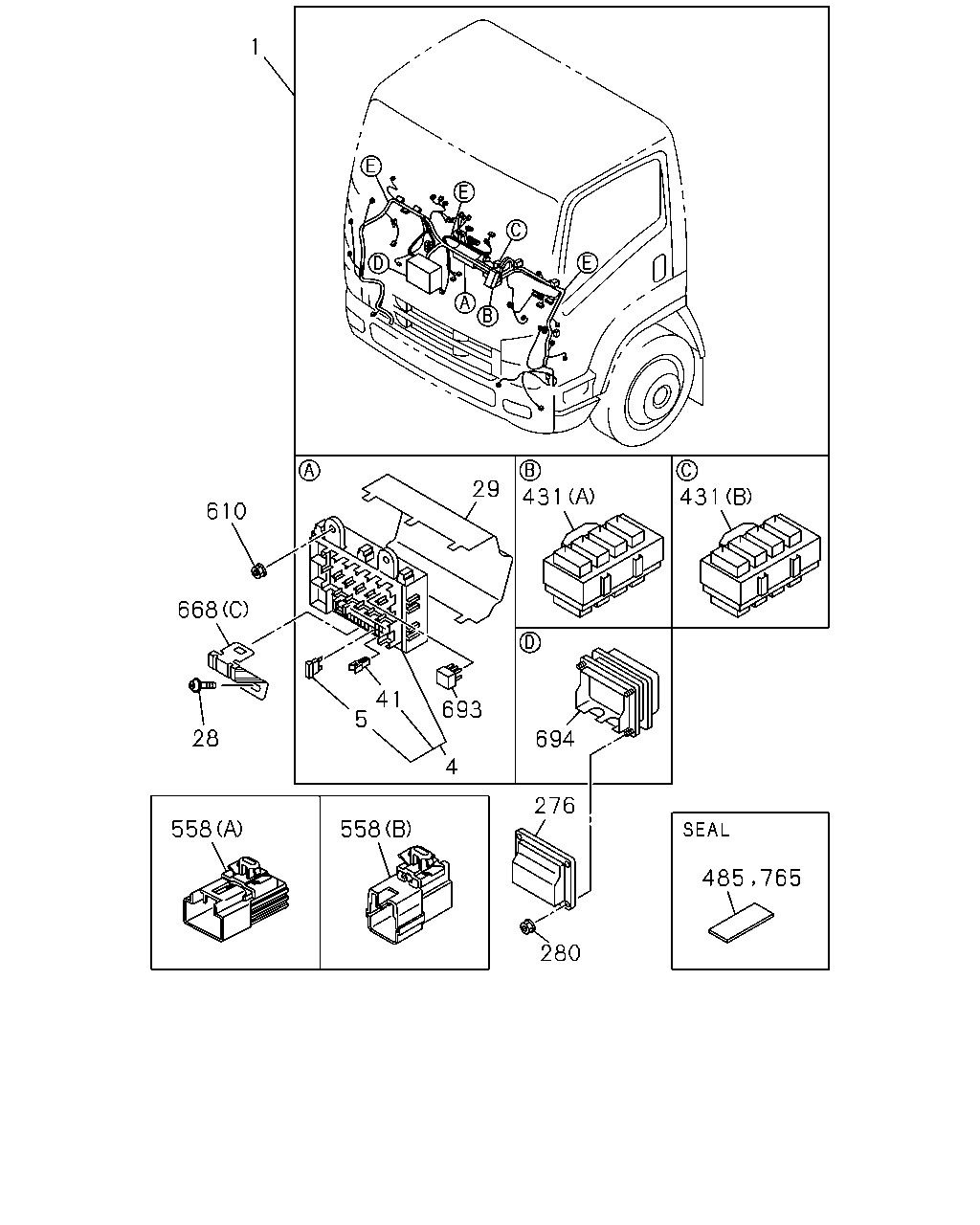

çizim 136124
1 610 668 28 5 41 693 694 29 431 431 276 280 485 765 558 558 4
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-916-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-916-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-910-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-910-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-914-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-914-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-906-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-906-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-917-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-917-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-911-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-911-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-915-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-915-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-907-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-907-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98108-068-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-068-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98108-062-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-062-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-066-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-066-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-058-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-058-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98108-069-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-069-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98108-063-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-063-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-067-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-067-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-059-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-059-0 01 1 1112-1209
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0803-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0803-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0803-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0803-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 01 1 0803-
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98114-789-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98168-611-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98114-791-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98168-613-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98114-792-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-614-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98114-793-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-615-0 01 1 1008-
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 FLANGE 		0-28650-616-0 01 1 0909-
28 SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 0803-0908
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 0909-
29 COVER; FUSE BOX 8-98056-968-0 01 1 0803-
41 PULLER; FUSE 8-98054-260-0 01 1 0803-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98064-339-2 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1002-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98090-507-1 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1002-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98107-559-0 01 1 0803-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98107-561-0 01 1 0803-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1002-
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0803-
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-933-1 01 1 0803-0908
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98151-320-1 01 1 0909-
231 HARNESS; TRANS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98114-228-1 01 1 0807-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 0803-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 0803-
431 CONNECTOR; JOINT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (C) 10P BLUE 		1-82699-598-0 04 1 0803-0803
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0803-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0803-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0803-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0803-
431 CONNECTOR; JOINT
WHEEL BASE 3400MM(34W) (C) 10P BLUE 		1-82699-598-0 03 1 0803-0803
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0804-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0803-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0803-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0803-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0803-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0803-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0803-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 0909-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		1-82690-668-0 01 1 0809-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98108-678-0 01 1 0803-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98108-679-0 01 1 0803-
610 NUT; BRKT,FUSE BOX
M6 FLANGE 		0-91180-106-0 04 1 0803-0807
668 BRACKET; HARNESS
(B) 		8-97379-783-1 01 1 0803-0803
668 BRACKET; HARNESS
(D) 		8-98001-095-0 01 1 0803-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 0803-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 0803-
668 BRACKET; HARNESS
(G) 		8-98022-106-2 01 1 0803-1004
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 0803-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 0803-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0803-
694 BOX ASM; CONNECTOR 8-98063-269-0 01 1 0803-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

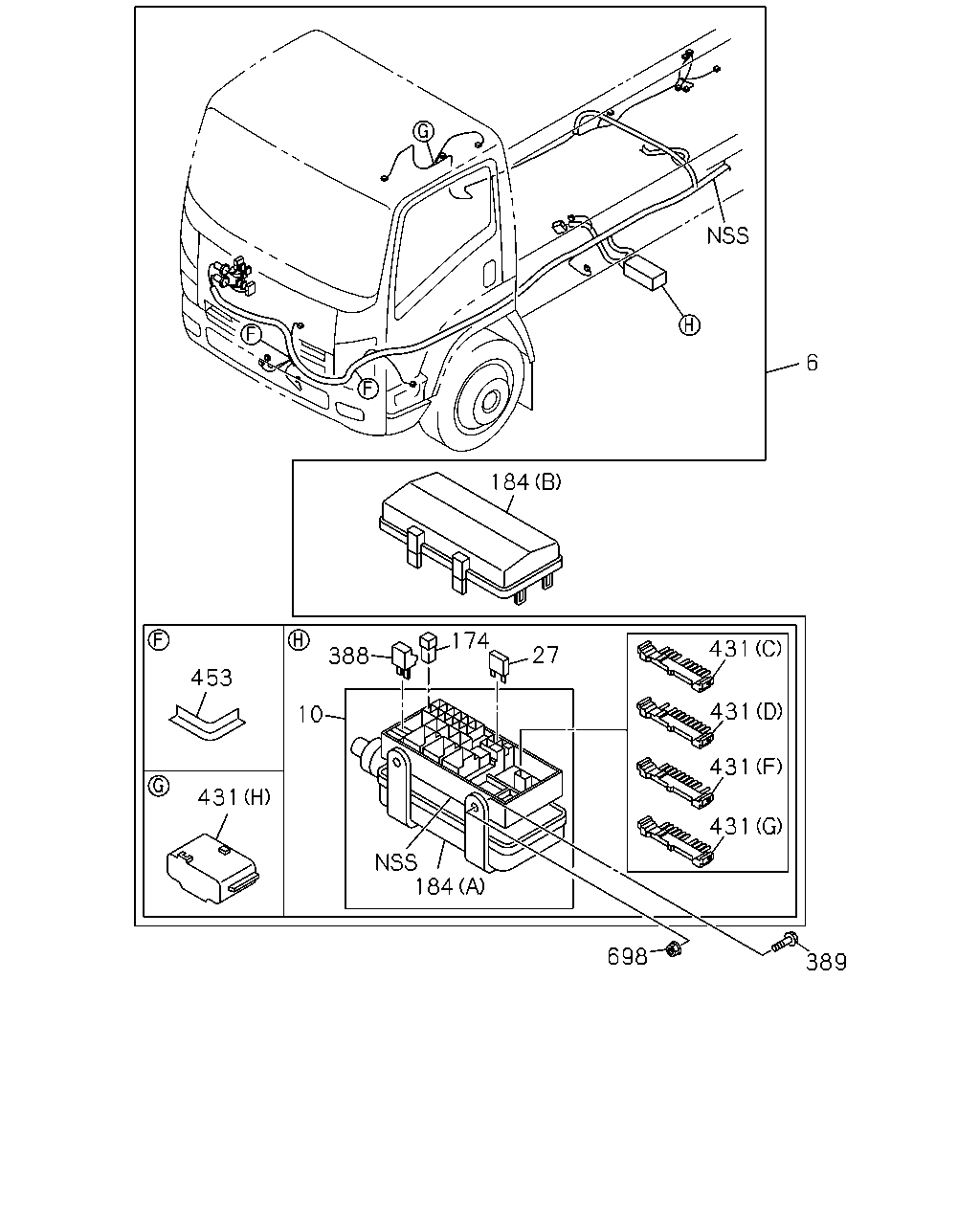

çizim 136465
6 184 174 431 27 388 453 431 10 431 431 431 184 698 389
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-287-7 01 1 0803-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-288-6 01 1 0803-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-289-2 01 1 0803-0804
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-831-6 01 1 0805-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-290-2 01 1 0803-0804
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-832-5 01 1 0805-
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98114-789-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98168-611-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98114-791-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98168-613-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98114-792-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-614-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98114-793-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-615-0 01 1 1008-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 0803-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 0803-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 0803-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 0803-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 0803-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 0803-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 0803-1106
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 0803-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 0803-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98064-339-2 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1002-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98090-507-1 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1002-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98107-559-0 01 1 0803-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98107-561-0 01 1 0803-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1002-
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0803-
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-933-1 01 1 0803-0908
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98151-320-1 01 1 0909-
231 HARNESS; TRANS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98114-228-1 01 1 0807-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 0803-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 0803-
431 CONNECTOR; JOINT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (C) 10P BLUE 		1-82699-598-0 04 1 0803-0803
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0803-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0803-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0803-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0803-
431 CONNECTOR; JOINT
WHEEL BASE 3400MM(34W) (C) 10P BLUE 		1-82699-598-0 03 1 0803-0803
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0804-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0803-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0803-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0803-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0803-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0803-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0803-
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 0803-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 0803-0808
çizim 136738
1 570
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-916-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-916-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-910-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-910-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-914-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-914-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-906-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-906-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-917-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-917-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-911-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-911-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-915-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-915-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-907-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-907-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98108-068-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-068-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98108-062-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-062-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-066-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-066-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-058-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-058-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98108-069-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-069-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98108-063-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-063-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-067-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-067-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-059-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-059-0 01 1 1112-1209
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98114-789-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98168-611-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98114-791-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98168-613-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98114-792-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-614-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98114-793-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-615-0 01 1 1008-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98064-339-2 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1002-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98090-507-1 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1002-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98107-559-0 01 1 0803-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98107-561-0 01 1 0803-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1002-
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0803-
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-933-1 01 1 0803-0908
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98151-320-1 01 1 0909-
231 HARNESS; TRANS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98114-228-1 01 1 0807-
570 HARNESS; SPEED SENSOR
(A) 		8-98035-237-0 01 1 0803-0803
570 HARNESS; SPEED SENSOR
MZX6P M/T(RSW) (B) 		8-98058-327-1 01 1 0804-0806
570 HARNESS; SPEED SENSOR
MZX6P M/T(RSW),MLD6S M/T(X7W) (B) 		8-98058-327-1 01 1 0807-

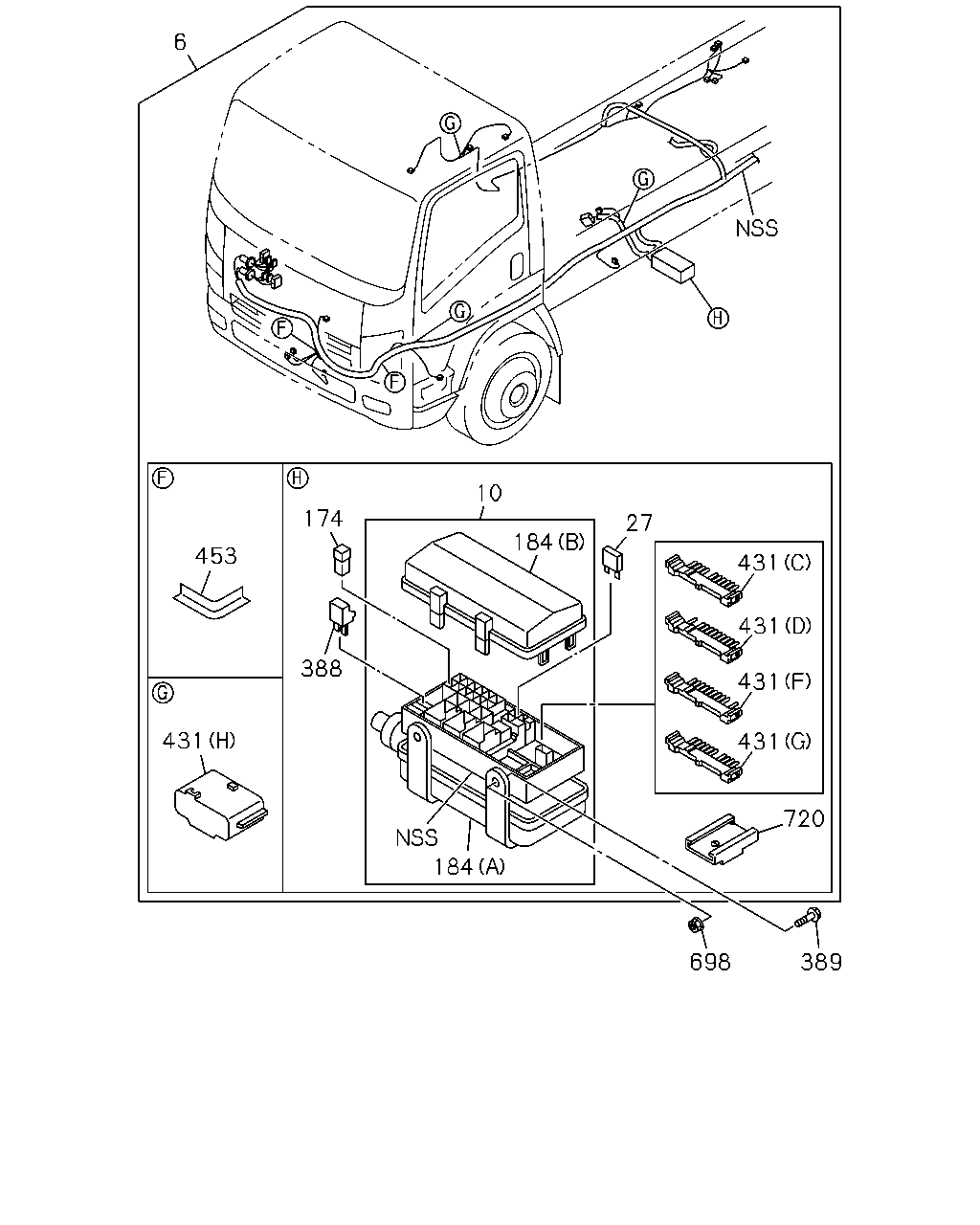

çizim 136898
6 10 174 27 184 453 431 431 388 431 431 431 720 184 698 389
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-287-7 01 1 0803-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-288-6 01 1 0803-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-289-2 01 1 0803-0804
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-831-6 01 1 0805-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-290-2 01 1 0803-0804
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-832-5 01 1 0805-
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98114-789-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98168-611-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98114-791-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98168-613-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98114-792-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-614-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98114-793-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-615-0 01 1 1008-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 0803-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 0803-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 0803-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 0803-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 0803-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 0803-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 0803-1106
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 0803-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 0803-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98064-339-2 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1002-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98090-507-1 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1002-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98107-559-0 01 1 0803-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98107-561-0 01 1 0803-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1002-
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0803-
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-933-1 01 1 0803-0908
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98151-320-1 01 1 0909-
231 HARNESS; TRANS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98114-228-1 01 1 0807-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 0803-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 0803-
431 CONNECTOR; JOINT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (C) 10P BLUE 		1-82699-598-0 04 1 0803-0803
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0803-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0803-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0803-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0803-
431 CONNECTOR; JOINT
WHEEL BASE 3400MM(34W) (C) 10P BLUE 		1-82699-598-0 03 1 0803-0803
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0804-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0803-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0803-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0803-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0803-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0803-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0803-
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 0803-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 0803-0808
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 0803-

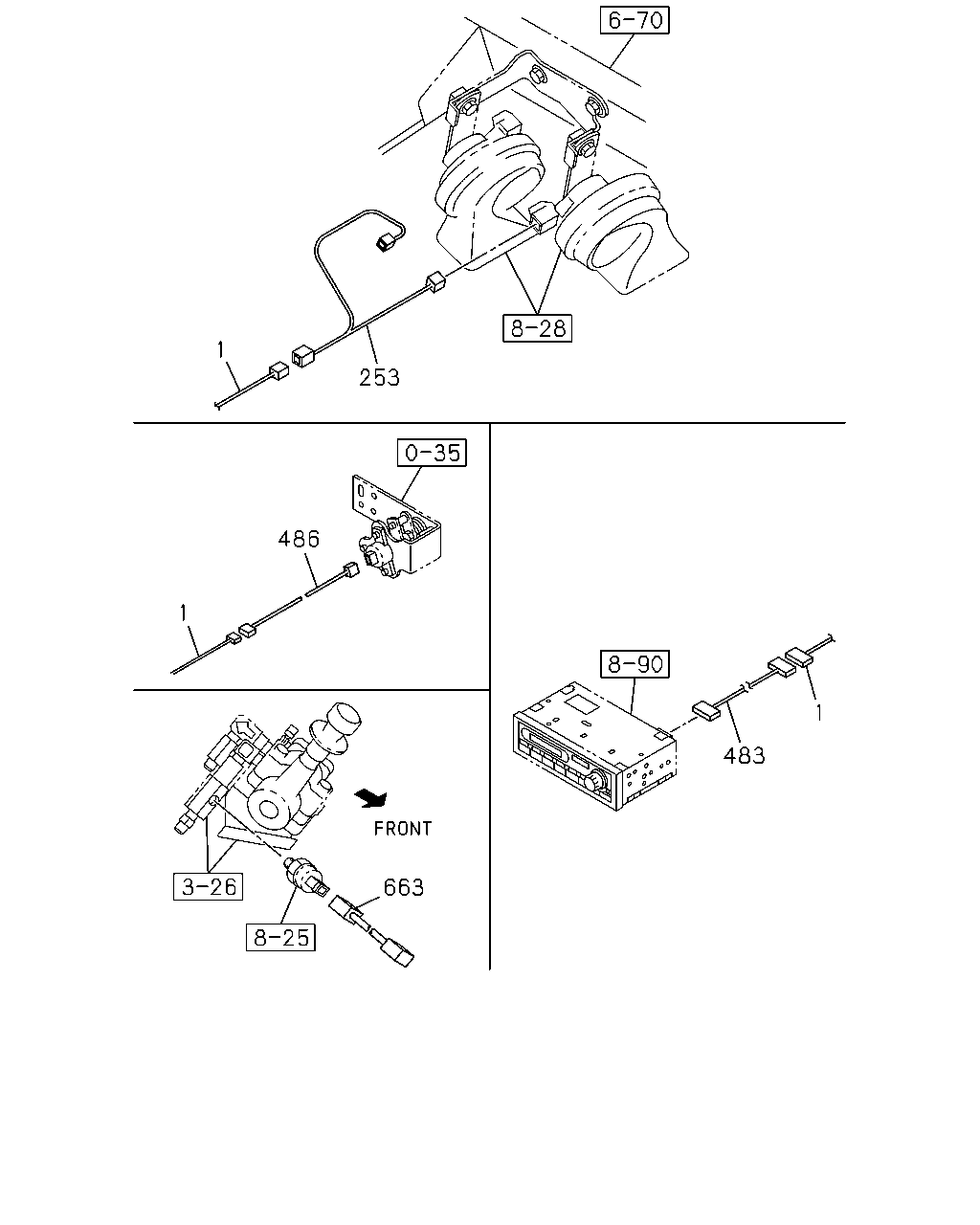

çizim 136957
1 253 486 1 1 483 663
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-916-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-916-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-910-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-910-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-914-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-914-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-906-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-906-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-917-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-917-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-911-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-911-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-915-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-915-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-907-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-907-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98108-068-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-068-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98108-062-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-062-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-066-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-066-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-058-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-058-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98108-069-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-069-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98108-063-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-063-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-067-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-067-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-059-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-059-0 01 1 1112-1209
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98114-789-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98168-611-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98114-791-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98168-613-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98114-792-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-614-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98114-793-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-615-0 01 1 1008-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98064-339-2 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1002-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98090-507-1 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1002-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98107-559-0 01 1 0803-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98107-561-0 01 1 0803-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1002-
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0803-
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-933-1 01 1 0803-0908
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98151-320-1 01 1 0909-
231 HARNESS; TRANS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98114-228-1 01 1 0807-
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 0803-
483 HARNESS; EXT,RADIO 8-98116-875-0 01 1 0805-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4> 		1-82675-898-0 01 1 0803-
663 HARNESS; EXTENSION,RR WHEEL PARKING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98126-779-2 01 1 1008-
çizim 137045
700 13 558 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-287-7 01 1 0803-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-288-6 01 1 0803-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-289-2 01 1 0803-0804
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-831-6 01 1 0805-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-290-2 01 1 0803-0804
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-832-5 01 1 0805-
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98114-789-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98168-611-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98114-791-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98168-613-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98114-792-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-614-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98114-793-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-615-0 01 1 1008-
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98096-109-1 01 1 0803-1004
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98162-617-2 01 1 1005-1406
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98274-003-0 01 1 1407-
13 HARNESS; ENG
(B) 		8-97332-133-3 01 1 0803-1007
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1008-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98096-108-1 01 1 0803-1004
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98162-616-2 01 1 1005-1406
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98274-002-0 01 1 1407-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98064-339-2 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1002-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98090-507-1 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1002-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98107-559-0 01 1 0803-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98107-561-0 01 1 0803-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1002-
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0803-
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-933-1 01 1 0803-0908
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98151-320-1 01 1 0909-
231 HARNESS; TRANS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98114-228-1 01 1 0807-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		1-82690-668-0 01 1 0809-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98108-678-0 01 1 0803-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98108-679-0 01 1 0803-
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=51 		1-11369-157-0 01 1 0809-
çizim 137079
18 12 18 204 378 535 441 638
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98114-789-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98168-611-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98114-791-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98168-613-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98114-792-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-614-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98114-793-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-615-0 01 1 1008-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98079-071-1 01 1 0803-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98084-247-0 01 1 0803-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98108-439-1 01 1 1203-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98108-440-1 01 1 1203-
18 HARNESS; DOOR 8-98084-283-3 01 1 0803-1202
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98084-283-3 01 1 1203-
18 HARNESS; DOOR 8-98084-288-3 01 1 0803-1202
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98084-288-3 01 1 1203-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98064-339-2 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1002-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98090-507-1 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1002-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98107-559-0 01 1 0803-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98107-561-0 01 1 0803-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1002-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-208-1 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-208-1 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-194-0 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-194-0 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-209-1 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-209-1 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-195-1 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-195-1 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-212-0 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-212-0 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-199-0 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-199-0 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-213-2 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-213-2 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-200-2 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-200-2 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-204-0 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-204-0 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-188-0 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-188-0 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-205-1 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-205-1 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-191-1 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-191-1 01 1 0807-
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0803-
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-933-1 01 1 0803-0908
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98151-320-1 01 1 0909-
231 HARNESS; TRANS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98114-228-1 01 1 0807-
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWEXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98125-654-0 02 1 0807-
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98056-541-0 02 1 0803-0806
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 0807-
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 0803-
535 BOLT; BRKT FIX
M8X10 W/LK WASHER 		8-98029-928-0 02 1 0803-
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 0803-
çizim 137207
18 12 18 204 378 378 535 441 638
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98114-789-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98168-611-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98114-791-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98168-613-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98114-792-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-614-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98114-793-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-615-0 01 1 1008-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98079-071-1 01 1 0803-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98084-247-0 01 1 0803-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98108-439-1 01 1 1203-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98108-440-1 01 1 1203-
18 HARNESS; DOOR 8-98084-283-3 01 1 0803-1202
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98084-283-3 01 1 1203-
18 HARNESS; DOOR 8-98084-288-3 01 1 0803-1202
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98084-288-3 01 1 1203-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98064-339-2 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1002-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98090-507-1 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1002-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98107-559-0 01 1 0803-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98107-561-0 01 1 0803-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1002-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-208-1 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-208-1 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-194-0 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-194-0 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-209-1 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-209-1 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-195-1 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-195-1 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-212-0 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-212-0 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-199-0 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-199-0 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-213-2 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-213-2 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-200-2 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-200-2 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-204-0 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-204-0 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-188-0 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-188-0 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-205-1 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-205-1 01 1 0807-
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-191-1 01 1 0803-0806
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6S M/T(X7W) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-191-1 01 1 0807-
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0803-
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-933-1 01 1 0803-0908
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98151-320-1 01 1 0909-
231 HARNESS; TRANS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98114-228-1 01 1 0807-
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWEXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98125-654-0 02 1 0807-
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98056-541-0 02 1 0803-0806
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 0807-
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 0803-
535 BOLT; BRKT FIX
M8X10 W/LK WASHER 		8-98029-928-0 02 1 0803-
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 0803-
çizim 137265
534 13 13 668 102 102 668 540 299 102 102 668 668 102 668 668
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98114-789-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98168-611-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98114-791-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98168-613-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98114-792-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-614-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98114-793-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-615-0 01 1 1008-
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98096-109-1 01 1 0803-1004
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98162-617-2 01 1 1005-1406
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98274-003-0 01 1 1407-
13 HARNESS; ENG
(B) 		8-97332-133-3 01 1 0803-1007
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1008-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98096-108-1 01 1 0803-1004
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98162-616-2 01 1 1005-1406
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98274-002-0 01 1 1407-
102 BOLT; BRKT,HARNESS CONNECTOR
M8X12 FLANGE 		0-28050-812-0 01 1 0803-0803
102 BOLT; BRKT,HARNESS CONNECTOR
M6X25 FLANGE 		0-28050-625-0 01 1 0803-1004
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 0803-
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 0803-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98064-339-2 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1002-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98090-507-1 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1002-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98107-559-0 01 1 0803-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98107-561-0 01 1 0803-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1002-
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0803-
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-933-1 01 1 0803-0908
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98151-320-1 01 1 0909-
231 HARNESS; TRANS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98114-228-1 01 1 0807-
299 STUD; BRKT
M6X20 L=28 		0-41010-620-0 02 1 1110-1110
534 BOLT
M10X55 FLANGE 		8-94399-863-1 03 1 0803-0805
534 BOLT
M10X55 FLANGE 		8-97365-449-0 03 1 0806-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 01 1 0803-
668 BRACKET; HARNESS
(B) 		8-97379-783-1 01 1 0803-0803
668 BRACKET; HARNESS
(D) 		8-98001-095-0 01 1 0803-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 0803-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 0803-
668 BRACKET; HARNESS
(G) 		8-98022-106-2 01 1 0803-1004
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 0803-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 0803-
çizim 194068
1 2 2 314 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-916-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-916-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-910-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-910-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-914-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-914-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-906-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-906-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-917-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-917-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-911-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-911-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-915-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-915-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-907-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-907-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98108-068-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-068-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98108-062-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-062-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-066-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-066-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-058-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-058-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98108-069-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-069-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98108-063-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-063-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-067-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-067-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-059-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-059-0 01 1 1112-1209
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 0803-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0803-
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98114-789-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98168-611-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98114-791-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98168-613-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98114-792-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-614-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98114-793-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-615-0 01 1 1008-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98064-339-2 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1002-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98090-507-1 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1002-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98107-559-0 01 1 0803-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98107-561-0 01 1 0803-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1002-
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0803-
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-933-1 01 1 0803-0908
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98151-320-1 01 1 0909-
231 HARNESS; TRANS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98114-228-1 01 1 0807-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0803-
431 CONNECTOR; JOINT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (C) 10P BLUE 		1-82699-598-0 04 1 0803-0803
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0803-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0803-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0803-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0803-
431 CONNECTOR; JOINT
WHEEL BASE 3400MM(34W) (C) 10P BLUE 		1-82699-598-0 03 1 0803-0803
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0804-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0803-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0803-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0803-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0803-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0803-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0803-
çizim 194070
1 443 1 1 570 691 339 6 595
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-916-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-916-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-910-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-910-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-914-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-914-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-906-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-906-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-917-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-917-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-911-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-911-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-915-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-915-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-907-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-907-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98108-068-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-068-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98108-062-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-062-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-066-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-066-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-058-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-058-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98108-069-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-069-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98108-063-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-063-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-067-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-067-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-059-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-059-0 01 1 1112-1209
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-287-7 01 1 0803-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-288-6 01 1 0803-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-289-2 01 1 0803-0804
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-831-6 01 1 0805-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-290-2 01 1 0803-0804
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-832-5 01 1 0805-
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98114-789-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98168-611-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98114-791-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98168-613-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98114-792-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-614-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98114-793-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-615-0 01 1 1008-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98064-339-2 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1002-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98090-507-1 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1002-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98107-559-0 01 1 0803-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98107-561-0 01 1 0803-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1002-
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0803-
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-933-1 01 1 0803-0908
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98151-320-1 01 1 0909-
231 HARNESS; TRANS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98114-228-1 01 1 0807-
339 HARNESS; EXT,FUEL
WHEEL BASE 4600MM(46W) 		8-98118-196-0 01 1 0804-0804
339 HARNESS; EXT,FUEL
WHEEL BASE 4900MM(49W) 		8-98118-331-0 01 1 0804-0804
443 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98096-565-0 01 1 0803-
570 HARNESS; SPEED SENSOR
(A) 		8-98035-237-0 01 1 0803-0803
570 HARNESS; SPEED SENSOR
MZX6P M/T(RSW) (B) 		8-98058-327-1 01 1 0804-0806
570 HARNESS; SPEED SENSOR
MZX6P M/T(RSW),MLD6S M/T(X7W) (B) 		8-98058-327-1 01 1 0807-
595 HARNESS; WARNING,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97621-005-3 01 1 0803-
595 HARNESS; WARNING,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97621-003-3 01 1 0803-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 0803-
çizim 194078
13 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-287-7 01 1 0803-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-288-6 01 1 0803-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-289-2 01 1 0803-0804
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-831-6 01 1 0805-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-290-2 01 1 0803-0804
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-832-5 01 1 0805-
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98114-789-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98168-611-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98114-791-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98168-613-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98114-792-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-614-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98114-793-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-615-0 01 1 1008-
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98096-109-1 01 1 0803-1004
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98162-617-2 01 1 1005-1406
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98274-003-0 01 1 1407-
13 HARNESS; ENG
(B) 		8-97332-133-3 01 1 0803-1007
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1008-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98096-108-1 01 1 0803-1004
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98162-616-2 01 1 1005-1406
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98274-002-0 01 1 1407-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98064-339-2 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1002-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98090-507-1 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1002-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98107-559-0 01 1 0803-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98107-561-0 01 1 0803-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1002-
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0803-
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-933-1 01 1 0803-0908
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98151-320-1 01 1 0909-
231 HARNESS; TRANS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98114-228-1 01 1 0807-
çizim 194100
1 570
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-916-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-916-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-910-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-910-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-914-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-914-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-906-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-906-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-917-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98187-917-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-911-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-911-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-915-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-915-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-907-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-907-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98108-068-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-068-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98108-062-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-062-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-066-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-066-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-058-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-058-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98108-069-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-069-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98108-063-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-063-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-067-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-067-0 01 1 1112-1209
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98108-059-0 01 1 0803-1111
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98108-059-0 01 1 1112-1209
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98114-789-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98168-611-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98114-791-1 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98168-613-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98114-792-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-614-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98114-793-2 01 1 0803-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-615-0 01 1 1008-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98064-339-2 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1002-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98090-507-1 01 1 0803-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1002-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98107-559-0 01 1 0803-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98107-561-0 01 1 0803-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1002-
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0803-
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-933-1 01 1 0803-0908
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98151-320-1 01 1 0909-
231 HARNESS; TRANS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98114-228-1 01 1 0807-
570 HARNESS; SPEED SENSOR
(A) 		8-98035-237-0 01 1 0803-0803
570 HARNESS; SPEED SENSOR
MZX6P M/T(RSW) (B) 		8-98058-327-1 01 1 0804-0806
570 HARNESS; SPEED SENSOR
MZX6P M/T(RSW),MLD6S M/T(X7W) (B) 		8-98058-327-1 01 1 0807-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
