8-21 — METER ASM (#6760) — 38 parça

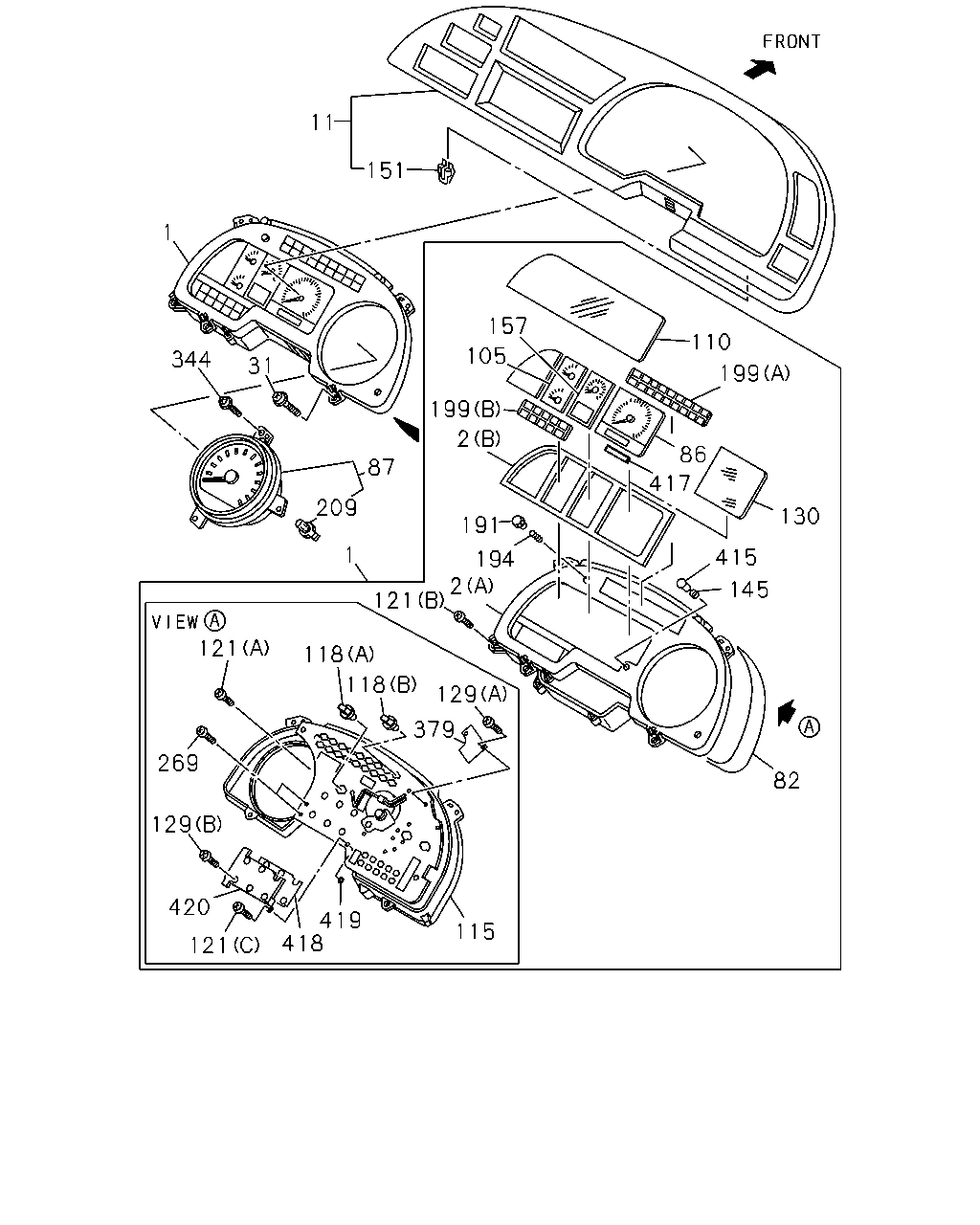

çizim 6699
11 151 1 157 110 31 105 344 199 199 2 86 87 417 209 130 191 1 415 194 2 121 145 121 118 118 129 379 269 82 129 420 419 418 115 121
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
TACHOMETER<UD7> 		1-83115-679-0 01 1 0011- ● ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<UD7> 		1-83115-682-0 01 1 0011- ● ●
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 0011- ● ●
2 PANEL; CLUSTER
(B) 		1-83119-651-0 01 1 0011- ● ●
11 CLUSTER ASM; METER 1-72418-012-9 01 1 0011- ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0011- ● ●
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 0011- ● ●
86 TACHOMETER; CLUSTER METER
TACHOMETER<UD7> 		1-83120-878-0 01 1 0011- ● ●
87 SPEEDOMETER
THA 		8-97917-852-0 01 1 0011- ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 0011- ● ●
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 0011- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> 		1-83189-387-0 01 1 0011- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83189-416-0 01 1 0011- ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET THA 		1-82194-061-0 AR 1 0011- ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 AR 1 0011- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-084-0 01 1 0011- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 05 1 0011- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-676-0 02 1 0011- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-657-0 09 1 0011- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-675-0 06 1 0011- ● ●
130 COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83119-753-0 01 1 0011- ● ●
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 0011- ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0011- ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-217-0 01 1 0011- ● ●
191 KNOB; BULB CHECK 1-83119-672-0 01 1 0011- ● ●
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 0011- ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-699-0 01 1 0011- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-700-0 01 1 0011- ● ●
209 BULB; SPEEDOMETER
24V 3W GREEN SOCKET THA 		1-82194-061-0 01 1 0011- ● ●
269 SCREW; METER CLUSTER
M3 		1-83119-273-0 02 1 0011- ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0011- ● ●
379 CIRCUIT; DROP 1-83189-369-0 01 1 0011- ● ●
415 KNOB; TRIP,METER 1-83119-674-0 01 1 0011- ● ●
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 0011- ● ●
418 CIRCUIT; CONTROL,METER
TACHOMETER<UD7> 		1-83189-401-0 01 1 0011- ● ●
418 CIRCUIT; CONTROL,METER
EXC. TACHOMETER<UD7> 		1-83189-402-0 01 1 0011- ● ●
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 0011- ● ●
420 HEAT SINK; METER 1-83119-679-0 01 1 0011- ● ●
