6-70 — FLOOR PANEL (#67587) — 112 parça

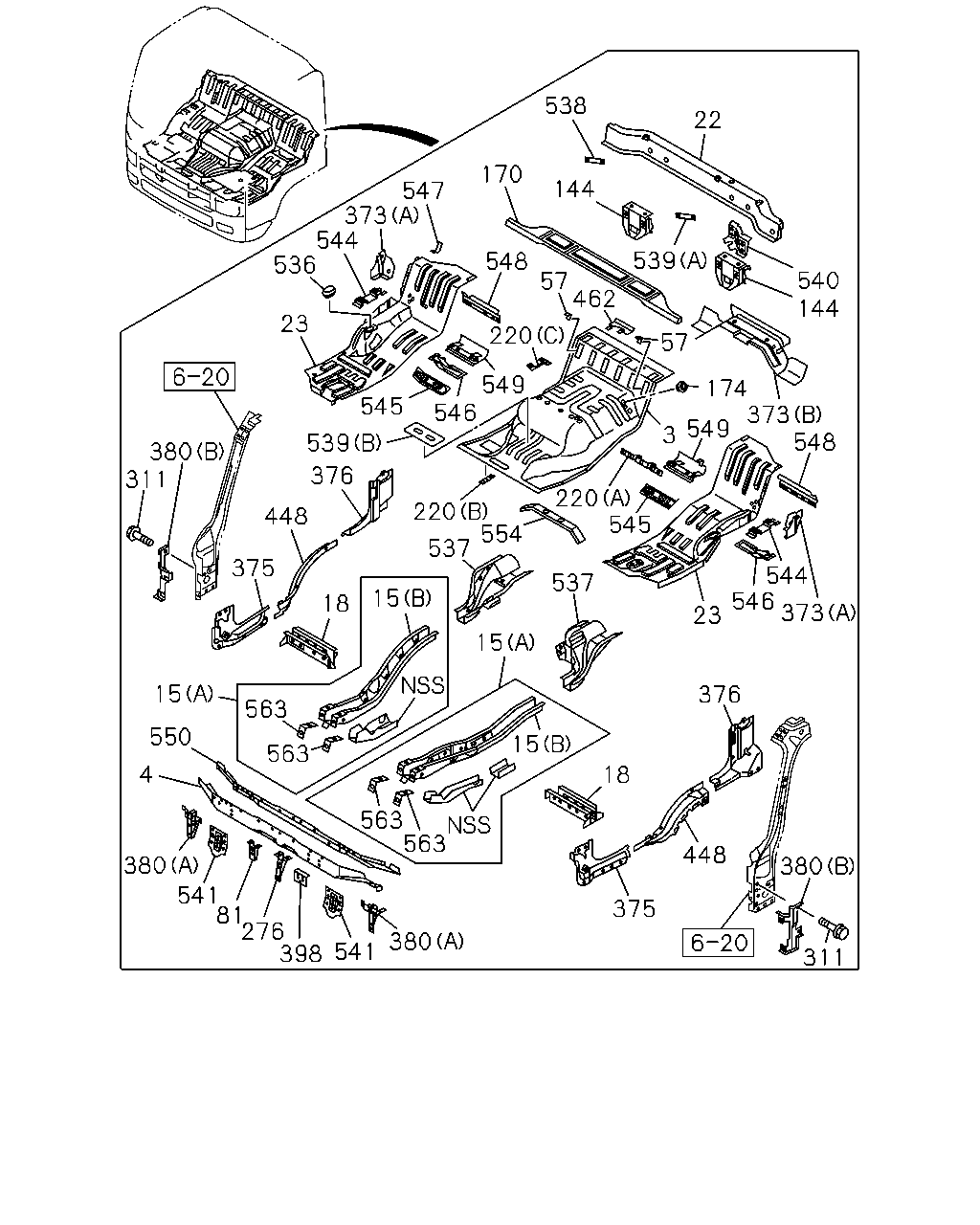

çizim 194188
538 22 170 144 547 373 544 536 539 548 540 144 57 462 23 220 57 549 546 174 373 548 545 549 3 539 380 311 376 220 545 220 554 448 537 375 544 546 373 537 15 18 23 15 15 376 563 550 563 15 4 18 563 563 448 380 380 541 81 276 398 375 380 541 311
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-358-4 01 1 1207-
3 HOOD ASM; ENG 8-98167-037-0 01 1 1207-
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-356-4 01 1 0803-1206
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-356-4 01 1 1207-
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-872-8 01 1 0803-
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0803-1206
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1207-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0803-1206
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1207-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0803-1206
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1207-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0803-1206
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1207-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0803-1206
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1207-
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-4 01 1 0803-1206
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 1207-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 0803-1206
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1207-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 0803-1206
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1207-
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 0803-1206
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1207-
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 0803-1206
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1207-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0803-1206
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1207-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0803-1206
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1207-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0803-1206
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1207-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0803-1206
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1207-
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 0803-1206
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 1207-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0803-
220 PATCH
(A) 		8-97588-840-4 01 1 0803-1206
220 PATCH
(A) 		8-97588-840-4 01 1 1207-
220 PATCH
(B) 		8-97589-603-3 01 1 0803-1206
220 PATCH
(B) 		8-97589-603-3 01 1 1207-
220 PATCH
(C) 		8-97589-627-2 01 1 0803-1206
220 PATCH
(C) 		8-97589-627-2 01 1 1207-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0803-1206
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1207-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0803-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0803-1206
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1207-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0803-1206
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1207-
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 0803-1206
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 1207-
375 CLOSING; PILLAR 8-98044-897-3 01 1 0803-1206
375 CLOSING; PILLAR 8-98044-897-3 01 1 1207-
375 CLOSING; PILLAR 8-98044-898-3 01 1 0803-1206
375 CLOSING; PILLAR 8-98044-898-3 01 1 1207-
376 CLOSING; PILLAR,LWR 8-97589-553-1 01 1 0803-1206
376 CLOSING; PILLAR,LWR 8-97589-553-1 01 1 1207-
376 CLOSING; PILLAR,LWR 8-97589-555-1 01 1 0803-1206
376 CLOSING; PILLAR,LWR 8-97589-555-1 01 1 1207-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0803-1206
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1207-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0803-1206
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1207-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0803-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0803-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0803-1206
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1207-
448 CLOSING; ROCKER 8-97589-551-2 01 1 0803-1206
448 CLOSING; ROCKER 8-97589-551-2 01 1 1207-
448 CLOSING; ROCKER 8-97589-552-2 01 1 0803-1206
448 CLOSING; ROCKER 8-97589-552-2 01 1 1207-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0803-1002
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0803-
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 0803-1206
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 1207-
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 0803-1206
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 1207-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0803-1206
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1207-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 0809-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0803-1206
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1207-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0803-1206
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1207-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0803-1206
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1207-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0803-1206
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1207-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0803-1206
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1207-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0803-1206
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1207-
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0803-1206
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1207-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0803-1206
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1207-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0803-1206
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1207-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0803-1206
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1207-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0803-1206
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1207-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0803-1206
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1207-
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0803-1206
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1207-
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0803-1206
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1207-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 0803-1206
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1207-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0803-1206
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1207-
