8-15 — FIXING PARTS; WIRING HARNESS (#6758) — 124 parça

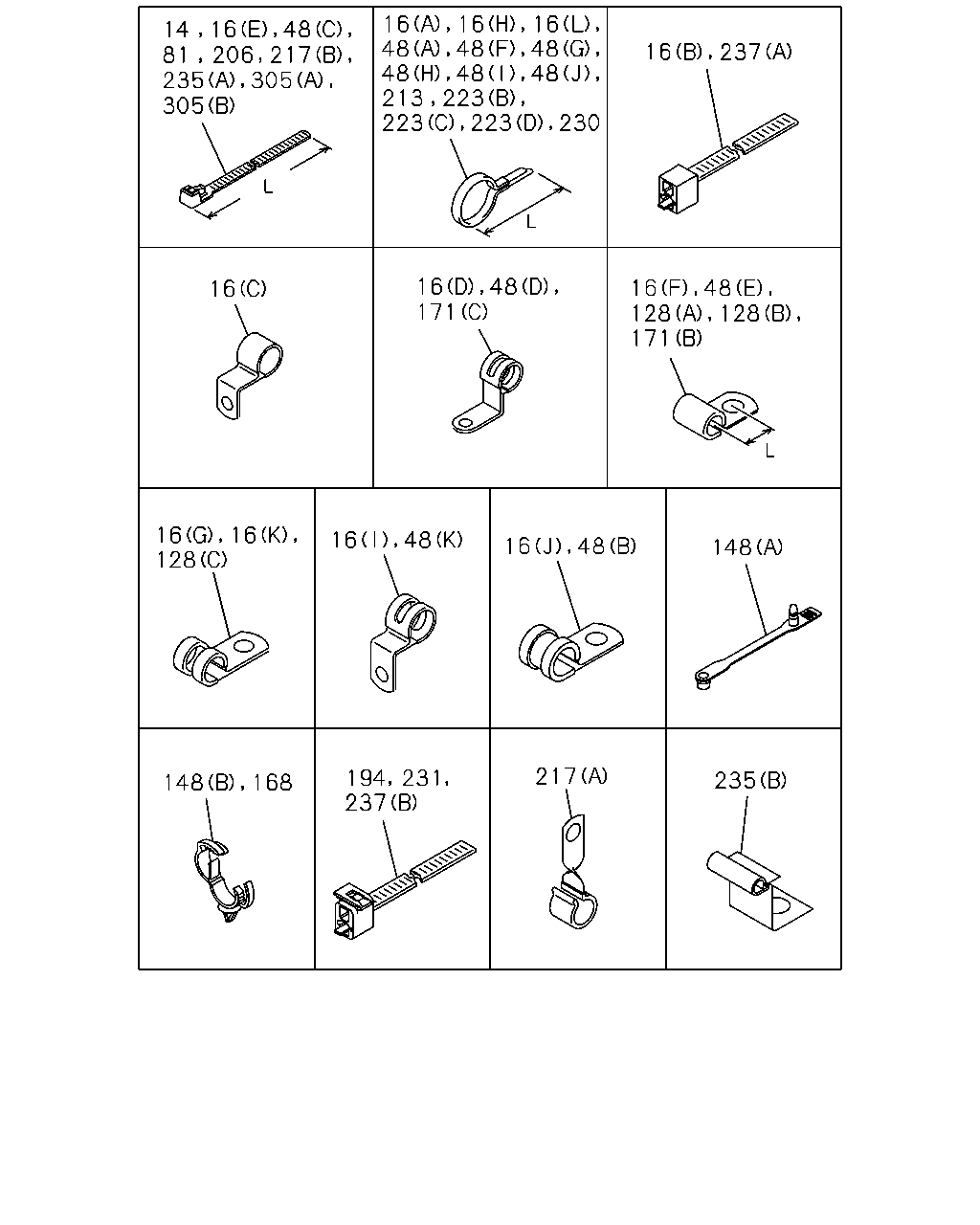

çizim 8662
16 16 16 81 305 171 128 128 171 16 16 16 128 148 217 194 237 235 148 168 14 16 48 206 217 305 235 231 16 48 16 48 16 48 16 48 237 16 223 223 213 223 48 48 48 48 48 48 230
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-1 01 1 0011- ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 03 1 0011- ● ●
16 CLIP; HARNESS
(G) ID=24 L=32 THA 		1-09700-766-1 01 1 0011- ● ●
16 CLIP; HARNESS
(H) ID=28 L=78 THA 		1-09700-858-0 01 1 0011- ● ●
16 CLIP; HARNESS
(D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0011- ● ●
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0011- ● ●
16 CLIP; HARNESS
(J) ID=25 L=50 		1-09701-019-0 01 1 0011- ● ●
16 CLIP; HARNESS
(C) ID=19 H=33 L=45 THA 		1-09701-045-0 01 1 0011- ● ●
16 CLIP; HARNESS
(K) ID=24 L=40 		1-09701-139-0 01 1 0011- ● ●
16 CLIP; HARNESS
(B) L=300 THA 		1-09707-001-1 01 1 0011- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0011- ● ●
16 CLIP; HARNESS
(F) ID=19 L=32 		9-09525-866-0 01 1 0011- ● ●
16 CLIP; HARNESS
(L) ID=14 L=44 THA 		9-09917-427-0 03 1 0011- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 THA 		8-97916-115-0 09 1 0011- ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=41 THA 		1-09700-403-0 01 1 0011- ● ●
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 THA 		1-09700-466-0 02 1 0011- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 03 1 0011- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 0011- ● ●
48 CLIP; FRAME HARNESS
(I) ID=28 L=78 THA 		1-09700-858-0 04 1 0011- ● ●
48 CLIP; FRAME HARNESS
(D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0011- ● ●
48 CLIP; FRAME HARNESS
(B) ID=25 L=50 		1-09700-976-0 01 1 0011- ● ●
48 CLIP; FRAME HARNESS
(C) L=250 		5-09707-030-1 02 1 0011- ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0011- ● ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 THA 		9-09917-427-0 01 1 0011- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 THA 		9-09917-430-0 02 1 0011- ● ●
48 CLIP; FRAME HARNESS
(K) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0011- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM<42W> (A) ID=20 L=50 THA 		8-97916-115-0 11 1 0011- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM<50W> (A) ID=20 L=50 THA 		8-97916-115-0 14 1 0011-0012 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) ID=20 L=50 THA 		8-97916-115-0 17 1 0101- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM<55W> (A) ID=20 L=50 THA 		8-97916-115-0 17 1 0011-0012 ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0011- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0011- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 0011-0011 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 THA 		8-94232-611-0 01 1 0011- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 THA 		8-97069-515-0 01 1 0011- ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 THA 		8-97069-515-0 05 1 0011- ● ●
171 CLIP; STARTER HARNESS
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 0011- ● ●
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 THA 		1-09709-178-0 02 1 0011- ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 0011- ● ●
194 CLIP; BAND
L=180 THA 		1-09707-162-1 01 1 0011- ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0011- ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 THA 		8-97916-115-0 03 1 0011- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0011- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0011- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 THA 		1-09700-403-0 01 1 0011- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 THA 		1-09709-178-0 01 1 0011- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 03 1 0011- ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 THA 		9-09917-430-0 02 1 0011- ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 THA 		9-09917-430-0 02 1 0011- ● ●
231 CLIP; BAND,OIL PRESS
L=180 THA 		1-09707-162-1 01 1 0011- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=6 H=25 L=21 THA 		1-09700-432-0 01 1 0011- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-1 01 1 0011- ● ●
237 CLIP; BAND,ACL
(A) L=600 		1-09707-107-1 01 1 0011- ● ●
237 CLIP; BAND,ACL
(B) L=180 THA 		1-09707-162-1 01 1 0011- ● ●
305 CLIP; ENG HARNESS
(A) L=250 		5-09707-030-1 02 1 0011- ● ●
305 CLIP; ENG HARNESS
(A) L=250 		5-09707-030-1 02 1 0011- ● ●
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 01 1 0011- ● ●
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 01 1 0011- ● ●
çizim 43685
59 116 53 171 470 223 121 178 312 312 224 335 530 224 421
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS 1-47476-812-1 01 1 0011- ● ●
59 BRACKET; FRAME HARNESS
L=95 THA 		1-82699-085-0 01 1 0011- ● ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0011- ● ●
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 0011- ● ●
171 CLIP; STARTER HARNESS
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 0011- ● ●
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 THA 		1-09709-178-0 02 1 0011- ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 0011- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 THA 		9-09956-256-1 01 1 0011- ●
178 GROMMET; HARNESS
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W> (A) ID=28 OD=35 T=17 THA 		9-09956-256-1 01 1 0011- ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0011- ● ●
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0011- ● ●
178 GROMMET; HARNESS
WHEEL BASE 5500MM<55W> (D) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0011- ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 THA 		1-09700-403-0 01 1 0011- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 THA 		1-09709-178-0 01 1 0011- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 03 1 0011- ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 THA 		9-09917-430-0 02 1 0011- ● ●
224 SLEEVE; RUBBER,HARNESS
(A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0011- ● ●
224 SLEEVE; RUBBER,HARNESS
(B) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0011- ● ●
312 BRACKET; CLIP HARNESS
(A) THA 		1-82699-588-0 01 1 0011-0302 ● ●
312 BRACKET; CLIP HARNESS
(B) 		1-47478-981-0 01 1 0303- ● ●
335 BRACKET; CONNECTOR
THA 		1-82698-167-0 01 1 0011- ● ●
421 CLIP; FLOOR HARNESS
L=20 		1-09987-246-2 07 1 0011-0101 ● ●
421 CLIP; FLOOR HARNESS
L=20 		1-09987-246-2 01 1 0102- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 THA 		1-09709-178-0 01 1 0011- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 0102- ● ●
çizim 44104
38 38 38 139 38 313 133 133 133 239 516 184 520 209 38 88 173 239 239 38 38 210 219 294 524
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0109-0112 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X16 FLANGE 		0-28080-816-0 02 1 0011- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X16 FLANGE 		0-28080-816-0 02 1 0011- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X16 FLANGE 		0-28080-816-0 01 1 0011- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X16 FLANGE 		0-28080-816-0 04 1 0011- ● ●
38 BOLT; CLIP,HARNESS
(E) M10X16 FLANGE 		0-28181-016-0 01 1 0011- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X20 FLANGE 		0-28680-820-0 04 1 0011- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0011-0108 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 03 1 0011-0108 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28680-830-0 02 1 0011- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0011- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0011- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0109-0112 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0109-0112 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 03 1 0201- ● ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0011- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0011-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0011- ● ●
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0011- ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0011- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 0011- ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0011- ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0011- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0011- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0011- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0011- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0304- ● ●
239 BOLT; GRAND
(A) M5X8 THA 		0-20800-508-0 01 1 0011- ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0011- ● ●
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0011- ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0011- ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0011- ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0011- ● ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0011- ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0011- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0011- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0011- ● ●
