6-03 — RADIATOR GRILLE (#67574) — 78 parça

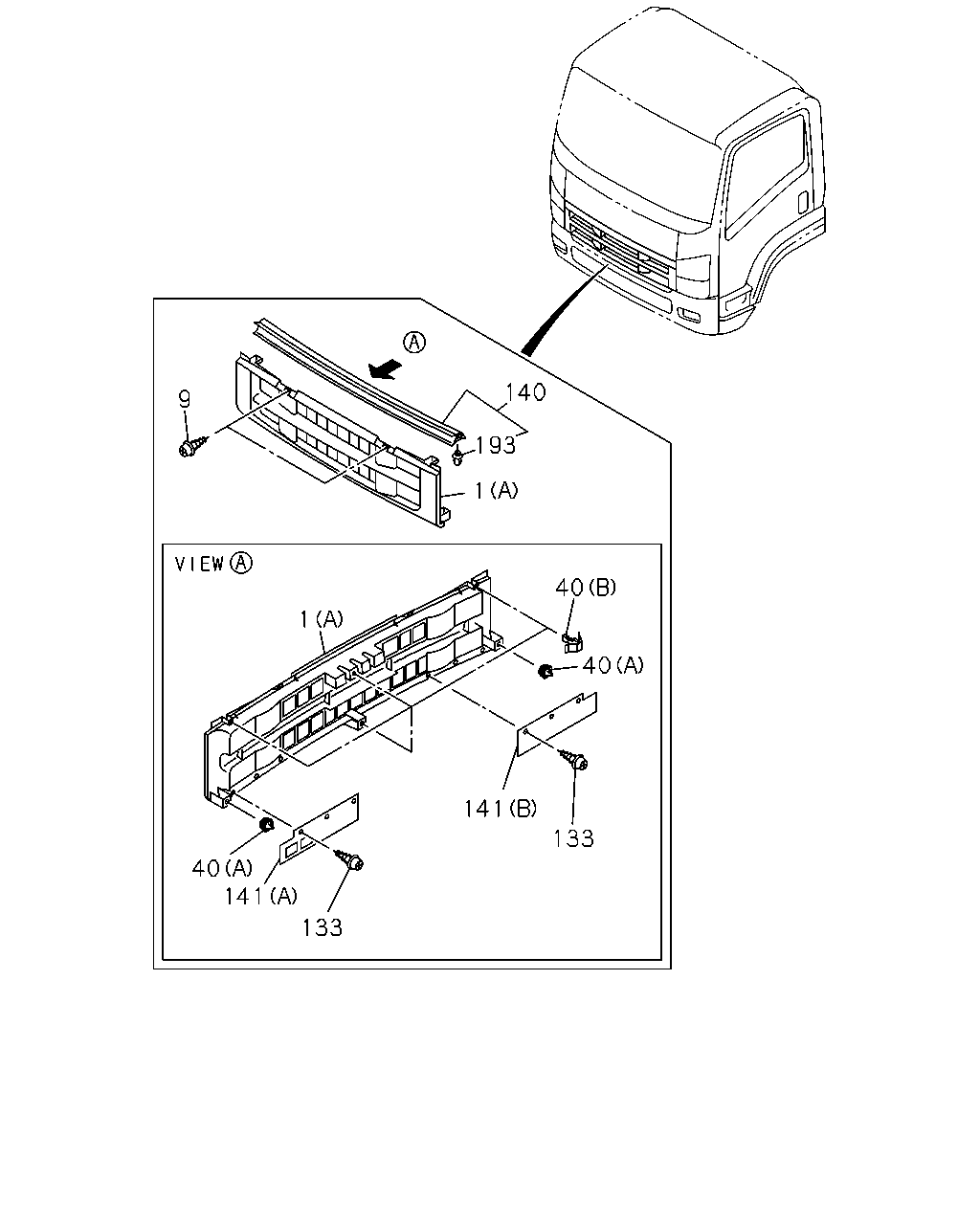

140 9 193 1 40 1 40 141 133 40 141 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GRILLE; RAD BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY	8-97413-918-5	01	1	0906-
1	GRILLE; RAD BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-919-5	01	1	0906-
1	GRILLE; RAD BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97413-926-5	01	1	0906-
1	GRILLE; RAD BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-927-5	01	1	0906-
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN	8-97413-928-5	01	1	0906-
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97413-929-5	01	1	0906-
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-930-5	01	1	0906-
1	GRILLE; RAD BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE	8-97413-931-5	01	1	0906-
1	GRILLE; RAD BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97417-984-5	01	1	0906-
1	GRILLE; RAD BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN	8-97413-933-5	01	1	0906-
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE	8-98046-505-7	01	1	0803-
1	GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97407-867-5	01	1	0803-
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-380-5	01	1	0803-
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-381-5	01	1	0803-
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97411-384-5	01	1	0803-
1	GRILLE; RAD BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-383-5	01	1	0803-
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97411-385-5	01	1	0803-
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	0803-
40	CLIP; RAD GRILLE (A)	8-97581-651-2	02	1	0803-0905
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	0906-
40	CLIP; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	0906-
40	CLIP; RAD GRILLE (B)	8-98025-698-0	04	1	0803-0905
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	0906-
40	CLIP; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	0906-
133	SCREW; COVER T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0803-0905
133	SCREW; COVER BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0906-
133	SCREW; COVER BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0906-
140	SEAL; RAD GRILLE	8-98060-339-0	01	1	0803-0905
140	SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	0906-
140	SEAL; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	0906-
141	COVER; RAD GRILLE (B)	8-98041-012-1	01	1	0803-0905
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	0906-
141	COVER; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	0906-
141	COVER; RAD GRILLE (A)	8-98060-783-0	01	1	0803-0905
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	0906-
141	COVER; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	0906-
193	CLIP; SEAL NATURAL	8-98027-457-0	13	1	0803-0905
193	CLIP; SEAL BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	0906-
193	CLIP; SEAL BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	0906-

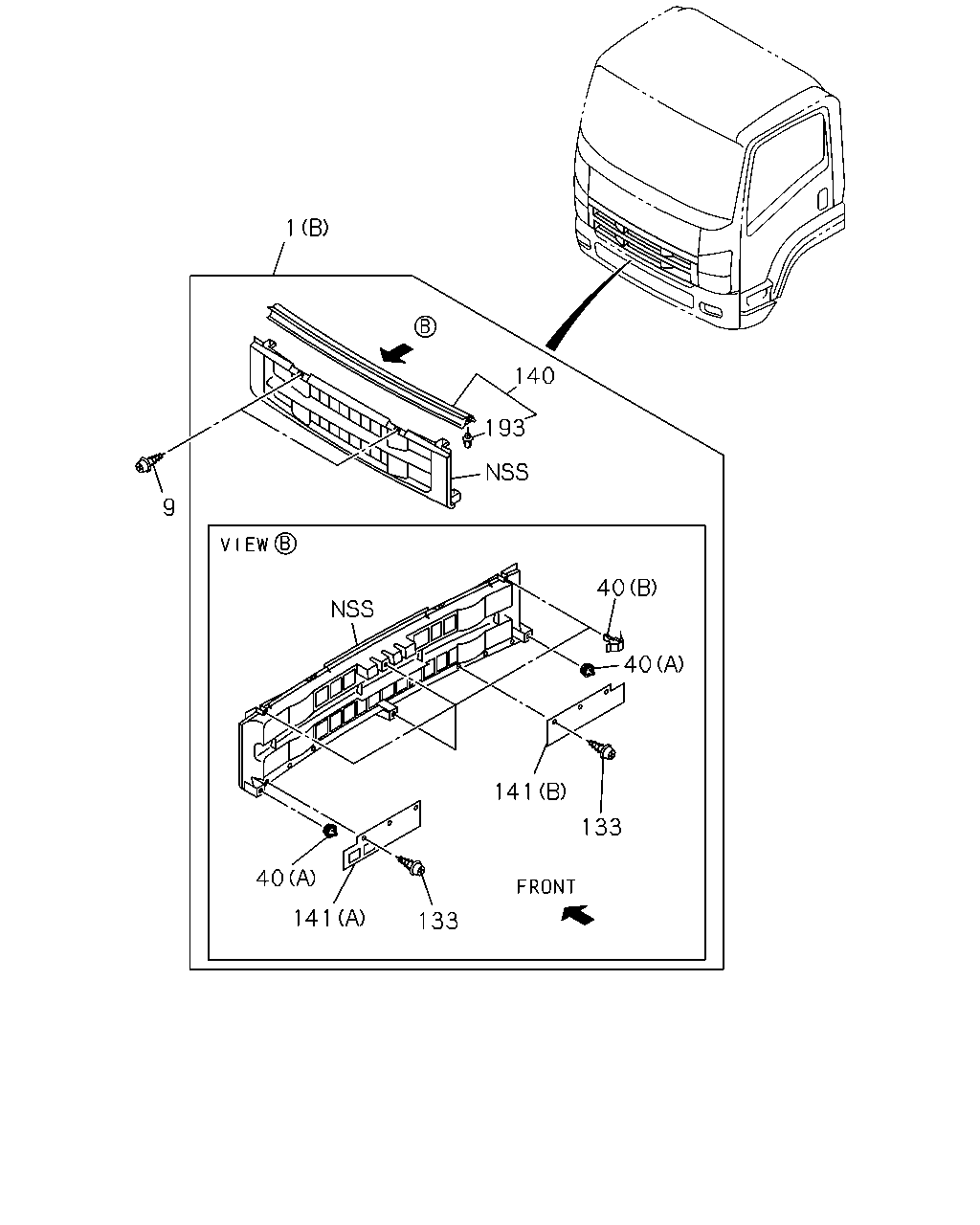

1 140 193 9 40 40 141 133 40 141 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GRILLE; RAD BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY	8-97413-918-5	01	1	0906-
1	GRILLE; RAD BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-919-5	01	1	0906-
1	GRILLE; RAD BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97413-926-5	01	1	0906-
1	GRILLE; RAD BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-927-5	01	1	0906-
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN	8-97413-928-5	01	1	0906-
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97413-929-5	01	1	0906-
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-930-5	01	1	0906-
1	GRILLE; RAD BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE	8-97413-931-5	01	1	0906-
1	GRILLE; RAD BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97417-984-5	01	1	0906-
1	GRILLE; RAD BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN	8-97413-933-5	01	1	0906-
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE	8-98046-505-7	01	1	0803-
1	GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97407-867-5	01	1	0803-
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-380-5	01	1	0803-
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-381-5	01	1	0803-
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97411-384-5	01	1	0803-
1	GRILLE; RAD BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-383-5	01	1	0803-
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97411-385-5	01	1	0803-
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	0803-
40	CLIP; RAD GRILLE (A)	8-97581-651-2	02	1	0803-0905
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	0906-
40	CLIP; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	0906-
40	CLIP; RAD GRILLE (B)	8-98025-698-0	04	1	0803-0905
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	0906-
40	CLIP; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	0906-
133	SCREW; COVER T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0803-0905
133	SCREW; COVER BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0906-
133	SCREW; COVER BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0906-
140	SEAL; RAD GRILLE	8-98060-339-0	01	1	0803-0905
140	SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	0906-
140	SEAL; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	0906-
141	COVER; RAD GRILLE (B)	8-98041-012-1	01	1	0803-0905
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	0906-
141	COVER; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	0906-
141	COVER; RAD GRILLE (A)	8-98060-783-0	01	1	0803-0905
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	0906-
141	COVER; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	0906-
193	CLIP; SEAL NATURAL	8-98027-457-0	13	1	0803-0905
193	CLIP; SEAL BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	0906-
193	CLIP; SEAL BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
