3-77 — BRAKE PIPING; AIR,REAR (#67549) — 90 parça

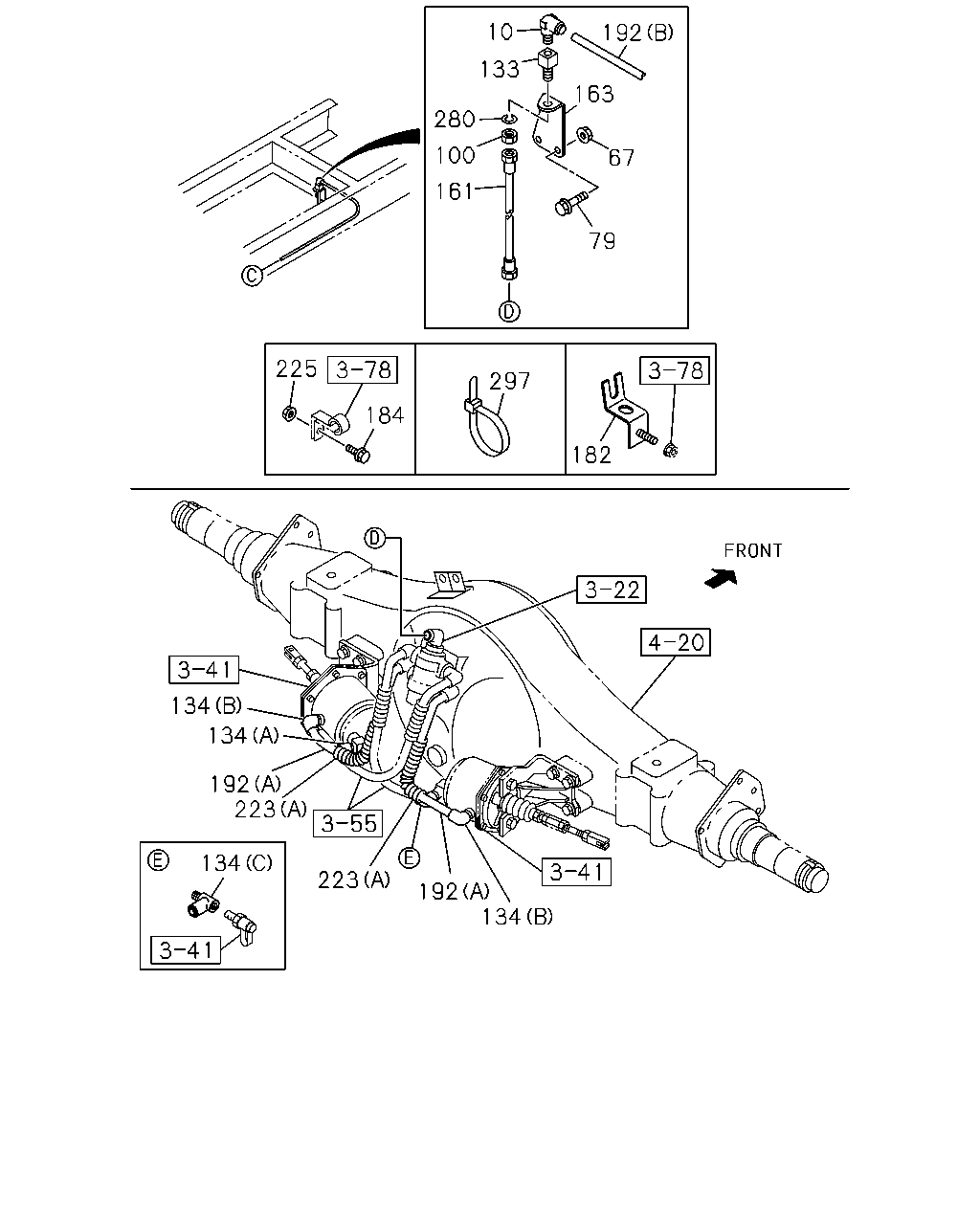

297 184 225 161 100 280 133 10 67 79 163 192 182 134 134 192 223 223 192 134 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0803-
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0803-
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0803-
100	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0803-
133	UNION; NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09654-258-2	01	1	0803-1111
133	UNION; NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98202-001-0	01	1	1112-
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0803-
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0803-
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0803-
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=460	1-09363-963-0	01	1	0803-
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-842-0	01	1	0803-
182	BRACKET; TUBE CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98096-272-0	01	1	0803-
182	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98096-272-0	02	1	0803-
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0803-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	0803-
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0803-
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0803-
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=7	1-87411-016-0	02	1	0803-
223	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0803-
223	TUBE; CORRUGATE (B) SERVICED BY L=4000 ID=15	1-87411-026-0	AR	1	0803-
223	TUBE; CORRUGATE (B) SERVICED BY L=6000 ID=15	1-87411-037-0	AR	1	0803-
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0803-
280	WASHER; LK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2	0-91510-816-0	01	1	0803-0808
297	CLIP; BAND WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	04	1	0803-1109
297	CLIP; BAND WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	05	1	0803-1109
297	CLIP; BAND WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	04	1	1110-
297	CLIP; BAND WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	05	1	0803-1109
297	CLIP; BAND WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	08	1	0803-
297	CLIP; BAND WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	09	1	0803-
297	CLIP; BAND WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	10	1	0803-1109
297	CLIP; BAND WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	11	1	0803-

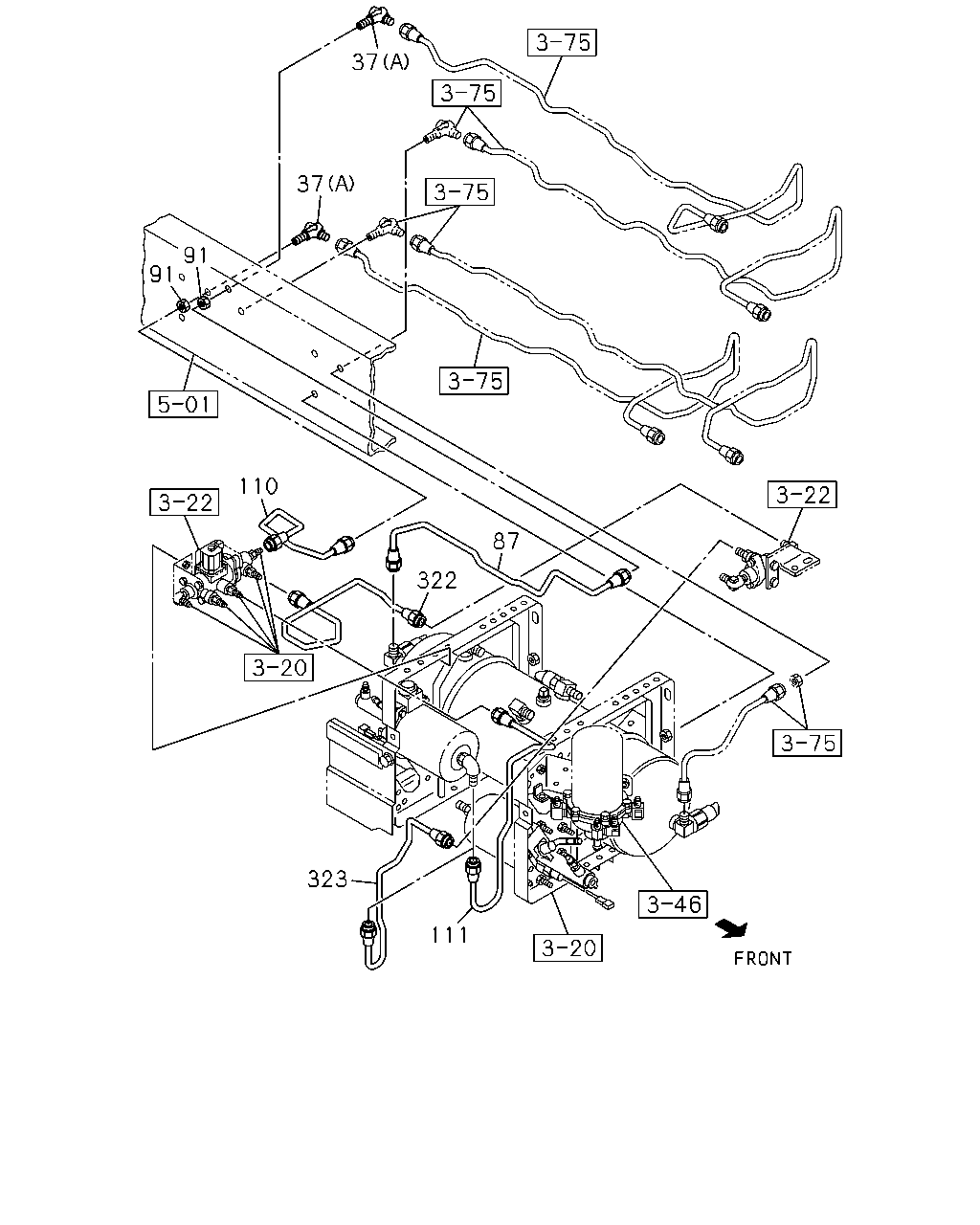

37 37 91 91 110 87 322 323 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0803-
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0803-0803
37	UNION; AIR PIPE MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0804-
37	UNION; AIR PIPE MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0807-
87	PIPE; AIR,AIR TANK TO UNION L=700 SERVICED BY L=700	1-47428-870-0	01	1	0803-
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0803-
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> L=473	8-98067-756-0	01	1	0803-
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600	1-47428-868-0	01	1	0803-
322	PIPE; AIR,HSA VLV TO DBL CHK VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700	1-47428-870-0	01	1	0803-
323	PIPE; AIR,DBL CHK VLV THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600	1-47428-868-0	01	1	0803-

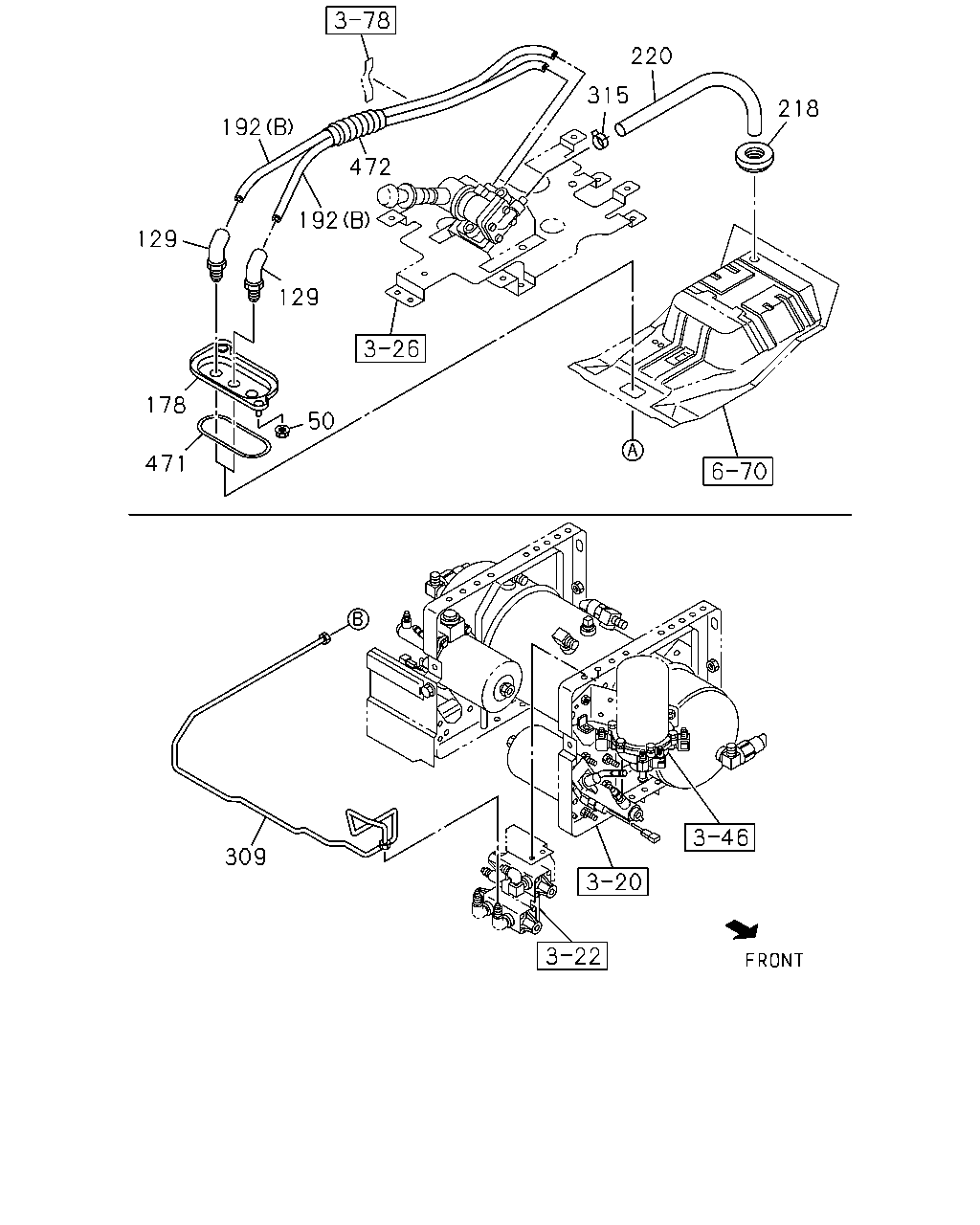

220 218 315 192 129 472 192 129 178 50 471 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	0803-
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97611-963-1	02	1	0803-
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98017-054-1	01	1	0803-
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98017-052-1	01	1	0803-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	0803-
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0803-
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0803-
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0803-
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0803-
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550	1-47428-879-0	01	1	0803-0803
309	PIPE; AIR,MPV TO UNION MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550	1-47428-879-0	01	1	0804-
309	PIPE; AIR,MPV TO UNION MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=626 SERVICED BY L=660	1-47428-869-0	01	1	0807-
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	0803-
471	SEAL; BRKT	1-79738-832-0	01	1	0803-
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	0803-

318 97 144 37 98 37 223 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0803-
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0803-0803
37	UNION; AIR PIPE MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0804-
37	UNION; AIR PIPE MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0807-
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 L=42	0-92123-010-0	01	1	0803-
98	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0803-
144	PIPE; AIR,UNION TO UNION WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=850 SERVICED BY L=900	1-47428-873-0	01	1	0803-0803
144	PIPE; AIR,UNION TO UNION MZX6P M/T(RSW) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=850 SERVICED BY L=900	1-47428-873-0	01	1	0804-
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250	1-47428-876-0	01	1	0803-0803
144	PIPE; AIR,UNION TO UNION MZX6P M/T(RSW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250	1-47428-876-0	01	1	0804-
144	PIPE; AIR,UNION TO UNION MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1060 SERVICED BY L=1100	1-47428-875-0	01	1	0807-0901
144	PIPE; AIR,UNION TO UNION MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1059 SERVICED BY L=1100	1-47428-875-0	01	1	0902-
144	PIPE; AIR,UNION TO UNION MLD6S M/T(X7W) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1454 SERVICED BY L=1550	1-47428-879-0	01	1	0807-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	0803-
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0803-
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0803-
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=7	1-87411-016-0	02	1	0803-
223	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0803-
223	TUBE; CORRUGATE (B) SERVICED BY L=4000 ID=15	1-87411-026-0	AR	1	0803-
223	TUBE; CORRUGATE (B) SERVICED BY L=6000 ID=15	1-87411-037-0	AR	1	0803-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=593 SERVICED BY L=600	1-47428-868-0	01	1	0803-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=858 SERVICED BY L=900	1-47428-873-0	01	1	0803-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1458 SERVICED BY L=1550	1-47428-879-0	01	1	0803-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1788 SERVICED BY L=1900	1-47428-881-0	01	1	0803-

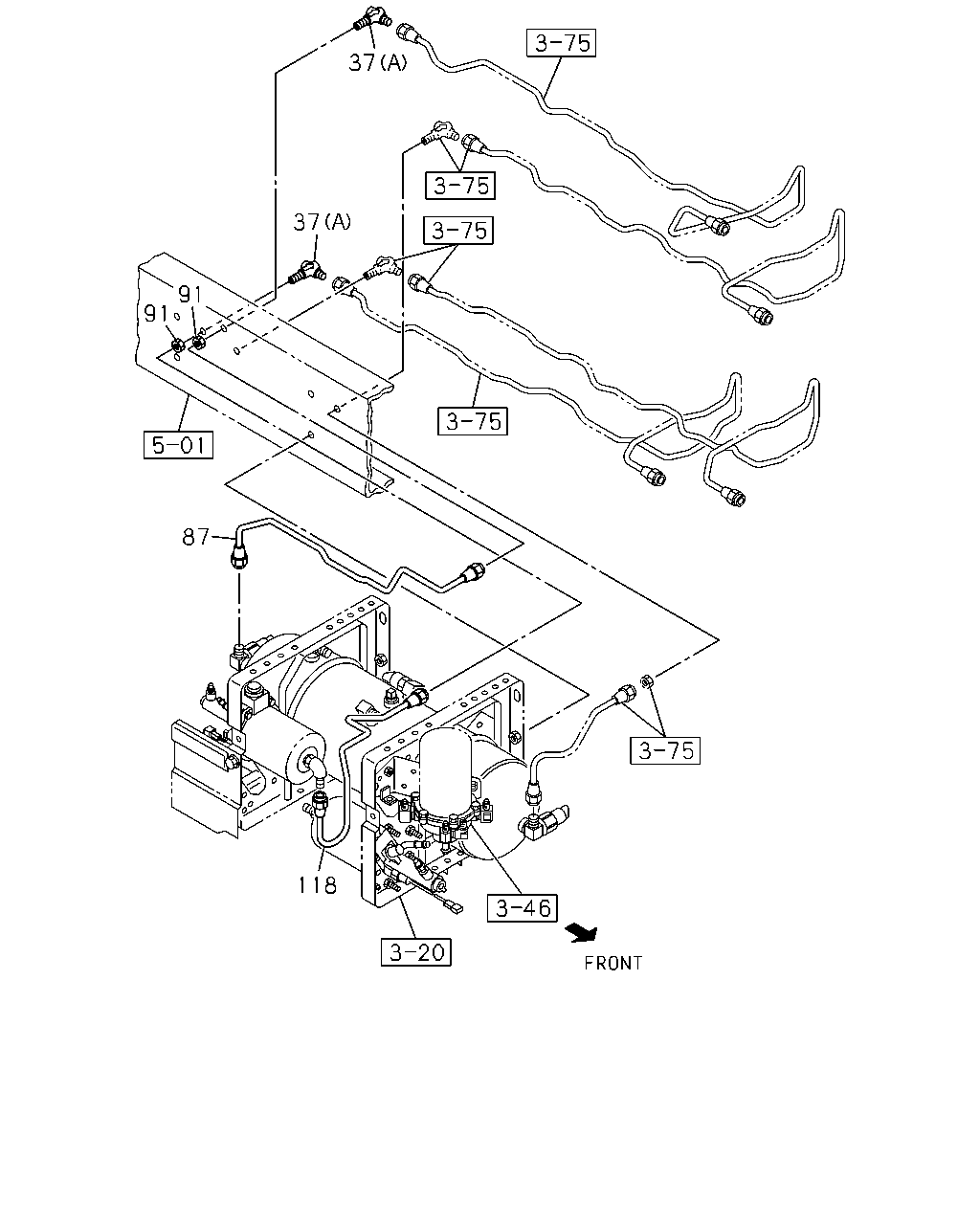

37 37 91 91 87 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0803-
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0803-0803
37	UNION; AIR PIPE MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0804-
37	UNION; AIR PIPE MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0807-
87	PIPE; AIR,AIR TANK TO UNION L=700 SERVICED BY L=700	1-47428-870-0	01	1	0803-
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0803-
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=692 SERVICED BY L=700	1-47428-870-0	01	1	0803-
