Sayfa 3-11 - Isuzu EPC

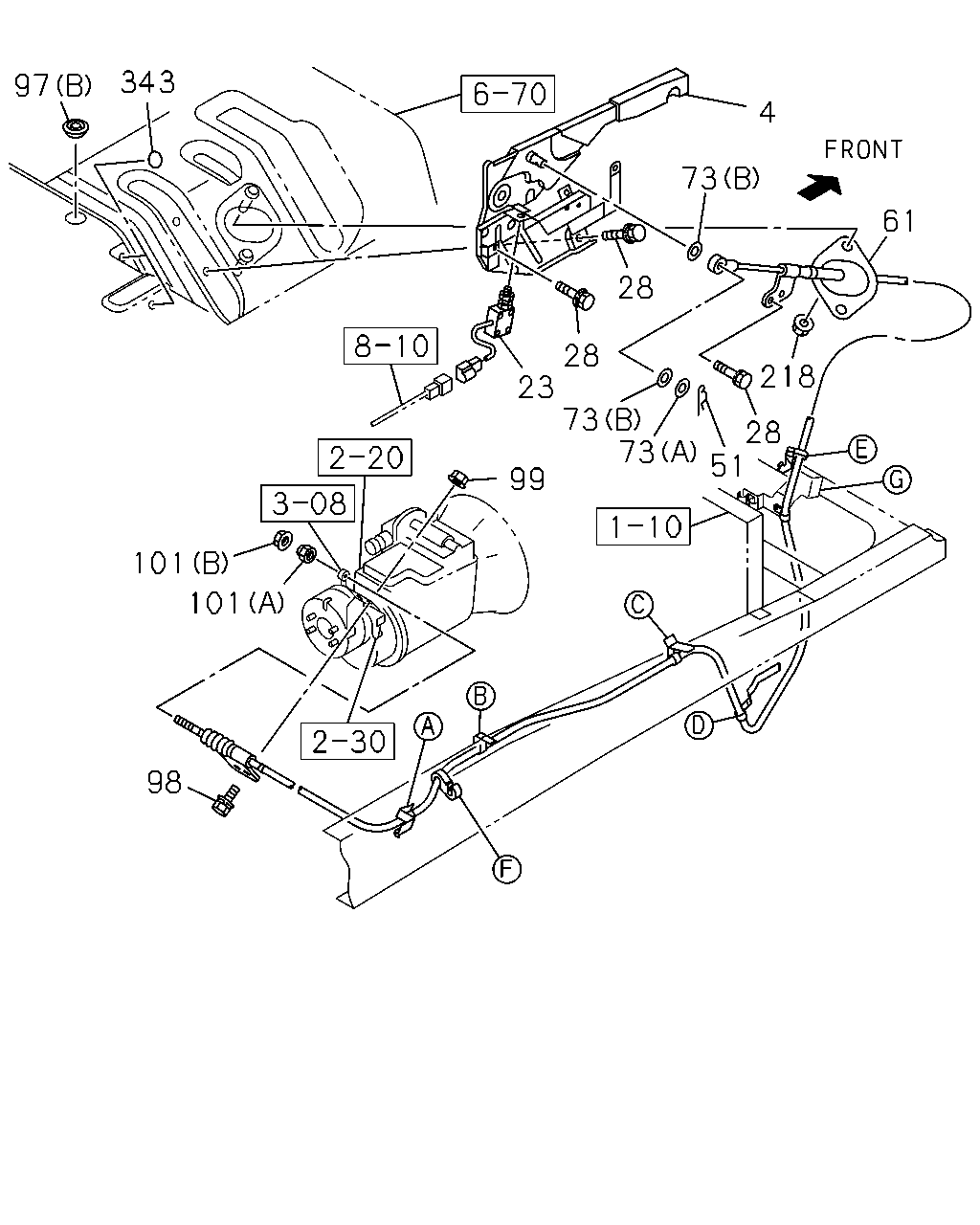

3-11 — PARKING BRAKE CONTROL (#67536) — 112 parça

97 343 101 101 98 99 73 73 28 28 28 218 73 4 61 51 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-548-0	01	1	0803-
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	0803-
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0803-0904
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	0803-
61	CABLE; PARKING BRK MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4358	8-97613-120-9	01	1	0803-0805
61	CABLE; PARKING BRK MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4358	8-98102-309-2	01	1	0806-1001
61	CABLE; PARKING BRK MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4369	8-98149-490-2	01	1	1002-
61	CABLE; PARKING BRK MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4263	8-97613-110-9	01	1	0803-0805
61	CABLE; PARKING BRK MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4263	8-98102-305-4	01	1	0806-
61	CABLE; PARKING BRK MLD6S M/T(X7W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4154	8-98115-726-4	01	1	0807-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30	0-91610-516-0	01	1	0803-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19	8-94206-429-1	02	1	0803-
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	0803-
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	0803-
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0803-
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0803-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	0803-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-46259-007-0	01	1	0803-
218	NUT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0803-
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	05	1	0803-

97 336 336 235 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	0803-
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	0803-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	0803-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X25 FLANGE	0-28650-825-0	02	1	0803-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	0803-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	01	1	0803-
228	BOLT; CLIP RAD MTG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0803-
228	BOLT; CLIP RAD MTG TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0803-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-
235	BRACKET; CONT CABLE TO FRAME MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98141-146-1	01	1	1002-
235	BRACKET; CONT CABLE TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98044-674-0	01	1	0803-0810
235	BRACKET; CONT CABLE TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98044-674-0	01	1	0803-0810
235	BRACKET; CONT CABLE TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98126-426-0	01	1	0811-
235	BRACKET; CONT CABLE TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98126-426-0	01	1	0811-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98100-152-0	01	1	0803-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98077-903-1	01	1	0803-0803
235	BRACKET; CONT CABLE TO FRAME MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98077-903-1	01	1	0804-1001
235	BRACKET; CONT CABLE TO FRAME MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98077-903-2	01	1	1002-
235	BRACKET; CONT CABLE TO FRAME MLD6S M/T(X7W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98115-318-0	01	1	0807-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98077-918-1	01	1	0803-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-965-0	01	1	0803-1309
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98080-965-0	01	1	0803-1309
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98251-969-0	01	1	1310-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98251-969-0	01	1	1310-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98080-966-0	01	1	0803-0805
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98081-003-1	01	1	0803-0901
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98139-517-0	01	1	0902-
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98065-276-0	01	1	0803-
336	BRACKET; RADIATOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (A)	8-98065-276-0	01	1	0803-

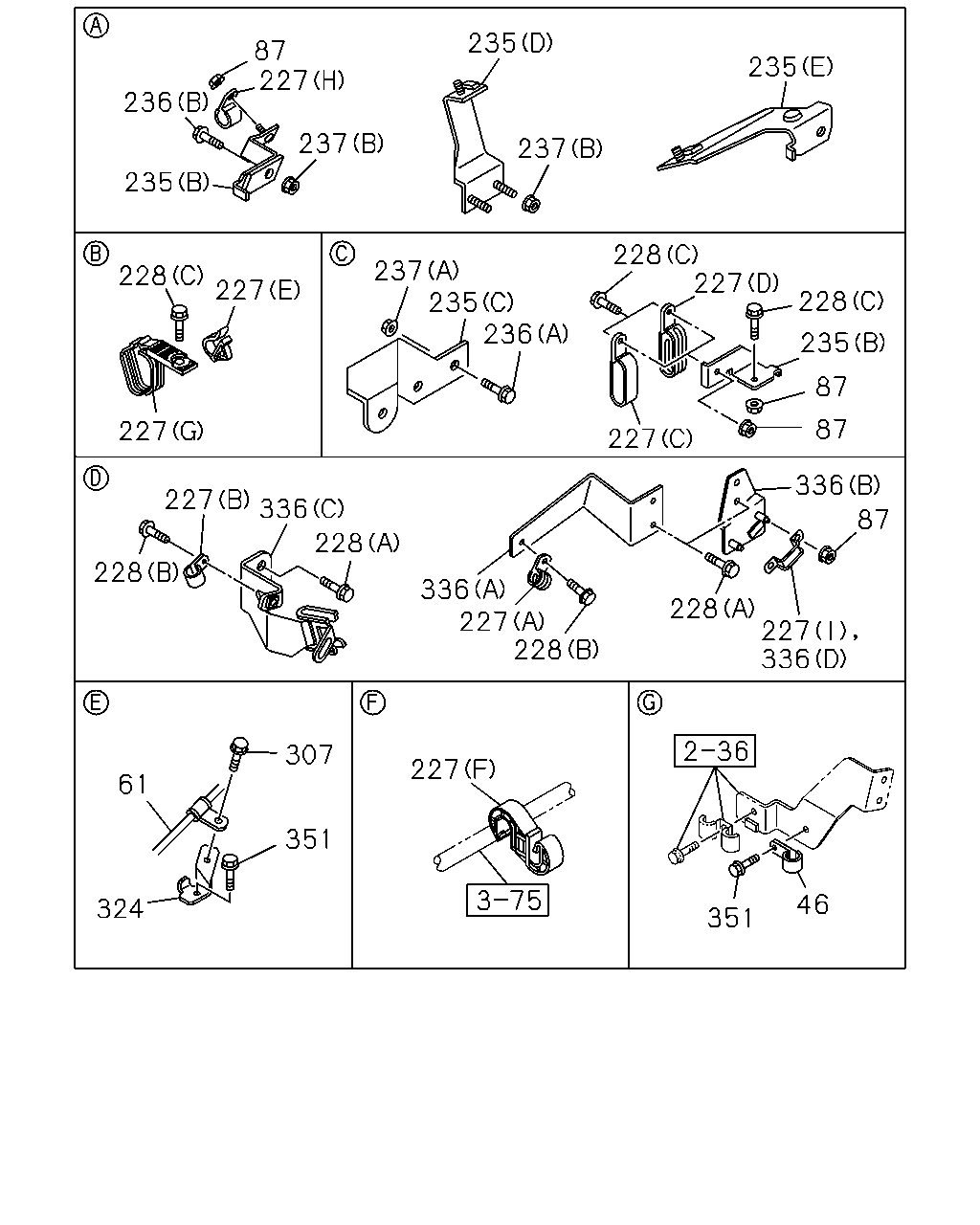

236 235 87 227 237 235 237 235 228 227 227 227 228 336 228 307 61 324 351 227 351 46 336 227 228 228 227 336 87 336 227 87 87 235 228 227 228 236 235 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	01	1	0803-
61	CABLE; PARKING BRK MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4358	8-97613-120-9	01	1	0803-0805
61	CABLE; PARKING BRK MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4358	8-98102-309-2	01	1	0806-1001
61	CABLE; PARKING BRK MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4369	8-98149-490-2	01	1	1002-
61	CABLE; PARKING BRK MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4263	8-97613-110-9	01	1	0803-0805
61	CABLE; PARKING BRK MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4263	8-98102-305-4	01	1	0806-
61	CABLE; PARKING BRK MLD6S M/T(X7W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4154	8-98115-726-4	01	1	0807-
87	NUT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0803-
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0803-
87	NUT GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0803-
227	CLIP; RAD GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (I)	8-98080-966-0	01	1	0806-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=10 & 12	1-09709-278-1	01	1	0803-0805
227	CLIP; RAD GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=14.5 L=40	1-09701-014-0	02	1	0803-
227	CLIP; RAD GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	0803-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	0803-
227	CLIP; RAD TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=14.5 L=40	1-09701-014-0	01	1	0803-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5	5-09709-020-0	01	1	0803-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0803-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=26 L=26	1-09701-236-0	01	1	0803-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=16 L=20	0-95235-535-0	01	1	0803-0803
227	CLIP; RAD MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=16 L=20	0-95235-535-0	01	1	0804-
227	CLIP; RAD TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) ID=13 L=20	0-95235-235-0	01	1	0803-0806
227	CLIP; RAD TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) ID=13 L=20	0-95235-235-0	01	1	0807-
227	CLIP; RAD MLD6S M/T(X7W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20	0-95235-235-0	01	1	0807-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	0803-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X25 FLANGE	0-28650-825-0	02	1	0803-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	0803-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	01	1	0803-
228	BOLT; CLIP RAD MTG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0803-
228	BOLT; CLIP RAD MTG TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0803-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-
235	BRACKET; CONT CABLE TO FRAME MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98141-146-1	01	1	1002-
235	BRACKET; CONT CABLE TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98044-674-0	01	1	0803-0810
235	BRACKET; CONT CABLE TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98044-674-0	01	1	0803-0810
235	BRACKET; CONT CABLE TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98126-426-0	01	1	0811-
235	BRACKET; CONT CABLE TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98126-426-0	01	1	0811-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98100-152-0	01	1	0803-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98077-903-1	01	1	0803-0803
235	BRACKET; CONT CABLE TO FRAME MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98077-903-1	01	1	0804-1001
235	BRACKET; CONT CABLE TO FRAME MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98077-903-2	01	1	1002-
235	BRACKET; CONT CABLE TO FRAME MLD6S M/T(X7W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98115-318-0	01	1	0807-
236	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	03	1	0803-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28651-030-0	01	1	0803-0803
236	BOLT; BRKT TO FRAME MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28651-030-0	01	1	0804-
237	NUT; BRKT TO FRAME MLD6S M/T(X7W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91180-210-0	02	1	0807-
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	0803-
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91180-210-0	01	1	0803-0803
237	NUT; BRKT TO FRAME MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91180-210-0	01	1	0804-
307	BOLT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	01	1	0803-
324	BRACKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-482-1	01	1	0803-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98077-918-1	01	1	0803-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-965-0	01	1	0803-1309
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98080-965-0	01	1	0803-1309
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98251-969-0	01	1	1310-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98251-969-0	01	1	1310-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98080-966-0	01	1	0803-0805
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98081-003-1	01	1	0803-0901
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98139-517-0	01	1	0902-
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98065-276-0	01	1	0803-
336	BRACKET; RADIATOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (A)	8-98065-276-0	01	1	0803-
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	03	1	0803-
