7-70 — SEPARATER AND BED (#6753) — 51 parça

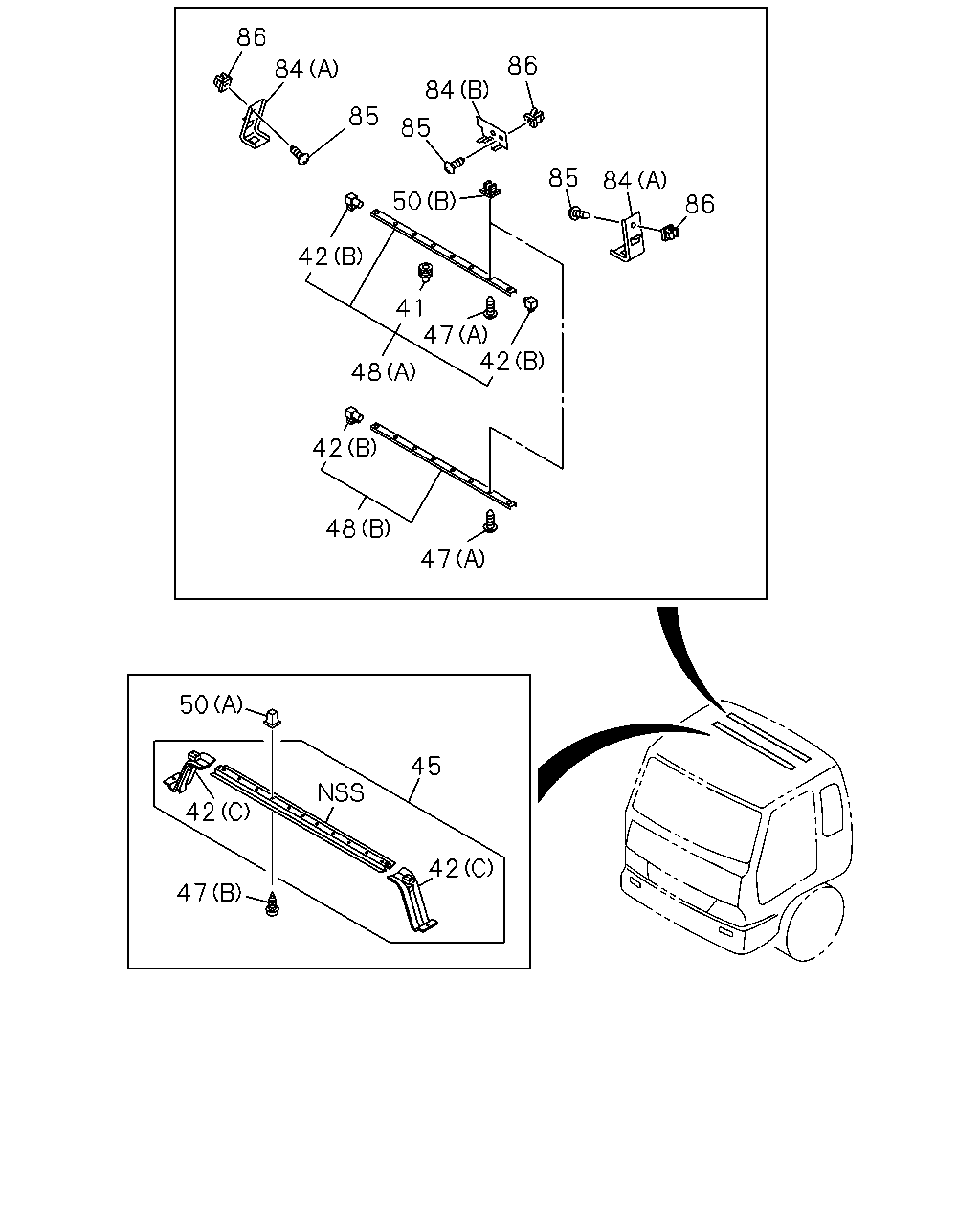

86 86 84 84 85 85 85 84 50 86 42 41 47 42 48 42 48 47 50 45 42 42 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	33	1	0011-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0011-	●	●
42	STOPPER; CURTAIN RAIL	1-73996-402-0	02	1	0011-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0011-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0011-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0011-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0011-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73996-370-0	01	1	0011-	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73996-369-0	01	1	0011-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0011-	●	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	25	1	0011-	●	●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	0011-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-386-0	01	1	0011-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-385-0	01	1	0011-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0011-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 THA	8-94279-078-0	25	1	0011-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5	1-09983-159-0	15	1	0011-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 THA	8-94279-078-0	11	1	0011-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0011-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0011-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0011-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5 THA	8-94279-078-0	09	1	0011-	●	●

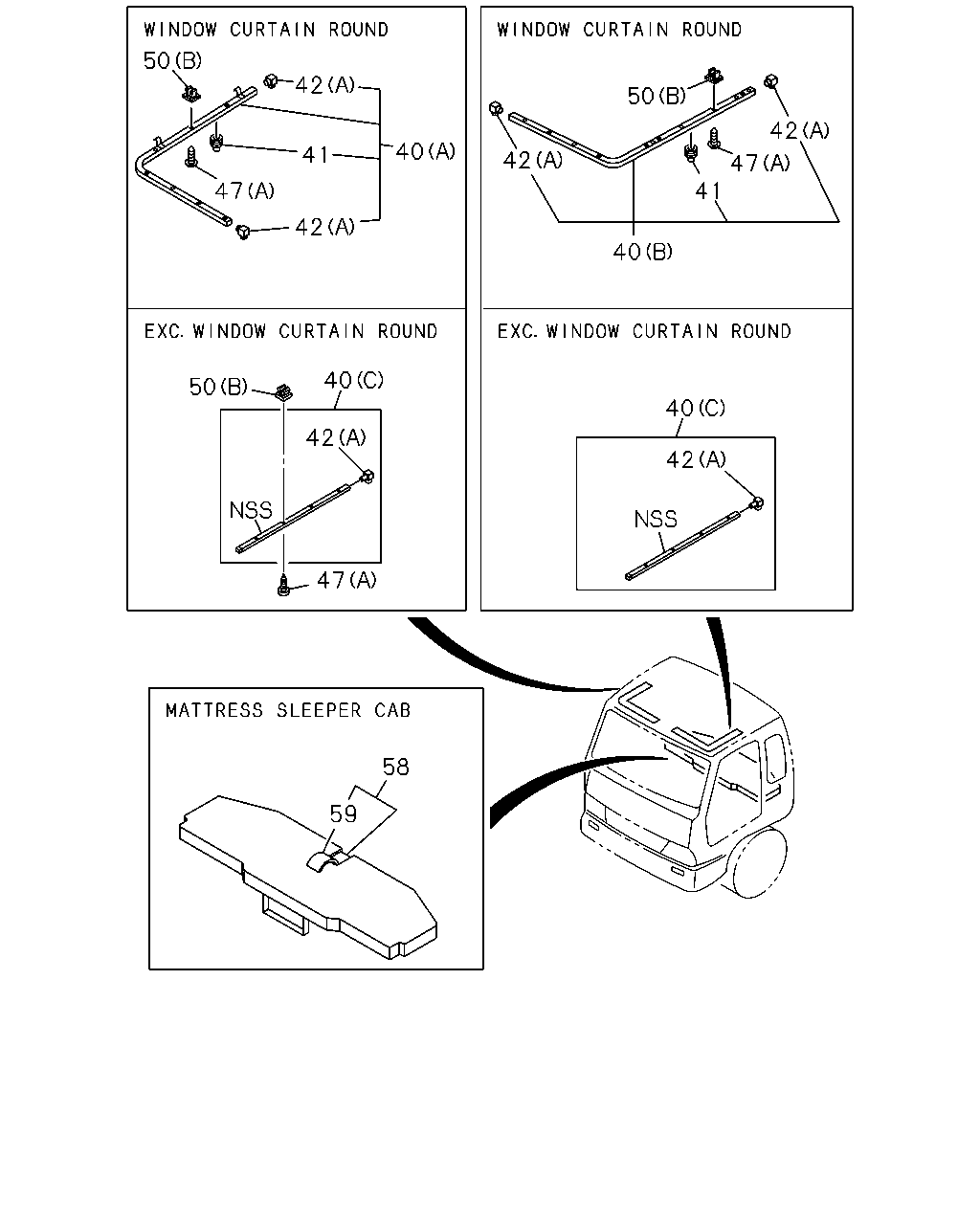

50 42 50 42 40 41 42 47 41 47 42 40 40 50 40 42 42 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (B)	1-73996-368-0	01	1	0011-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73996-367-0	01	1	0011-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-378-0	02	1	0011-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	33	1	0011-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0011-	●	●
42	STOPPER; CURTAIN RAIL	1-73996-402-0	02	1	0011-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0011-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0011-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0011-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0011-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0011-	●	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	25	1	0011-	●	●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	0011-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0011-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 THA	8-94279-078-0	25	1	0011-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5	1-09983-159-0	15	1	0011-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 THA	8-94279-078-0	11	1	0011-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> THA	8-97916-084-0	01	1	0011-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> THA	8-97921-662-0	01	1	0011-	●	●

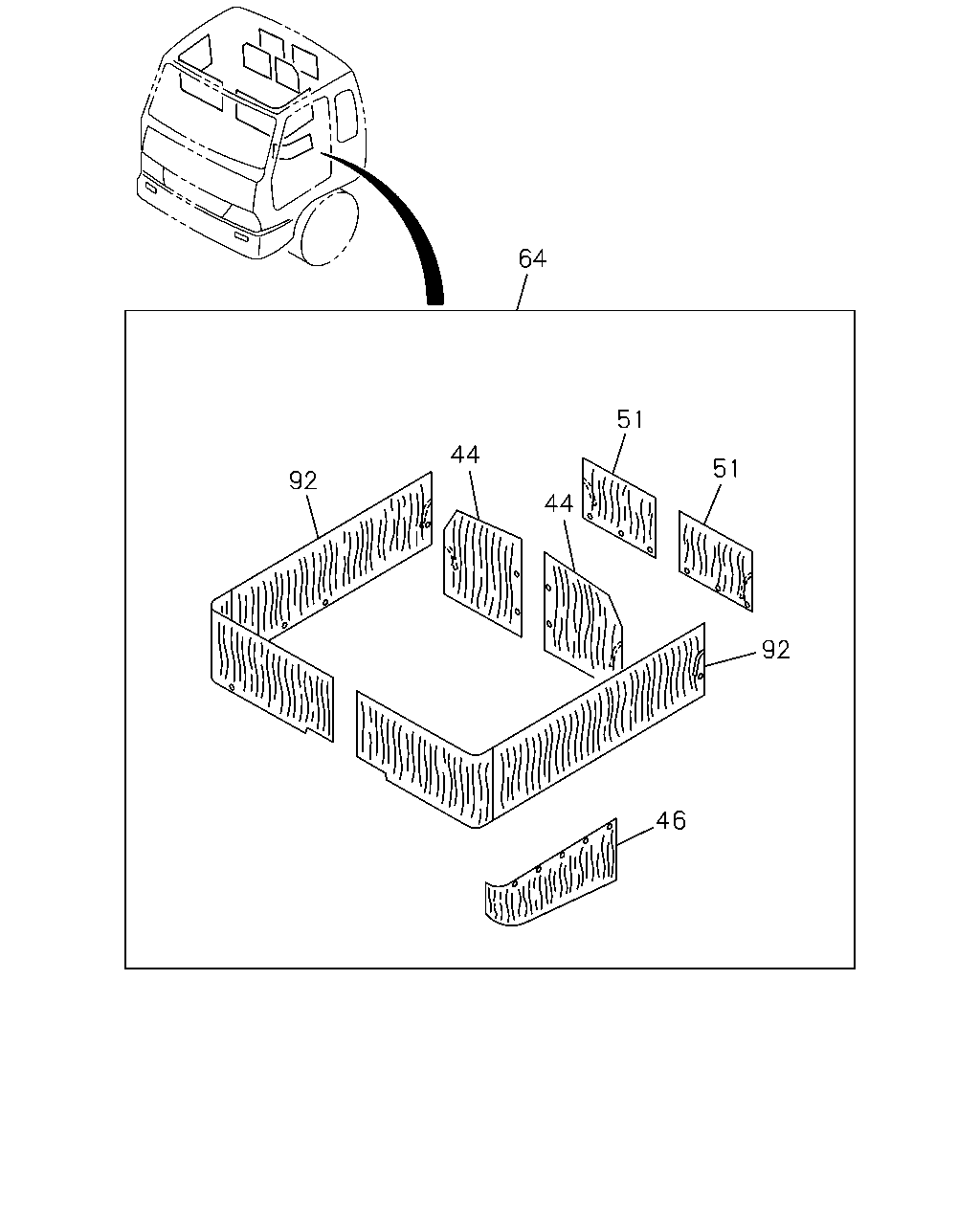

64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>	1-73908-207-0	02	1	0011-	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>	1-73908-208-0	02	1	0011-	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-208-0	01	1	0011-	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-207-0	01	1	0011-	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-303-0	02	1	0011-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-211-0	02	1	0011-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-212-0	02	1	0011-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73908-205-0	01	1	0011-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-215-0	02	1	0011-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-216-0	02	1	0011-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
