◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11138 - FRR RHD EUROPE EURO4 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#67521) — 57 parça

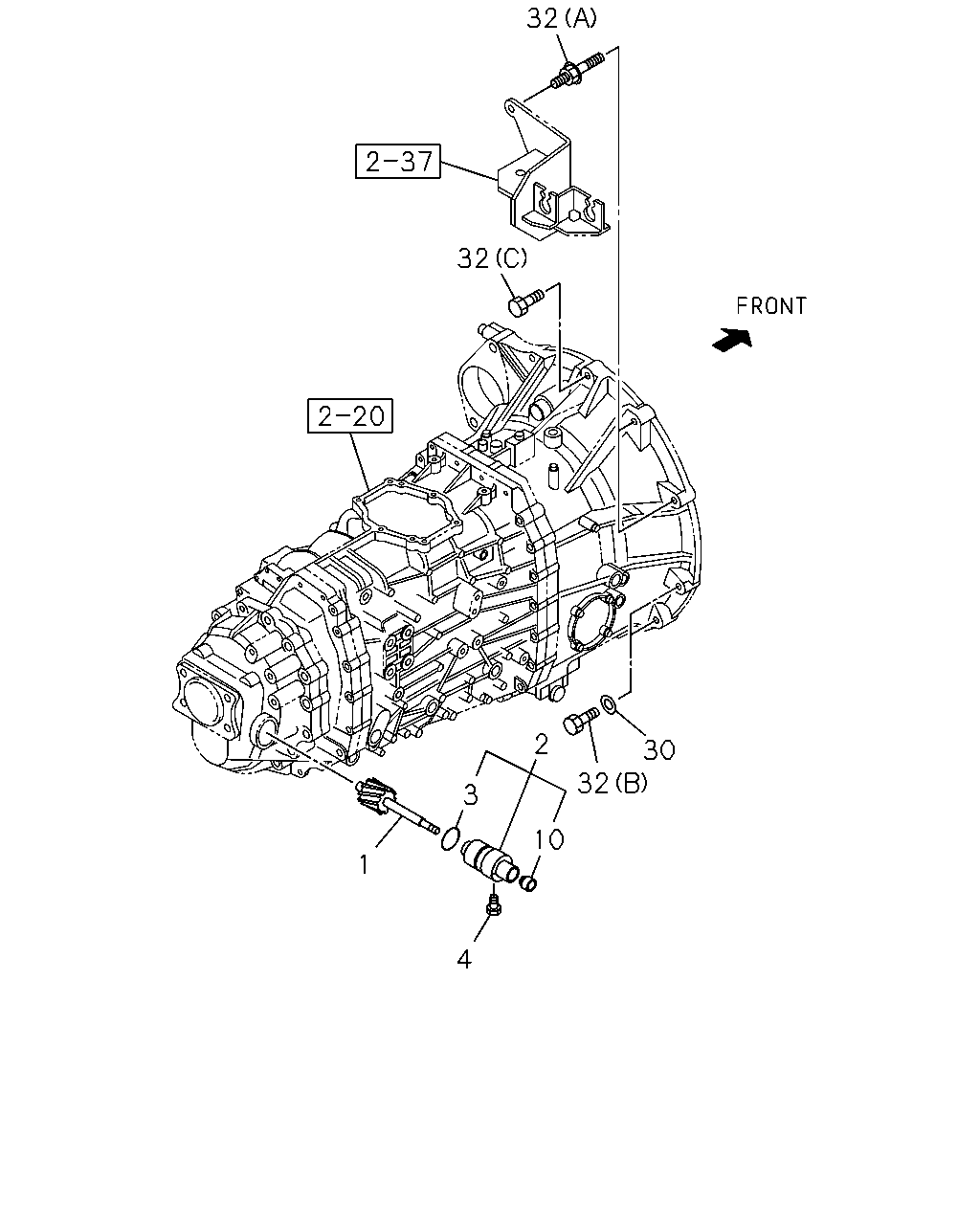

çizim 108057
4 1 3 10 32 2 30 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=15 		1-33372-133-5 02 1 0901- ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 0803-0806 ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 0807-0812 ● ●
1 GEAR; DRIVEN,SPD
14" CLUTCH(WF6) Z=15 		1-33372-133-5 01 1 0901- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-271-0 02 1 0901- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-98000-271-0 01 1 0803-0812 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
14" CLUTCH(WF6) 		8-98000-271-0 01 1 0901- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 0807- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 0803-0806 ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 0807-0812 ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) 		1-09623-246-0 01 1 0901- ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-09623-246-0 02 1 0901- ●
4 BOLT; RET,DRIVEN GEAR
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12.5 FLANGE 		8-98014-141-0 02 1 0901- ●
4 BOLT; RET,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0803-0812 ●
4 BOLT; RET,DRIVEN GEAR
14" CLUTCH(WF6) M6X12.5 FLANGE 		8-98014-141-0 01 1 0901- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0803-0806 ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0807-0812 ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) NOK 		1-09625-510-0 01 1 0901- ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) NOK 		1-09625-510-0 02 1 0901- ●
30 WASHER; PL,TRANS
ID=11 OD=24 		8-94152-902-0 02 1 1302- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE 		0-28151-045-0 06 1 0803-0806 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE 		0-28151-045-0 06 1 0807- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X50 FLANGE 		0-28151-050-0 02 1 0803-0806 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X50 FLANGE 		0-28151-050-0 02 1 0807-1301 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X55 FLANGE 		8-97365-449-0 02 1 1302- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 0803-0806 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 0807- ● ●

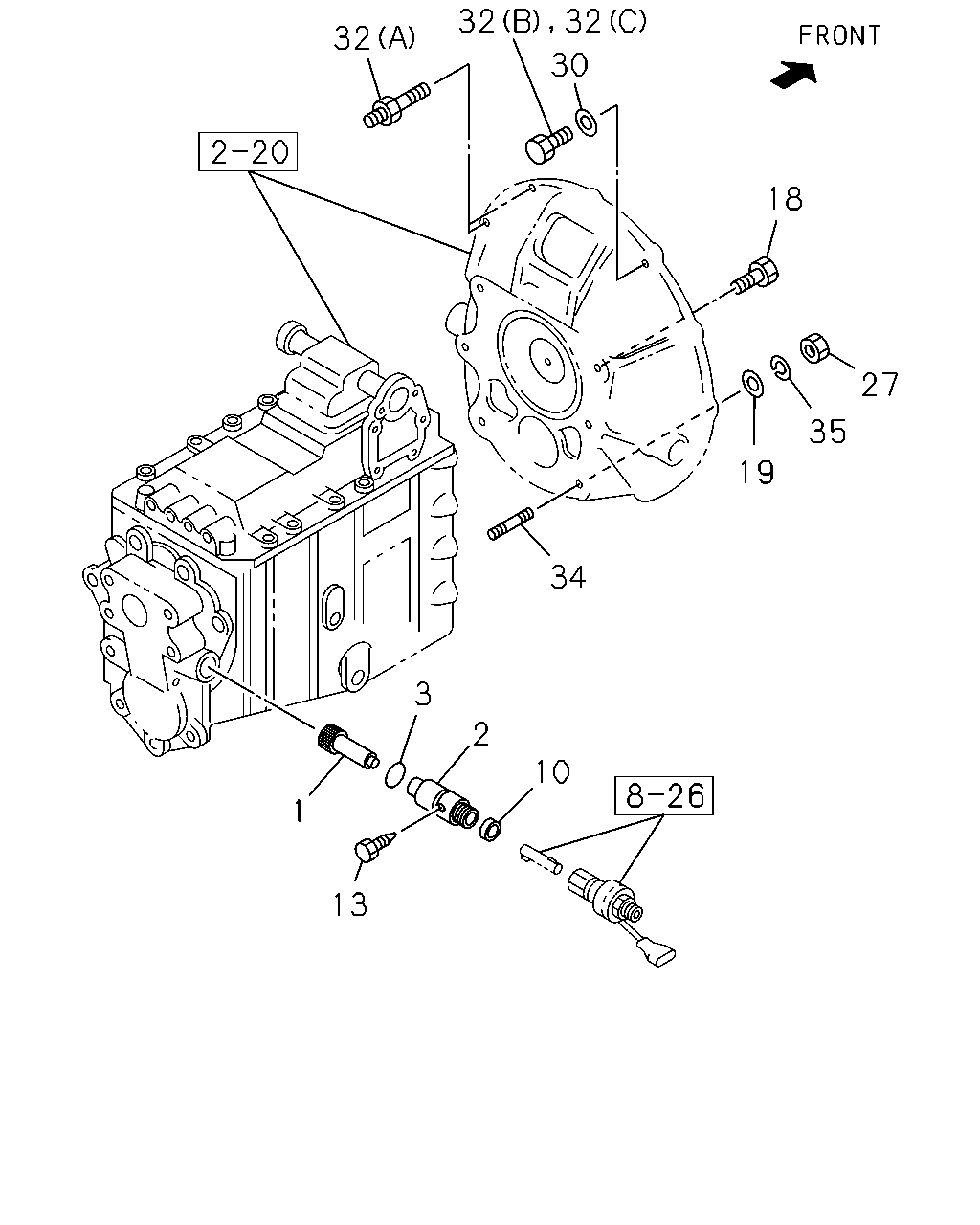

çizim 109677
13 1 10 2 3 34 19 35 27 18 30 32 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=15 		1-33372-133-5 02 1 0901- ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 0803-0806 ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 0807-0812 ● ●
1 GEAR; DRIVEN,SPD
14" CLUTCH(WF6) Z=15 		1-33372-133-5 01 1 0901- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-271-0 02 1 0901- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-98000-271-0 01 1 0803-0812 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
14" CLUTCH(WF6) 		8-98000-271-0 01 1 0901- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 0807- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 0803-0806 ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 0807-0812 ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) 		1-09623-246-0 01 1 0901- ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-09623-246-0 02 1 0901- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0803-0806 ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0807-0812 ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) NOK 		1-09625-510-0 01 1 0901- ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) NOK 		1-09625-510-0 02 1 0901- ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0807- ●
18 BOLT; CLU HSG TO TRANS 1-09033-015-0 06 1 0807- ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30 		0-91610-516-0 02 1 0807- ●
27 NUT; CLU HSG TO TRANS
M16 		0-91110-516-0 02 1 0807- ●
30 WASHER; PL,TRANS
ID=11 OD=24 		8-94152-902-0 02 1 1302- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE 		0-28151-045-0 06 1 0803-0806 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE 		0-28151-045-0 06 1 0807- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X50 FLANGE 		0-28151-050-0 02 1 0803-0806 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X50 FLANGE 		0-28151-050-0 02 1 0807-1301 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X55 FLANGE 		8-97365-449-0 02 1 1302- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 0803-0806 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 0807- ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 0807- ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		0-91510-516-0 02 1 0807- ●
