◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11138 - FRR RHD EUROPE EURO4 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶

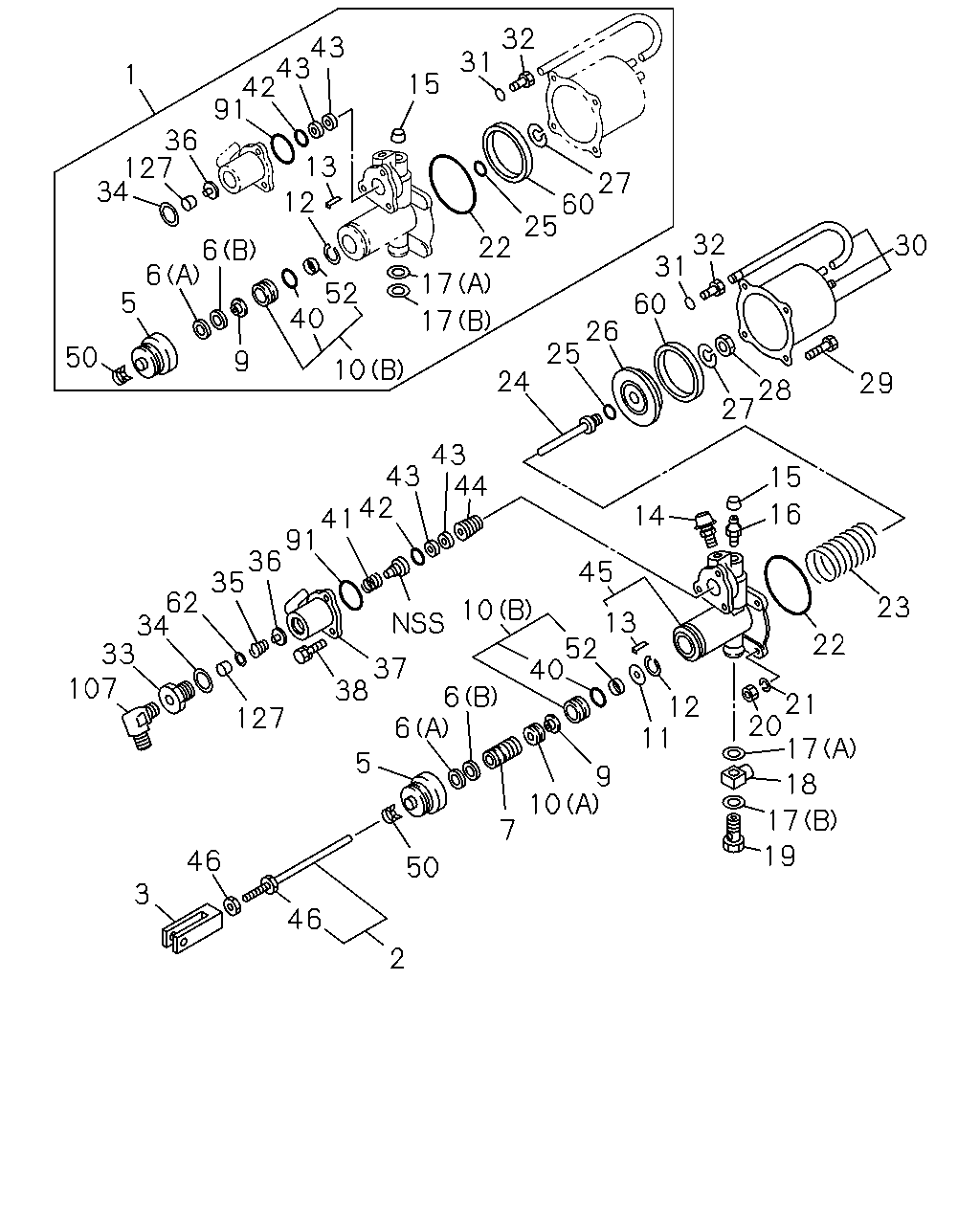

2-07 — CLUTCH BOOSTER; MINIPACK (#67517) — 190 parça

32 43 43 42 91 31 1 15 36 127 34 13 27 60 25 12 32 31 30 22 6 6 5 17 52 40 60 17 26 25 50 9 10 24 29 28 27 43 43 44 42 41 91 36 35 62 34 33 107 15 16 14 45 23 10 13 52 40 22 37 38 6 21 20 17 12 11 127 6 5 9 18 10 17 7 19 46 50 3 46 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER 14" CLUTCH(WF6)	1-31829-602-0	01	1	0803-	●
1	REPAIR KIT; CLU BOOSTER	1-31829-605-0	01	1	0807-		●
2	ROD; PUSH,CLU BOOSTER 14" CLUTCH(WF6)	1-31824-240-0	01	1	0803-0806	●
2	ROD; PUSH,CLU BOOSTER 14" CLUTCH(WF6)	1-31824-240-0	01	1	0807-0812	●
2	ROD; PUSH,CLU BOOSTER	1-31824-240-0	01	1	0807-0812		●
2	ROD; PUSH,CLU BOOSTER 14" CLUTCH(WF6)	1-31824-240-0	01	1	0901-	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-186-0	01	1	0803-0806	●
3	CLEVIS; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-186-0	01	1	0807-0812	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-186-0	01	1	0807-0812		●
3	CLEVIS; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-186-1	01	1	0901-	●	●
5	GUARD; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-503-0	01	1	0803-0806	●
5	GUARD; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-503-0	01	1	0807-0812	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	0807-0812		●
5	GUARD; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-503-0	01	1	0901-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER 14" CLUTCH(WF6) (B)	1-31829-498-0	01	1	0803-	●
6	GASKET; PISTON CUP,CLU BOOSTER 14" CLUTCH(WF6) (A)	1-31829-499-0	01	1	0803-	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-032-0	01	1	0807-		●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-033-0	01	1	0807-		●
7	PISTON; CLU BOOSTER 14" CLUTCH(WF6)	1-31821-047-0	01	1	0803-	●
7	PISTON; CLU BOOSTER	1-31821-064-0	01	1	0807-		●
9	GASKET; PISTON CUP,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-003-0	01	1	0803-0806	●
9	GASKET; PISTON CUP,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-003-0	01	1	0807-0812	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	0807-0812		●
9	GASKET; PISTON CUP,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-003-0	01	1	0901-	●	●
10	RETAINER; PISTON,CLU BOOSTER 14" CLUTCH(WF6) (B)	1-31829-107-0	01	1	0803-0806	●
10	RETAINER; PISTON,CLU BOOSTER 14" CLUTCH(WF6) (B)	1-31829-107-0	01	1	0807-0812	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-107-0	01	1	0807-0812		●
10	RETAINER; PISTON,CLU BOOSTER 14" CLUTCH(WF6) (B)	1-31829-107-0	01	1	0901-	●	●
10	RETAINER; PISTON,CLU BOOSTER 14" CLUTCH(WF6) (A)	1-31829-108-0	01	1	0803-0806	●
10	RETAINER; PISTON,CLU BOOSTER 14" CLUTCH(WF6) (A)	1-31829-108-0	01	1	0807-0812	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-108-0	01	1	0807-0812		●
10	RETAINER; PISTON,CLU BOOSTER 14" CLUTCH(WF6) (A)	1-31829-108-0	01	1	0901-	●	●
11	WASHER; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-105-0	01	1	0803-0806	●
11	WASHER; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-105-0	01	1	0807-0812	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0807-0812		●
11	WASHER; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-105-0	01	1	0901-	●	●
12	RING; RET,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-315-0	01	1	0803-0806	●
12	RING; RET,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-315-0	01	1	0807-0812	●
12	RING; RET,CLU BOOSTER	9-83315-315-0	01	1	0807-0812		●
12	RING; RET,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-315-0	01	1	0901-	●	●
13	PIN; SPR 14" CLUTCH(WF6)	1-31829-109-0	01	1	0803-0806	●
13	PIN; SPR 14" CLUTCH(WF6)	1-31829-109-0	01	1	0807-0812	●
13	PIN; SPR	1-31829-109-0	01	1	0807-0812		●
13	PIN; SPR 14" CLUTCH(WF6)	1-31829-109-0	01	1	0901-	●	●
14	COVER; EXH,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-564-0	01	1	0803-0806	●
14	COVER; EXH,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-564-0	01	1	0807-0812	●
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	0807-0812		●
14	COVER; EXH,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-564-0	01	1	0901-	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83335-044-0	01	1	0803-0806	●
15	PROTECTOR; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83335-044-0	01	1	0807-0812	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0807-0812		●
15	PROTECTOR; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83335-044-0	01	1	0901-	●	●
16	PLUG; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83331-704-0	01	1	0803-0806	●
16	PLUG; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83331-704-0	01	1	0807-0812	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0807-0812		●
16	PLUG; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83331-704-0	01	1	0901-	●	●
17	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6) (A)	9-09920-267-0	01	1	0803-0806	●
17	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6) (A)	9-09920-267-0	01	1	0807-0812	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0807-0812		●
17	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6) (A)	9-09920-267-0	01	1	0901-	●	●
17	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6) (B)	9-09920-268-0	01	1	0803-0806	●
17	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6) (B)	9-09920-268-0	01	1	0807-0812	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0807-0812		●
17	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6) (B)	9-09920-268-0	01	1	0901-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-248-0	01	1	0803-0806	●
18	CONNECTOR; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-248-0	01	1	0807-0812	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0807-0812		●
18	CONNECTOR; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-248-0	01	1	0901-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-047-0	01	1	0803-0806	●
19	BOLT; EYE,END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-047-0	01	1	0807-0812	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0807-0812		●
19	BOLT; EYE,END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-047-0	01	1	0901-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-085-0	04	1	0803-0806	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-085-0	04	1	0807-0812	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	0807-0812		●
20	NUT; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-085-0	04	1	0901-	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6) ID=8.2	9-09150-508-0	04	1	0803-0806	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6) ID=8.2	9-09150-508-0	04	1	0807-0812	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	0807-0812		●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6) ID=8.2	9-09150-508-0	04	1	0901-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-09623-327-0	01	1	0803-0806	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-09623-327-0	01	1	0807-0812	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	0807-0812		●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-09623-327-0	01	1	0901-	●	●
23	SPRING; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-358-0	01	1	0803-0806	●
23	SPRING; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-358-0	01	1	0807-0812	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	0807-0812		●
23	SPRING; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-358-0	01	1	0901-	●	●
24	ROD; PUSH,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-112-0	01	1	0803-0806	●
24	ROD; PUSH,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-112-0	01	1	0807-0812	●
24	ROD; PUSH,CLU BOOSTER	1-31829-112-0	01	1	0807-0812		●
24	ROD; PUSH,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-112-0	01	1	0901-	●	●
25	GASKET; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	1-09623-321-0	01	1	0803-0806	●
25	GASKET; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	1-09623-321-0	01	1	0807-0812	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	0807-0812		●
25	GASKET; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	1-09623-321-0	01	1	0901-	●	●
26	PISTON; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31821-083-0	01	1	0803-0806	●
26	PISTON; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31821-083-0	01	1	0807-0812	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-083-0	01	1	0807-0812		●
26	PISTON; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31821-083-0	01	1	0901-	●	●
27	SPRING; CLU BOOSTER 14" CLUTCH(WF6)	1-31829-111-0	01	1	0803-0806	●
27	SPRING; CLU BOOSTER 14" CLUTCH(WF6)	1-31829-111-0	01	1	0807-0812	●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	0807-0812		●
27	SPRING; CLU BOOSTER 14" CLUTCH(WF6)	1-31829-111-0	01	1	0901-	●	●
28	NUT; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	9-88510-365-0	01	1	0803-0806	●
28	NUT; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	9-88510-365-0	01	1	0807-0812	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	0807-0812		●
28	NUT; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	9-88510-365-0	01	1	0901-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-015-0	04	1	0803-0806	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-015-0	04	1	0807-0812	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	0807-0812		●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-015-0	04	1	0901-	●	●
30	SHELL; CYL,CLU BOOSTER 14" CLUTCH(WF6)	1-31811-123-0	01	1	0803-0806	●
30	SHELL; CYL,CLU BOOSTER 14" CLUTCH(WF6)	1-31811-123-0	01	1	0807-0812	●
30	SHELL; CYL,CLU BOOSTER	1-31811-123-0	01	1	0807-0812		●
30	SHELL; CYL,CLU BOOSTER 14" CLUTCH(WF6)	1-31811-123-0	01	1	0901-	●	●
31	GASKET; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-113-0	01	1	0803-0806	●
31	GASKET; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-113-0	01	1	0807-0812	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	0807-0812		●
31	GASKET; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-113-0	01	1	0901-	●	●
32	BUSHING; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-114-0	01	1	0803-0806	●
32	BUSHING; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-114-0	01	1	0807-0812	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	0807-0812		●
32	BUSHING; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-114-0	01	1	0901-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-212-0	01	1	0803-0806	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-212-0	01	1	0807-0812	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-212-0	01	1	0807-0812		●
33	CONNECTOR; UPR,VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-212-0	01	1	0901-	●	●
34	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-053-0	01	1	0803-0806	●
34	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-053-0	01	1	0807-0812	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0807-0812		●
34	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-053-0	01	1	0901-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-537-0	01	1	0803-0806	●
35	SPRING; POPPET VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-537-0	01	1	0807-0812	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-537-0	01	1	0807-0812		●
35	SPRING; POPPET VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-537-0	01	1	0901-	●	●
36	VALVE; POPPET,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-536-0	01	1	0803-0806	●
36	VALVE; POPPET,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-536-0	01	1	0807-0812	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-536-0	01	1	0807-0812		●
36	VALVE; POPPET,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-536-0	01	1	0901-	●	●
37	BODY; UPR,VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31811-146-0	01	1	0803-	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-138-0	01	1	0807-		●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE 14" CLUTCH(WF6)	9-83315-113-0	03	1	0803-0806	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE 14" CLUTCH(WF6)	9-83315-113-0	03	1	0807-0812	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0807-0812		●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE 14" CLUTCH(WF6)	9-83315-113-0	03	1	0901-	●	●
40	GASKET; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-037-0	01	1	0803-0806	●
40	GASKET; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-037-0	01	1	0807-0812	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0807-0812		●
40	GASKET; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-037-0	01	1	0901-1412	●	●
41	SPRING; DIAPH,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-545-0	01	1	0803-	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-420-0	01	1	0807-		●
42	GASKET; FITTING,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-507-0	01	1	0803-	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	0807-		●
43	GASKET; UPR VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-060-0	02	1	0803-0806	●
43	GASKET; UPR VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-060-0	02	1	0807-0812	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0807-0812		●
43	GASKET; UPR VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-060-0	02	1	0901-	●	●
44	PISTON; UPR VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31821-051-0	01	1	0803-	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-087-0	01	1	0807-		●
45	PLATE; END,CLU BOOSTER 14" CLUTCH(WF6)	1-31811-142-0	01	1	0803-	●
45	PLATE; END,CLU BOOSTER	1-31811-144-0	01	1	0807-		●
46	NUT; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6) M10	9-09111-410-0	02	1	0803-0806	●
46	NUT; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6) M10	9-09111-410-0	02	1	0807-0812	●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0807-0812		●
46	NUT; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6) M10	9-09111-410-0	02	1	0901-	●	●
50	CLAMP; PISTON GUARD,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-504-0	01	1	0803-1412	●
50	CLAMP; PISTON GUARD,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-504-0	01	1	1501-	●	●
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-599-0	01	1	0807-1412		●
52	SEAL; OIL,END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-118-0	01	1	0803-1412	●
60	GASKET; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-535-0	01	1	0803-0806	●
60	GASKET; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-535-0	01	1	0807-0812	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-535-0	01	1	0807-0812		●
60	GASKET; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-535-0	01	1	0901-	●	●
62	RETAINER; POPPET 14" CLUTCH(WF6)	1-31829-489-0	01	1	0803-0806	●
62	RETAINER; POPPET 14" CLUTCH(WF6)	1-31829-489-0	01	1	0807-0812	●
62	RETAINER; POPPET	1-31829-489-0	01	1	0807-0812		●
62	RETAINER; POPPET 14" CLUTCH(WF6)	1-31829-489-0	01	1	0901-	●	●
91	GASKET; CLU BOOSTER 14" CLUTCH(WF6)	1-31829-103-0	01	1	0803-0806	●
91	GASKET; CLU BOOSTER 14" CLUTCH(WF6)	1-31829-103-0	01	1	0807-0812	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0807-0812		●
91	GASKET; CLU BOOSTER 14" CLUTCH(WF6)	1-31829-103-0	01	1	0901-	●	●
107	CONNECTOR; ELBOW 14" CLUTCH(WF6)	1-09650-358-1	01	1	0803-0806	●
107	CONNECTOR; ELBOW 14" CLUTCH(WF6)	1-09650-358-1	01	1	0807-0812	●
107	CONNECTOR; ELBOW	1-09650-358-1	01	1	0807-0812		●
107	CONNECTOR; ELBOW 14" CLUTCH(WF6)	1-09650-358-1	01	1	0901-	●	●
127	FILTER; POPPET 14" CLUTCH(WF6)	1-31829-495-0	01	1	0803-0806	●
127	FILTER; POPPET 14" CLUTCH(WF6)	1-31829-495-0	01	1	0807-0812	●
127	FILTER; POPPET	1-31829-495-0	01	1	0807-0812		●
127	FILTER; POPPET 14" CLUTCH(WF6)	1-31829-495-0	01	1	0901-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
