7-50 — FRONT SEAT (#6751) — 74 parça

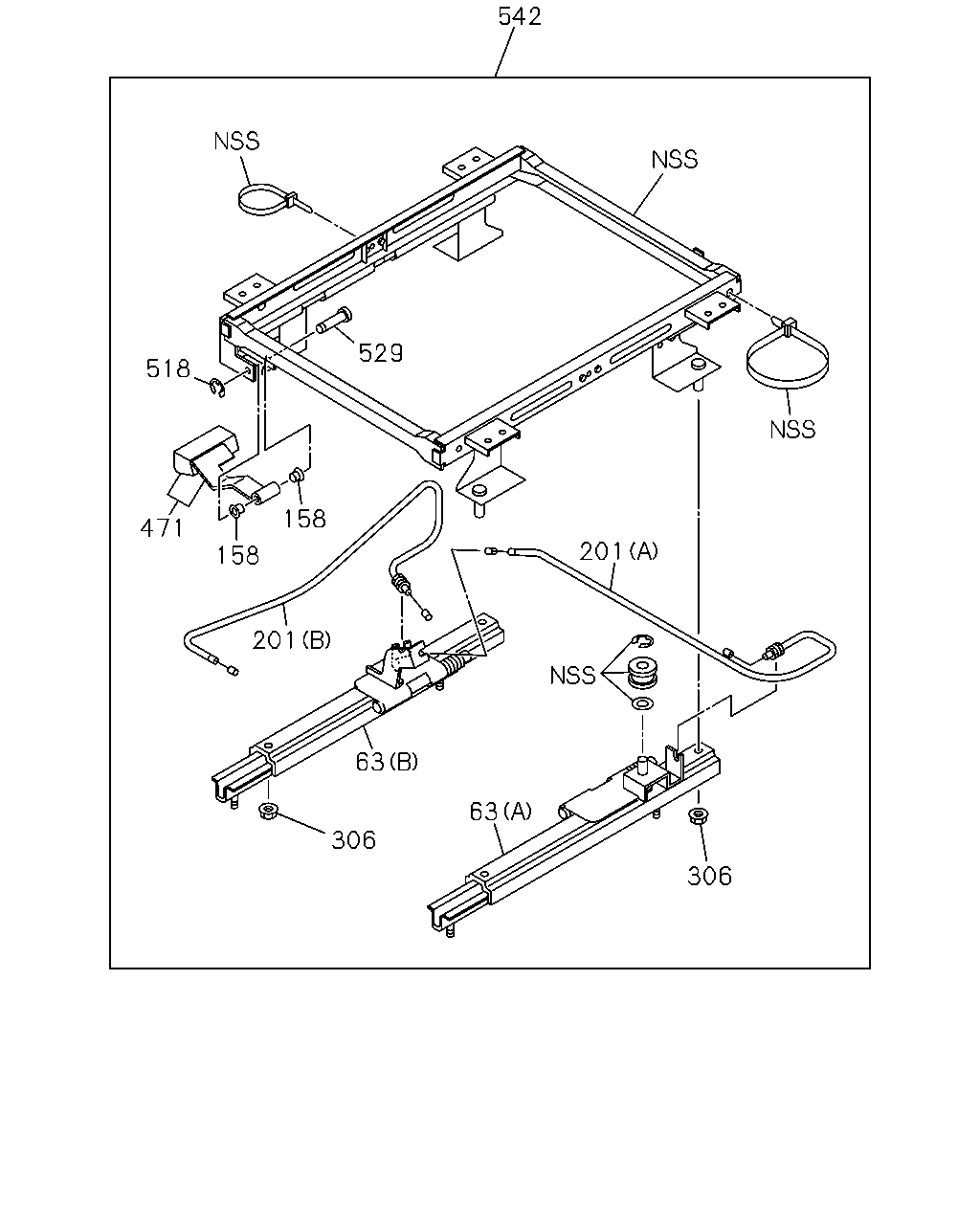

çizim 41246
542 529 518 158 471 201 158 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date A B
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> (A) THA 		1-75518-199-0 01 1 0011- ● ●
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> (B) THA 		1-75518-294-0 01 1 0011- ● ●
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST<TAZ> THA 		1-75518-209-0 02 1 0011- ● ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) L=667 THA 		1-75518-288-0 01 1 0011- ● ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (B) L=605 THA 		1-75518-289-0 01 1 0011- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA 		1-75538-207-0 04 1 0011- ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> THA 		1-75518-291-0 01 1 0011- ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> THA 		1-75518-263-0 01 1 0011- ● ●
529 PIN; LINK
RIGID SEAT WO/ARM REST<TAZ> THA 		1-75518-262-0 01 1 0011- ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> THA 		1-75518-282-1 01 1 0011- ● ●
çizim 42009
506 360 175 176 188 16 189 188 359 403 179 182
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
THA 		1-75418-062-0 01 1 0011- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
THA 		8-97917-800-0 01 1 0011- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
THA 		8-97917-801-0 01 1 0011- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
THA 		8-97917-797-0 01 1 0011- ● ●
182 CUSHION ASM; CENTER SEAT
THA 		8-97917-796-0 01 1 0011- ● ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE THA 		8-97917-806-0 04 1 0011- ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
THA 		8-97917-184-0 01 1 0011- ● ●
359 BOX; PARCEL
THA 		8-97913-527-1 01 1 0011- ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0011- ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0011- ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0011- ● ●
403 NUT; CENTER SEAT
M8 FLANGE THA 		8-94279-518-0 04 1 0011-0312 ● ●
403 NUT; CENTER SEAT
M8 FLANGE THA 		1-75538-207-0 04 1 0401- ● ●
506 CAP; PARCEL BOX
THA 		8-97913-528-0 04 1 0011- ● ●
çizim 43804
359 533 535 365 98 360 537 360 536 534 360 538 359
BalonParca AdiParca NoAdetTipApplied Date A B
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0011- ● ●
359 BOX; PARCEL
THA 		8-97913-527-1 01 1 0011- ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0011- ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0011- ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0011- ● ●
365 LOCK ASM; SEAT
THA 		8-97914-856-1 01 1 0011- ● ●
533 LID; PARCEL BOX
THA 		8-97913-539-0 01 1 0011- ● ●
534 STRIKER; PARCEL BOX
THA 		8-97913-529-0 01 1 0011- ● ●
535 HINGE; PARCEL BOX
THA 		8-97913-533-0 01 1 0011- ● ●
536 RUBBER; CUSHION
THA 		8-97914-858-0 02 1 0011- ● ●
537 BRACKET; RUBBER
THA 		8-97914-859-0 02 1 0011- ● ●
538 GROMMET; SCREW
THA 		8-97914-867-0 02 1 0011- ● ●

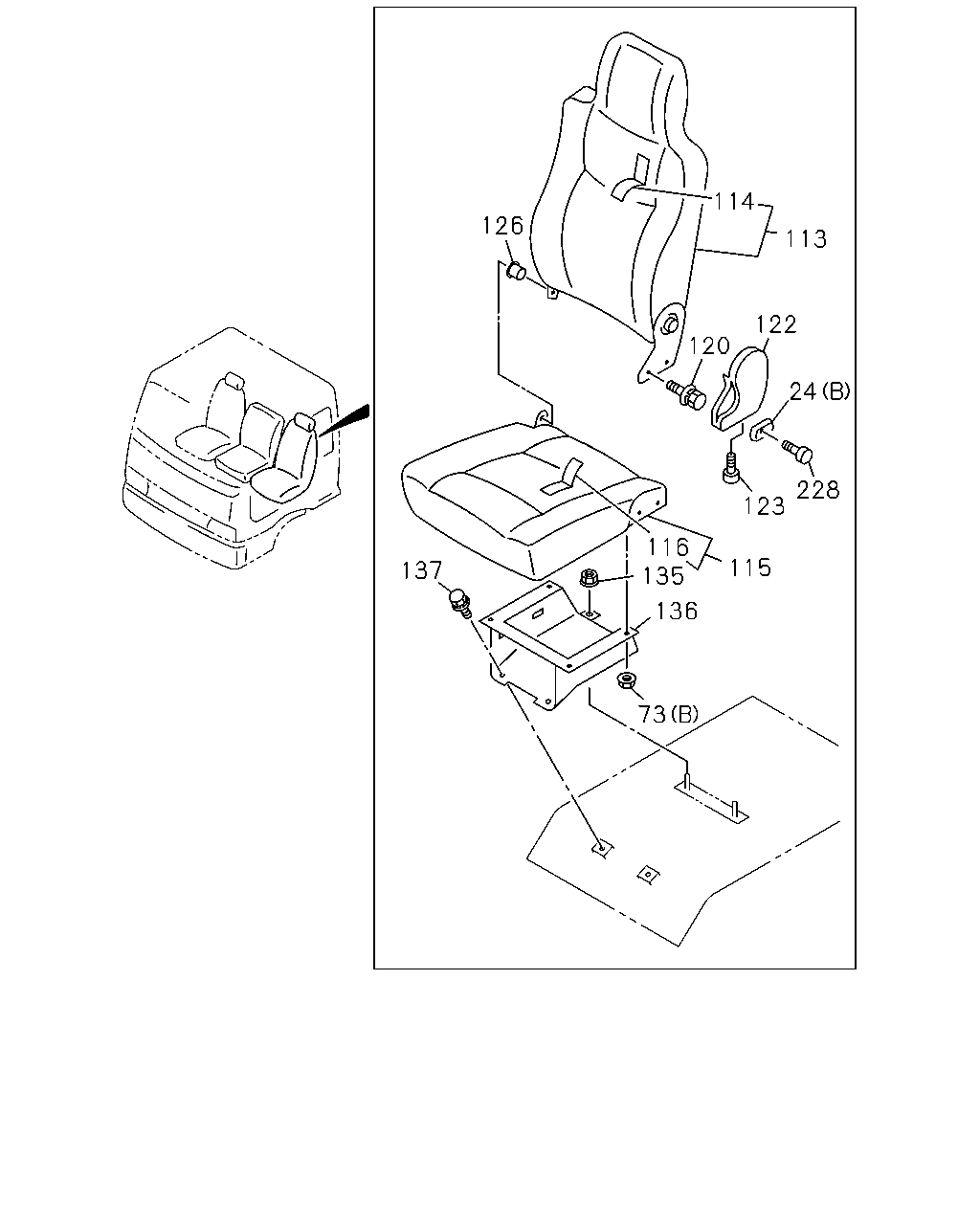

çizim 44037
114 126 113 122 120 24 228 123 116 135 115 137 136 73
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT
THA 		8-97913-536-0 02 1 0011- ● ●
24 KNOB; RECLINING,FRT,SEAT
RIGID SEAT WO/ARM REST<TAZ> (A) THA 		8-97913-535-0 01 1 0011- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE THA 		1-75538-207-0 04 1 0011- ● ●
73 NUT; ADJ,HEIGHT CONT
(B) M8 FLANGE THA 		8-94279-504-1 04 1 0011- ● ●
73 NUT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE THA 		1-75538-207-0 08 1 0011- ● ●
113 BACK ASM; SEAT
THA 		8-97917-790-0 02 1 0011- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97917-791-0 02 1 0011- ● ●
115 CUSHION ASM; PASSENGER SEAT
THA 		8-97917-786-0 02 1 0011- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
THA 		8-97917-787-0 02 1 0011- ● ●
120 BOLT; RECLINING ADJ
THA 		8-97921-465-0 02 1 0011- ● ●
120 BOLT; RECLINING ADJ
THA 		8-97917-783-0 02 1 0011- ● ●
122 COVER; ADJ,RECLINING
THA 		8-97913-526-0 02 1 0011- ● ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0011- ● ●
126 BUSHING; HINGE,RECLINING
THA 		8-97916-793-0 02 1 0011- ● ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0011- ● ●
136 STAND; PASSENGER SEAT
THA 		1-75558-547-2 02 1 0011- ● ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0011- ● ●
228 SCREW; KNOB
THA 		8-97917-784-0 02 1 0011- ● ●
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97917-784-0 01 1 0011- ● ●

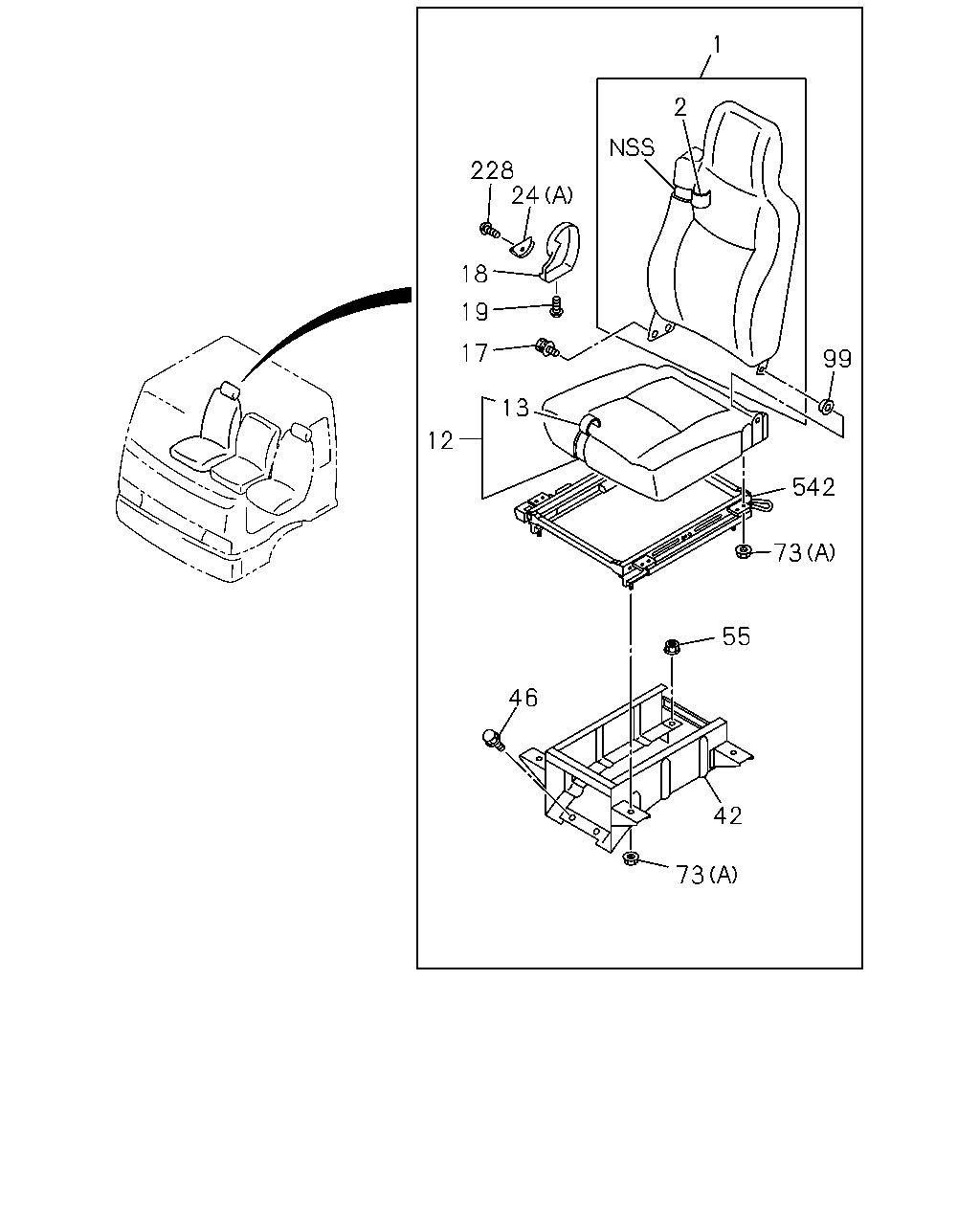

çizim 44141
1 2 228 24 18 19 17 99 13 12 542 73 55 46 42 73
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97917-940-0 01 1 0011- ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97917-941-0 01 1 0011- ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97917-938-1 01 1 0011- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97917-939-0 01 1 0011- ● ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97921-465-0 02 1 0011- ● ●
18 COVER; RECLINING
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97913-525-0 01 1 0011- ● ●
19 SCREW; COVER
RIGID SEAT WO/ARM REST<TAZ> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0011- ● ●
24 KNOB; RECLINING,FRT,SEAT
THA 		8-97913-536-0 02 1 0011- ● ●
24 KNOB; RECLINING,FRT,SEAT
RIGID SEAT WO/ARM REST<TAZ> (A) THA 		8-97913-535-0 01 1 0011- ● ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> THA 		1-75558-604-0 01 1 0011- ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0011- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0011- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE THA 		1-75538-207-0 04 1 0011- ● ●
73 NUT; ADJ,HEIGHT CONT
(B) M8 FLANGE THA 		8-94279-504-1 04 1 0011- ● ●
73 NUT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE THA 		1-75538-207-0 08 1 0011- ● ●
99 BUSHING; SEAT BACK
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97916-793-0 01 1 0011- ● ●
228 SCREW; KNOB
THA 		8-97917-784-0 02 1 0011- ● ●
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97917-784-0 01 1 0011- ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> THA 		1-75518-282-1 01 1 0011- ● ●
